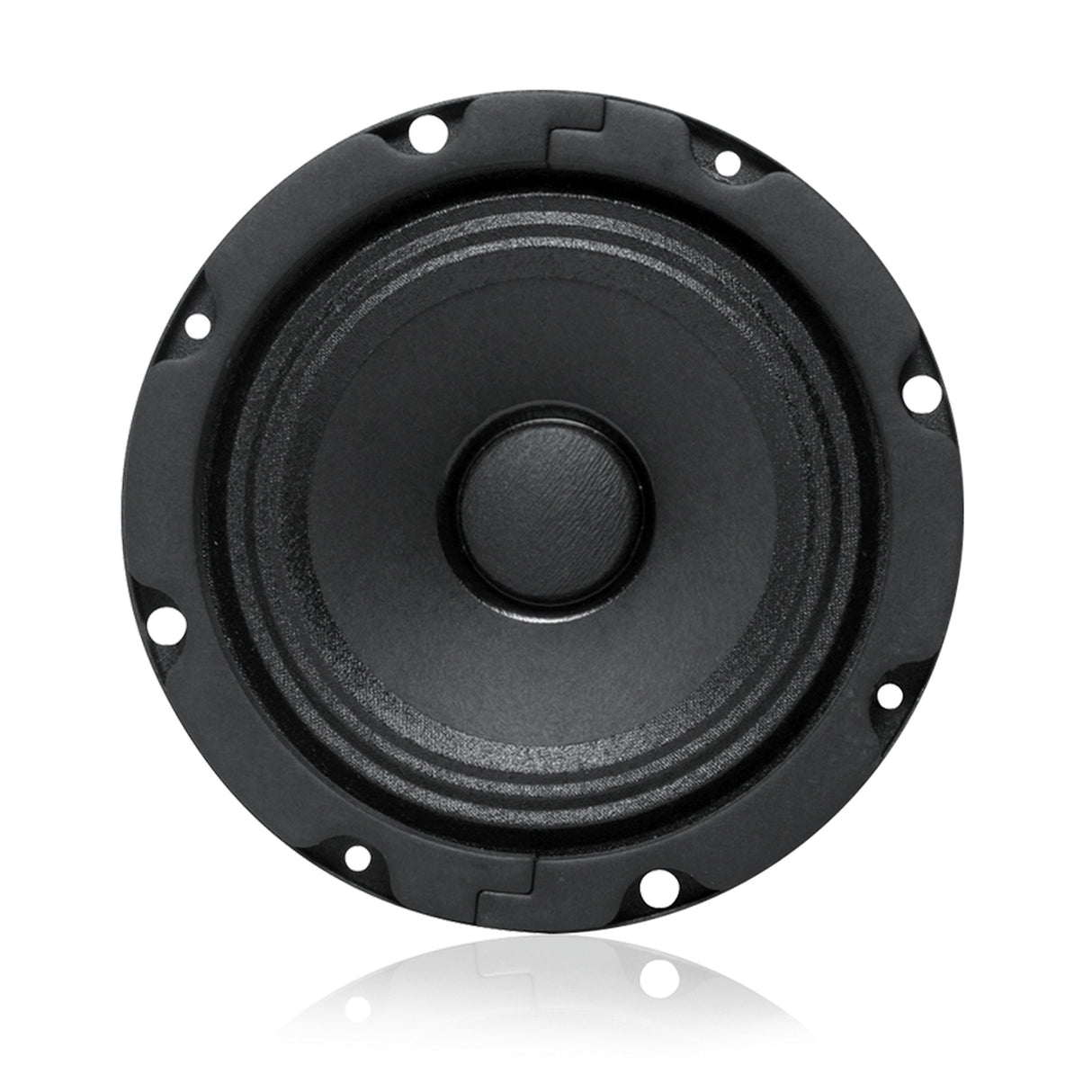

AtlasIED FC104T72 4-Inch In-Ceiling Speaker with 4-Watt 25V/70V Transformer
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
AtlasIED FC104T72 4-Inch Ceiling Speaker with 4W 70V Transformer
The AtlasIED FC104T72 is a compact 4" full-range speaker equipped with a factory-installed LT-72 4W 70V transformer. Designed for public address and background music systems, this high-compliance driver delivers efficient low-frequency reproduction and a wide 135Ā° dispersion angle for optimal coverage in distributed audio applications.
With a sensitivity of 94dB and frequency response from 100Hz to 10kHz, the FC104T72 is an ideal choice for installations requiring high intelligibility and cost-effective sound distribution. This unit features a dual-purpose transformer bracket for secure mounting and compatibility with AtlasIED grille assemblies. It is also UL1480 and UL2043 certified for general signaling and air handling spaces.
Key Features
- Built-In LT-72 Transformer: Supports 70V systems with 0.5 to 4W tap settings
- High-Compliance Driver: Damped cone delivers smooth low-end and broad frequency range
- Wide Dispersion: 135Ā° coverage minimizes speaker count in distributed systems
- UL Certified: Listed for general signaling (UL1480) and plenum spaces (UL2043)
Technical Specifications
- Model: FC104T72
- Power Taps: 0.5, 1, 2, 4W @ 70V
- Sensitivity: 94dB (1W/1m)
- Frequency Response: 100Hz ā 10kHz
- Dispersion: 135Ā° (-6dB @ 2kHz octave)
- Dimensions: 6.5 x 6.5 x 4.0 inches (165 x 165 x 102 mm)
- Shipping Weight: 2.67 lbs (1.21 kg)
- Certifications: UL1480, UL2043
- Warranty: 5 years
