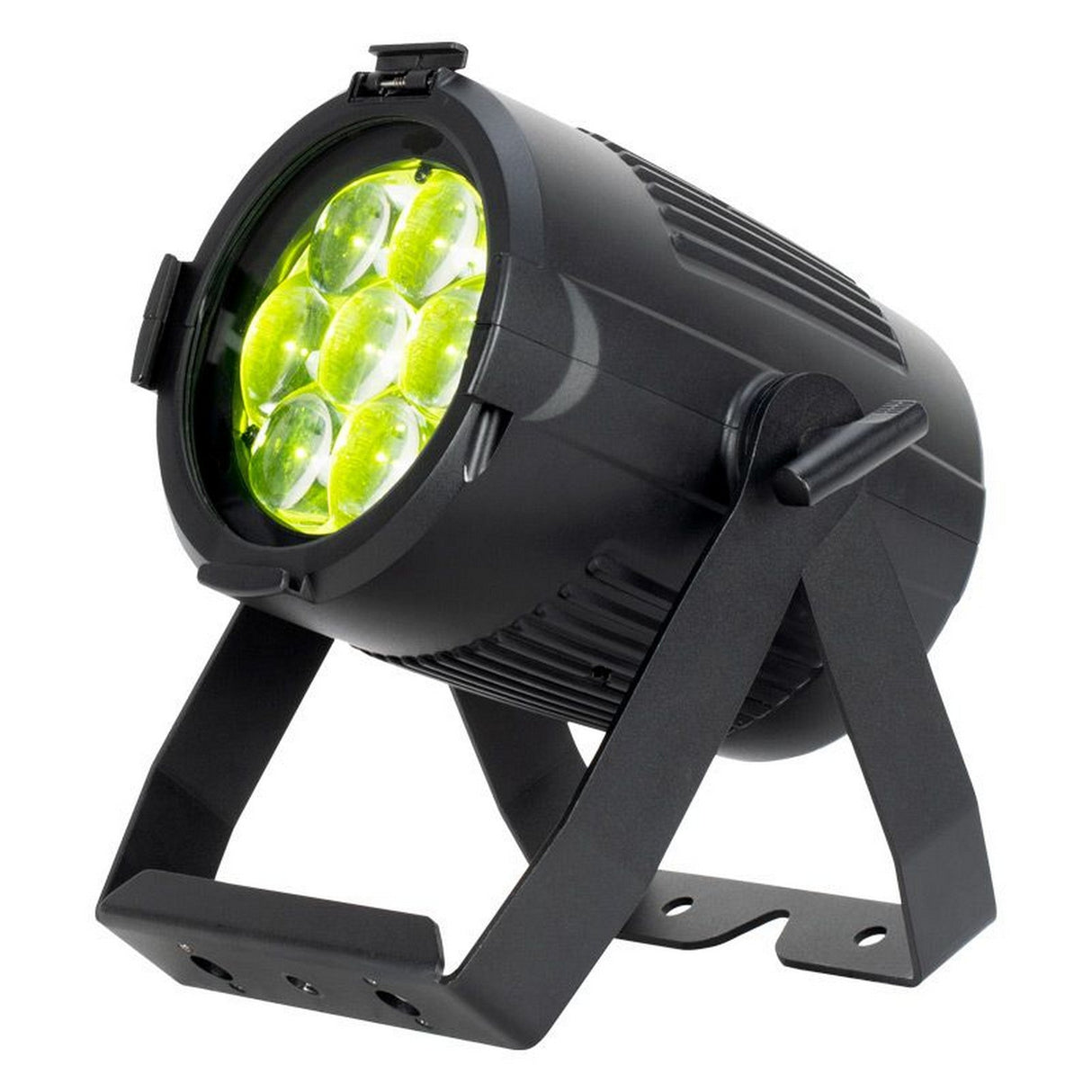

ADJ Encore Z7LP 7 x 20-Watt 4-In-1 Color Mixing RGBL LED Par Fixture

ADJ | SKU: ADJ-ENCOREZ7LP-ENC382
$82999

Free Shipping

Estimated Shipping Widget will be displayed here! (with custom color)

Condition: New


ADJ Encore Z7LP 7 x 20-Watt 4-In-1 Color Mixing RGBL LED Par Fixture

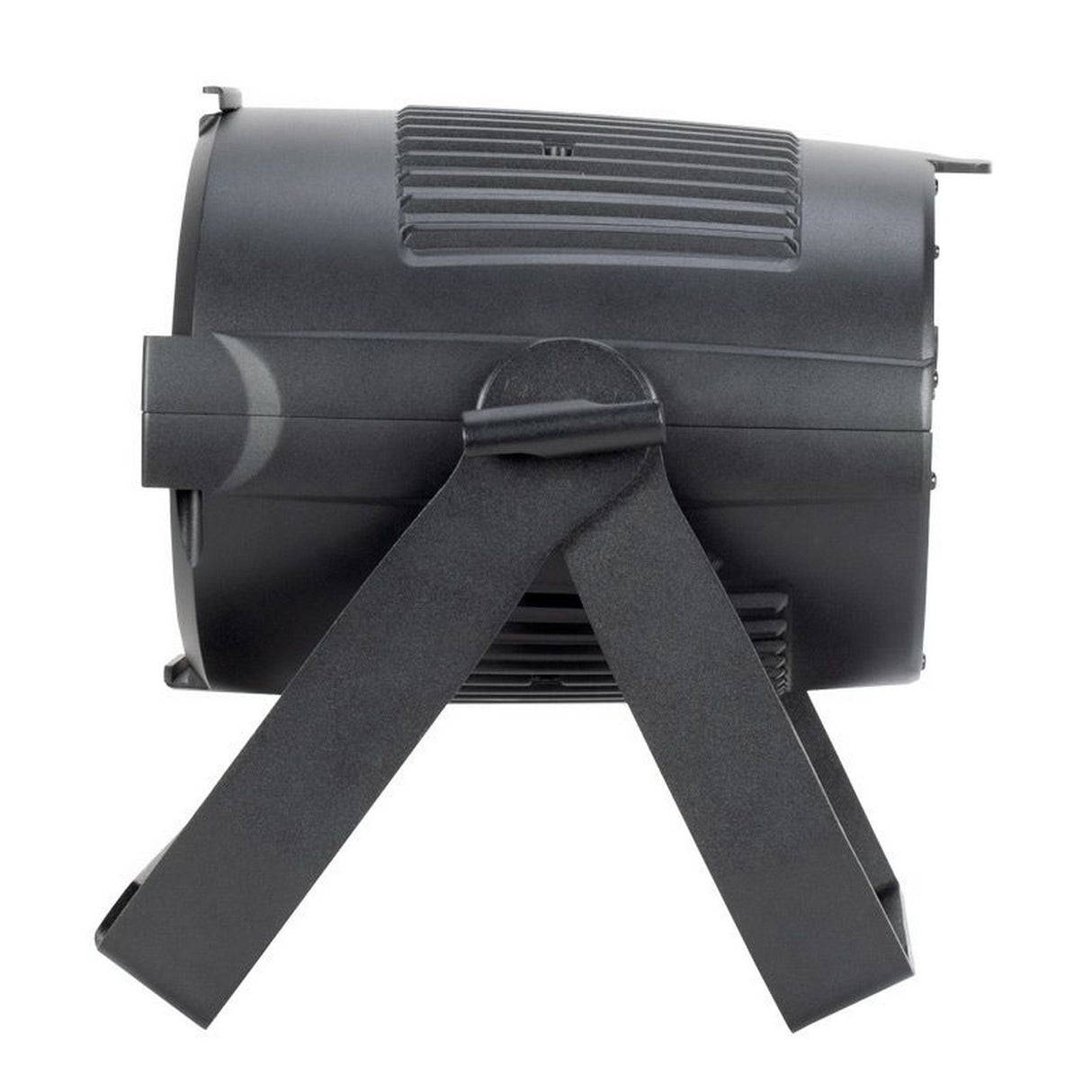

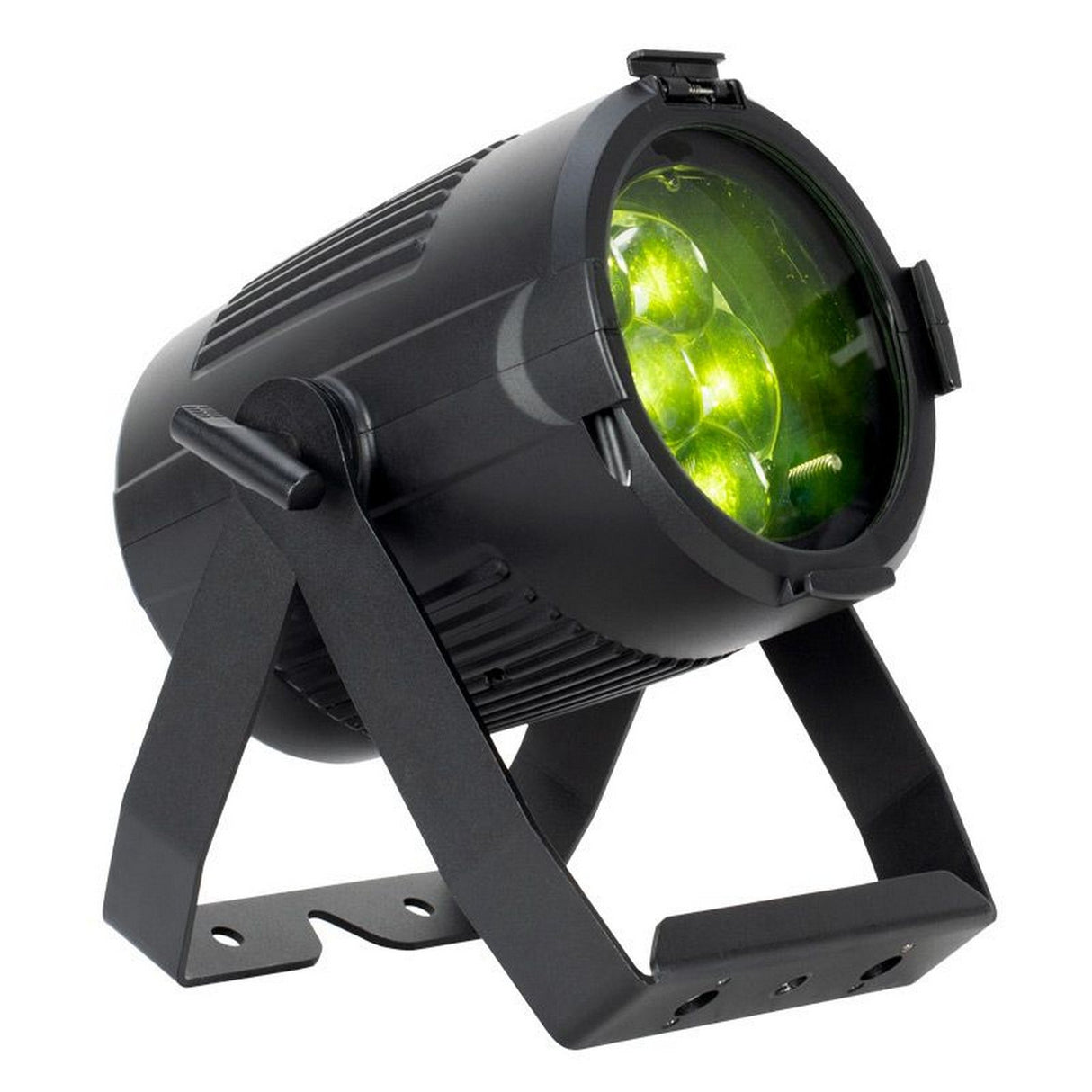

Part of ADJ’s Lime Par series of LED fixtures, the Encore Z7LP is a compact and versatile professional par fixture. Its motorized zoom function allows the beam angle to be adjusted remotely via DMX between a concise 5-degrees and a wide 50-degrees. This means that the fixture can be easily utilized both to create a tight pool of light or broad wash, even switching between the two for different scenes of the same production. The fixture is supplied with a variable angle scissor yoke, which can be used either as a floor stand or hanging bracket, as well as a barn door accessory for directing the light output.

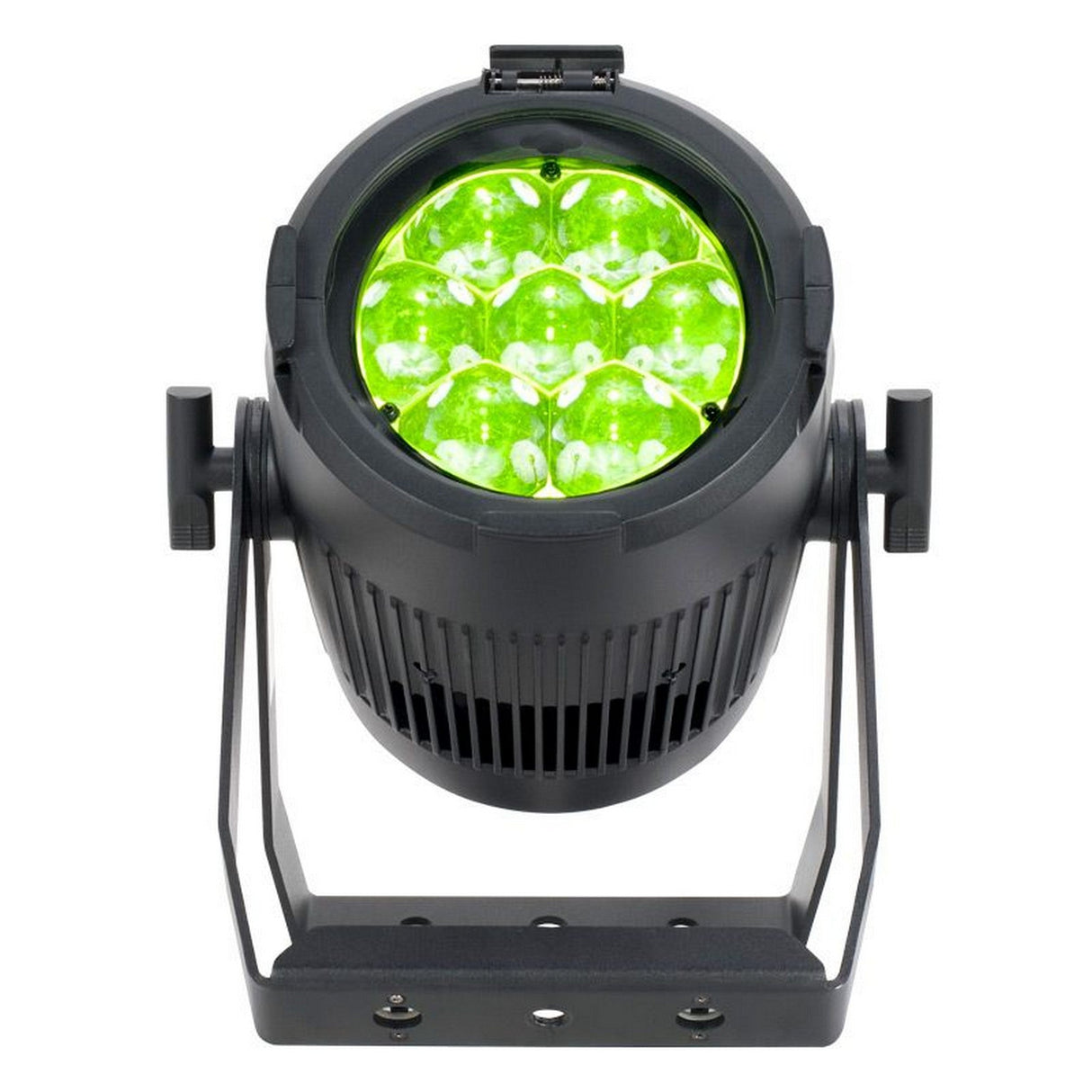

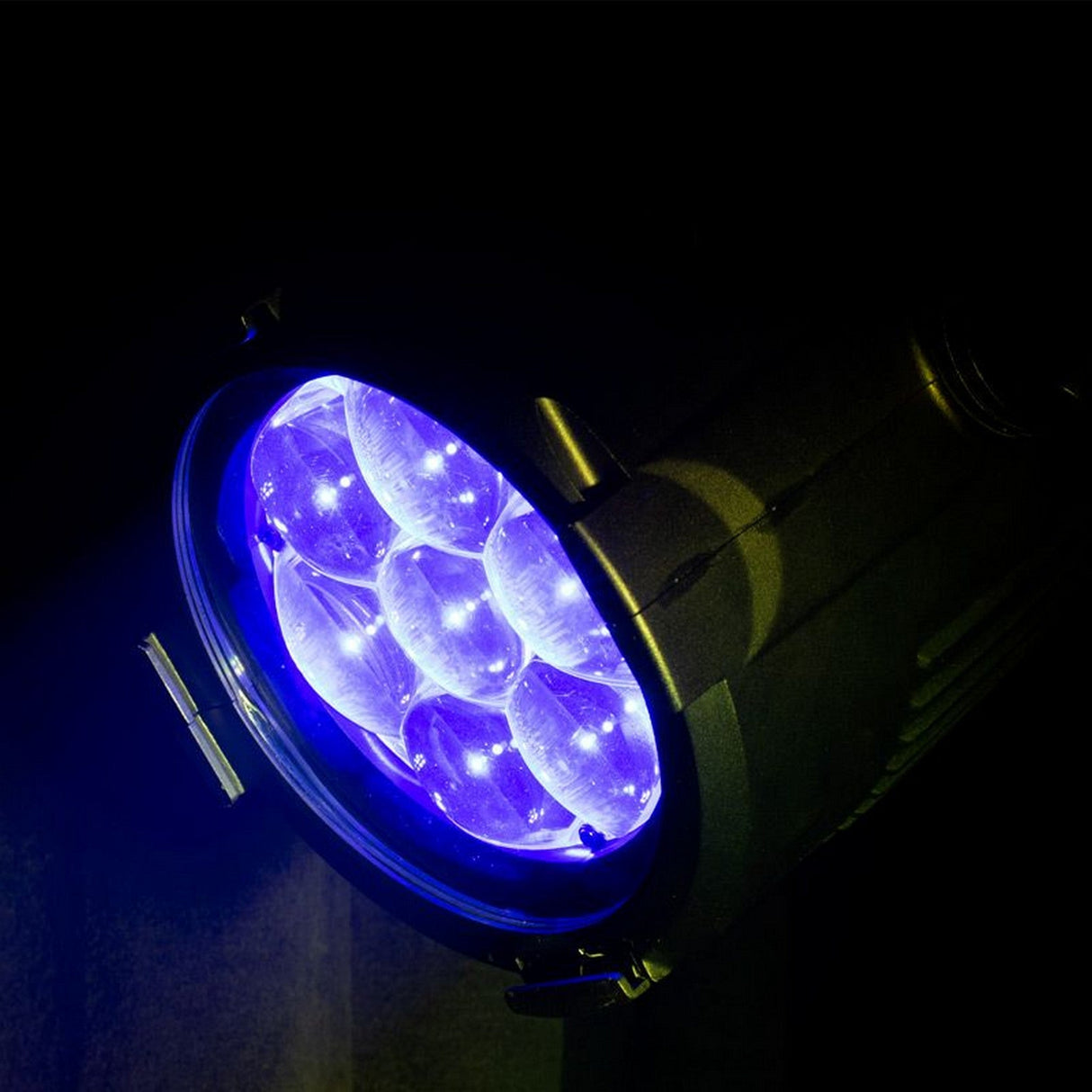

The unit’s light source comprises 7 high output 4-in-1 color mixing LEDs that each include individually controllable red, green, blue and lime elements. Each LED is rated at 20-Watts and offers a wide variety of color options achieved through mixing the four primary colors at varying levels of intensity. These include white light with a variable color temperature of 2700K to 7000K, which can be easily selected using either linear control or one of 5 preset macros. Inclusion of the Lime LED element boosts CRI and perceived brightness as well as filling in gaps in the color spectrum. 16-Bit fine control over the four primary LED elements allows for a huge variety of color possibilities, while 64 built-in macros facilitate easy selection of popular options.

The fixture is ideal for rental houses, production companies and event professionals, as well as for installation in all kinds of performance spaces and entertainment venues.

Key Features

  • Light Source: 7 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)
  • 4-button, DMX digital display on rear panel
  • 5 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
  • 5-50 Degree Motorized Zoom
  • Zoom Presets (Very Narrow 6°, Narrow 10°, Medium Flood 30°, Wide Flood 40° and Very Wide Flood 50°)
  • CRI: 84
  • CRI R9: 76.6

Technical Specifications

SOURCE
Light Source
7 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)
PHOTMETRIC DATA
CRI
84
CRI R9
76.6
Lumens
2500
EFFECTS
5-50 Degree Motorized Zoom
Zoom Presets (Very Narrow 6°, Narrow 10°, Medium Flood 30°, Wide Flood 40° and Very Wide Flood 50°)
Linear Color Temperature Control (2700K to 7000K)
Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
16-Bit Fine Color Control (Red, Green, Blue & Lime)
64 built-in Color Macros
CONTROL / CONNECTIONS
4-button, DMX digital display on rear panel
5 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
Supports RDM (Remote Device Management)
With Wired Digital Communication Network
6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
Adjustable Refresh Rate (14 presets from 900 - 25,000Hz)
Flicker Free operation (No flickering on camera)
LED pulse and strobe effect
Electronic Dimming
0 - 100%
6 DMX Modes
5, 8, 9, 11, 14 & 17-channel
Quiet fan mode
CONSTRUCTION
All metal construction
Locking, In/Out Power connectors
5-pin, XLR DMX, In/Out sockets
Scissor Yoke & safety eye
ELECTRICAL / THERMAL
Multi-voltage operation
AC 100-240V, 47/63Hz
Daisy chain
10 @ 120V, 20 @ 220V
Max power
103W
DIMENSIONS / WEIGHT
Dimensions (LxWxH)
8.65” x 6.5” x 9.5” / 220x160x242mm
Weight
7.5 lbs. / 3.45 kg.
APPROVALS / RATINGS
cETLus Pending
IP20
INCLUDED ACCESSORIES
(1) Power Cord
(1) Safety Cable
(1) Barn Door
OPTIONAL ACCESSORIES
Omega Bracket
