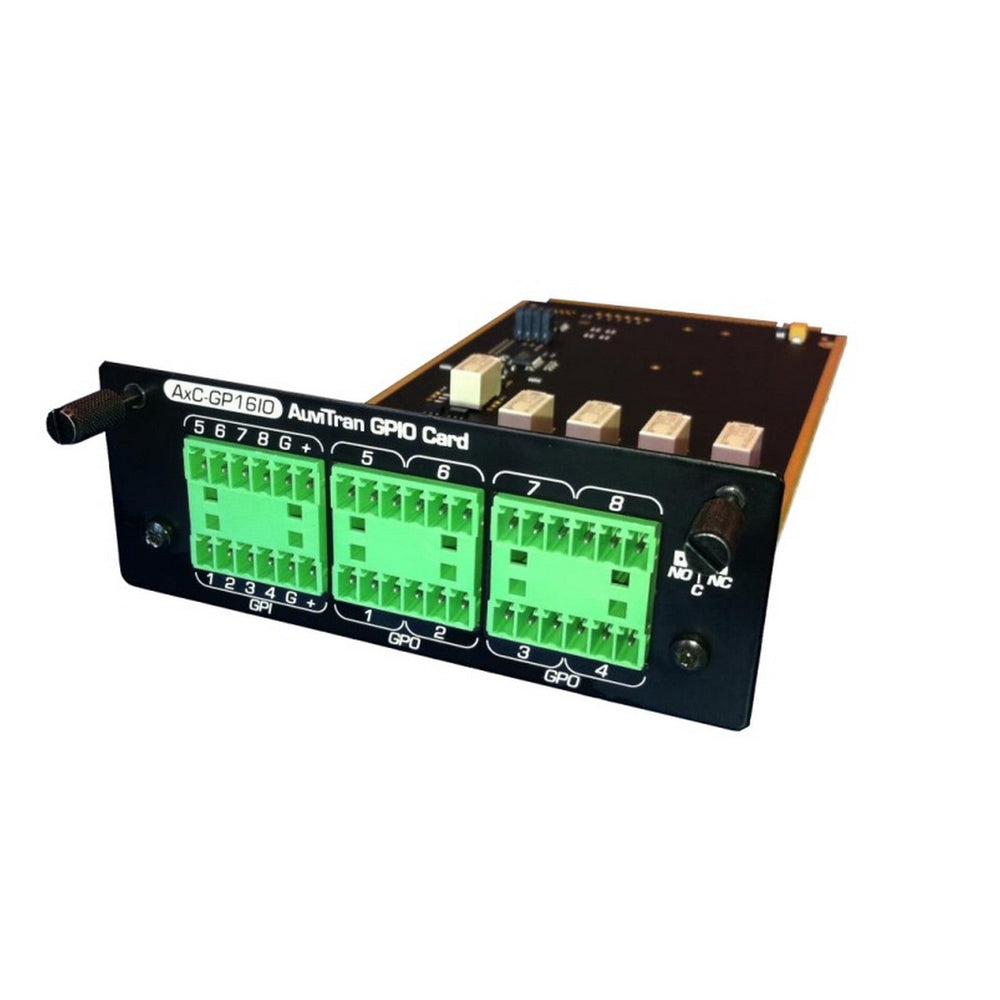

AudioToolBox AxC-GP16IO - Versatile GPIO and Audio I/O Card
The AudioToolBox AxC-GP16IO from AuviTran is a high-performance solution designed for professional audio and control systems. This card provides a robust interface for both General Purpose Inputs (GPI) and General Purpose Outputs (GPO), making it ideal for applications requiring flexible control and integration with audio networks. It is engineered to seamlessly integrate into the AuviTran Audio ToolBox platform, offering a reliable and efficient way to manage GPIO and audio I/O tasks.
With its ability to handle up to 8 opto-isolated general purpose inputs and 8 relay-switch outputs, the AxC-GP16IO provides comprehensive control capabilities for a variety of applications. The card supports remote control via EtherSound, enabling advanced management and monitoring through the AVS-ESMonitor software. This makes it a valuable asset for environments such as broadcast studios, live sound setups, and complex audio installations.
Key Features
- 8 opto-isolated general purpose inputs for secure and reliable signal detection
- 8 relay-switch general purpose outputs supporting high-voltage and high-current loads
- Remote control and monitoring via EtherSound
- Serial interface support with RS232 / RS485 ports
- Seamless integration with the AuviTran Audio ToolBox platform
- Advanced control and monitoring through AVS-ESMonitor software
Technical Specifications
General
Size: 200 mm x 100 mm x 40 mm ā Format AuviTran Audio ToolBox platform cards
Power Supply: +12V / +3.3V - Through AuviTran Audio ToolBox backplane
Storage Temp/Humidity: -5Ā°C to 70Ā°C / 0% to 95% (non-condensing)
Operating Temp/Humidity: 0Ā°C to 50Ā°C / 5% to 90% (non-condensing)
Connectors: 1x6 pole double row Euroblock Connector (pitch 3.81mm) for GPI
Connectors: 2x6 pole double row Euroblock Connector (pitch 3.81mm) for GPO
GPIO Specifications
General Purpose Inputs: 8 Inputs Opto Isolated
General Purpose Outputs: 8 relay-switch for up to 250VAC/0.25A, 30VDC/2A
Remote Control: Via EtherSound
Serial Interface: RS232 / RS485 Rx/Tx serial port interface
Integration Environment
Audio ToolBox Platform: AxC-GP16IO is one of the cards for the AuviTran Audio ToolBox platform
AVS-ESMonitor: AVS-ESMonitor enables remote setting, control, and monitoring of the AxC-GP16IO card and provides enhanced control pages for managing GPIO and audio I/O parameters.
OS Supported: Windows Seven/Vista/XP for 32 or 64-bit versions
