Aviom AN-16/o v.4 16-Ch Mic and Line Level Output Module
The Aviom AN-16/o v.4 Output Module connects to any Pro16 input module, console card, or A-Net distributor and provides 16 balanced TRS line-level analog outputs. Five output levels, from mic to +24dBu, are available to easily accommodate the level requirements of the gear its output signals are being connected to.
Use the AN-16/o v.4 anywhere analog outputs are required: on stage or at FOH in a digital snake, in the studio, for a recording split, or in even the most complex audio networks. Adding a digital split to a Pro16 system is as simple as connecting an additional AN-16/o v.4 Output Module.
Compatibility Note: AN-16/o v.4 Output Modules with serial numbers 51162 and lower are not compatible with the Pro16e A-Net output of the AN-16/i v.2 Input Module.
Product Details

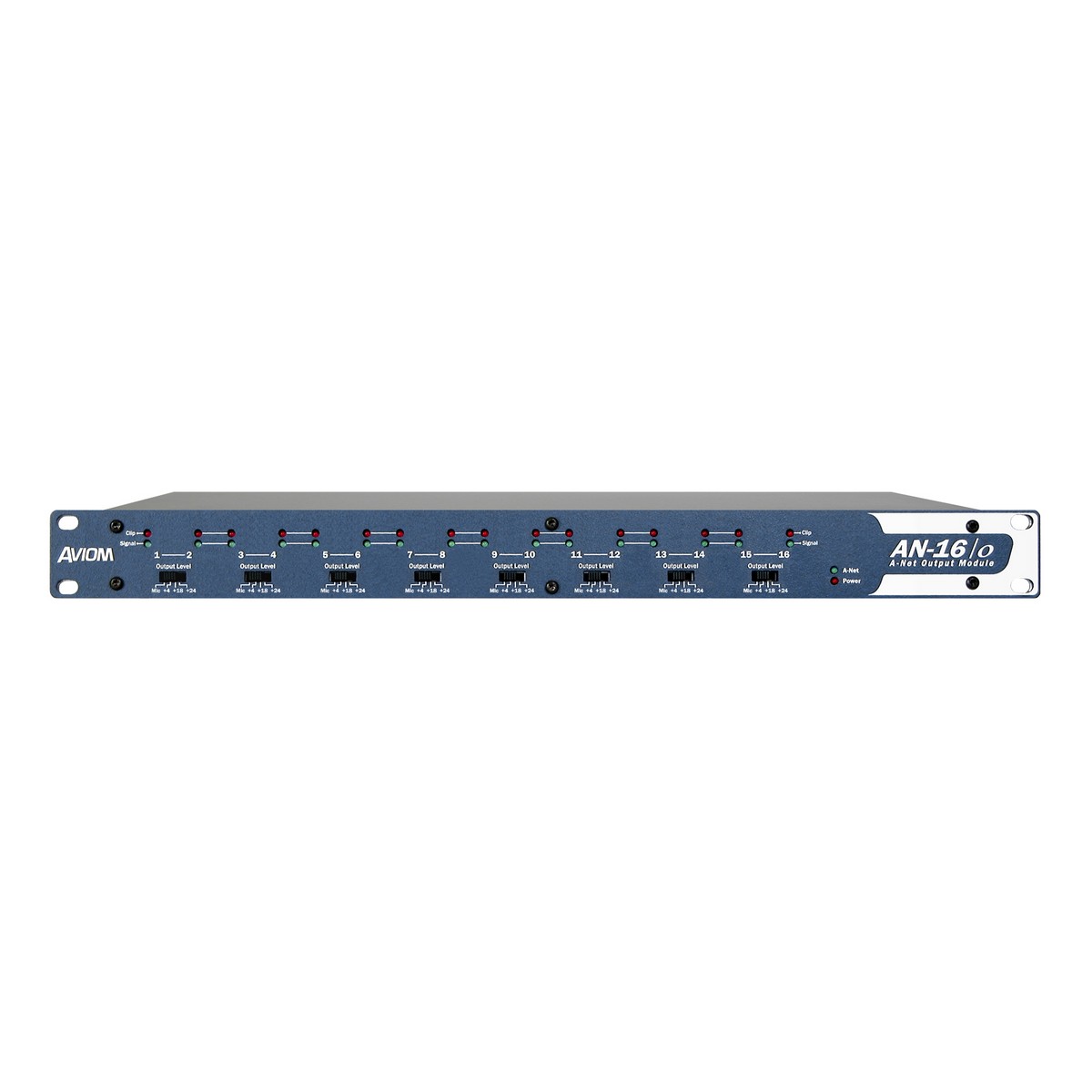

The AN-16/o v.4 Output Module is a 1U rack-mount 16-channel digital-to-analog converter for Pro16Ā® digital snake and audio distribution systems. Digital audio transmitted to the AN-16/o v.4 via Aviom's A-NetĀ® Pro16 digital audio transmission protocol is converted to analog using 24-bit, 48kHz converters.

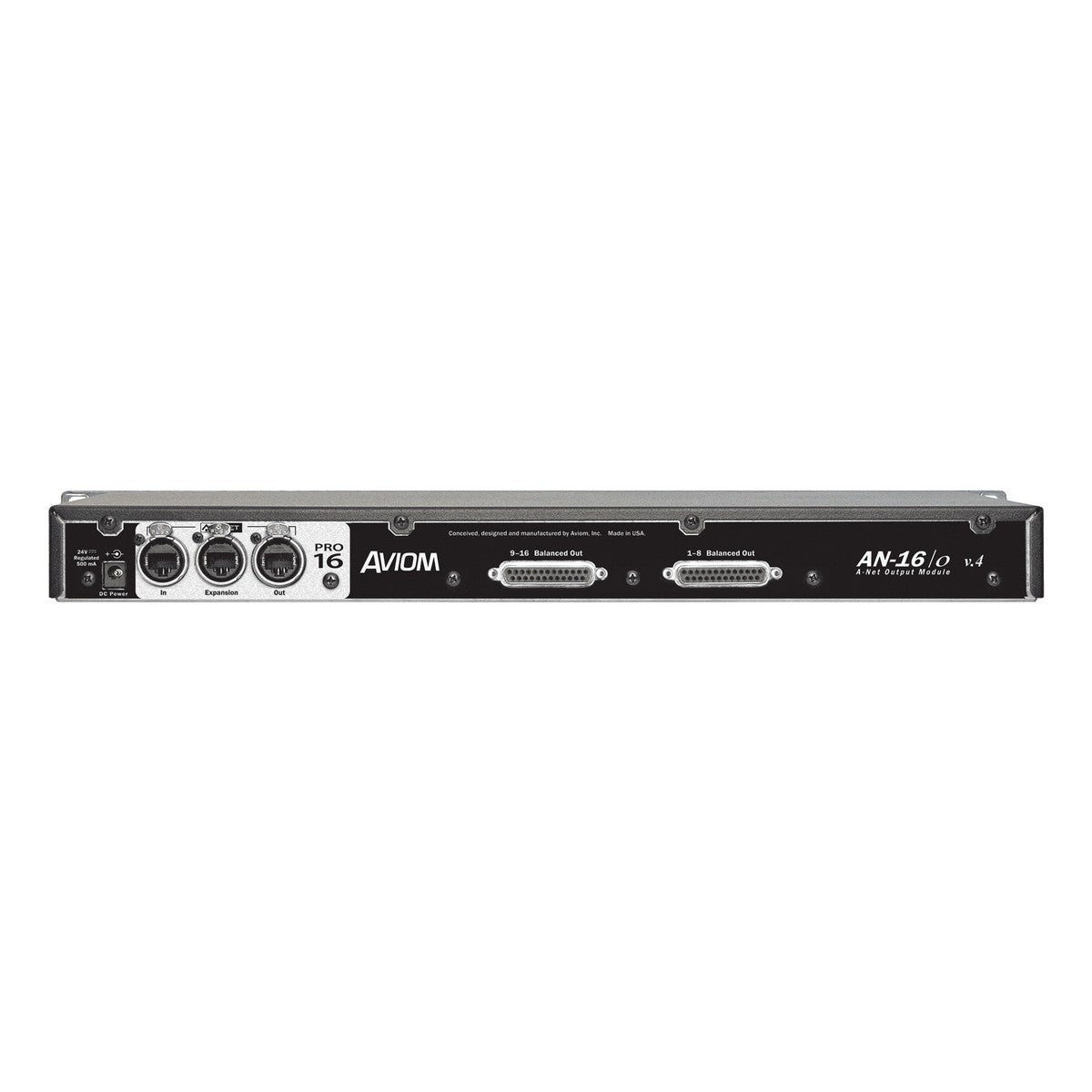

Sixteen balanced outputs are provided on the rear panel via DB25 multipin connectors. The analog outputs can be set (per channel pair) to +24dBu, +18dBu, +4dBu, or mic level.
Digital Snakes and Audio Networks
Use the AN-16/o v.4 anywhere analog outputs are required: on stage or FOH in a digital snake, in the studio, for a recording split, or in even the most complex audio networks. Adding a digital split to a Pro16 system is as simple as connecting an additional AN-16/o v.4 Output Module.
The AN-16/o v.4 can be connected to a Pro64 digital snake or audio network by adding the ASI A-Net Systems Interface.
Key Features
- 16 balanced mic- or line-level outputs
- Four-position output level switch per channel pair
- +24, +18, and +4dBu line-level, or mic-level outputs
- 48kHz, 24-bit D/A converters
- Unlimited splits and digital copies
Technical Specifications
Audio Outputs
16 channels, balanced
Outputs
- DB25 multipin connectors (2); TascamĀ® analog audio pinout
- Impedance balanced output for mic, +4dBu, and +18dBu; differential output for +24dBu
D/A Conversion
48kHz sample rate, 24 bit
Frequency Response
4Hz-22kHz
A-Net Input/Output
one EtherCon Category 5 (RJ45 connector)
A-Net Expansion
one EtherCon Category 5 (RJ45 connector)
Output Level Settings
Four-position switch, per channel pair; +24dBu, +18dBu, +4dBu, and Mic
Channel LED Indicators
Signal Present and Clip, per channel
Metering
LEDs; green: Signal Present; red: Clip; per channel
Maximum Output Level
+24dBu
Output Impedance
226 ohms (+18dBu, +24dBu); 100 ohms (+4dBu and mic)
Freq. Response
4Hz-22kHz +0.2dB/-3dB
THD +N
< 0.004%
Crosstalk
-90dB
Bit Error Rate (BER)
10(-12)
Signal to Noise (unweighted)
- 92dB typical, A/D to D/A
- Measured from AN-16/i to AN-16/o v.4 Output Module
Digital Connections
A-Net In: 1; A-Net Out: 1; A-Net Expansion: 1;
Neutrik EtherCon connectors
A-Net Pro16
A-Net Expansion combines two A-Net streams (32 channels of audio) onto one Cat-5e cable;
uses unshielded Cat-5e UTP (or better) cable
Latency
<0.620 msec (measured from analog input to analog output)
Power Supply
External, DC, universal switching type
Input Voltage: 100-240 volts, 50/60Hz, 30VA
Output Voltage: 24 VDC, 0.5 amp
Plug Size: 2 mm
Power
24 VDC, 500mA
Dimensions
19" (wide) x 5.75" (deep); 1U high / 482.6 mm x 146 mm
Weight
6.8 lbs (3.08 kg)
Options
SB4 System Bridge; used to combine up to four A-Net streams for transmission over one Cat-5e cable
