Blonder Tongue MTSA-PRO MPEG Transport Stream Analyzer

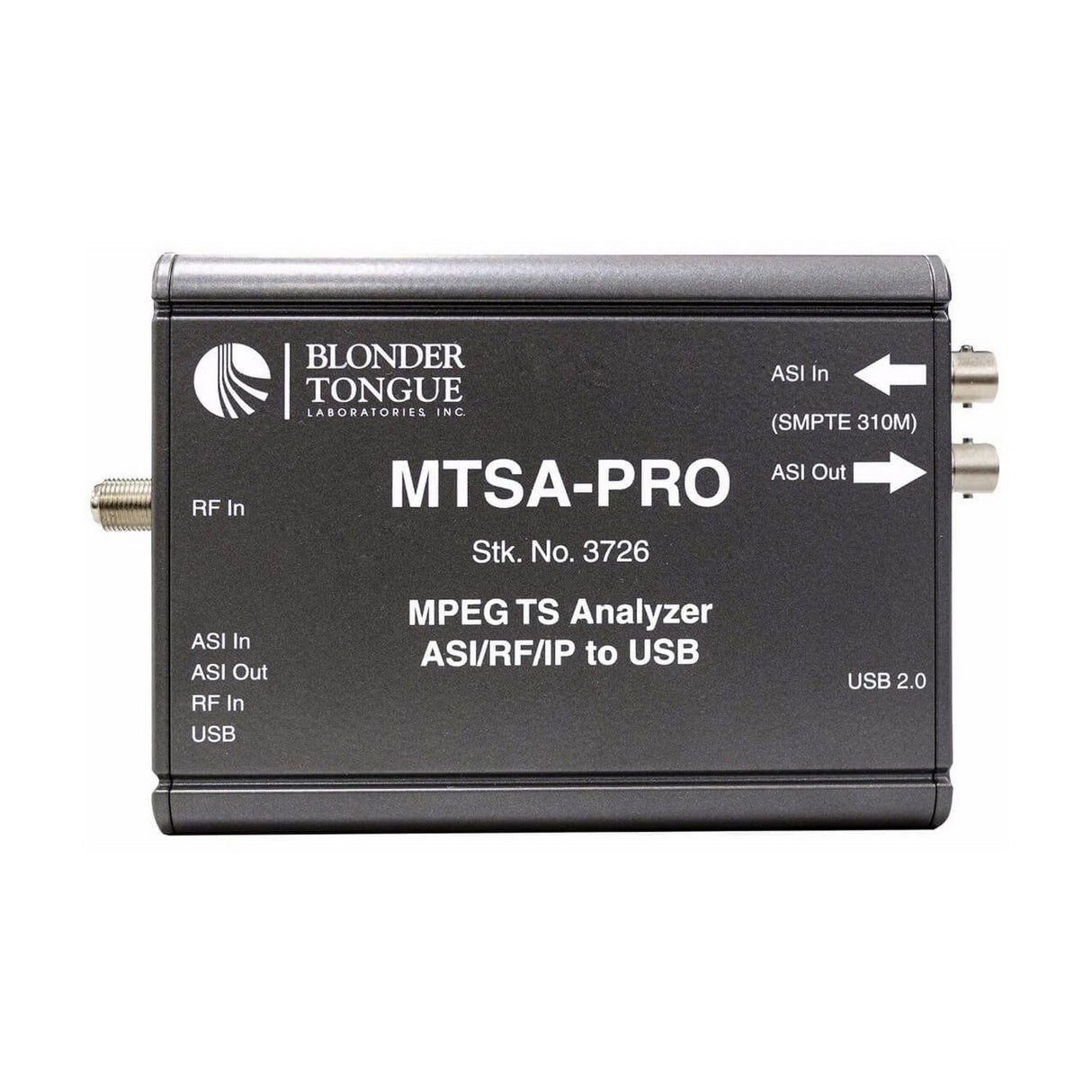

The MTSA-PRO (MPEG Transport Stream Analyzer - ASI/RF/IP to USB) is a compact device used to capture, analyze and/ or generate MPEG ASI transport streams. The MTSA-PRO features a single DVB-ASI input and output with USB (half duplex), and RF input. The MTSA-PRO with its included software combined with a user's PC creates an MPEG ASI Transport Stream Analyzer for real-time analyzing, monitoring, and decoding. The MTSA-PRO can also serve as a PSI/PSIP generator and advertisement inserter.
Key Features
- Real time analysis via RF/ASI/IP input and TS file
- Single DVB-ASI input and single DVB-ASI output adapter for USB (half duplex)
- MPEG TS analysis and capture
- USB 2.0, bus powered, no power supply required
- ATSC, DVB-C, DVB-T and OpenCable DTV standards compliant
- ETSI TR 101 290 Priority with real-time 3-stage error monitoring reporting and error logging.
- Diagnostic and verification of MPEG designs
- PCR & PTS analysis, arrive time graphing, measurement display and jitter analysis
- Triggered recording
- Data rate analysis
- Table and packet views
- SI/PSI & PSIP view and interval analysis
- CAS view: ECM and EMM repetition rate and update time
- PES header analysis
- Real-time A/V decoding
Technical Specifications
Input
ASI/SMPTE-310M
Connectors
1x BNC; 75ohms
Standard
DVB-ASI
Bitrate
0~108Mbps (in 1bps step)
Mode
188/204 bytes packet mode
Input
RF Demod
8VSB, QAM64B, QAM256B
Connector
1xF 75ohms
Freq Range
57-1000 MHz
Level Min
-15 dBmV QAM256B -20 dBmV QAM64B -30 dBmV 8VSB
