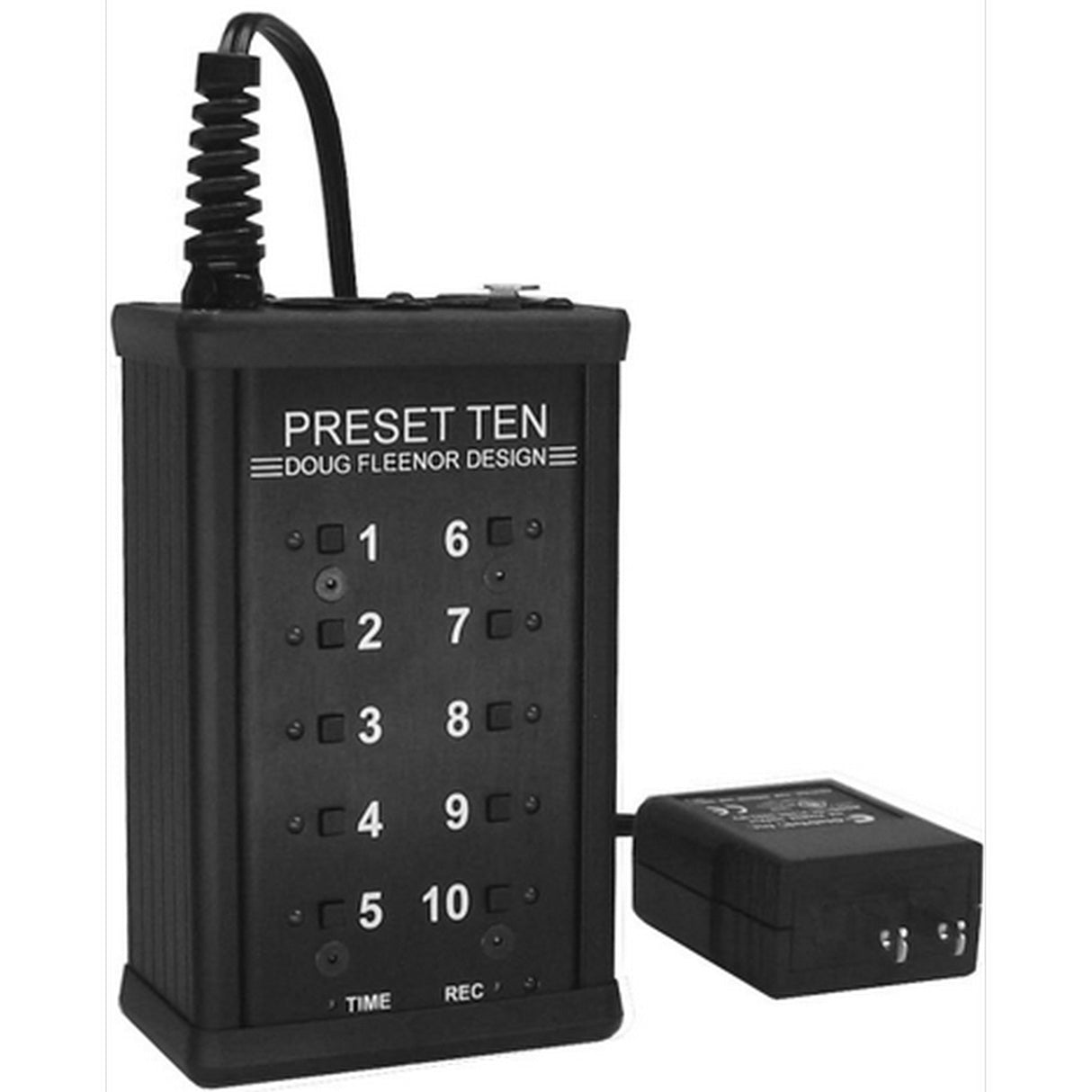

Doug Fleenor Design PRE10-P Preset 10 Portable Playback Device
The Preset 10 Portable can act as a seamless backup for DMX512 lighting consoles or as a stand-alone DMX512 preset console. The Preset 10 Portable is capable of storing up to ten presets. These presets are recorded by capturing the output of a DMX512 console. Each preset can be assigned a unique crossfade time, from 0 to 999 seconds. Presets are recalled by pressing one of the buttons. When operating as a backup device, Preset 10 Portable monitors the DMX512 output from your lighting console. If console output is lost, Preset 10 Portable begins transmitting to maintain the current look and alerts the user to the loss of DMX. Crossfading to any of the stored presets is then initiated by pressing a preset button
Technical Specifications

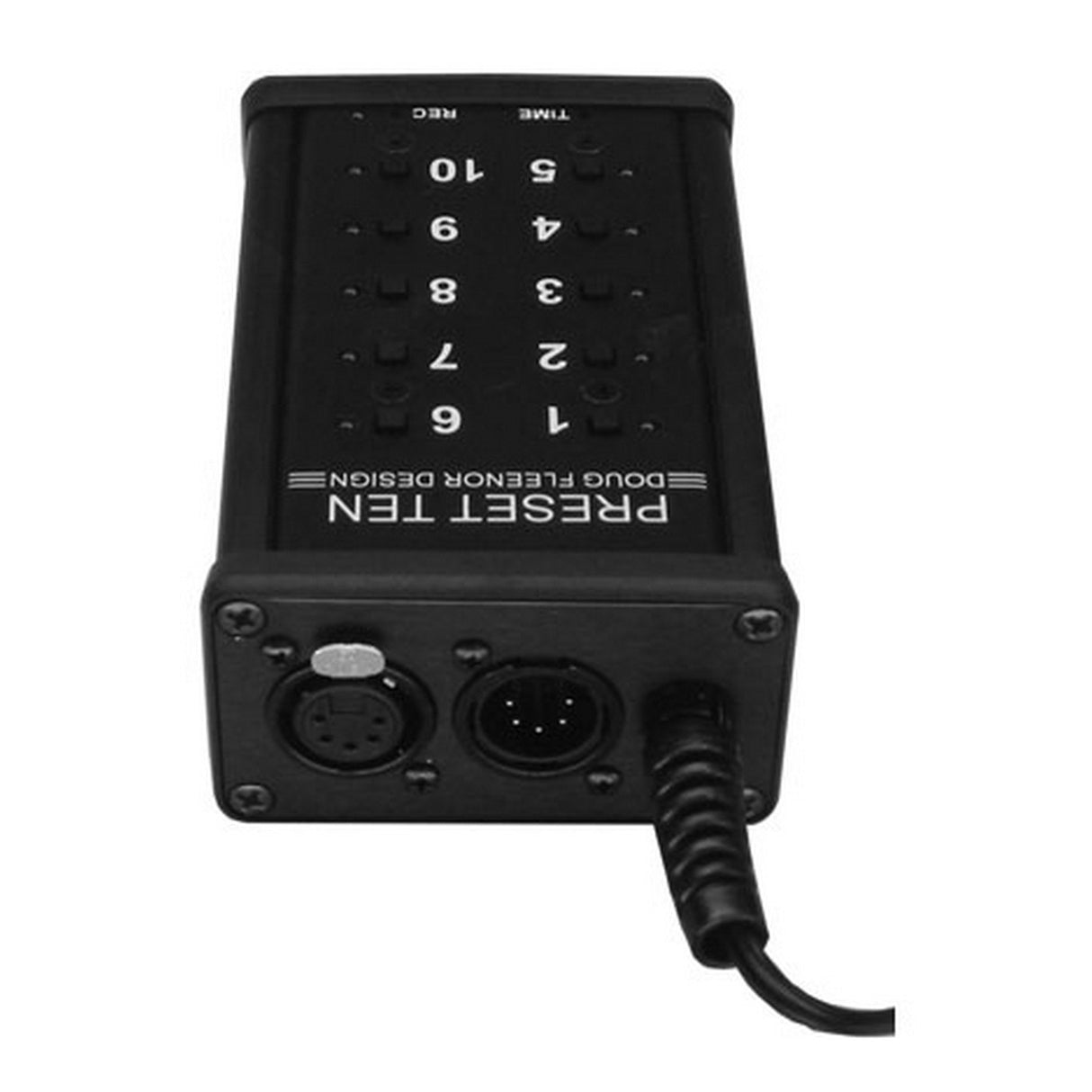

Connectors
Input: 5 pin male, gold plated contacts (3 pin connectors optional)
Output: 5 pin female, gold plated contacts (3 pin connectors optional)
Connector pin out
1 - DMX512 common
2 - DMX512 data -
3 - DMX512 data +
4 - Passed Through
5 - Passed Through
Input/Output circuit
ESD protected EIA-485 transceiver (LT1785)
Indicators
Ten green preset indicator LEDs
One red Signal / Record LED
User controls
Ten preset push buttons
One recessed record push button
One recessed fade time push button
Power input
Universal power supply 100 - 240VAC, 50/60 hertz, 5 watts
Size and weight
Chassis
5.3"H × 1.8"D × 3.2"W, 12 ounces
Power supply
2.2"H × 1.0"D × 1.9"W, 5 ounces
