DPA DAD6024 | MicroDot to 3 Pin XLR P48 Mid Range Attentuation Adapter
DPA DAD6024 | MicroDot to 3 Pin XLR P48 Mid Range Attentuation Adapter is backordered. Please call for ETA 877-779-8964
Condition: New
DPA DAD6024 | MicroDot to 3 Pin XLR P48 Mid Range Attentuation Adapter
Description
Description

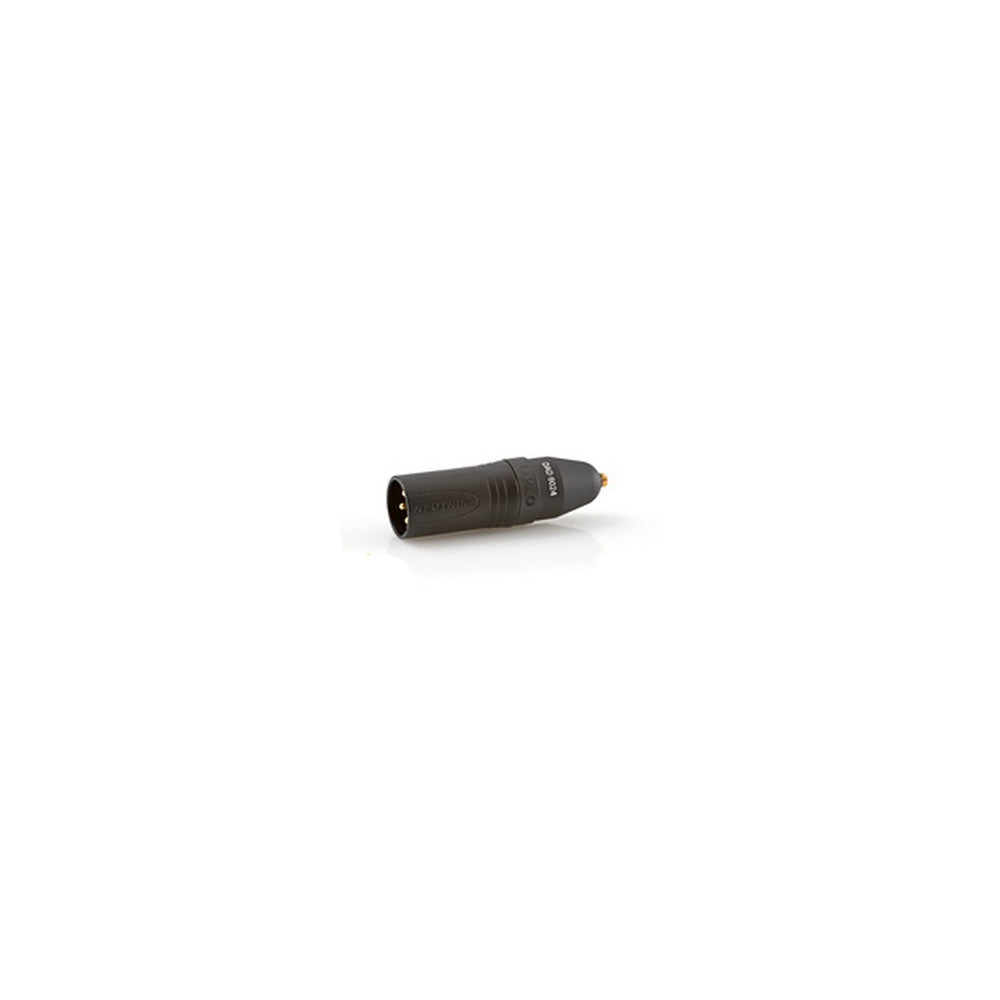

DPA DAD6024 MicroDot to 3 Pin XLR P48 Mid Range Attentuation Adapter
Designed for microphone placement on the human body. When placing a microphone on a performers chest, an acoustic lower midrange boost will occur resulting in a "muddy" and indistinct sound, compared to a free frontal placement. This adapter provides a 3 dB attenuation at 800Hz for added clarity when using a Miniature Microphone.
Key Features
- MicroDot to XLR with mid range attenuation
- Adapter for powering Miniature Microphones via standard P48
Technical Specifications
Output impedance: 200 ohm
Cable drive capability: 30 m
Power supply: 48V ±4 V
Current consumption: 3.5 mA
Bell filter: -3 dB at 800 Hz
