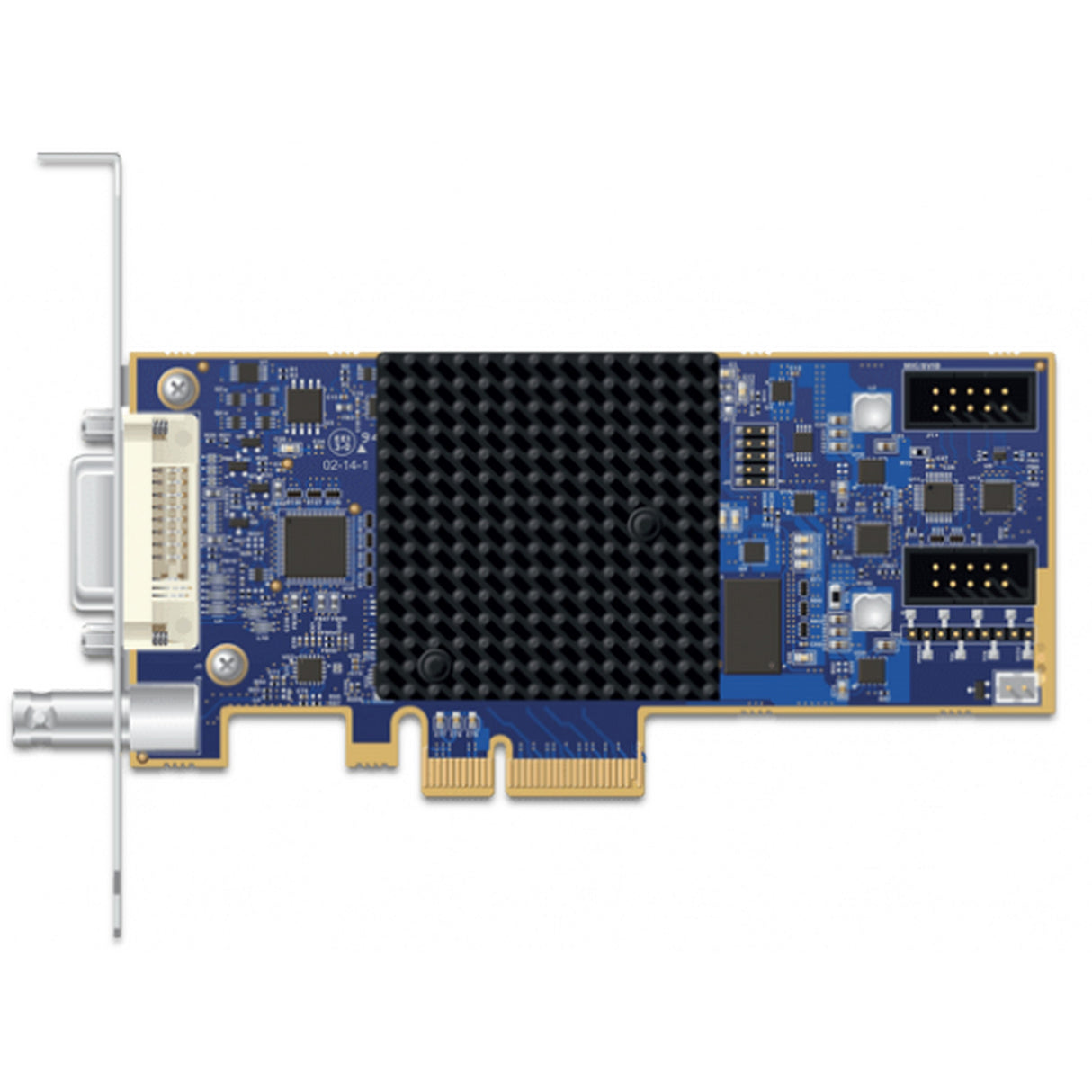

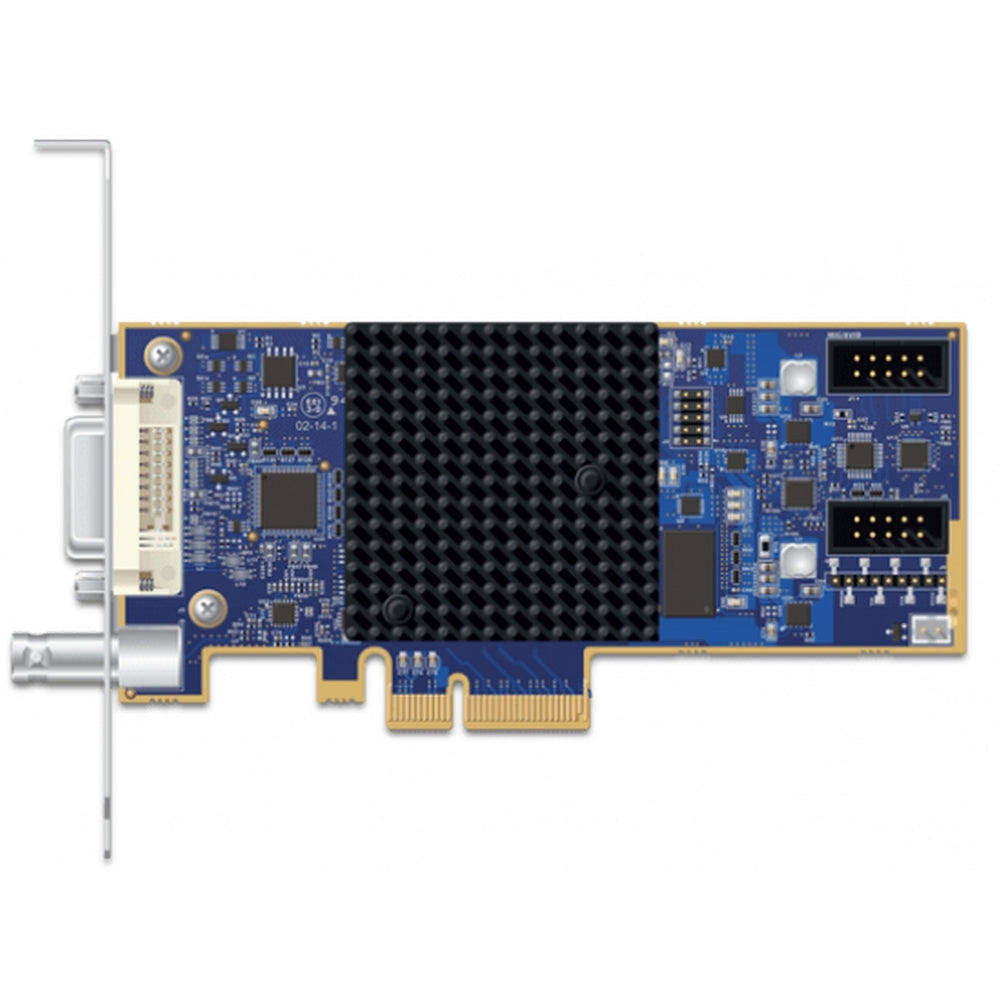

Epiphan DVI2PCIe Duo PCIe Capture Card for DVI, VGA/HDMI and SDI Video Sources
Epiphan | SKU: EPI-DVI2PCIEDUO-ESP0705
Detailed Summary:
The Epiphan DVI2PCIe Duo PCIe Capture Card is a high-performance dual input PCIe card designed for capturing DVI, VGA/HDMI, and SDI video sources. It provides uncompressed dual channel video for recording, streaming, conferencing, and video analysis software applications.
Key Features:
- Capture Capabilities: Supports HD resolutions up to 2560x1600, 2048x2048.
- Interface: PCI Express 2.0; x4.
- Multiple Card Support: Allows multiple DVI2PCIe Duo cards in one system.
- Frame Rate: Supports 60 fps at full HD resolution in 24-bit color even with dual DVI and SDI channel capture.
- Audio Support: Captures digital audio from HDMI and SDI sources.
- Optional AV Kit: Adds support for S-Video and audio inputs.
- Customization: Customize recording with company-related information, color, and time stamp.
- Compatibility: Supports third-party applications like Adobe Premiere and Windows Media Encoder.
Technical Specifications:
- Interface: PCI Express 2.0; x4.

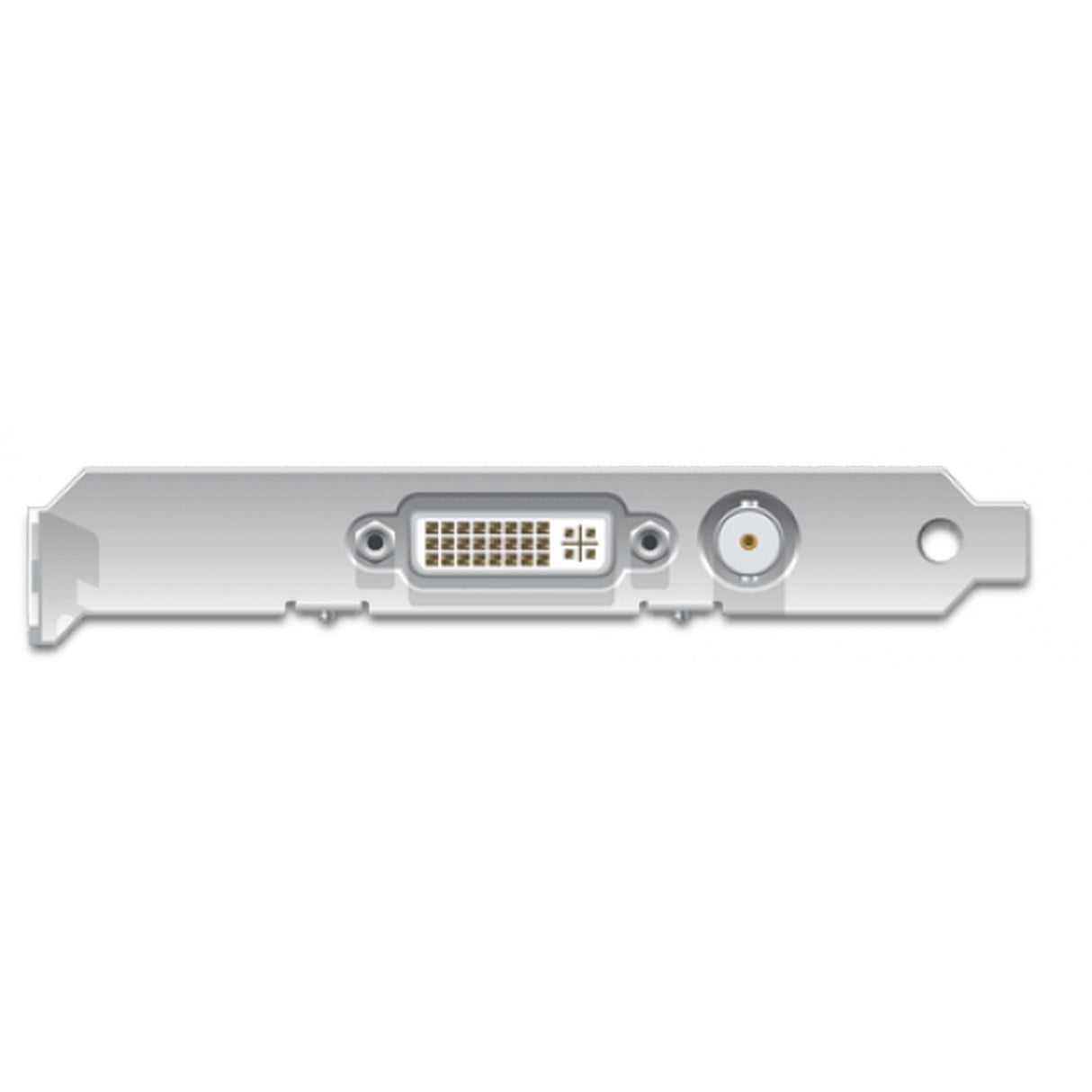

- Video Inputs: SDI, DVI-I, HDMI, VGA, Component.
- Resolutions: VESA modes: 320x240 to 2048x2048; Custom HDMI/VGA/DVI modes.
- VGA Signaling: 3G-SDI, HD-SDI, SD-SDI, DVI dual link, HDMI, R, G, B signals.
- Color Resolution: RGB16, RGB24, RGB8, grayscale-256, YUY2, UYVY, YV12.
- Audio Input: SDI and HDMI audio.
- Update Rate: Supports various resolutions up to 2560x1600.
- OS Support: Windows 10 (x64) and Linux (x86, x86_64).
- Hardware Features: 128 MB buffer RAM.
- Dimensions: Low profile short card: 5.5" x 2.53".
- Thermal & Airflow Considerations: Operates at up to 80Ā°C, minimum required airflow of 140 LFM.
