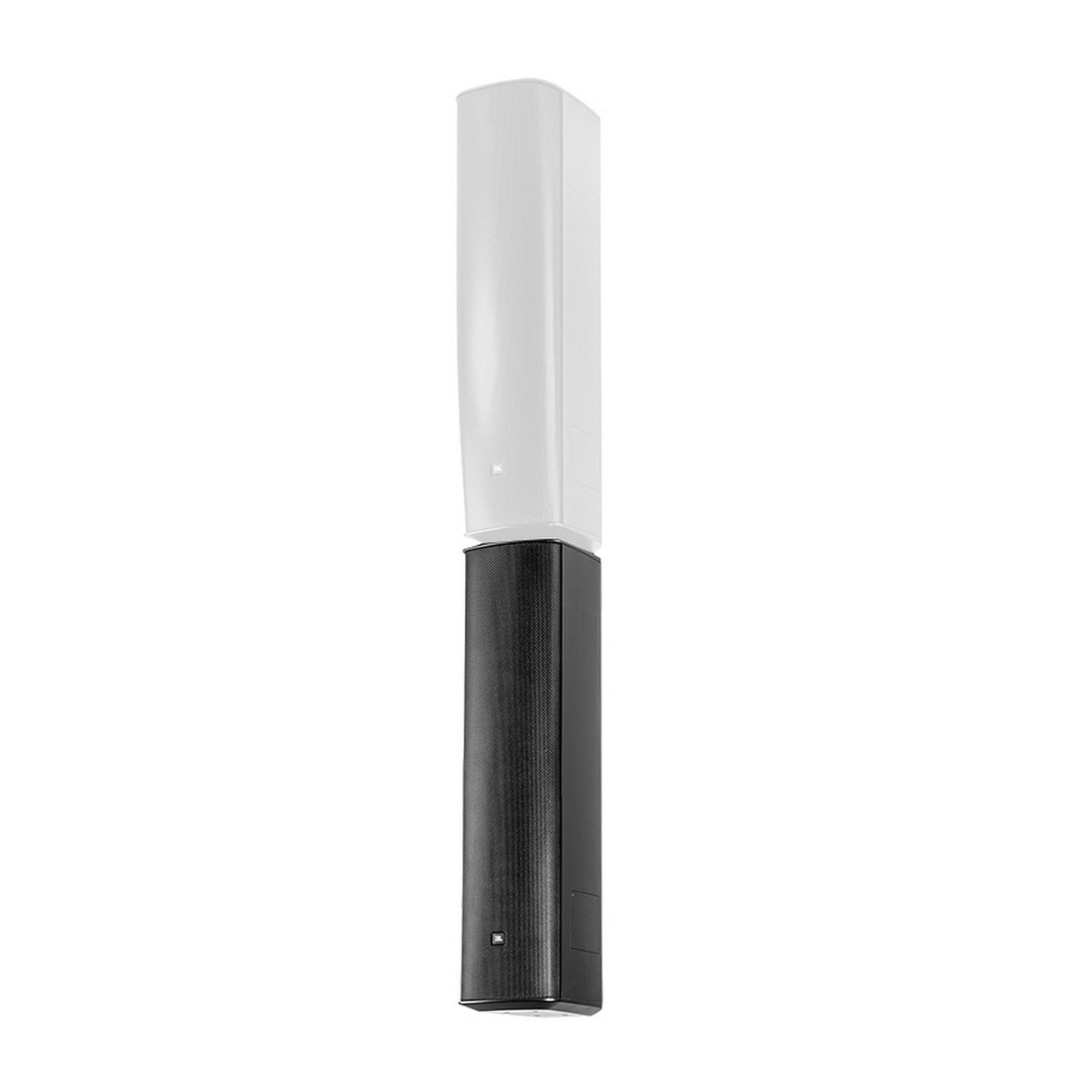

JBL CBT 1000E High Output Column Extension Speaker for CBT 1000 Black

Extension for CBT 1000 Line Array, six (6) 165 mm (6-1/2") high-excursion LF drivers, 1500W cont pink noise (6000 W peak), 8 ohms (note CBT1000+1000E is a 4 ohm system), linking coupler bracket included, 100 cm tall for 200 cm tall CBT 1000+E array, connect CBT1000 and CBT1000E in parallel. Combined with CBT 1000, system response is 38 Hz - 20 kHz with well controlled pattern to 200 Hz.

Key Features

• Components: Six (6) 165 mm (6.5 in) high-excursion LF drivers (CBT1000E)
• 1500 Watt power handling (CBT1000E)
• Built-in purpose-designed crossover network, for combining with CBT1000 (CBT1000E)
• Coupler plate included (CBT1000E)
• Extended pattern control
• Components: Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters and Twelve (12) 165 mm (6.5 in) high-excursion LF drivers (CBT1000+1000E)
• 3000 watt power handling (CBT1000+1000E)
• Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
• Vertical pattern coverage is individually adjustable through a range of four (4) “Pattern Up” angles and four (4) “Pattern Down” coverage angles for a total of sixteen (16) different coverage combinations, all without the use of external DSP processing (CBT1000)
• Patent-pending Tapered Horizontal Waveguide provides a continuously varying horizontal dispersion (very wide for short-throw, narrower for long-throw) delivering superior coverage in both the front and rear corners of a room (CBT1000)
• Single-speaker system room coverage at high SPL, with little over-splash and strong bass response down to below 38 Hz (CBT1000+1000E)
• Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode (CBT1000)
• Swivel (pan)/tilt wall bracket and coupler plate included.
