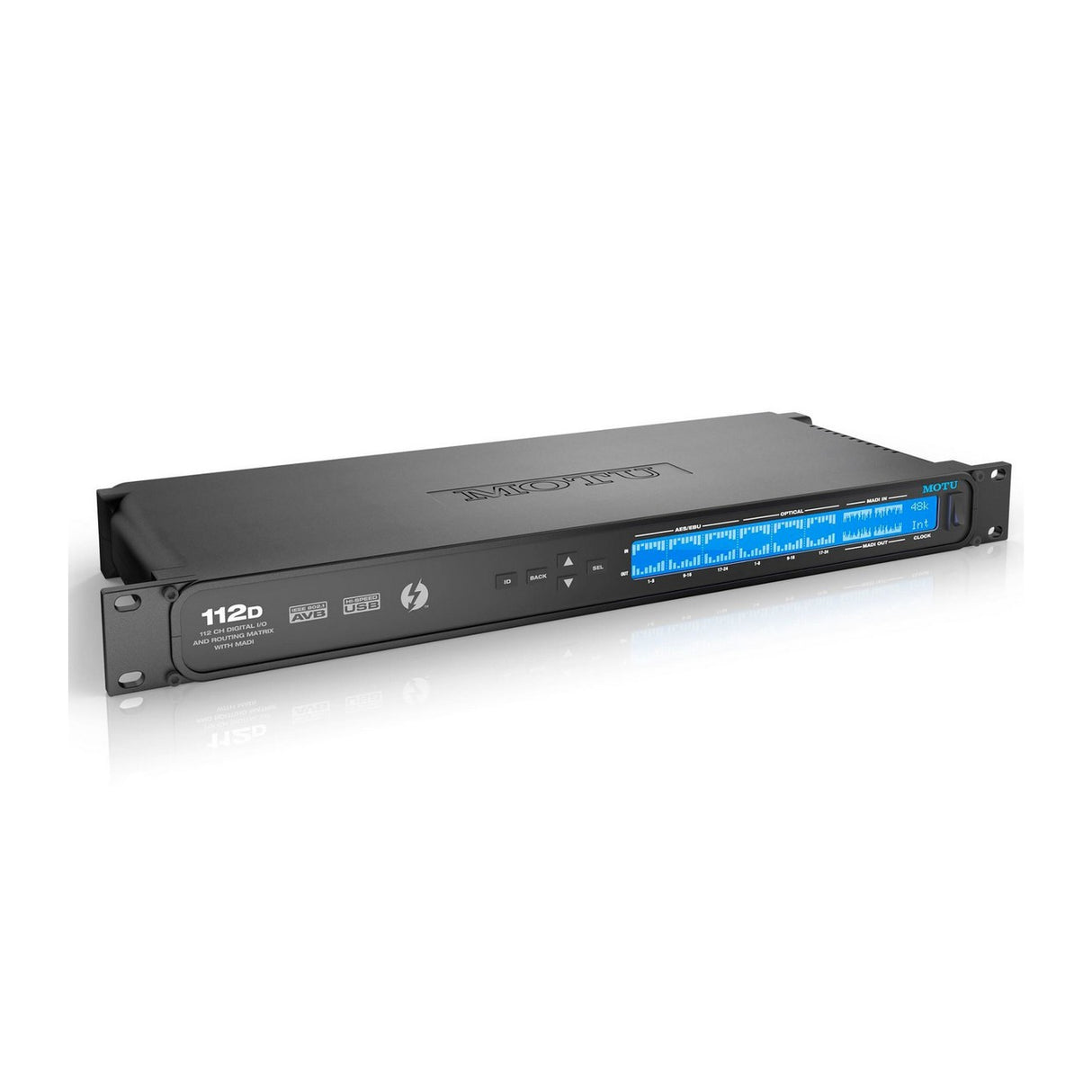

MOTU 112D 112x112 Digital Thunderbolt USB Audio Interface

The 112D is a flexible digital audio interface, router, format converter, and stand-alone mixer, with connectivity to a host computer through ultra-fast Thunderbolt technology, AVB Ethernet, or class compliant, high-speed USB 2.0 (compatible with USB 3.0 and iOS). The 112D provides 24 channels of AES/EBU digital I/O, 24 channels of ADAT optical digital I/O and 64 channels of MADI for a total of 112 simultaneous digital I/O channels. With near-zero latency, send any input to any output, or multiple outputs. Freely route all 112 audio channels to and from the computer over Thunderbolt, plus any devices on the AVB network. Convert any format to any other: AES/EBU, optical, MADI, AVB, and computer audio (Thunderbolt or USB). Powerful DSP delivers large console style mixing with 48 channels, 12 stereo busses, and 32-bit floating point effects processing, including modeled analog EQ, vintage compression and classic reverb. Use the 112D as a stand-alone mixer and control everything from the 112D's innovative web app running on your iPad, iPhone, tablet, smart phone, and laptop. Connect a second MOTU AVB interface (such as a 1248, 8M, 16A or 112D) with a simple Ethernet cable. Add more I/O with the MOTU AVB Switch (sold separately). Build an AVB audio network with multiple switches and sub-millisecond latency, even over long cable runs. Stream hundreds of channels among devices and computers on the network. From studio to stage, the 112D delivers flexible digital routing/conversion, state-of-the-art operation, and reliable performance.

Key Features

• 112 simultaneous digital audio channels - 24 channels of AES/EBU I/O, plus 24 channels of ADAT optical I/O, plus 64 channels of MADI I/O, for 112 total channels digital audio I/O. All channels can be active simultaneously.
• 64 channels of MADI - Serves as a 64-channel MADI-to-AVB converter with near-zero latency and flexible routing and splitting to/from the AVB network.
• 24 channels of AES/EBU and ADAT up to 96 kHz - Three 8-channel (D-sub) banks of AES/EBU at all sample rates up to 96 kHz. Three 8-channel banks of ADAT optical at rates up to 48 kHz; six banks of ADAT at 2x sample rates (24 channels).
• Flexible routing, splitting and format conversion - Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the AVB network. Convert any format to any other.
• Universal connectivity - Connects to your computer with Thunderbolt technology, AVB Ethernet or audio class compliant high-speed USB 2.0 (compatible with USB 3.0 and iOS). Discovery app and web app software works alongside any host audio software.
• On-board 32-bit floating point DSP with large console style mixing and effects - Flexible 48-input digital mixer with 12 stereo busses and DSP effects, including reverb with sends, plus modeled analog EQ and compression, gate, and reverb.
• System expansion and audio networking - Add a 2nd MOTU AVB interface (1248, 8M, 16A, 24Ai, 24Ao or Monitor 8) with a simple CAT-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately). Build a network with multiple interfaces and computers using standard AVB switches and network cabling, with ultra-low network latency, even over long cable runs (hundreds of meters). Stream hundreds of audio channels among devices and computers on the network.
• Web app control - Control on-board DSP, mixing, device settings, and network audio routing from web app software running in your favorite browser on a laptop, tablet or smart phone connected by wire or Wi-Fi to your local area network.
• Stand-alone mixing with wireless control - Connect an Apple Airport or other Wi-Fi router directly to the 112D with a standard Ethernet cable and control the 112D's powerful routing, mixing and DSP effects from your smart phone or tablet, without a computer. Great for live sound mixing.

Technical Specifications

Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 kHz

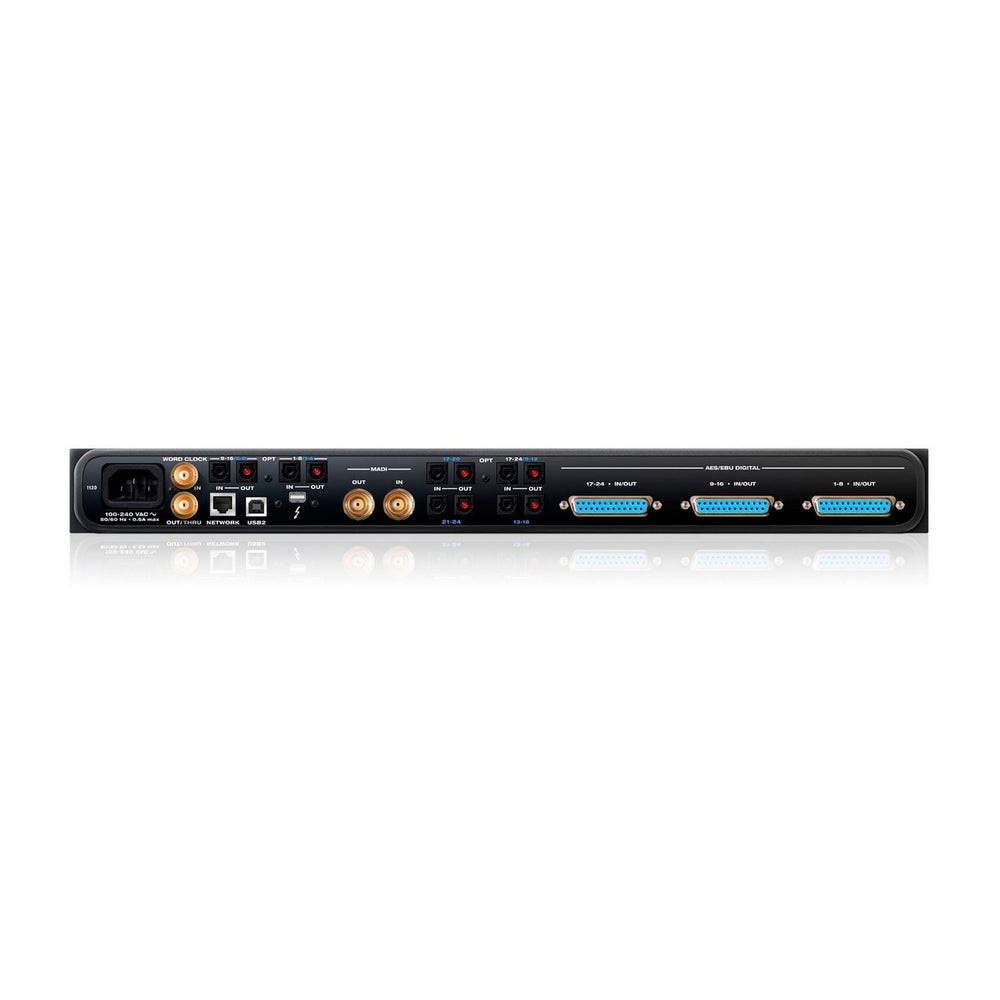

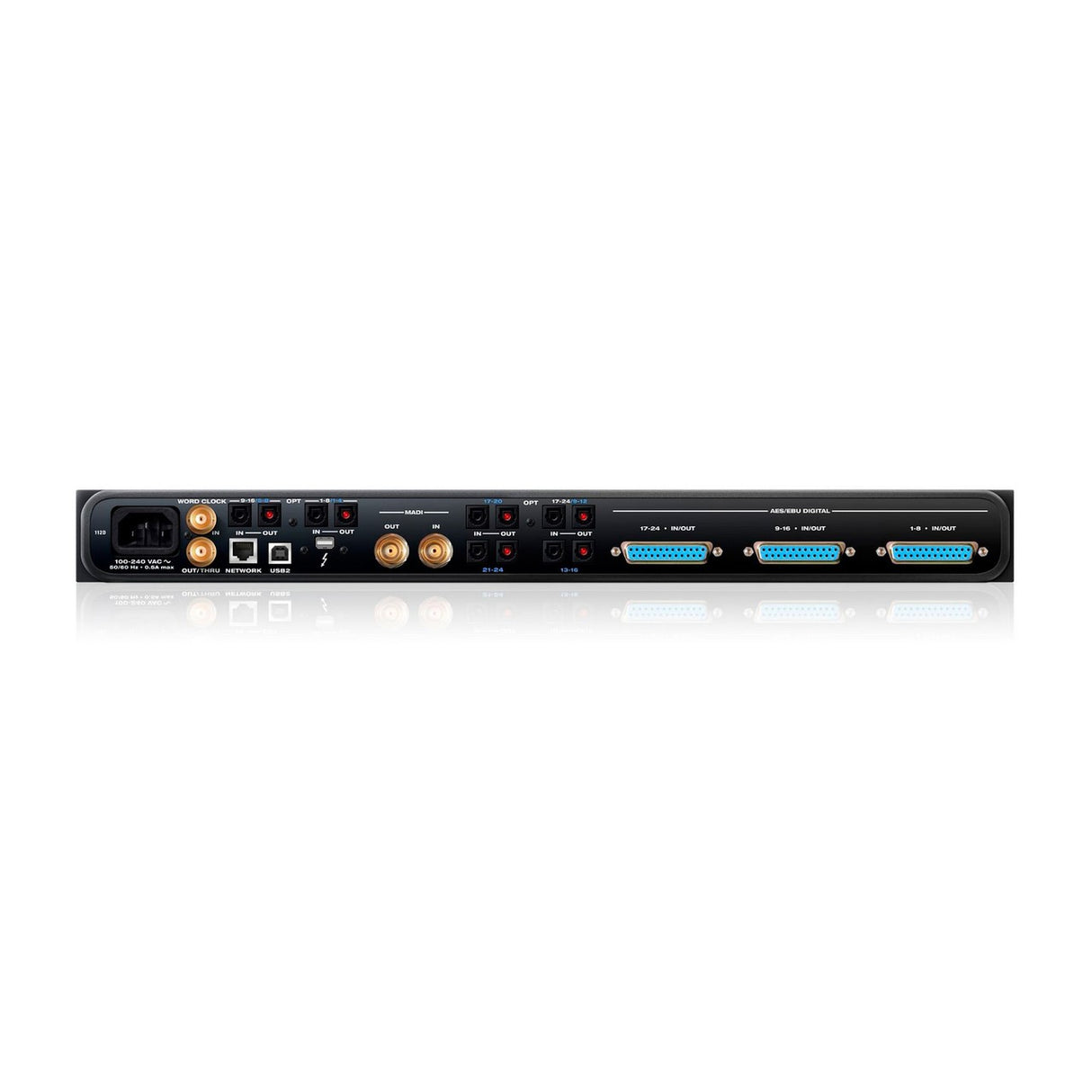

Digital I/O
3x 8-ch banks (24 ch) of ADAT optical at 1x sample rates
6x 4-ch banks (24 ch) of SMUX optical at 2x sample rates
3x 8-ch banks (24 ch) of AES/EBU on 25-pin D-sub
1x BNC MADI in/out (64/56 ch @ 1x, 32 @ 2x, 16 @ 4x)
Total I/O
112 inputs and 112 outputs (224 total) at 1x sample rates
80 inputs and 80 outputs (160 total) at 2x sample rates
16 inputs and 16 outputs (32 total) at 4x sample rates
Computer I/O
1 x Thunderbolt (compatible with 1 and 2)
1 x USB 2.0 audio class compliant
USB 3.0 and iOS compatible
1 x AVB Ethernet (requires OS X Yosemite)
Computer I/O Channels
Thunderbolt (44.1 to 96 kHz): 128 in/out
Thunderbolt (176.4 to 192 kHz): 64 in/out
USB 2.0 (44.1 to 48 kHz): 64 in/out
USB 2.0 (88.2 to 96 kHz): 32 in/out
USB 2.0 (176.4 to 192 kHz): 24 in/out
AVB Ethernet: 16 to 128 in/out, depending on host computer speed
Sync I/O
1 x word clock in
1 x word clock out / thru
Front Panel
5 x switches menu navigation
324 x 24 pixel LCD for level meters / menu nav
1 x AC power switch
Power
International 100-240V autoswitching supply
50-60 Hz - 0.5A max
Mac System Requirements
1 GHz Intel-based Mac or faster
2 GB RAM; 4 GB or more recommended
Mac OS X version 10.8 or later
Available Thunderbolt, USB 2.0 or AVB Ethernet port*
A large hard drive (at least 500 GB for recording)
*AVB Ethernet audio interface operation requires OS X Yosemite
Windows System Requirements
1 GHz Pentium-based PC compatible or faster
2 GB RAM; 4 GB or more recommended
Windows 7, 8 or 10
Available USB 2.0 or 3.0 port
Available Ethernet port for firmware updates
A large hard drive (at least 500 GB for recording)
Web App Support
Any web client platform: Mac, Windows, Linux, iOS, Android
Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
Web client must be connected to the same network as the MOTU AVB interface by wire or Wi-Fi.
Included Software
Thunderbolt and USB 2.0 drivers
MOTU AVB Discovery App for Mac & Windows (finds connected MOTU interfaces)
MOTU AVB Discovery App for iOS (available from Apple App Store)
MOTU AVB Control web app (served from the hardware itself)
AudioDesk 4.0 for Mac and Windows (separate download)
Operating Systems
For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later
For web app control: Mac, Windows, Linux, iOS, Android
