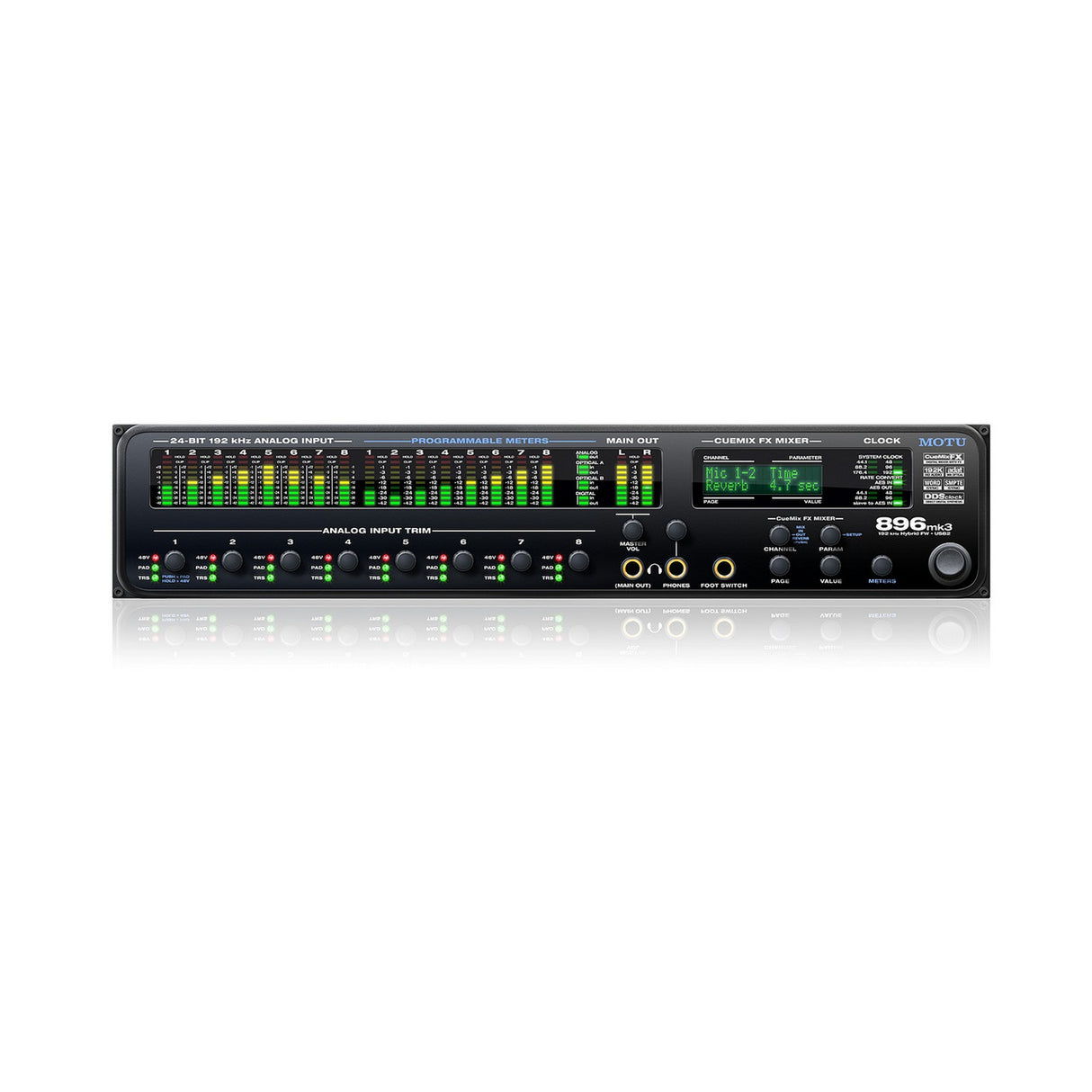

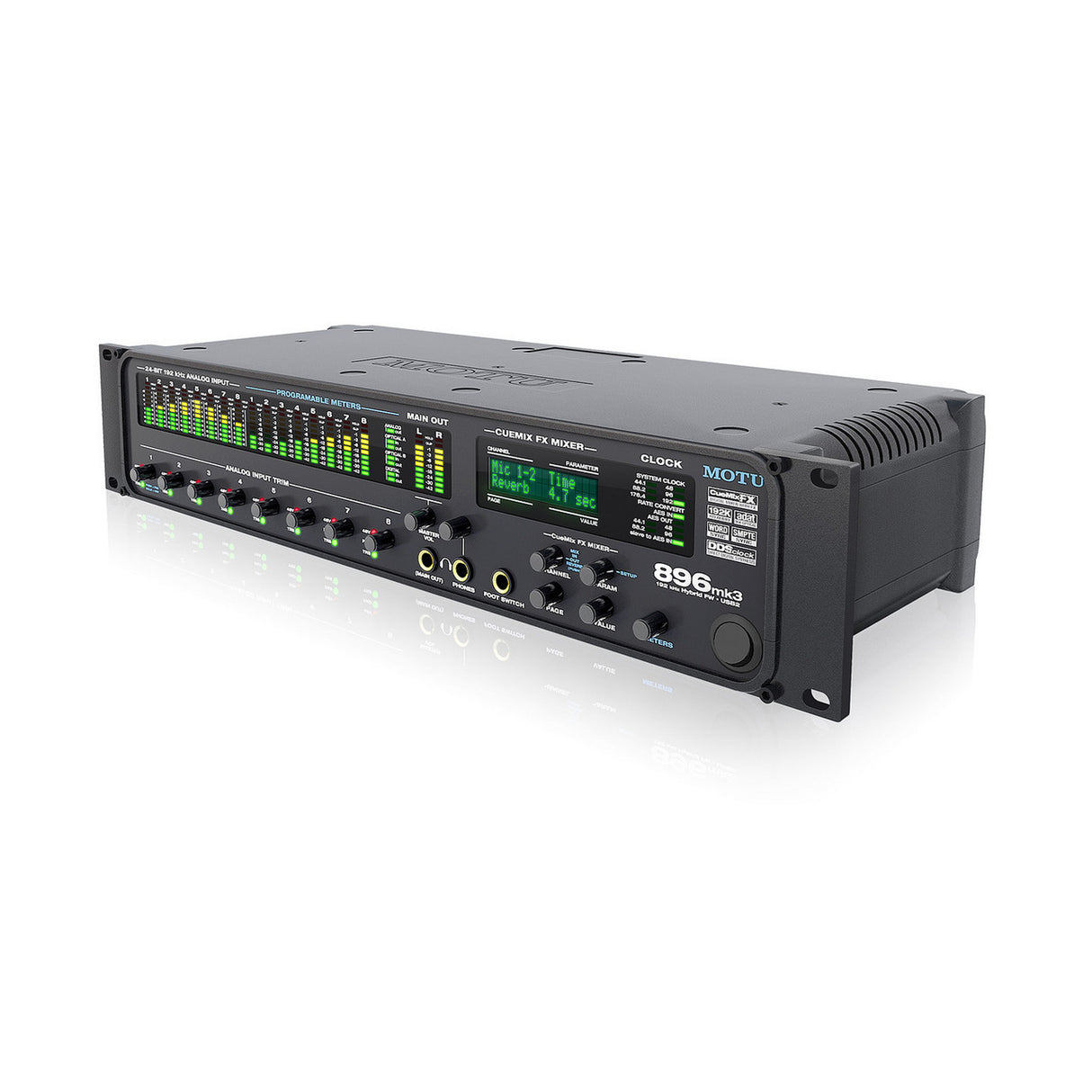

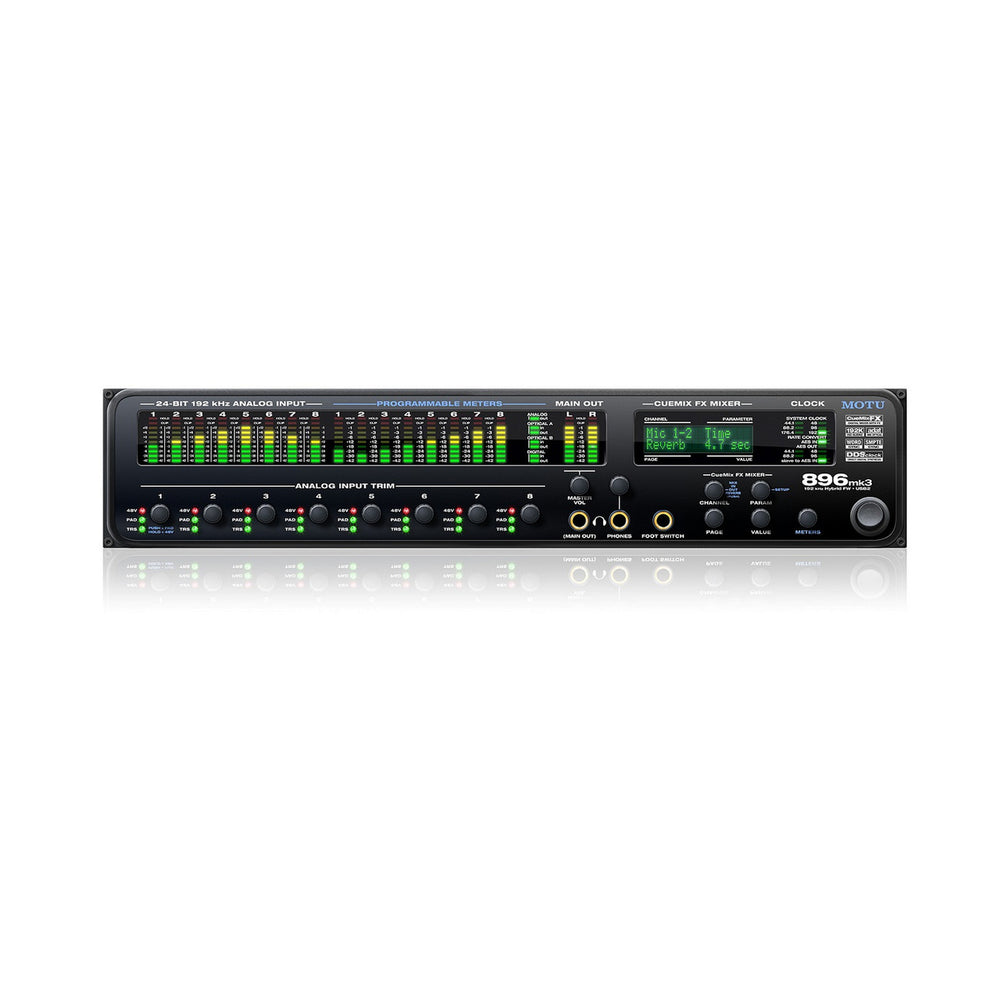

MOTU 896mk3 Hybrid 8 Mic Guitar Input with On Board Effects and Mixing

The Motu 896mk3 audio interface delivers advanced design, high-end performance, superb sound, and universal "hybrid" FireWire/USB2 connectivity to your Mac or Windows computer.

Key Features

• Hybrid FireWire/USB2 connectivity - connect to your computer via plug-and-play FireWire or hi-speed USB2.
• CueMix FX - flexible 28 input/16 bus mixer with on-board DSP effects, including reverb with sends/returns, plus EQ and compression on every input and output.
• 28 inputs / 32 outputs (at 44.1/48 kHz) - there's no channel sharing in the 896mk3; the mic inputs, AES/EBU I/O, S/PDIF I/O, headphone out and main outs are all handled as separate channels.
• Front-panel control - access any setting in your entire 896mk3 mix directly from the front panel.
• Stand-alone operation - program your mixes at the studio and then bring the 896mk3 to your gig - no computer needed. Need to tweak the mix? Do it on site using the back-lit LCD and front-panel controls.
• Multiple CueMix FX mixes - for example, create different monitor mixes for the main outs and headphones. Or add send/return loops for outboard gear - with no latency

Technical Specifications

Hybrid FireWire/USB2 connectivity - connect to your computer via plug-and-play FireWire or hi-speed USB2.
CueMix FX - flexible 28 input/16 bus mixer with on-board DSP effects, including reverb with sends/returns, plus EQ and compression on every input and output.
28 inputs / 32 outputs (at 44.1/48 kHz) - there's no channel sharing in the 896mk3; the mic inputs, AES/EBU I/O, S/PDIF I/O, headphone out and main outs are all handled as separate channels.
Front-panel control - access any setting in your entire 896mk3 mix directly from the front panel.
Stand-alone operation - program your mixes at the studio and then bring the 896mk3 to your gig - no computer needed. Need to tweak the mix? Do it on site using the back-lit LCD and front-panel controls.
Multiple CueMix FX mixes - for example, create different monitor mixes for the main outs and headphones. Or add send/return loops for outboard gear - with no latency.

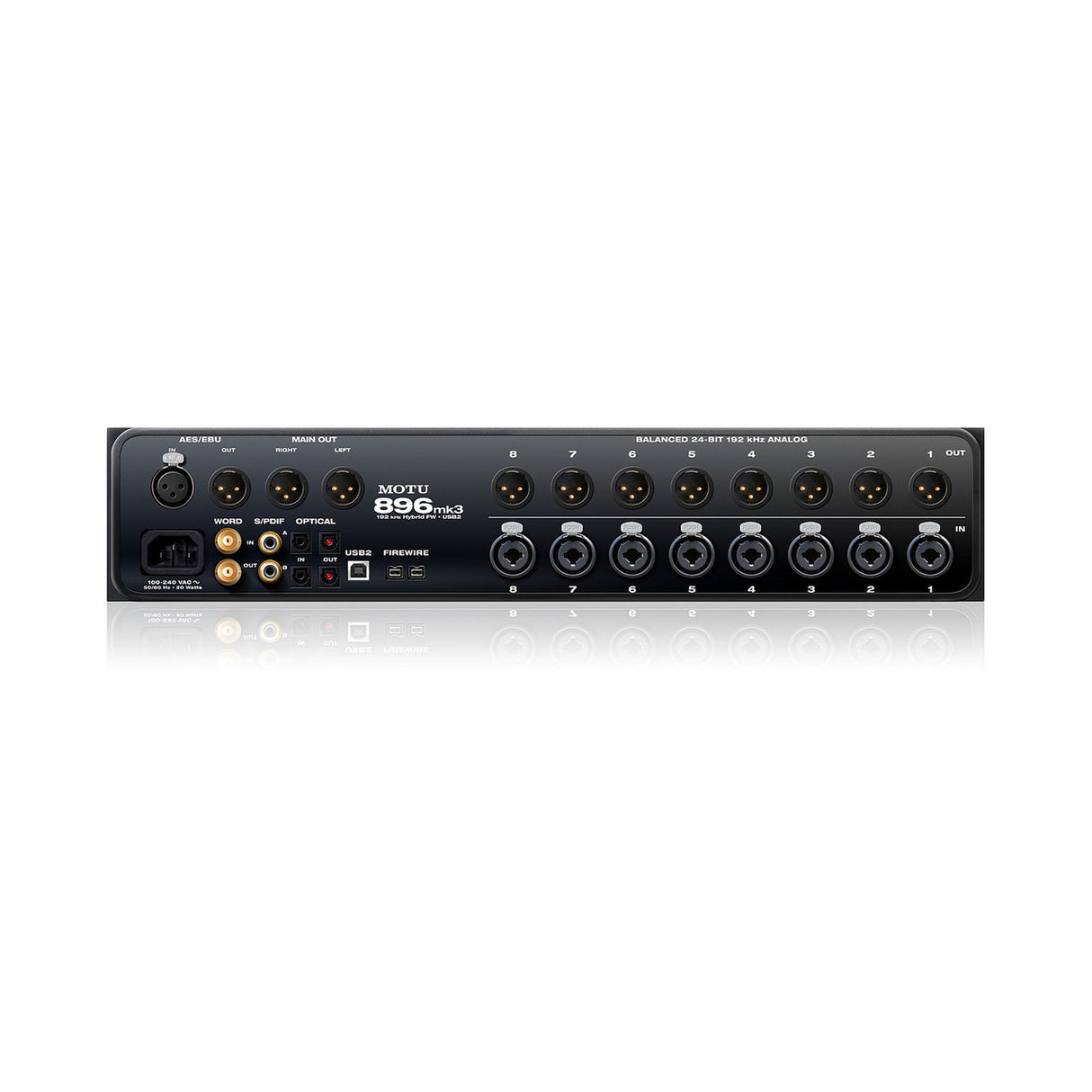

Eight rear panel combo jacks provide 1/4" or XLR mic input with phantom power, pad and plenty of gain.
Clip protection - input limiter prevents digital clipping and distortion from overloaded signal levels up to +12 dB over zero.
Eight 24-bit 192kHz analog inputs and outputs on XLR jacks
Precision Digital Trim - Digitally controlled analog trim on all analog inputs provides accurate adjustements in 1 dB increments. Fine-tune the balance of your analog inputs and then save/recall trim configurations.
Flexible optical I/O - 16 channels of ADAT lightpipe, 8 channels of SMUX (96 kHz) or two pairs of stereo TOSLink. Mix and match formats between the two banks.
Expandable - add additional interfaces for more I/O as your needs grow.
Separate XLR main outs and front-panel headphone jacks, each with independent volume control.
Stereo 24-bit 96kHz AES/EBU in/out
Stereo 24-bit 96kHz S/PDIF in/out
Word clock in and out
Foot switch input - conveniently located on the front panel...connect a standard foot pedal switch (sold separately) for hands-free punch-in and punch-out while recording. Or map the pedal to any keystroke function in your host software.
Includes native 32- and 64-bit drivers for Mac OS X and Windows 10/8/7/Vista, including ASIO, WDM, Wave, Core Audio, and Core MIDI. Supports all popular Mac and Windows audio software.
100% compatible with all host-based effects processing in today's popular audio programs.
Includes AudioDesk full-featured sample-accurate workstation software for Mac and Windows with recording, editing, mixing, real-time 32-bit effects processing & sample-accurate sync.
Plug-and-play operation with your Mac or PC via FireWire or high-speed USB 2.0.
Front panel volume control for monitoring. Stereo, Quad, 6.1, 7.1 and user-defined surround monitoring setups available.
Two front panel headphone jacks with independent volume controls.
Comprehensive front panel metering for all analog and digital audio I/O.
Dedicated front panel clock status LEDs.
International 100-240V, 50-60 Hz autoswitching power supply.
Chassis dimensions, excluding rack ears and front and back panel knobs and connectors: 19 x 7 x 3.5 inches (48.26 x 17.78 x 8.89 cm). Knobs and connectors extend up to 0.5 inch (1.27 cm) from front and back panels, adding 1 inch (2.54 cm) to depth. With rack ears attached, fits standard 19 inch (48.26 cm) rack at 2U high.
