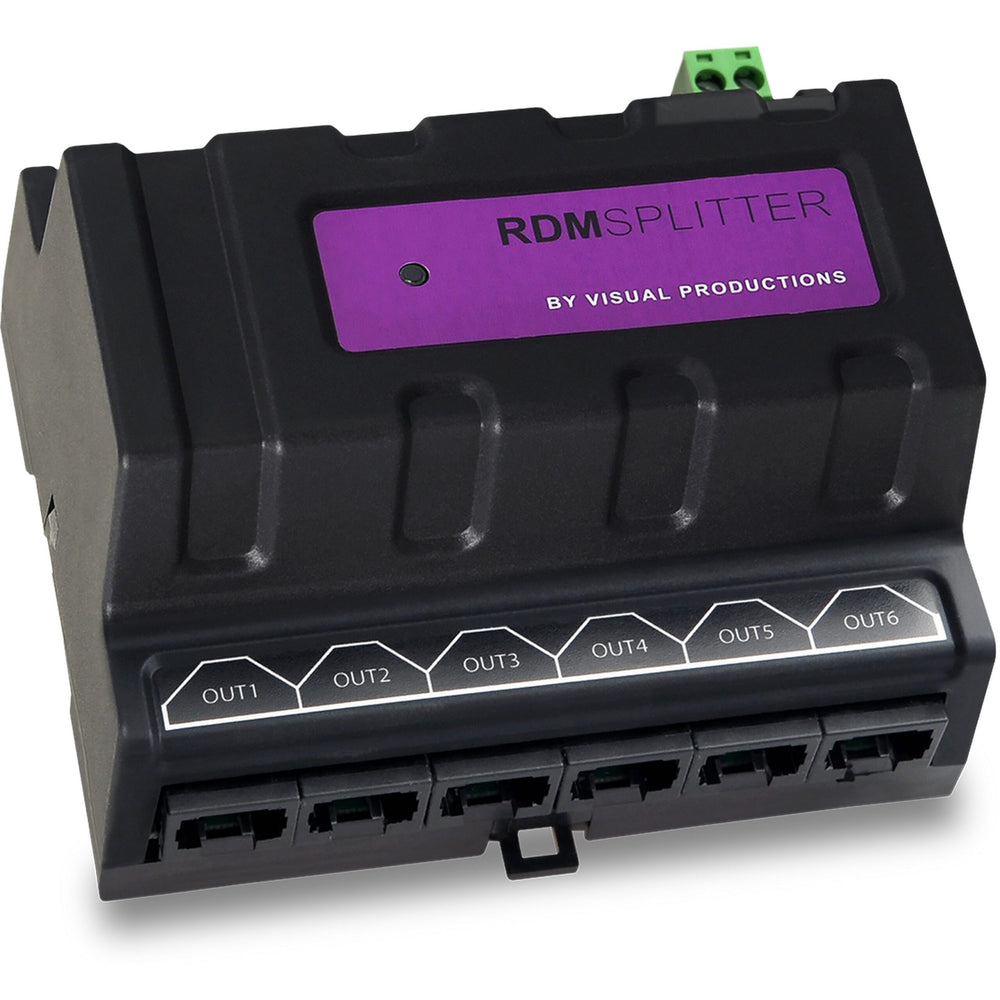

Visual Productions RDM Splitter DIN Rail Mounted DMX+RDM Splitter/Booster, RJ-45

The widespread data protocol for lighting equipment is DMX-512. It is a very successful protocol with, however, a few limitations. The maximum number of attached devices is limited to 32 and they all have to be connected in bus-topology having one cable running via each device. Furthermore, a DMX cable should not be longer than 300 meters.

The RdmSplitter from Visual Productions helps tackle those inconvenient limitations. The splitter takes a DMX signal and sends it out again on its 6 DMX output ports allowing a star-topology for efficient cable usage. Each output port is capable of driving 32 more devices. The splitter can also function as a signal booster as each port supports another 300 meter long connection.

The RdmSplitter features RDM compatibility. The RDM protocol provides two-way communication over a DMX infrastructure. It enables automatic addressing and allows fixtures to provide status information back to the lighting controller.

Key Features

• DIN Rail mounting
• DMX512-A (ANSI E1.11)
• RDM (ANSI E1.20)
• RJ-45 connectors
• 6 outputs
• Optical Isolation (individual per port)
• 9-24V DC 500mA (PSU optional)
• Operating temperature -20 C to +50-deg C (-4 F to 122-deg F)
• Compliance EN55103-1 EN55103-2
