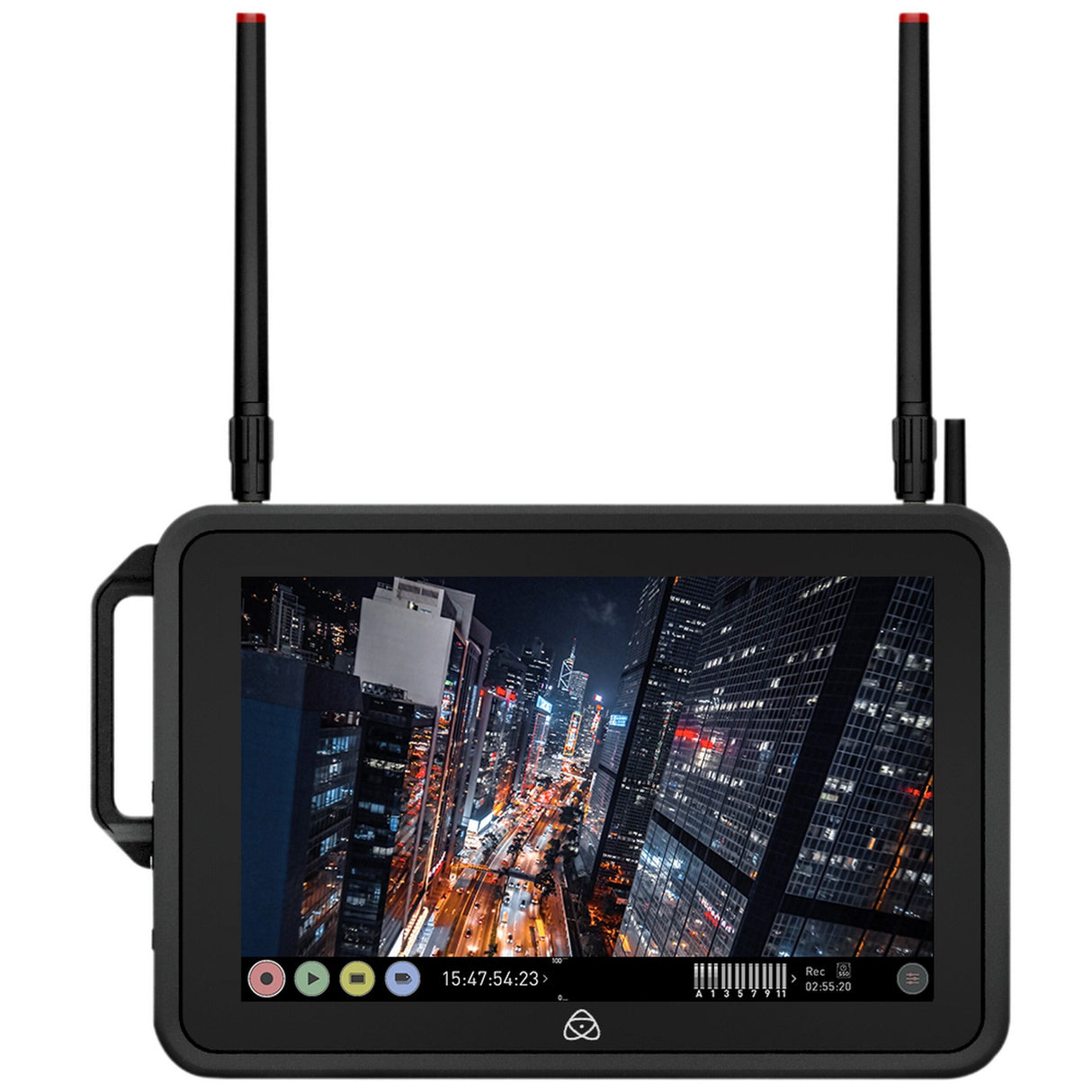

Atomos Shogun Connect 7-Inch Network Connected HDR Video Monitor/Recorder

The Atomos Shogun Connect is the ultimate tool for professional filmmakers, streamers, and video content creators looking to enhance their workflows. This 7-inch monitor/recorder integrates advanced HDR monitoring, RAW recording, and seamless cloud workflows, making it a first of its kind in the Shogun series. With a 2000nit brighter screen, the Shogun Connect is designed to meet all your recording needs, offering versatility, functionality, and superb performance.

Boasting Wi-Fi 6, Gigabit Ethernet, AirGlu wireless timecode, and USB-C, Shogun Connect ensures maximum connectivity for any shooting scenario. It supports a broad range of professional cinema, mirrorless, and DSLR cameras, transforming them into powerful, network-connected devices. Whether you are livestreaming on Facebook Live, Twitch, or YouTube, the Shogun Connect is built to support your every need, wherever you are.

One of its standout features is the dual recording capability, enabling “hero” files in Apple ProRes, ProRes RAW, and Avid DNxHR/HD, alongside “proxy” files in H.265, which can be uploaded to the cloud during capture. This device offers unparalleled flexibility, making it easier than ever for remote teams to collaborate on projects, thanks to its Frame.io Camera to Cloud (C2C) functionality.

Key Features

• 7” 2000nit monitor with built-in video recording via HDMI and SDI up to 4Kp60
• RAW capture via HDMI at up to 8Kp30 / 4Kp120 and via SDI at up to 6Kp60
• Simultaneous recording of hero ProRes RAW, ProRes, or DNxHR/HD with matched H.265 Proxy
• 12G SDI IN with support for video 4K at up to 60fps
• ATOMOS AirGlu sync technology for wireless timecode via RF and Bluetooth LE
• Wi-Fi 6 and 1GbE Ethernet for robust network connectivity
• Direct livestream to Facebook Live, Twitch, YouTube, and more
• Bi-directional HDMISDI input conversion with simultaneous SDI & HDMI outputs

Specifications

• Dimensions (W x H x D): 198mm x 133mm x 40mm / 7.8” x 5.2” x 1.57”
• Weight: 730g / 1.6lb (excluding batteries)
• Construction: Aluminum alloy chassis with ABS Polycarbonate back plate
• Cooling: Actively controlled fan and heat sink
• Input Voltage: 6.2V to 16.8V
• Compatible Batteries: 1 x NP-F / L-Series
• Backlight: Edge lit
• Resolution: 1920 x 1200
• Brightness: 2000nit +/-10%
• Color Gamut: Rec.709
• Calibration Support: ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus
• HDR Support: Yes
• Network Connectivity: Wi-Fi 6, 1GbE Ethernet, Bluetooth LE
• Recording CODEC: Apple ProRes RAW up to 12bit 8Kp30 / 4Kp120

Package Contents

• Shogun Connect 7-inch Monitor/Recorder
• 1 x NP-F / L-Series compatible battery
• Locking DC Jack connector
• USB-C Cable
• User Manual
• Warranty card
