JBL Control 426C/T 6.5-Inch Coaxial Ceiling Loudspeaker
JBL Control 426C/T 6.5-Inch Coaxial Ceiling Loudspeaker
Free Shipping

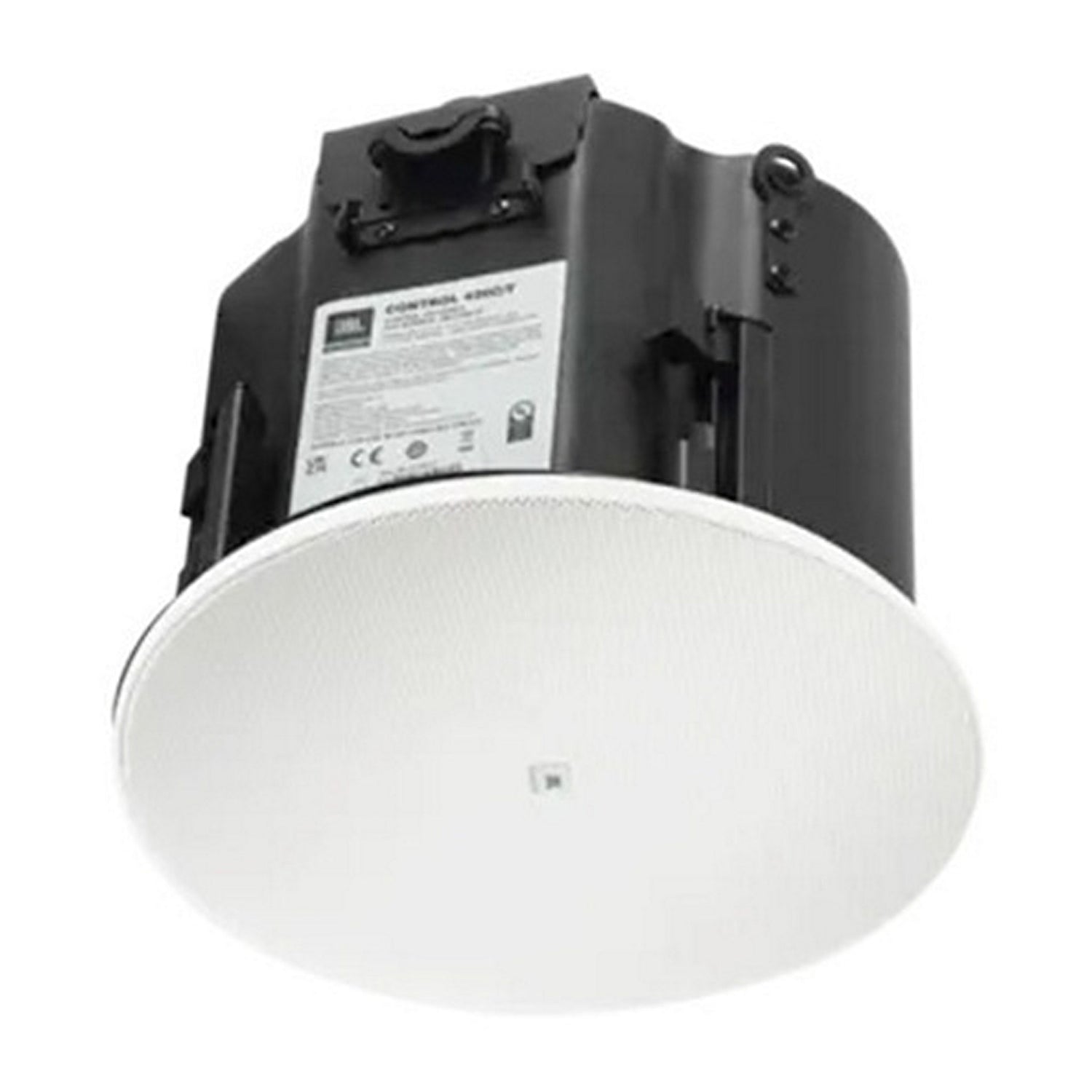

JBL Control 426C/T 6.5" Coaxial Ceiling Loudspeaker
The JBL Control 426C/T is a professional-grade two-way coaxial ceiling loudspeaker designed for superior sound reinforcement in commercial environments. Featuring a 6.5" woofer and coaxially mounted 1" soft-dome tweeter with JBL's exclusive CRBI™ (Coplanar Radiation Boundary Integrator) technology, this premium ceiling speaker delivers exceptionally uniform 110° coverage with enhanced clarity and consistent sound throughout the entire listening area. Its integrated enclosure is ideal for installation in most ceiling plenum spaces, providing powerful yet refined audio performance for restaurants, retail spaces, conference rooms, and educational facilities.
Engineered for both performance and aesthetics, the Control 426C/T features a full-face magnetic grille that blends seamlessly with modern interior designs. The speaker includes multiple mechanical improvements such as redesigned terminal covers with both top and side cable entry ports, and a reliable dogear mounting system that works with various ceiling thicknesses. With the flexibility to support both 70V/100V distributed systems and direct 12-ohm operation, plus high power handling capabilities of up to 440W peak, the Control 426C/T delivers exceptional audio quality while reducing the number of speakers, amplifier channels, and overall project costs required to cover a space.
Key Features
- CRBI™ Technology: Delivers exceptionally smooth sound character that remains consistent across a wide 110° coverage area, reducing hot spots and cold spots
- Premium Audio Performance: 6.5" woofer paired with a 1" soft-dome tweeter provides high-fidelity sound with excellent dynamic range
- High Power Handling: 110W RMS and 440W peak power handling capability for impressive output and headroom
- Versatile Application: Built-in 60W multi-tap transformer supports both 70V/100V distributed systems and direct 12-ohm low-impedance operation
- Sleek Design: Bezel-less, magnetically attached grille blends seamlessly into modern interior spaces with optional black and square grilles available
- Flexible Installation: Redesigned terminal covers with top and side cable entry ports that can be secured without tools using captive hand screws
- Reliable Mounting: Captive dogear design works effectively with a wide range of ceiling thicknesses
- Environmental Protection: IP33 rating provides solid protection against dust and light water sprays
Technical Specifications
- Speaker Type: Two-way coaxial ceiling-mounted loudspeaker
- Woofer Size: 165 mm (6.5 inches)
- Tweeter: 25 mm (1.0 inch) soft-dome with neodymium magnet assembly
- Power Handling: 110W RMS, 440W peak
- Coverage Pattern: 110° conical coverage
- Transformer Taps: 60W multi-tap transformer for 70V/100V systems
- Impedance: 12-ohm direct operation
- Dimensions: 7.4 inches (H) x 9.9 inches diameter (190 mm x 253 mm)
Package Contents
- JBL Control 426C/T Ceiling Speaker
- White rounded grille
- C-ring
- Tile rails for installation
