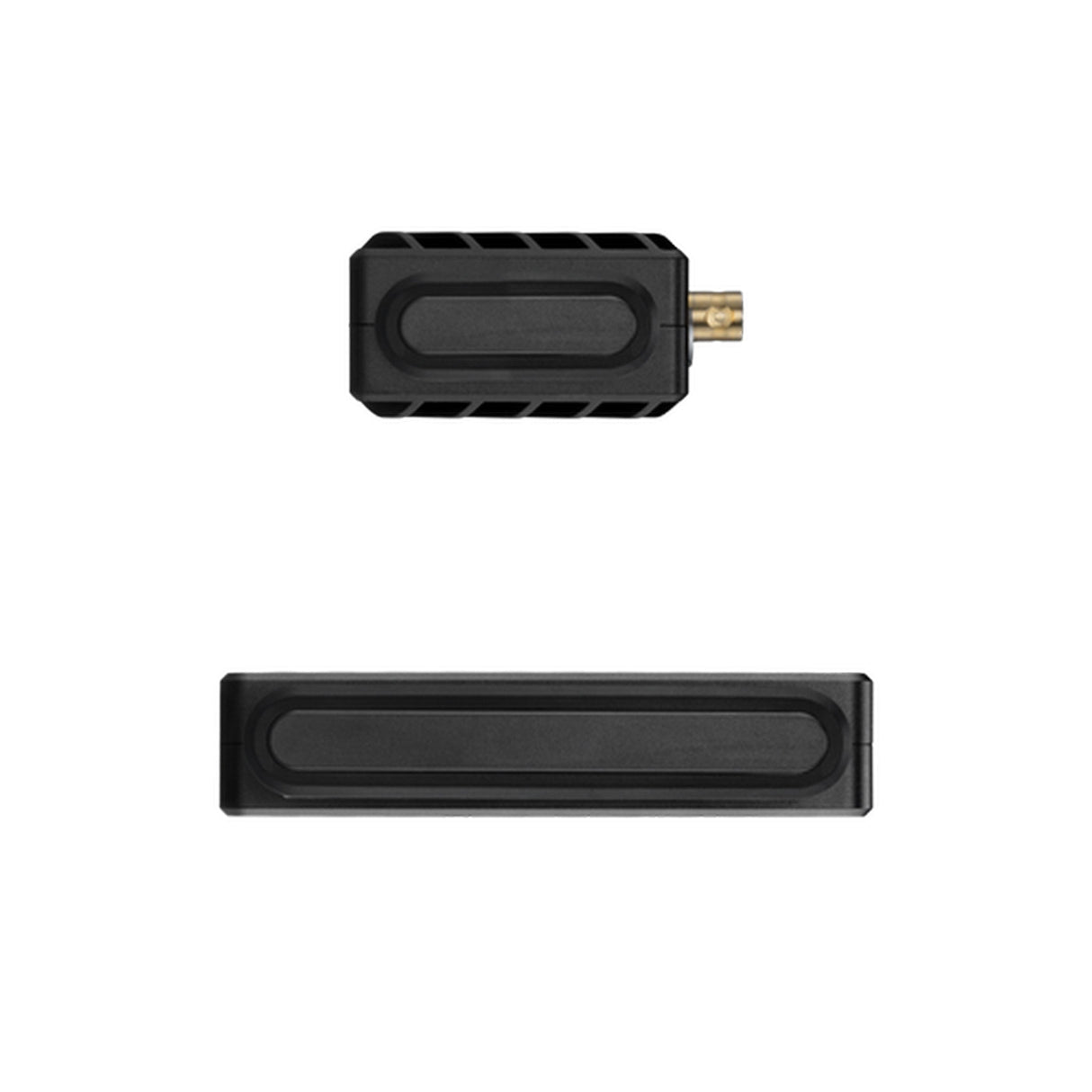

Teradek Bolt 6 LT 750 No Mount Transmitter/Reciever Kit

The Bolt 6 LT 750 TX is a high-performance wireless video transmitter designed for professional filmmakers and videographers. It allows for the transmission of high-quality video signals over long distances, making it ideal for on-set monitoring and live events.

This transmitter features advanced video processing capabilities, supports a wide range of resolutions, and offers low latency transmission. With its robust construction and multiple mounting options, it is built to withstand the rigors of professional use.

Key Features

• Video Inputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1), 1 x HDMI 1.4b Type-A receptacle
• Video Outputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
• Delay Tx To Rx: <0.001 sec
• Input Cross Conversion: Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout)
• Supported Resolutions: 4Kp23.98/24/25/29.97/30 (HDMI only), 1080p23.98/24/25/29.97/30/50/59.94/60, 1080psf23.98/24/25/29.97/30, 1080i50/59.94/60, 720p50/59.94/60
• Video Compression: Visually Lossless
• Audio Compression: 48kHz 24-bit PCM
• Dimensions: 60mm x 103mm x 33mm
• Weight: 206g (7.3oz)
• Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
• Power Input: 2-Pin Circular locking Connector 6-28 VDC
• Nominal Power Consumption: 9 Watts
• Operating Temperature: 0-40℃

Technical Specifications

• Measuring System: Not applicable
• Sensor: Not applicable
• Measuring Range: Not applicable
• Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz; DFS Frequencies: 5.270 ~ 5.670 GHz
• Rf Power: 23 dbm EIRP
• Range: Up to 750 ft, line of sight
• Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
• Noise Rejection: Can coexist with WiFi and 5GHz cordless phones; Can operate up to 6 sets in same location
• Interoperability Compatibility: Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)

What's in the Box

• Bolt 6 LT 750 TX Transmitter
• 2 External 2dBi antennas
• Power supply
• Mounting hardware
