Teradek ACE 750 Transmitter

The Teradek Ace 750 TX is a high-performance wireless video transmitter designed for professional filmmakers and content creators. It allows for seamless transmission of high-definition video signals over long distances, making it ideal for on-set monitoring and live broadcasting.

This device features advanced video processing capabilities, supporting a range of resolutions and color formats. With its low latency and robust wireless connectivity, the Ace 750 TX ensures that you can transmit video without compromising quality or performance.

Key Features

• Video Inputs: 1x HDMI 1.4b Type-A receptacle
• Color Sampling: YCbCr 4:2:2 10-Bit, RGB 4:4:4 8-bit
• Delay Tx To Rx: <0.001 sec (without format conversions)
• Supported Resolutions: 4Kp23.98/24/25/29.97/30, 1080p23.98/24/25/29.97/30/50/59.94/60, 1080i50/59.94/60, 720p50/59.94/60
• Video Compression: Visually Lossless
• Audio Input: Embedded HDMI Audio Input (2 channel)
• Dimensions: 4.39"" x 3.19"" x 1""
• Weight: 6.6 oz (187 g)
• Construction: ABS Plastic / Milled Aluminium
• Mountability: Multiple mounting options with M3 and 1/4-20” holes

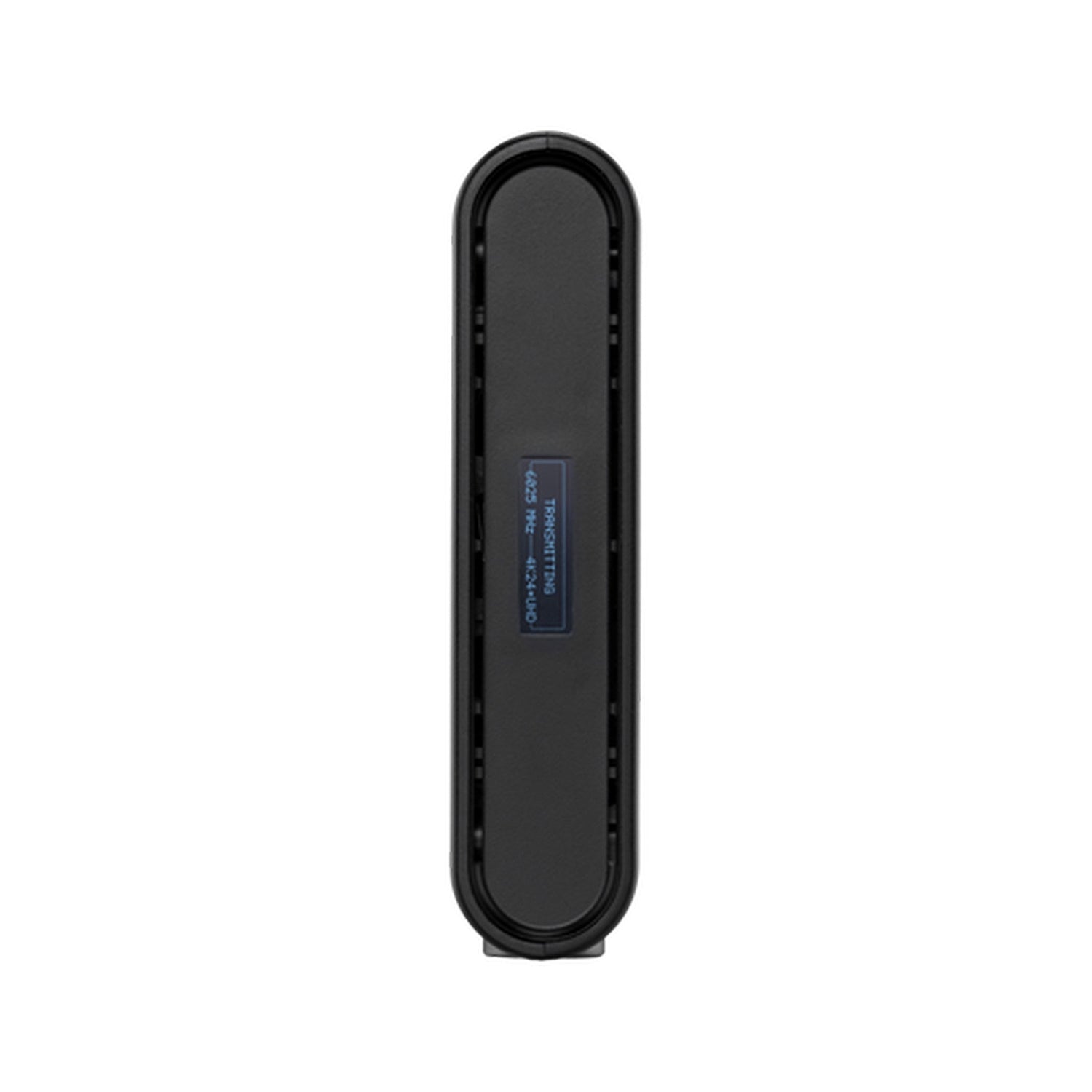

• Configuration Interfaces: OLED display showing input video format, selected frequency, video quality %, and link status
• Switches: On/Off Switch
• Mobile App: Bolt App
• Desktop App: Bolt Manager application for OSX & Windows
• USB Interface Functionality: Upgrade via USB C
• Bluetooth: Yes
• Antennas: 2x 2dBi internal antennas (AMC mode always on)
• Wireless: DFS Frequencies: 5.270 ~ 5.670 GHz; Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425 GHz
• RF Channel Selection: Auto only, 40 MHz only, no blocked frequencies
• Encryption: AES-128, RSA-1024 key exchange
• RF Power: 19 dBm EIRP (<80 mW transmit power)
• Range: Up to 750 ft, line of sight
• Unicast Multicast: Yes - 1 TX to 6 RX
• Noise Rejection: Can coexist with WiFi and 5GHz cordless phones, can operate up to 4 sets in the same location
• Interoperability Compatibility: Compatible with Bolt 4k and Bolt 6 products
• Power Input: Barrel connector 7-28V
• Battery: None, optional Sony/Canon dual battery plate
• Nominal Power Consumption: 8 Watts
• Operating Temperature: 0-40℃

What's in the Box

• Teradek Ace 750 TX
• Power Supply
• Mounting Hardware
• User Manual
