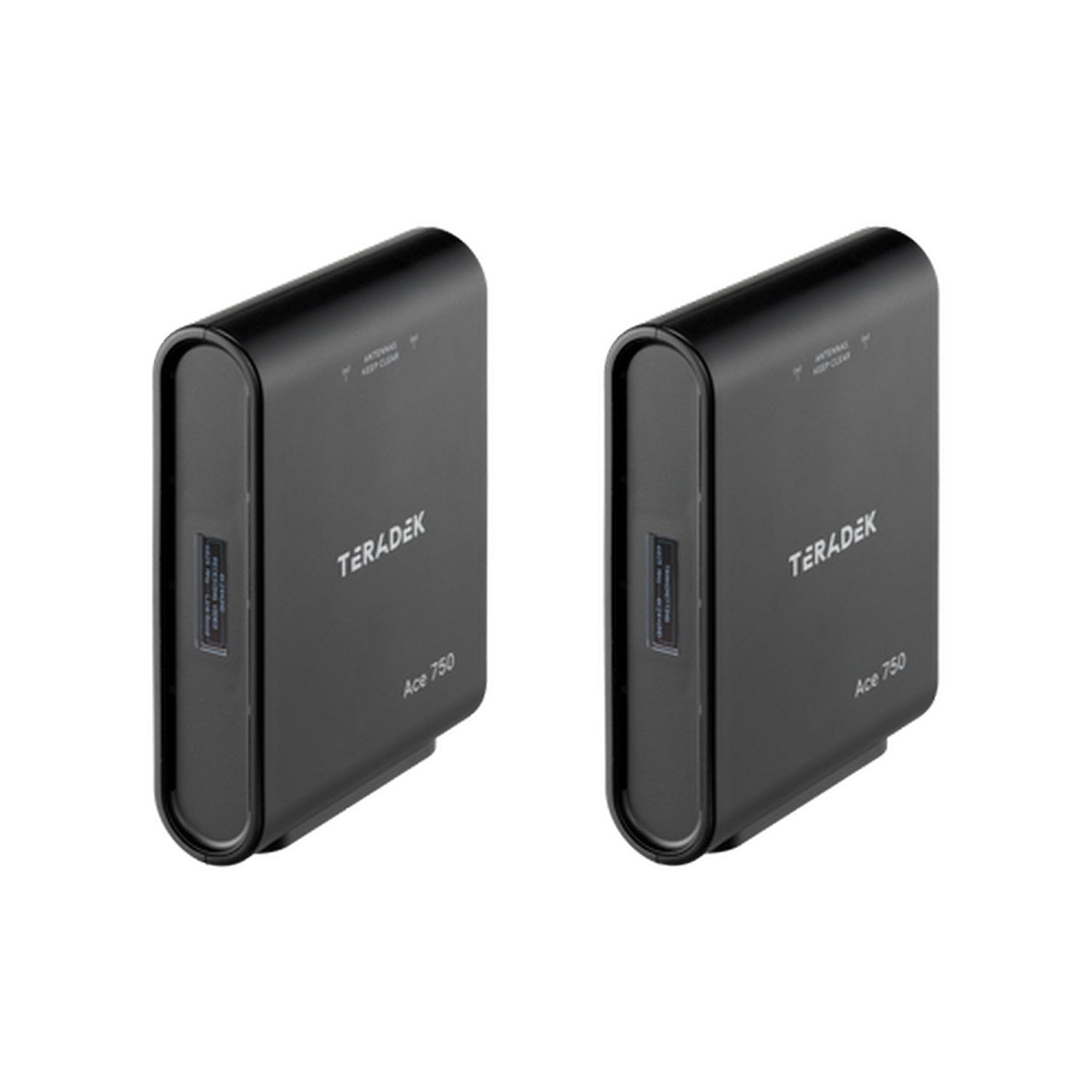

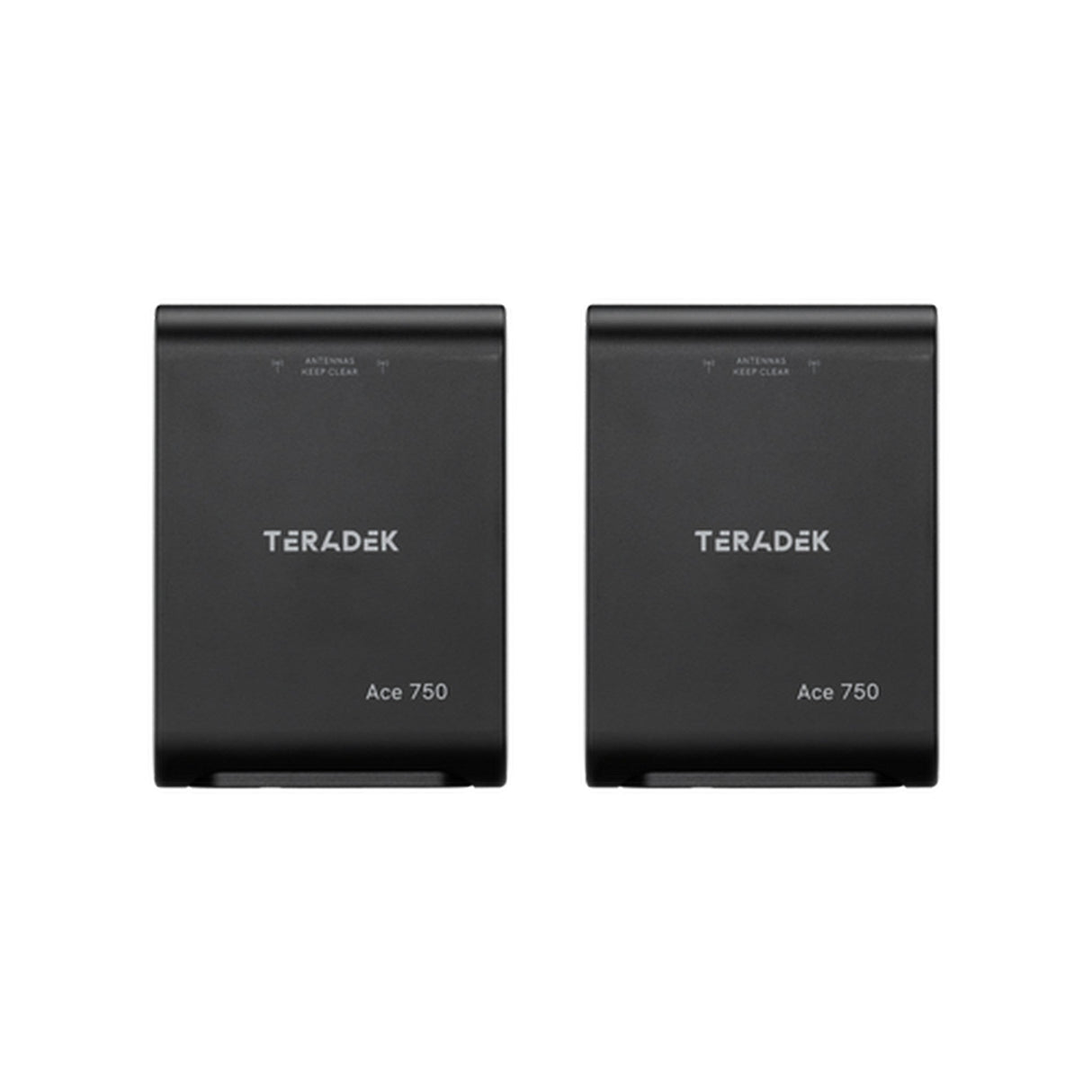

Teradek ACE 750 Transmitter/Receiver Set

The Ace 750 is a high-performance wireless video transmission system designed for professional filmmakers and videographers. It allows for seamless transmission of high-quality video signals over long distances, making it ideal for live events, film sets, and remote productions.

This system supports a variety of resolutions and features visually lossless video compression, ensuring that your footage maintains its quality during transmission. With a range of up to 750 feet and robust wireless capabilities, the Ace 750 is built for reliability and performance in demanding environments.

Key Features

• Video Inputs: 1x HDMI 1.4b Type-A receptacle
• Color Sampling: YCbCr 4:2:2 10-Bit, RGB 4:4:4 8-bit
• Delay Tx To Rx: <0.001sec (without format conversions)
• Supported Resolutions: 4Kp23.98/24/25/29.97/30, 1080p23.98/24/25/29.97/30/50/59.94/60, 1080i50/59.94/60, 720p50/59.94/60
• Video Compression: Visually Lossless
• Audio Compression: 48kHz 24-bit PCM
• Dimensions: 4.39"" x 3.19"" x 1""
• Weight: 6.6oz (187g)
• Construction: ABS Plastic / Milled Aluminium

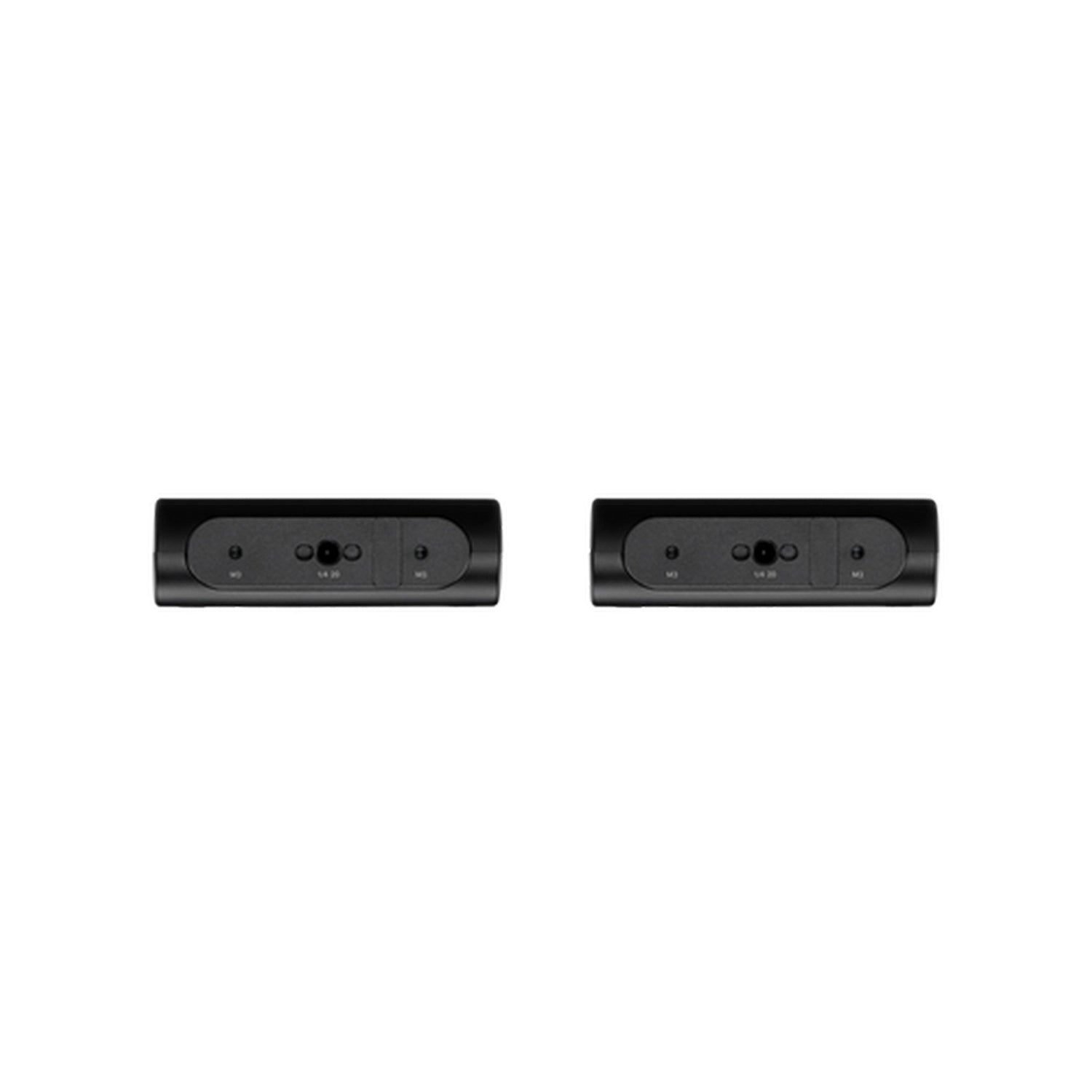

• Mountability: Multiple mounting options with M3 and 1/4-20” holes

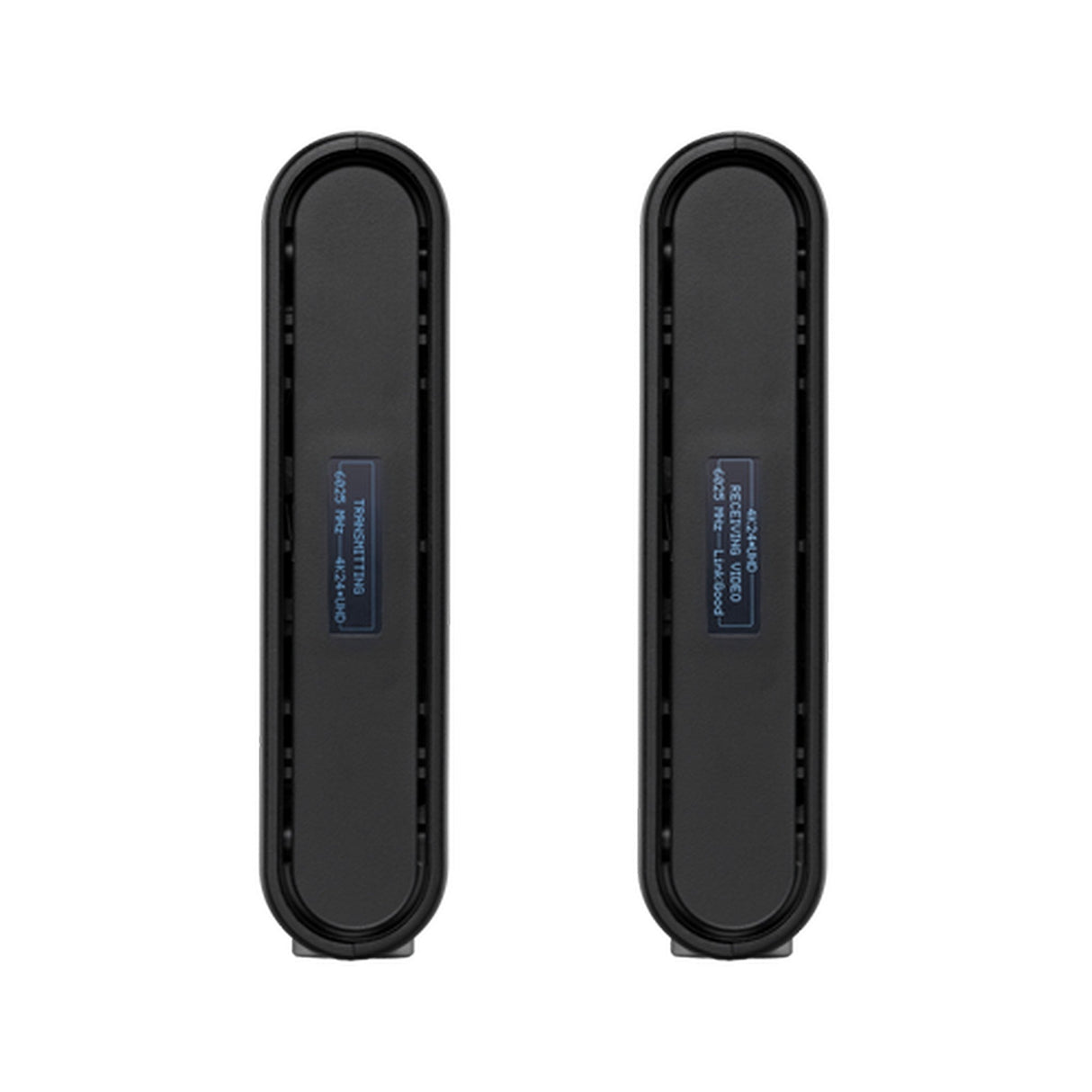

• Configuration Interfaces: OLED display for input video format, selected frequency, video quality %, and link status
• Mobile App: Bolt App
• Desktop App: Bolt Manager application for OSX & Windows
• Bluetooth: Yes
• Wireless Range: Up to 750 ft, line of sight
• Power Input: Barrel connector 7-28V
• Nominal Power Consumption: 8 Watts
• Operating Temperature: 0-40℃

Technical Specifications

• Measuring System: N/A
• Sensor: N/A
• Measuring Range: N/A
• Audio Input: Embedded HDMI Audio Input (2 channel)
• Antennas: 2x 2dBi internal antennas (AMC mode always on)
• Wireless: DFS Frequencies: 5.270 ~ 5.670 GHz, Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz
• Rf Power: 19 dbm EIRP (<80mW transmit power)
• Unicast Multicast: Yes - 1 TX to 6 RX
• Noise Rejection: Can coexist with WiFi and 5GHz cordless phones, can operate up to 4 sets in the same location
• Interoperability Compatibility: Compatible with Bolt 4k and Bolt 6 products

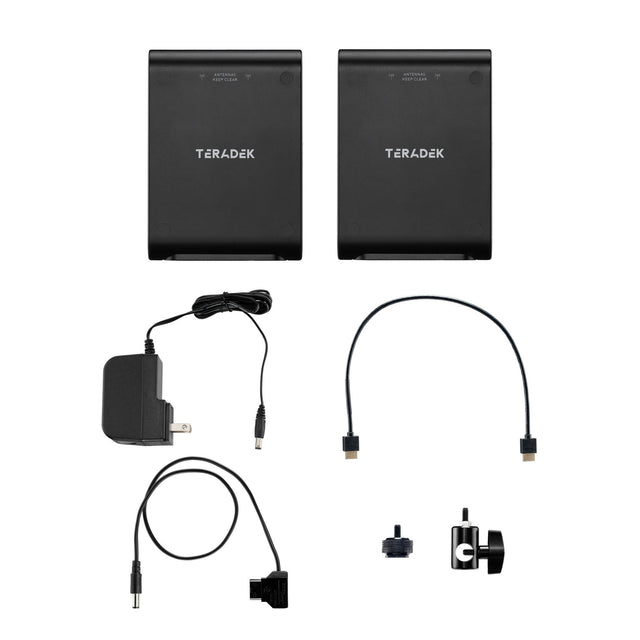

What's in the Box

• Ace 750 TX Unit
• Ace 750 RX Unit
• Power Supply
• Mounting Accessories
