Ikan LWX8 Lyra Low Profile Daylight Studio Panel Soft LED Light

Ikan LWX8 Lyra Low Profile Daylight Studio Panel Soft LED Light

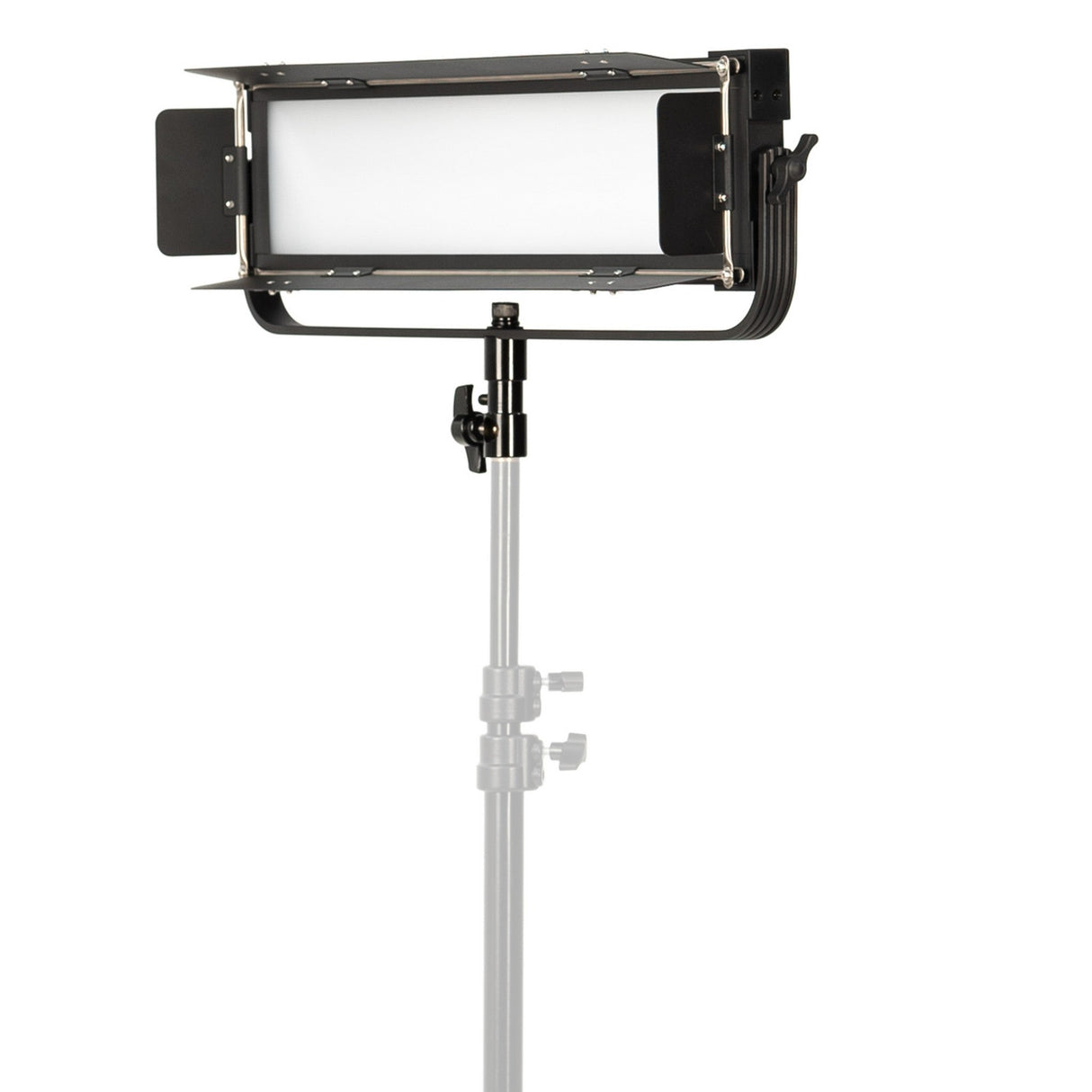

The Ikan LWX8 is a sleek and low-profile lighting solution designed to be effortlessly installed in studios with limited ceiling clearance. Equipped with high CRI LED chips and a soft panel, it emits a gentle, wraparound light that offers a clean and sharp shadow. The 110-degree beam angle offers ample coverage, and the sturdy yoke, with its tension knobs, allows for easy adjustments and secure placement at any angle. The yellow control knob on the back, along with the LED readout, makes adjusting the light’s brightness and DMX channels a breeze. Additionally, the built-in barn doors offer integrated clips to add light modifiers. The inclusion of a baby 5/8” and junior 1 1/8” combo pin expands its compatibility, enabling use on standard light stands.

Low Profile
The Ikan LWX8 is crafted with versatility and practicality in mind, specifically for spaces with limited ceiling clearance. To accommodate a variety of lighting setups, the LWX8 is equipped with a convenient baby 5/8” and junior 1 1/8” combo pin, enabling it to be mounted on a grid or securely positioned on a light stand.

Consistent Color and Brightness
The Ikan LWX8 daylight 5600K boasts high CRI LED chips and a 1/2-stop soft diffusion panel, which together produce a brilliant and diffused light. The wide beam angle of the Lyra soft light radiates a generous amount of soft illumination, providing ample coverage.

LED Readout & Single Knob Control
Users can easily adjust the brightness or DMX, on the fly by using the single control knob on the back of the lights. The LED readout gives you a quick reference of the light’s output, color temperature, and DMX channel.

Full Body Lighting
Using the included TVMP you can mount the light vertically to allow full body lighting. To adjust the TVMP for vertical lighting the location screws will need to be removed.

110° Beam Angle & Single Shadow
The wide 110° beam angle gives you plenty of soft light and a more natural shot with a single shadow.

Key Features

• Low profile to fit low clearance areas
• 97 CRI COB LEDs paired with 1/2 stop soft diffusion panel
• Silent fanless fixture
• Daylight 5600K color temperature
• Beam angle 110 degrees
• Artifact free clean shadow
• Built-in barn doors with integrated clips
• DMX512 in and out
• Combo pin with right angle receiver hole
• Single knob control for adjusting brightness or DMX
• LED display for brightness and DMX

Technical Specifications

Shipping Weight (lbs)
8.5
Shipping Dimensions (in)
27 x 11.8 x 5.2
What's Included
Low Profile DMX Light Fixture
Yoke Mount
Built-in Barn Doors
Power Supply w/ Cable
TVMP
Safety Wire
Beam Angle
110 Degree
Brand
Ikan
Build Material
Heavy Duty Resin Plastic & Metal
Cooling System
Passive Cooling (Silent)
Country of Origin
China
CRI
97
Dimming
DMX 512 and Local Control
Fixture Power Consumption
50W
Fixture Size
24.5 x 7 x 1.9 in. (without combo pin)
Fixture Weight
4.9 lbs (without combo pin)
Head Type
5600K
Lens
1/2 Stop Soft Diffusion
Mounting System
Baby 5/8” -Junior 11/8” Combo Pin
Power Supply
Input
110-220VAC; Output
24VDC @2.75A
UPC Code
847983034710
