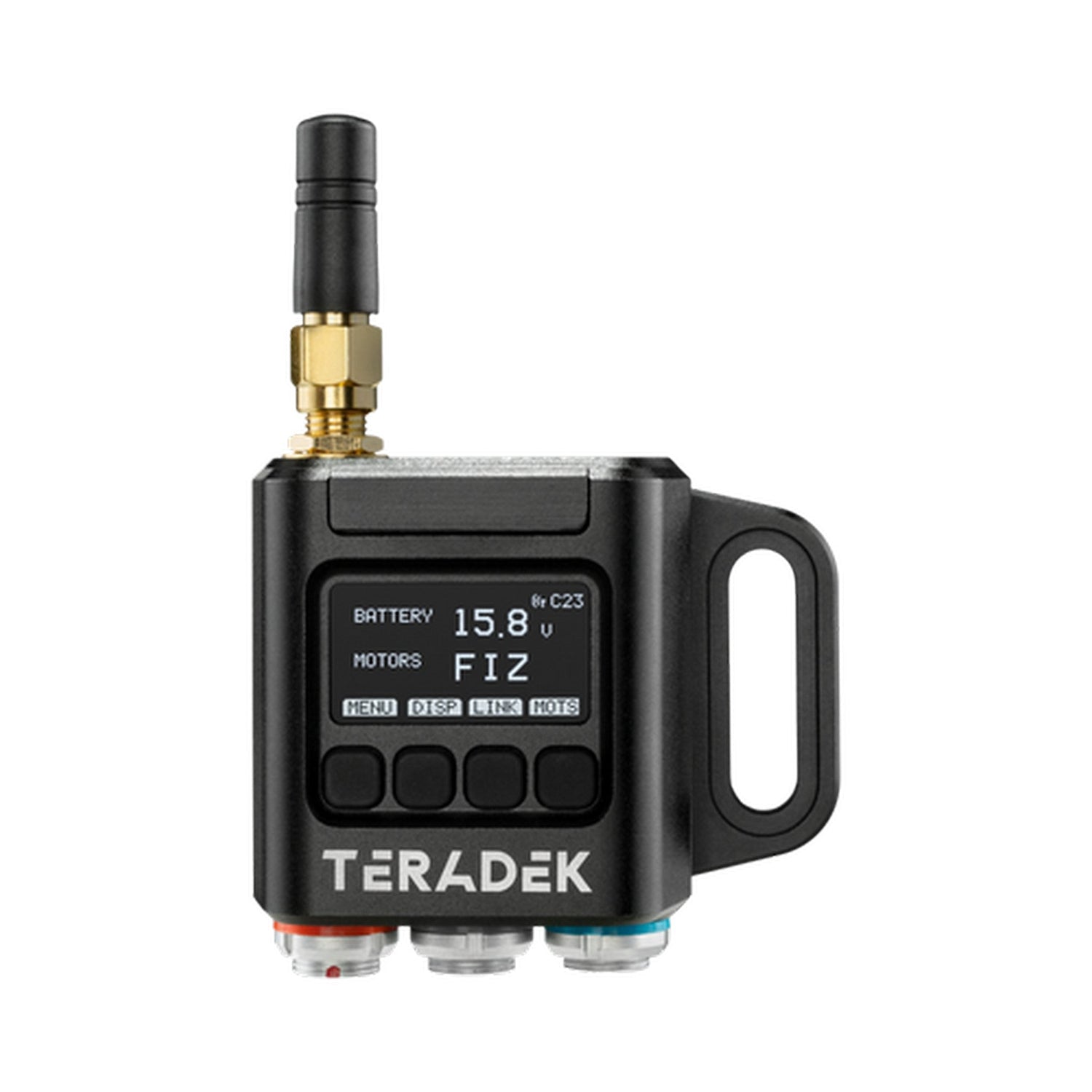

Teradek RT MDR.S Wireless Follow Focus Receiver

The Teradek MDR.S is a state-of-the-art wireless follow focus system designed for professional filmmakers and videographers. It allows for precise control of camera focus and iris remotely, enhancing the shooting experience and ensuring smooth operation during filming.

This system boasts a range of advanced features that cater to the needs of modern cinematography. With support for various camera controls and a robust wireless range, the MDR.S is built to perform in demanding environments.

Key Features

• Camera Control Support: Compatible with RED DSMC2 and RED DSMC cameras, offering control over EF/AF focus/iris, shutter, and ISO settings.
• Wireless Range: Operates up to 5000 ft (1500 m) line-of-sight in USA/FCC mode and up to 500 ft (150 m) indoors.
• Latency: Ultra-low latency of 2 ms for real-time control.
• Operating Temperature: Functions in temperatures ranging from -4 to 122ºF (-20 to 50ºC).
• Dimensions: Compact size of 2.3”W x 1.7”D x 0.9”H (57.9 x 42 x 24 mm).
• Weight: Lightweight at 2.4 oz (68 g) without antenna and 2.54 oz (72 g) with antenna.
• Construction: Made from Milled Aluminum 6061 --T6 for durability and a regulation-compliant PCB.

Technical Specifications

• Measuring System: N/A
• Sensor: N/A
• Measuring Range: N/A
• Front Panel Interface: OLED Screen with menu system and button navigation
• Power Input: 3-Pin LEMO 0B 5-28 VDC
• Wireless: Teradek RT FHSS: 2.4GHz, Bluetooth: 2.4GHz
• Storage Temperature Range: -40 to 185°F (-40 to 85ºC)
• Mountability: 1/4-20 mounting thread
• Camera Input Cam: 6-pin LEMO 0B, RS-232 for RED control, Programmable line driver for select cameras
• Motor Inputs: 4-pin LEMO 0B
• Usbc Input: Firmware upgrade

What's in the Box

• Teradek MDR.S Unit
• Power Supply
• Mounting Accessories
• User Manual
