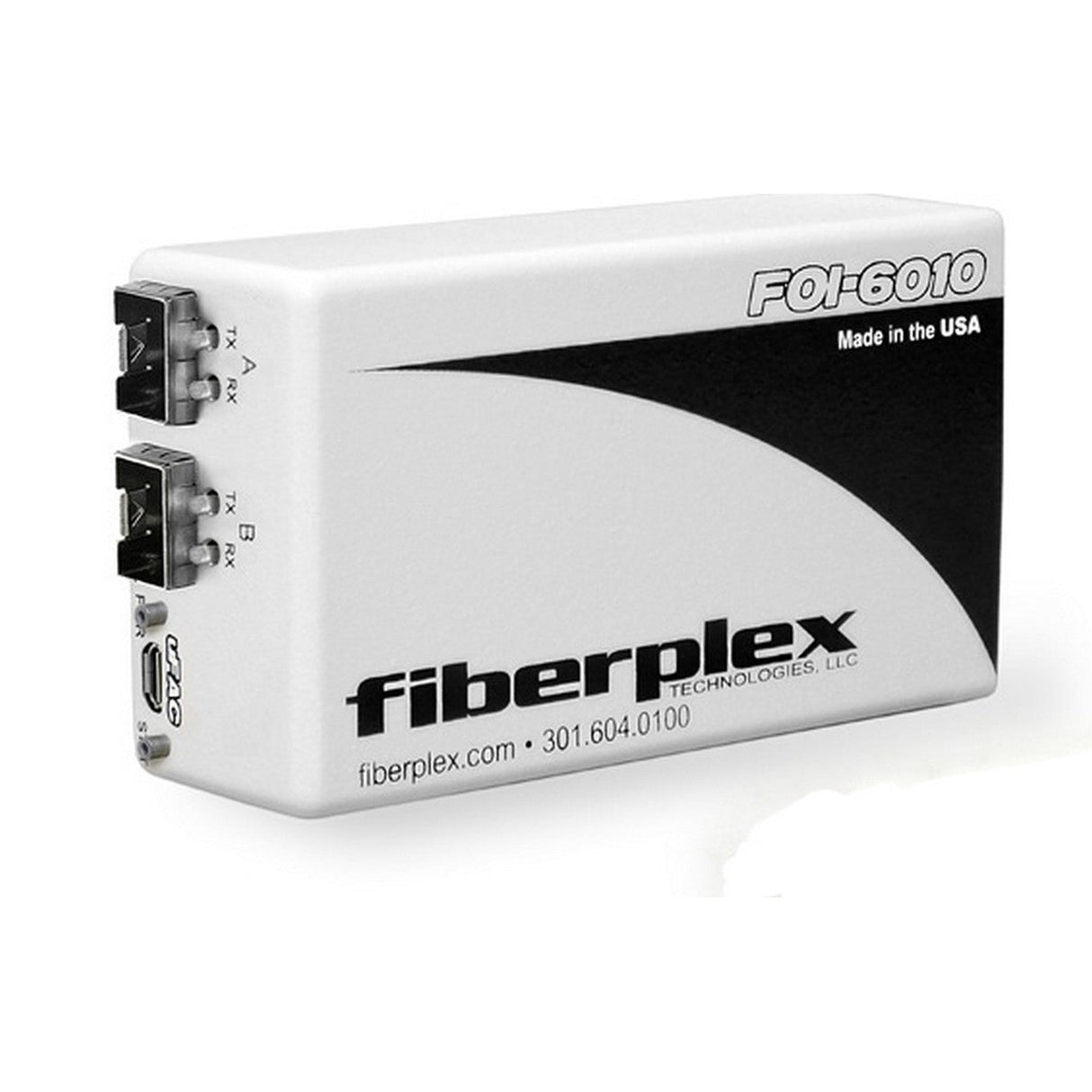

Fiberplex FOI-6010 Flexible Interface SFP/SFP+ Transceiver Workbox
Fiberplex FOI-6010 Flexible Interface SFP/SFP+ Transceiver Workbox
Free Shipping
fiberplex FOI-6010 Flexible Interface SFP/SFP+ Transceiver Workbox
The true “Swiss Army Knife” of fiber optic transport, the FOI(TD)-6010 in conjunction with any combination of a myriad of FiberPlex or third party SFP/SFP+ (Small Form-Factor Pluggable) optical & electrical transceiver modules, allows you to transport what you want, when you want it, how you want it, wherever you want it; all over one product solution... The FiberPlex FOI-6010 or TD-6010 and SFP/ SFP+ module should be in everyone’s toolbox.
Key Features
- High speed 12.5 Gbps SFP/SFP+ transceiver ports
- For dual TX / dual RX applications see the FOI(TD)-6012
- TD includes AC power adapter as well as a 3-position Phoenix
- uFAC port that allows for monitoring & programming of the SFP/SFP+ modules
Technical Specifications
Power Requirement
Voltage Range: Min 5VDC, Typical 9VDC, Max 40VDC
Supply Current, no SFPs: Min 21mA, Typical 23mA, Max 30mA
Supply Current, max 2 SFP+: Min 420mA, Typical 555mA, Max 1000mA
Environmental
Storage Temperature (°C): -40 - 85°C
Operating Temperature (°C): 0 - 50°C
Interface: Full speed USB 2.0 compliant MicroB Device
Optical Modules: 2 SFP+ MSA (SFF-8431, SFF-8432, SFF-8433) compliant slots, data rate 0 – 12.5 gigabits
