Autel Robotics EVO MAX 4T XE Bundle

Autel Robotics EVO MAX 4T XE Bundle

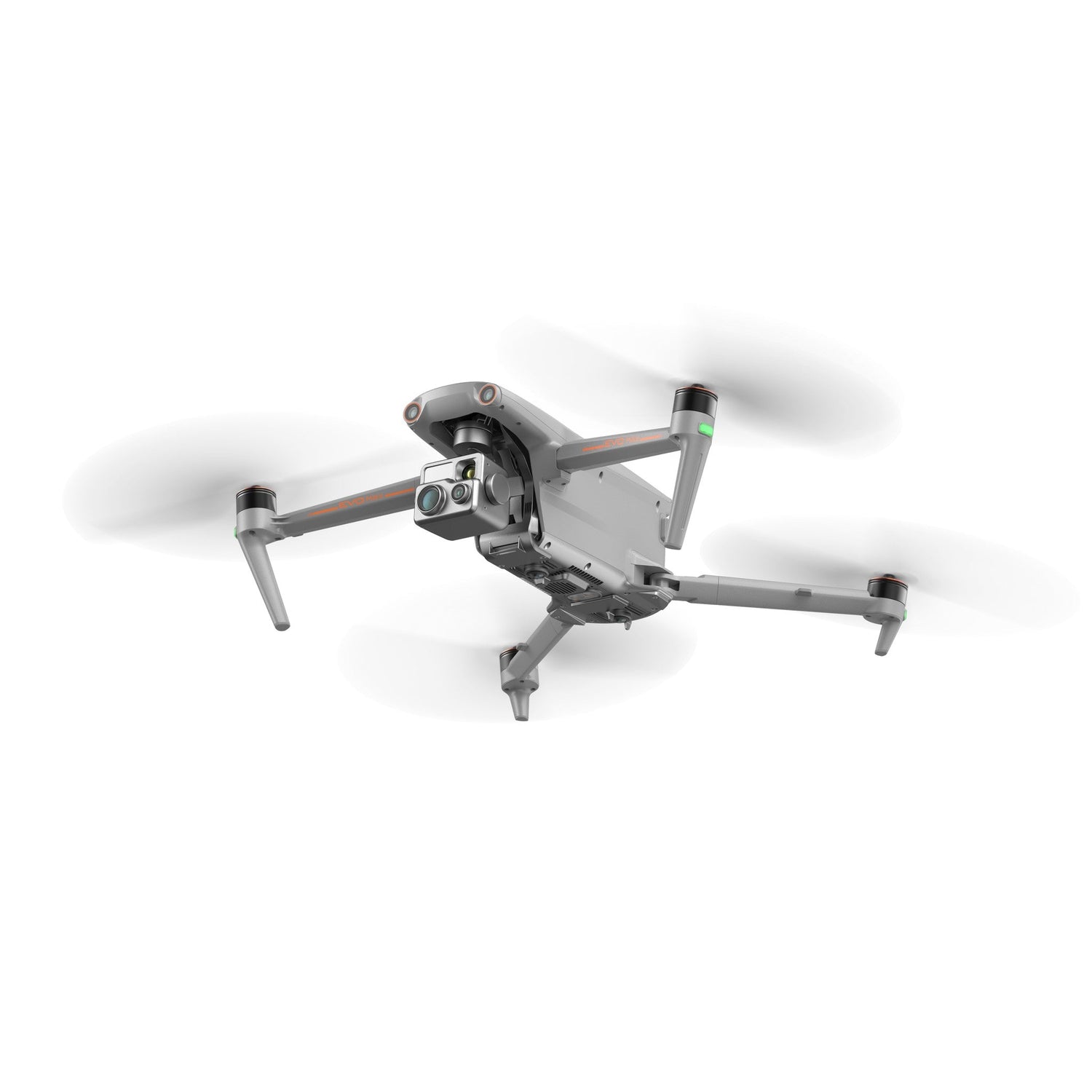

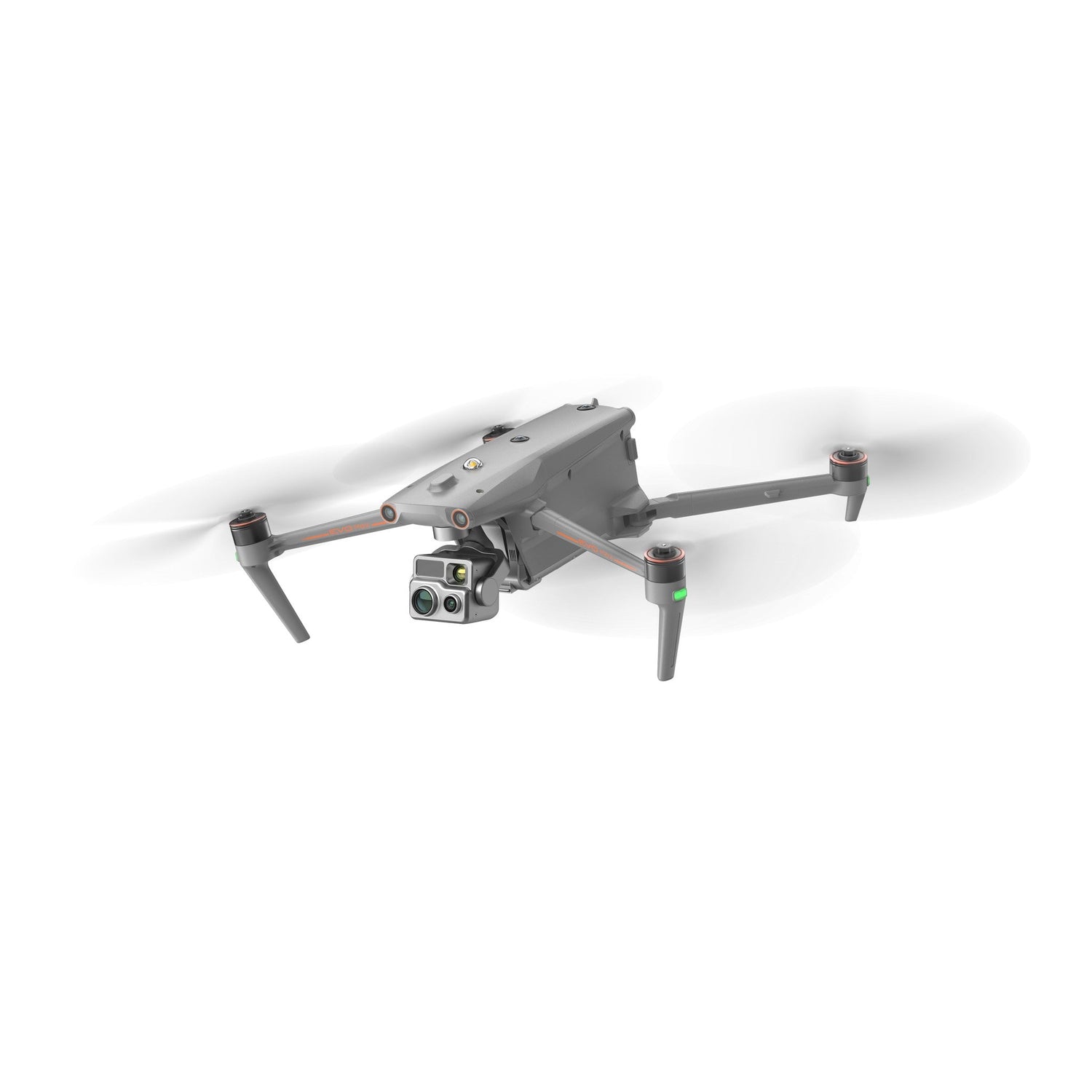

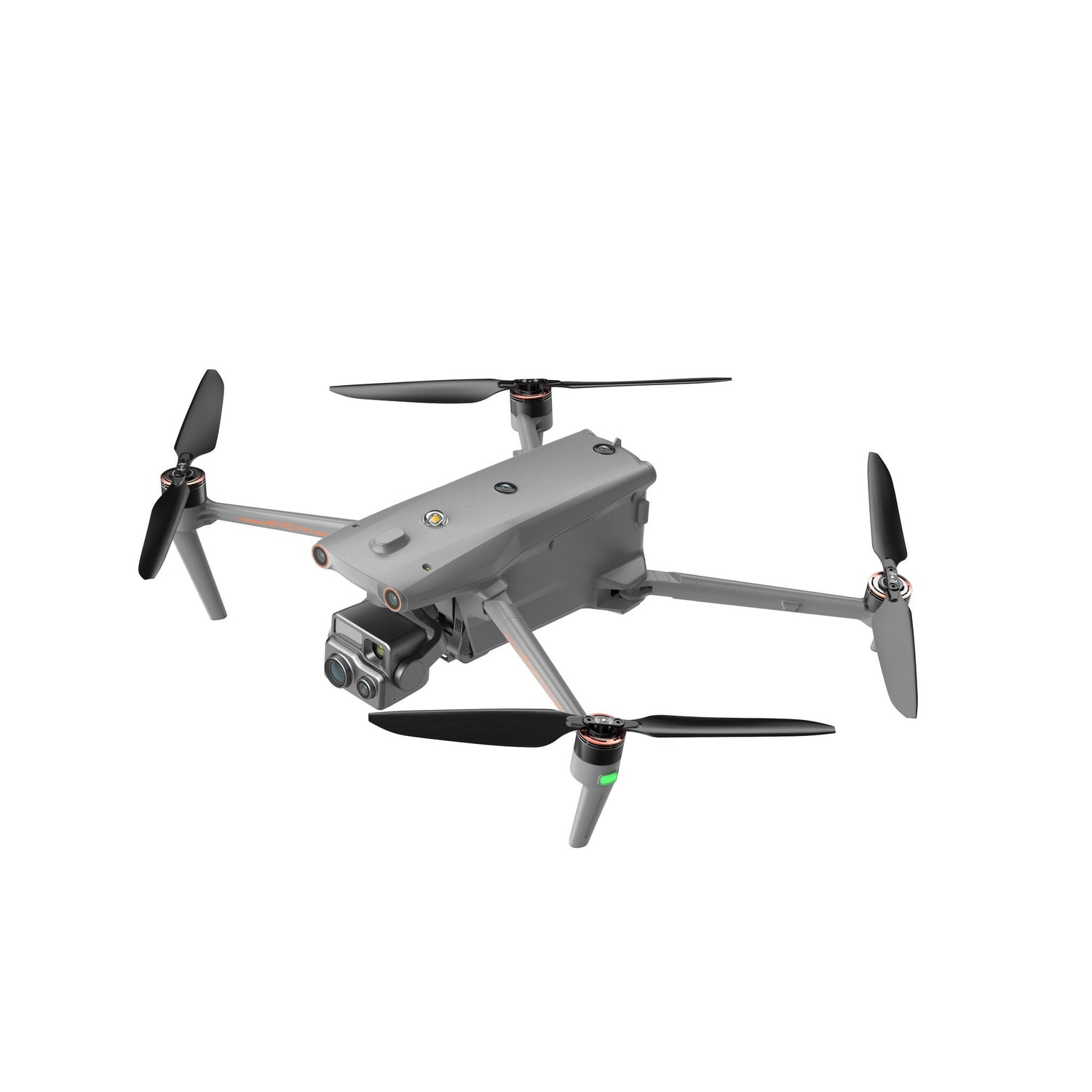

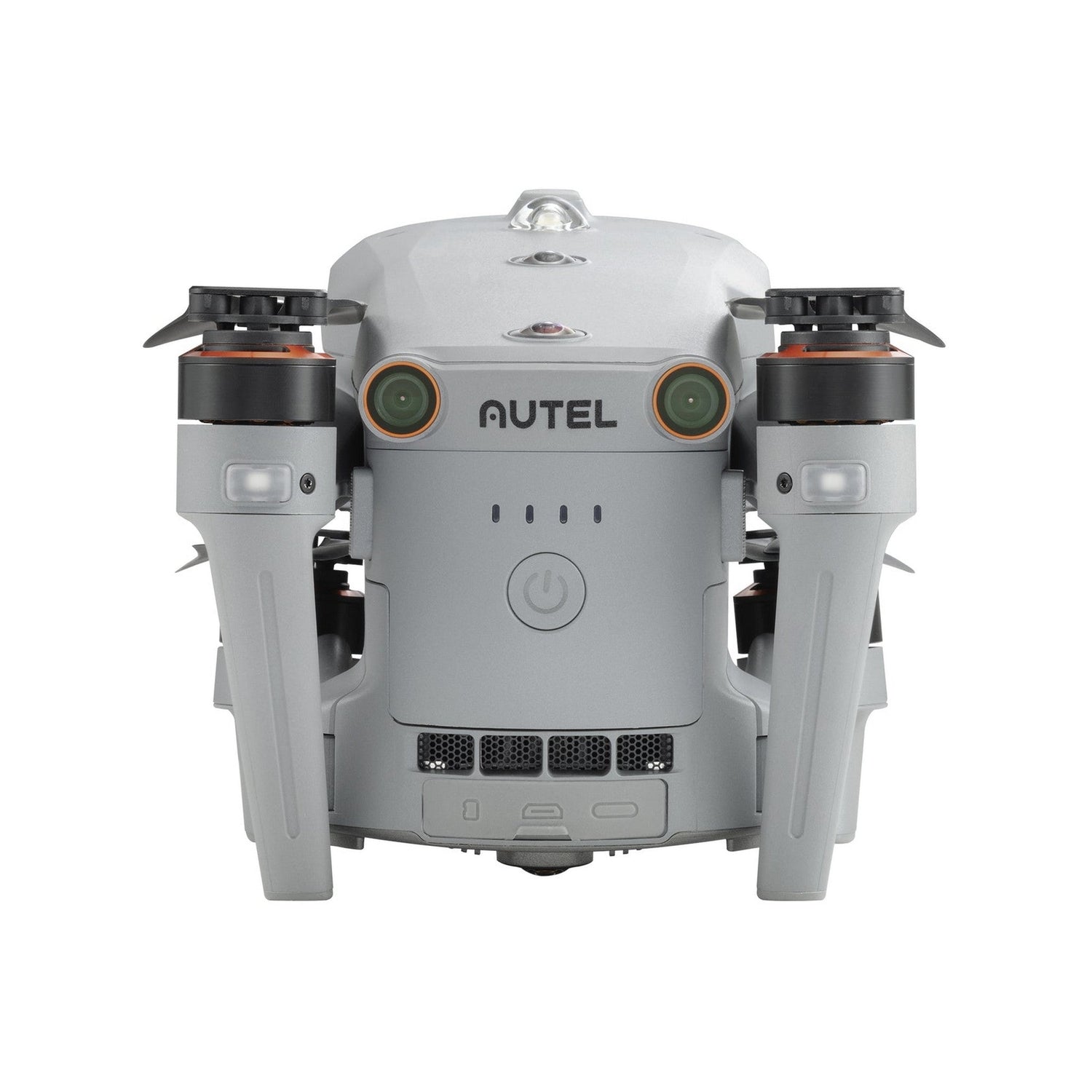

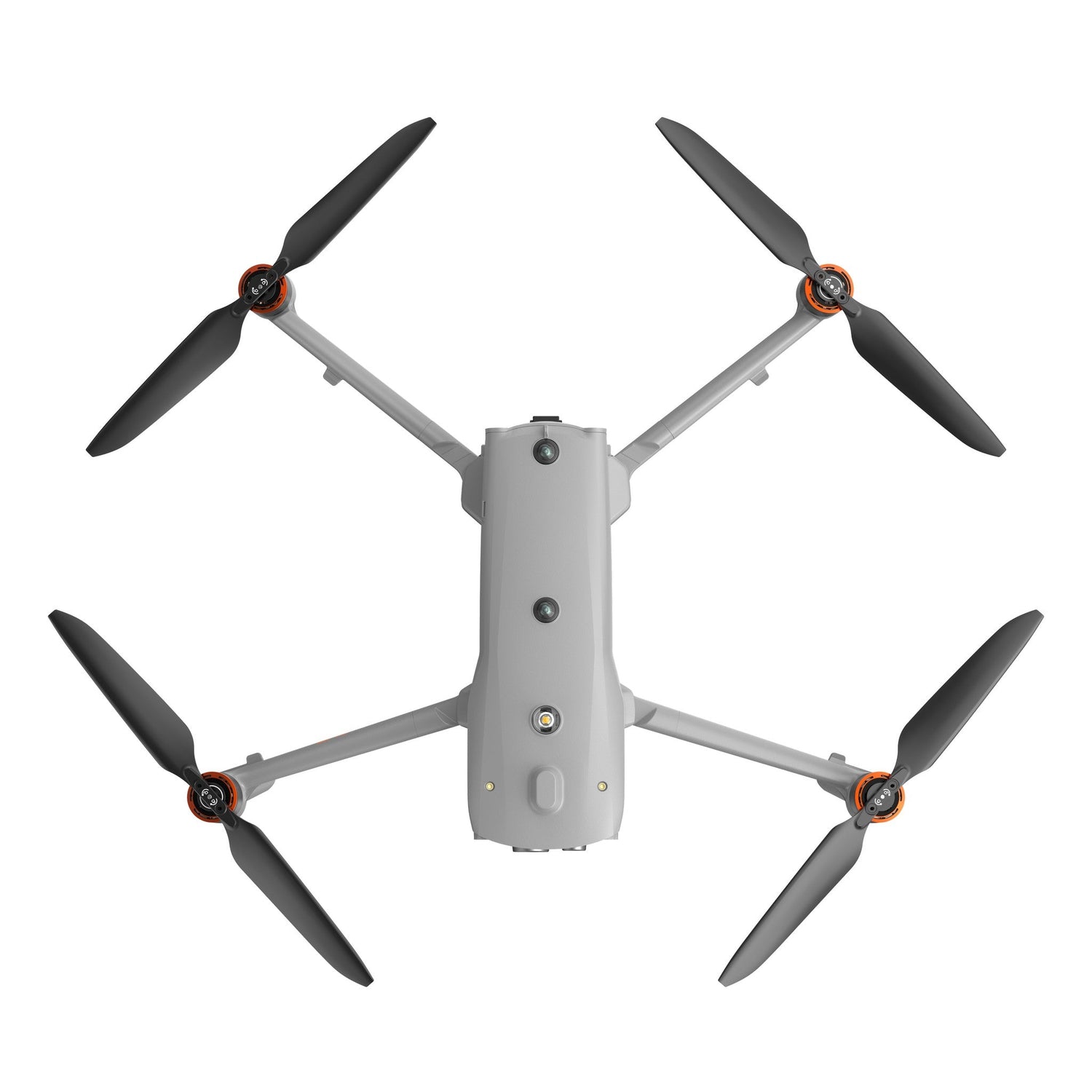

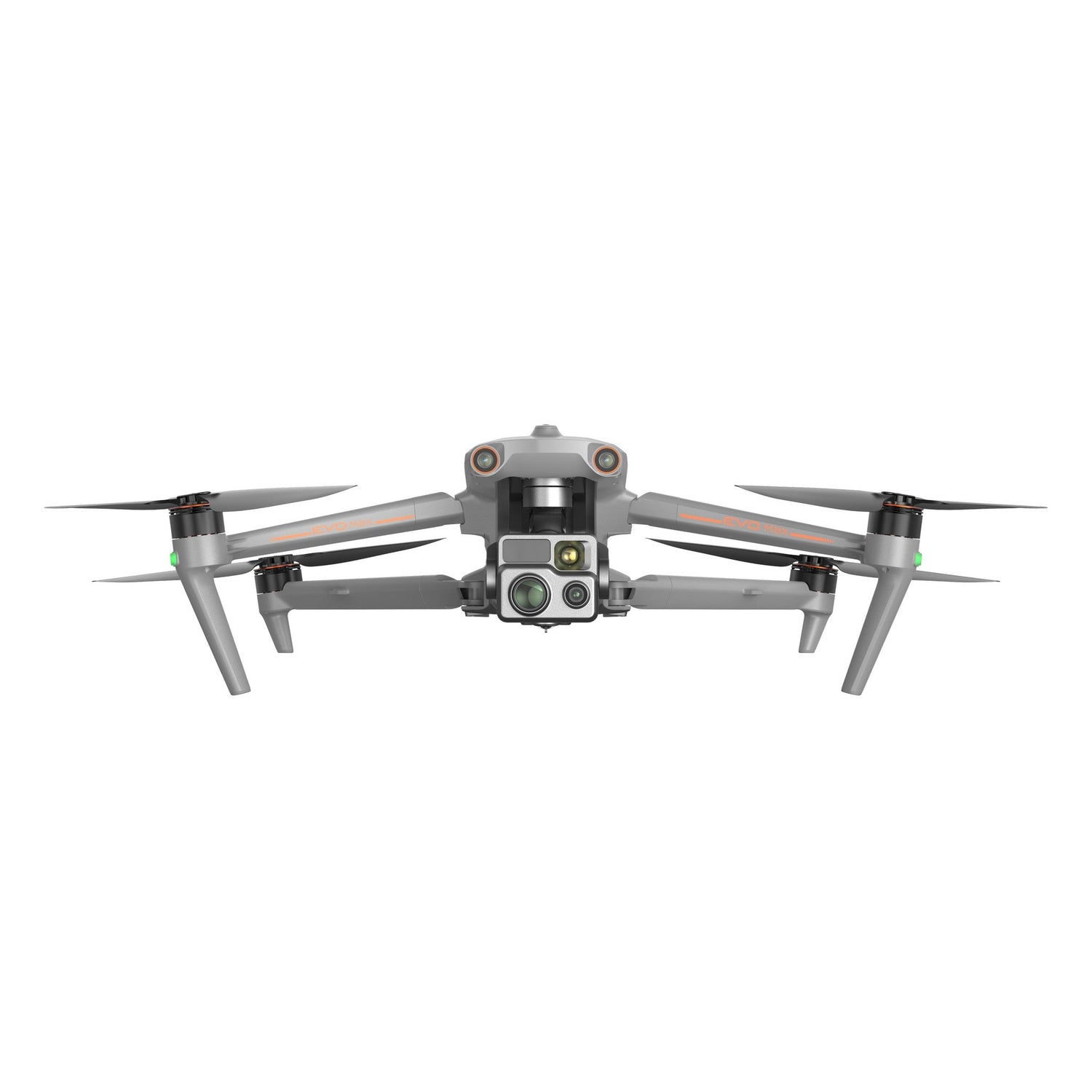

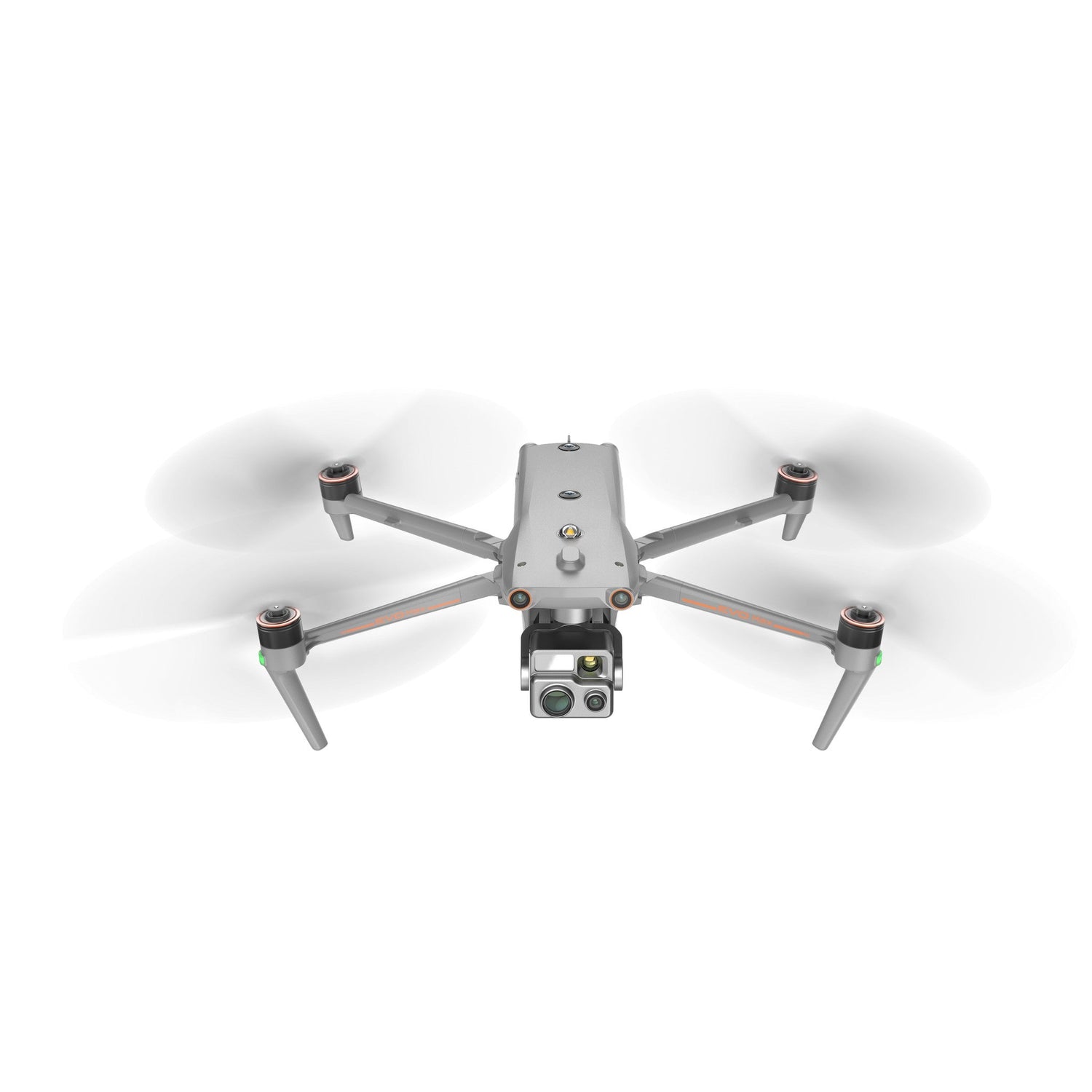

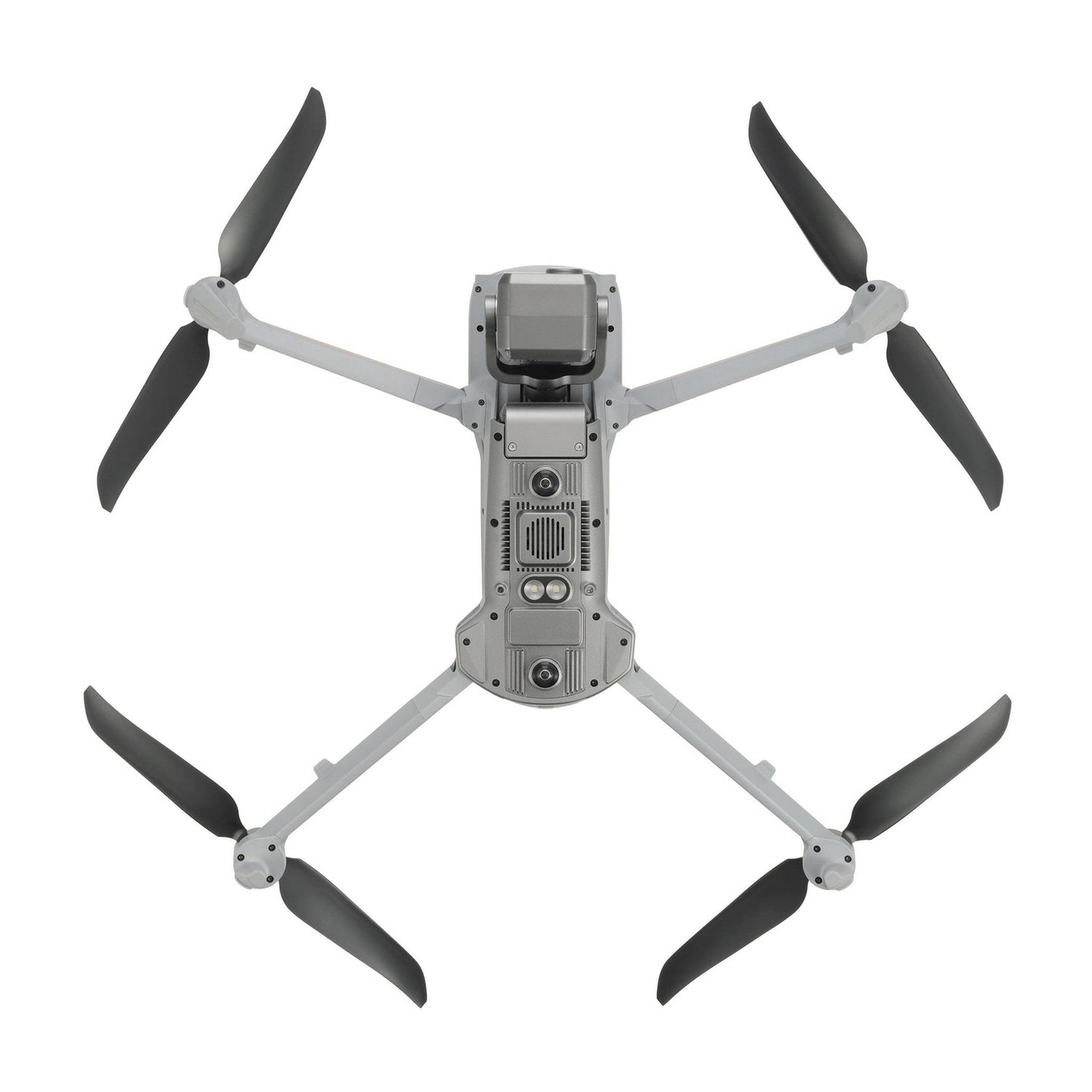

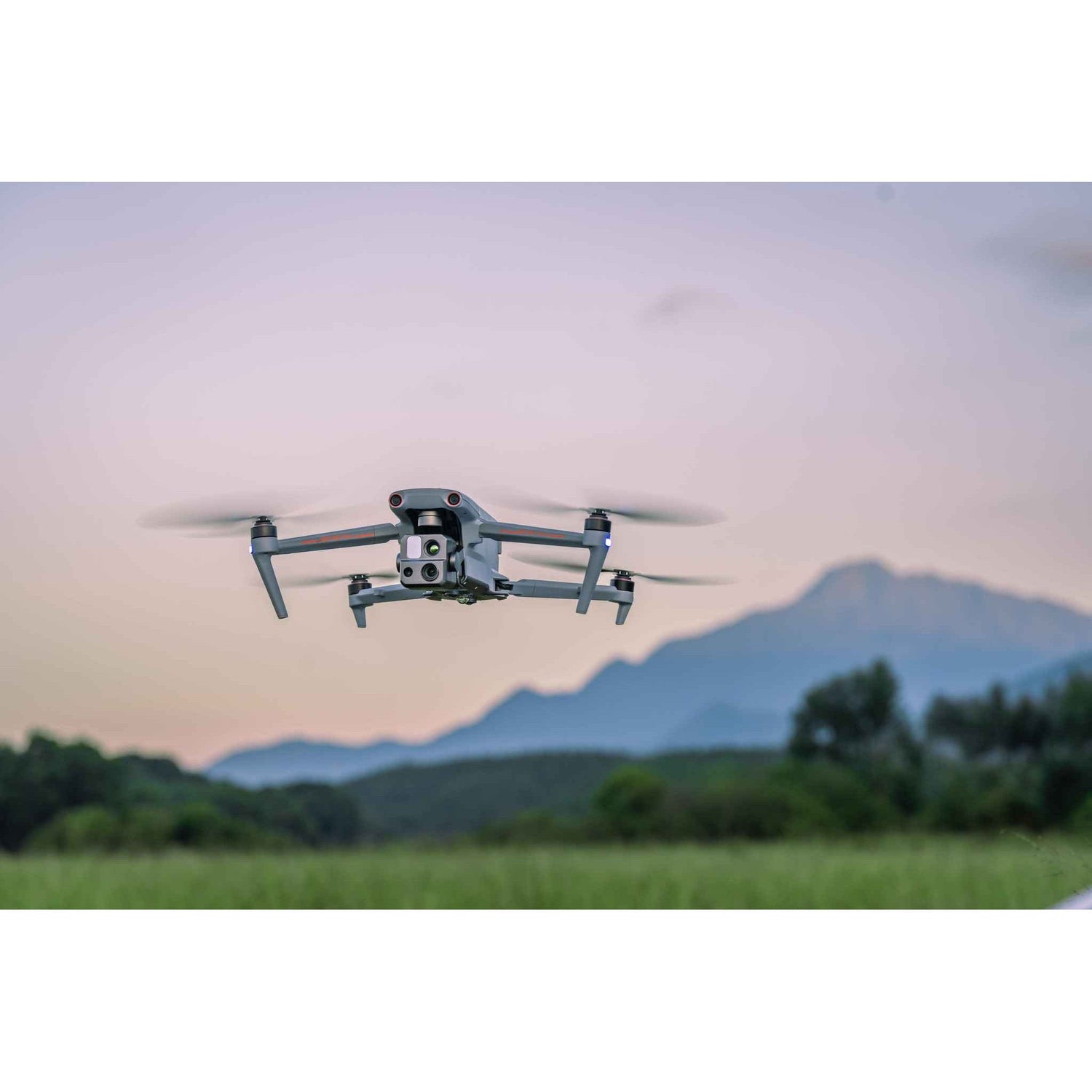

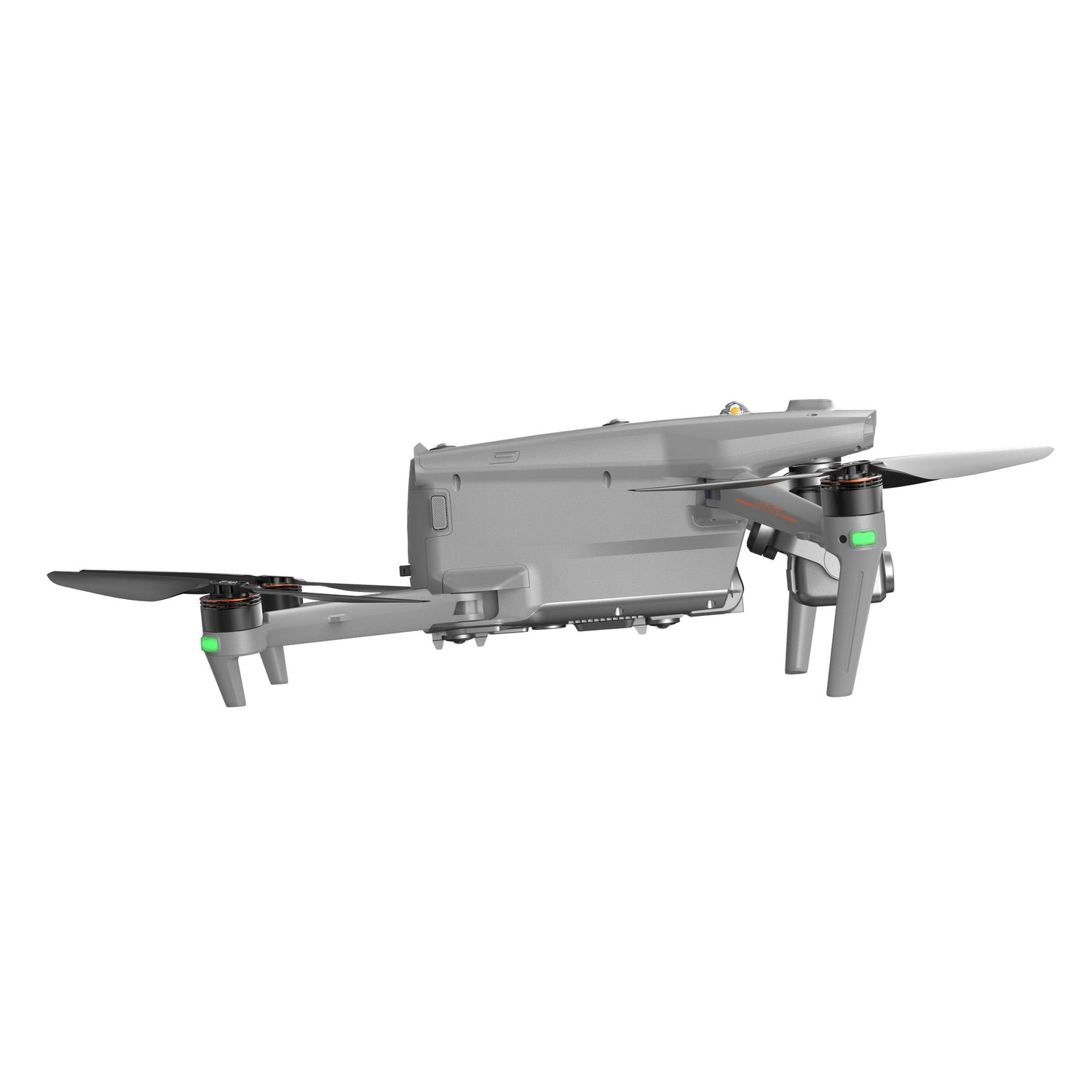

The Autel Robotics EVO Max 4T-XE is a cutting-edge enterprise drone engineered for demanding applications such as public safety, infrastructure inspection, and search and rescue operations. This advanced drone integrates a versatile camera system comprising wide, zoom, and thermal sensors, complemented by a laser rangefinder, enabling comprehensive situational awareness in complex environments. With its robust design and intelligent features, the EVO Max 4T-XE is optimized for both urban and remote area operations.

Equipped with Autel's SkyLink 3.0 transmission technology, the EVO Max 4T-XE offers a maximum transmission range of 12.4 miles (20 km), ensuring reliable communication over extended distances. The drone's 720° obstacle avoidance system, combined with A-Mesh 1.0 mesh networking technology, facilitates seamless navigation in GPS-denied environments. Its IP43 ingress protection rating and operational temperature range of -4°F to 122°F (-20°C to 50°C) make it suitable for deployment in diverse weather conditions. Additionally, the hot-swappable battery system allows for extended flight times without downtime, enhancing operational efficiency in time-sensitive missions.

Key Features:

• Camera System: Integrated wide, zoom, and thermal cameras with a laser rangefinder sensor
• Transmission Range: Up to 12.4 miles (20 km) with SkyLink 3.0
• Obstacle Avoidance: 720° omnidirectional sensing system
• Networking Technology: A-Mesh 1.0 mesh networking for GPS-denied environments
• Ingress Protection: IP43 rating for dust and water resistance
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Battery System: Hot-swappable battery for continuous operation
• Flight Time: Up to 42 minutes in windless conditions

Technical Specifications:

Weight: 3.62 lbs (1640 g, with battery and gimbal)

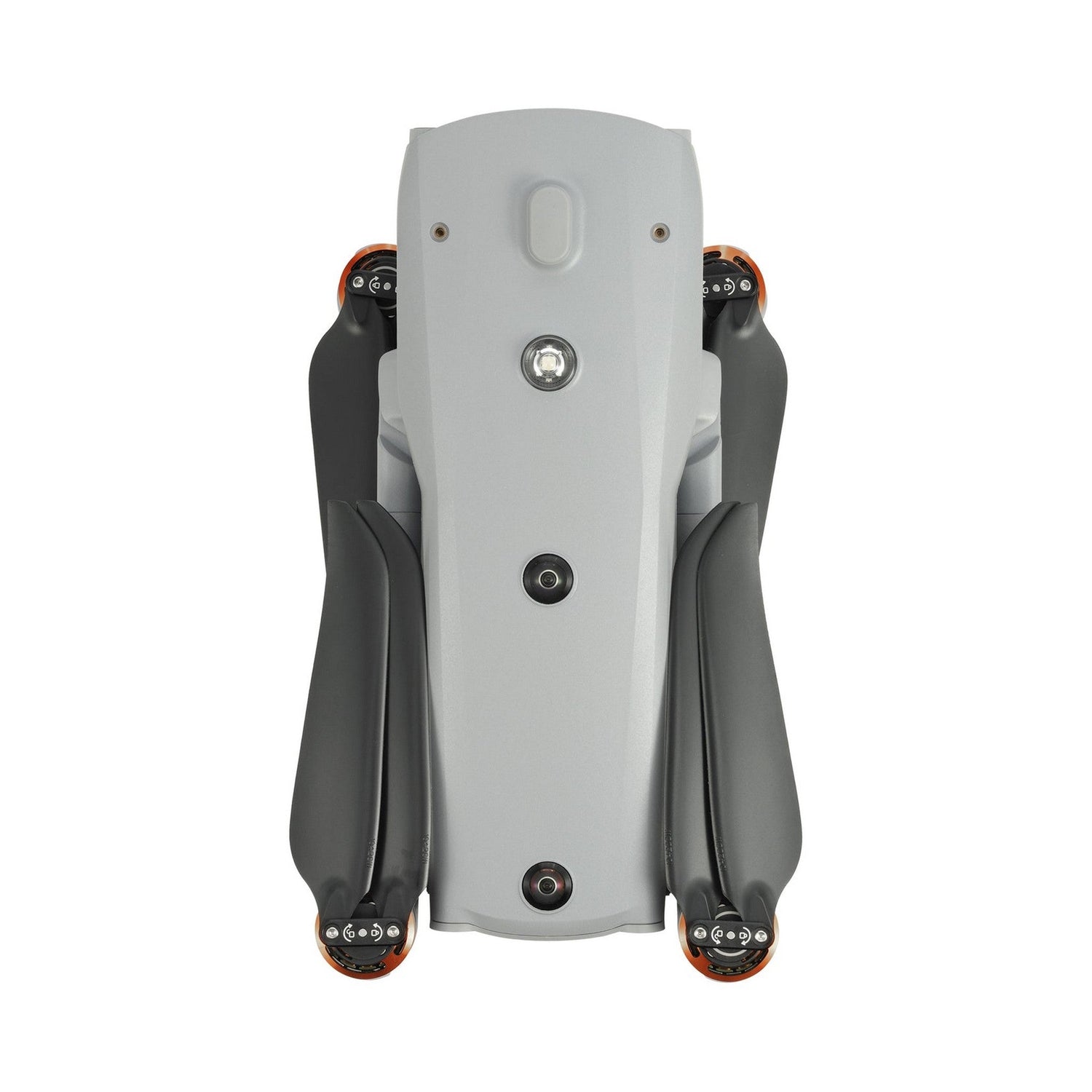

Dimensions (Folded): 576 × 660 × 149 mm (including propellers)
Dimensions (Unfolded): 257 × 136 × 133 mm (excluding propellers)
Diagonal Wheelbase: 464 mm
Maximum Takeoff Weight: 4.41 lbs (1990 g)
Maximum Flight Time: 42 minutes (windless)
Maximum Hover Time: 38 minutes (windless)
Maximum Ascent Speed: 8 m/s
Maximum Descent Speed: 6 m/s
Maximum Horizontal Speed: 23 m/s (windless near sea level)
Maximum Wind Resistance: 27 mph (12 m/s)
Maximum Takeoff Altitude: 13,124 ft (4000 m)
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Ingress Protection: IP43
GNSS: GPS, GLONASS, Galileo, BeiDou
Operating Frequencies: 2.4 GHz, 5.2 GHz (FCC, CE, UKCA), 5.8 GHz, 900 MHz (FCC only)
Transmitter Power (EIRP): 2.4 GHz: <30 dBm (FCC), <20 dBm (CE/SRRC/MIC); 5.8 GHz: <27 dBm (FCC/SRRC), <14 dBm (CE); 900 MHz: <30 dBm (FCC)
Battery Capacity: 8070 mAh / 120 Wh
Battery Weight: 1.1 lbs (520 g)
Battery Chemistry: Lithium-Ion Polymer (LiPo)
Battery Configuration: 4S / 14.88 V
Operating Temperature: -4°F to 113°F (-20°C to 45°C)
Charging Temperature: 41°F to 113°F (5°C to 45°C)
Shutter Speed: Wide: 1/8000 to 1/2 second (photo), 1/8000 to 1/30 second (video); Zoom: 1/8000 to 1/2 second (photo), 1/8000 to 1/30 second (video)
ISO Sensitivity Range: Wide: Photo: 100 to 6400 (Auto), 100 to 6400 (Manual); Video: 100 to 6400 (Auto), 100 to 6400 (Manual); Zoom: Photo/Video: 100 to 12,800 (Auto), 100 to 12,800 (Manual)

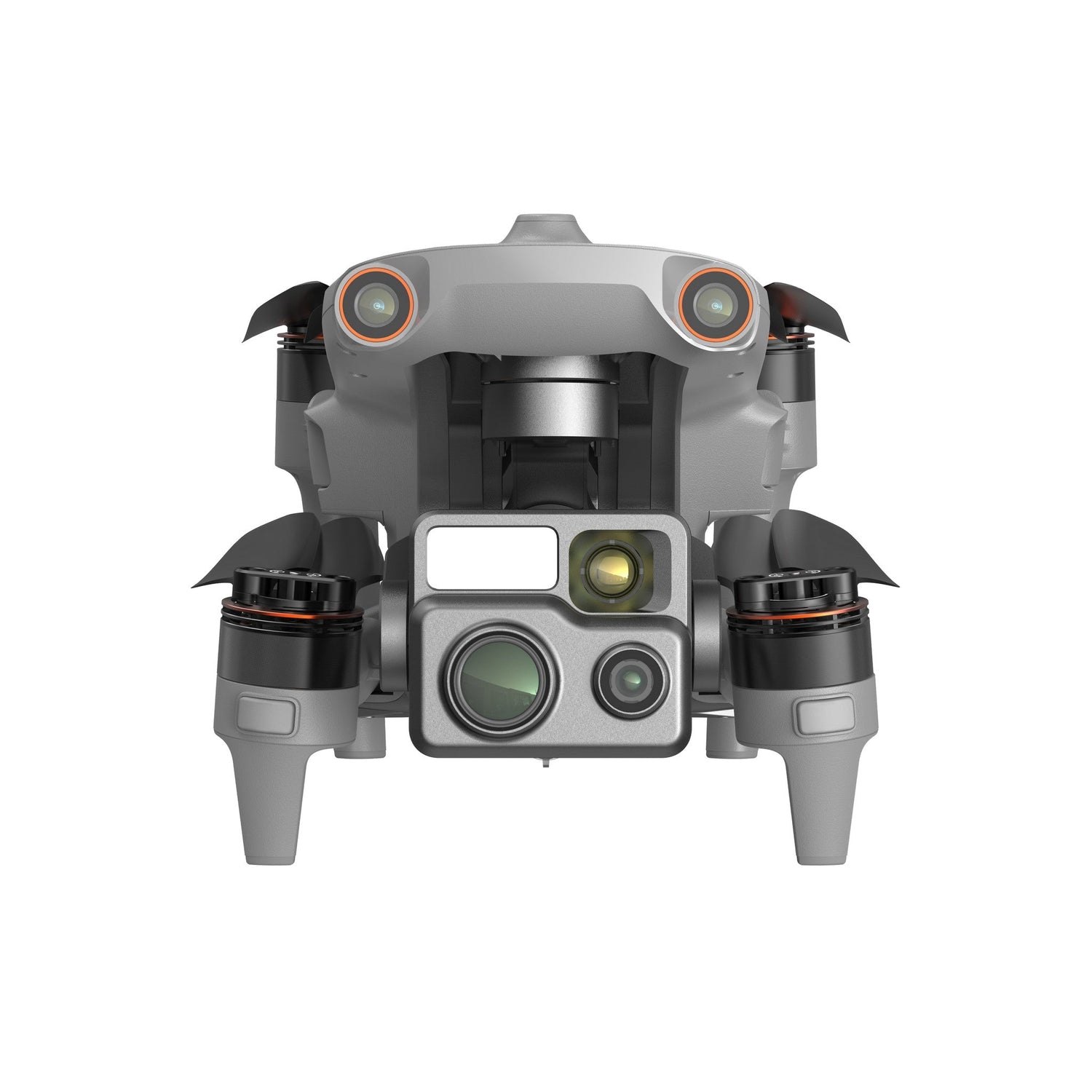

Camera System: Wide: 1/1.28"-type CMOS sensor with 23mm-equivalent, f/1.9 lens (85° FoV); Zoom: 1/2"-type CMOS sensor with 64 to 234mm-equivalent, f/2.8 lens; Thermal: Vanadium Oxide (VOX) sensor with -4°F to 302°F (-20°C to 150°C) measurement range (42° FoV)
Digital Zoom: Zoom: 160x; Thermal: 16x
Minimum Focus Distance: Zoom: 16.4 ft (5 m); Wide: 3.3 ft (1 m); Thermal: 19.7 ft (6 m)
Still Image Support: Wide: Up to 12 MP (JPEG); Zoom: Up to 12 MP (JPEG); Thermal: Up to 12 MP (JPEG)
Video Resolution: Wide: Up to 3000p at 30 fps; Zoom: Up to 3000p at 30 fps; Thermal: Up to 512p at 25 fps
Photo Modes: Burst shooting, single shot
Media/Memory Card Slot: In aircraft body, microSD/microSDHC/microSDXC
Internal Storage: In aircraft body, 128 GB
Gimbal: 3-axis mechanical (pitch, roll, yaw); Controllable range: Pitch (tilt): -90° to 30°; Yaw (pan): -135° to 45°; Roll: -45° to 45°
Follow Speed: Tilt: 200°/s
Stabilization Accuracy: ±0.005°
Sensing System: Omnidirectional with forward, backward, upward, and downward detection ranges and fields of view as specified in the original data
Laser Rangefinder: Yes, 0.7 miles (1200 m)
Remote Controller / Transmitter: Included transmitter with operating frequencies and transmitter power as specified in the original data
Control Method: Included transmitter
Battery Type: Built-in lithium-ion (5800 mAh)
Built-In Display: 7.9" (2048 x 1536) touchscreen LCD, 2000 nits
Operating Temperature: -4°F to 104°F (-20°C to 40°C)
Operating Frequency: 2.4 GHz, 5.2 GHz, 5.8 GHz, 900 MHz
Wi-Fi: Wi-Fi 5 (802.11ac) with MU-MIMO support (2 x 2)
Bluetooth: No
Mobile App Compatible: No
Clean Video Output: No
Transmitter I/O: 1x HDMI (video), 1x USB-C (power, service), 1x USB-A (data, expansion)

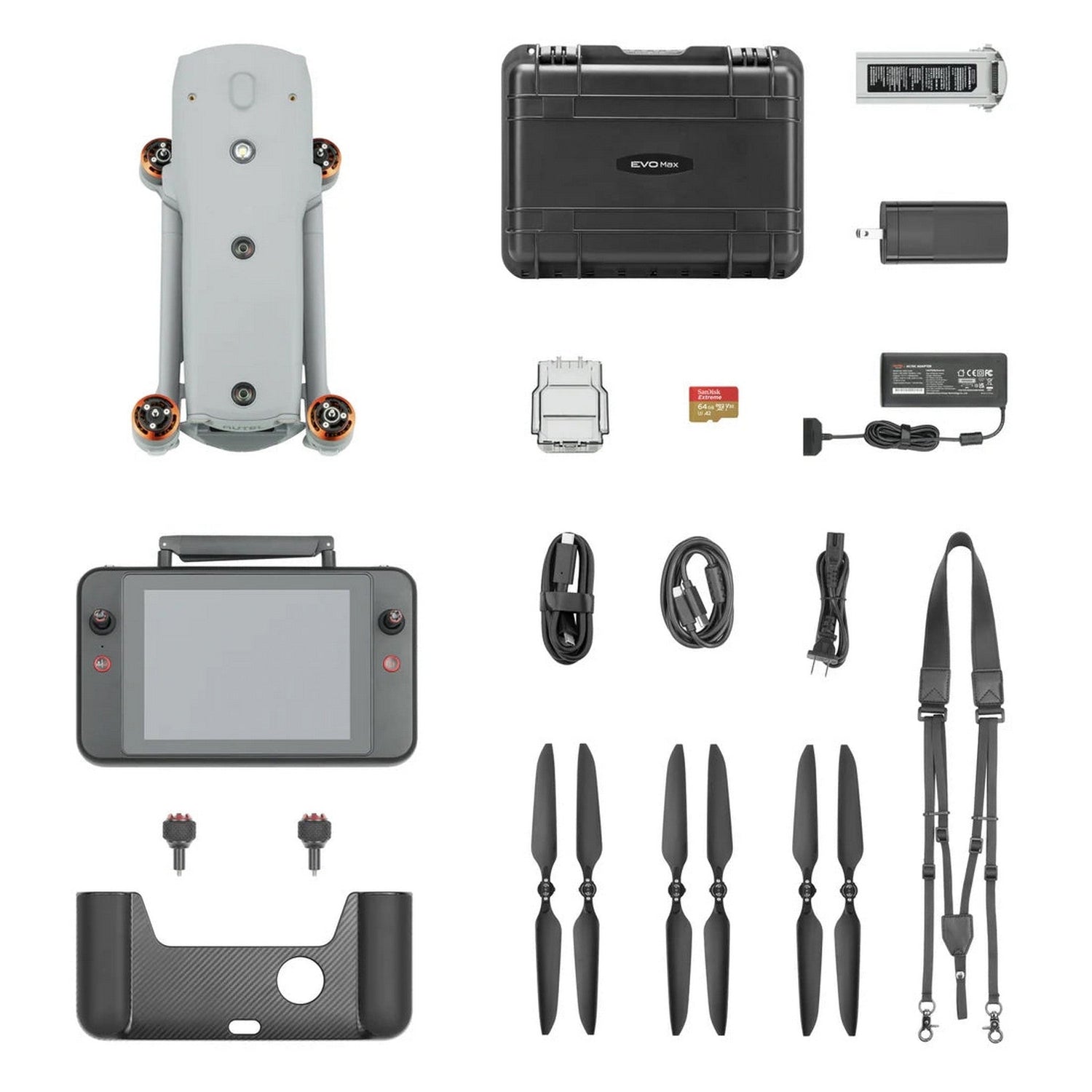

Package Contents:

• 1× EVO Max 4T-XE Drone
• 1× Smart Controller V3 with 7.9" touchscreen LCD
• 2× Flight Batteries
• 2× Pairs of Propellers
• 1× Rugged Carrying Case
• 1× Battery Charger and Power Cable
• 1× Gimbal Cover
• 1× USB-C Cable
• 1× User Manual
• 1× Autel Robotics 1-Year Limited Warranty
