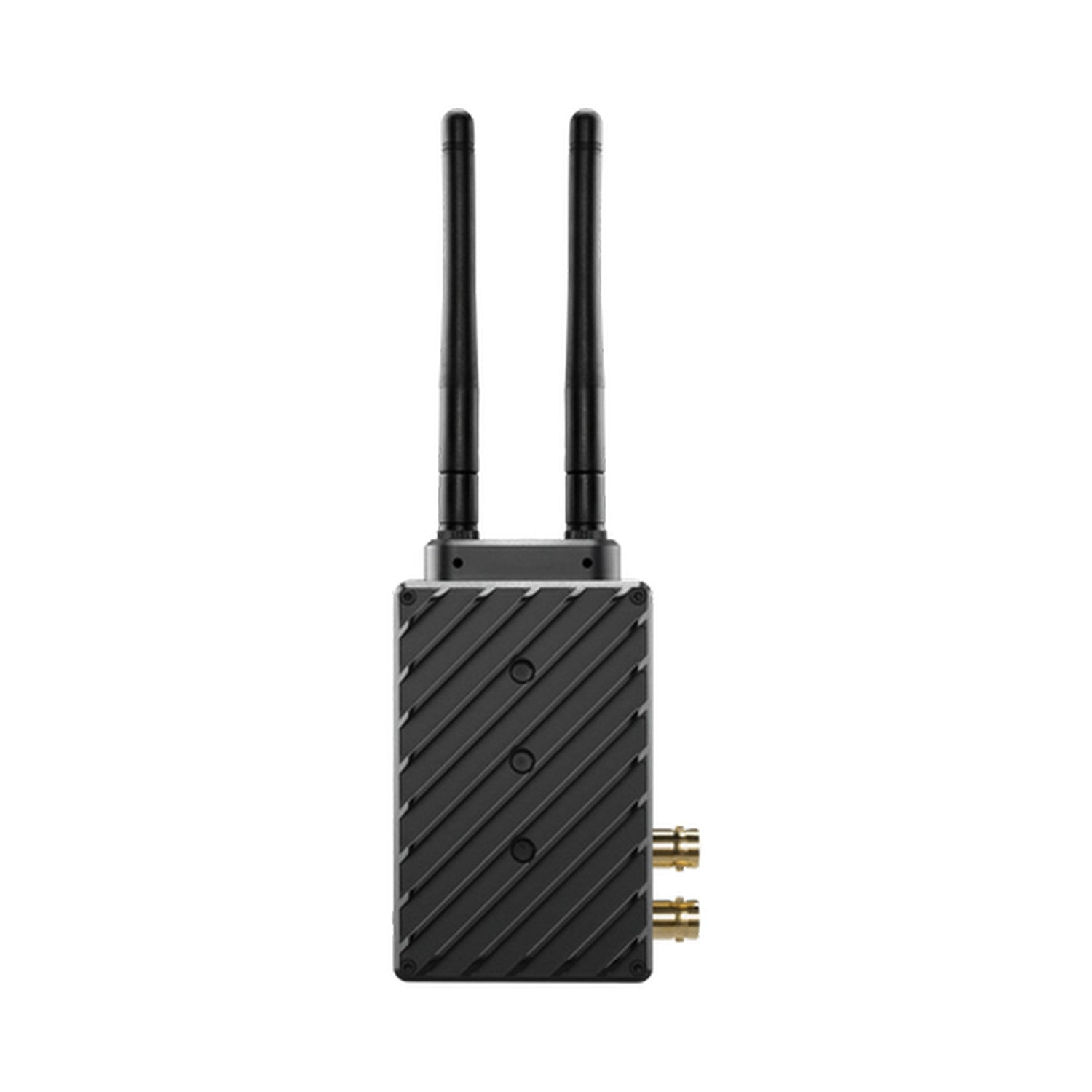

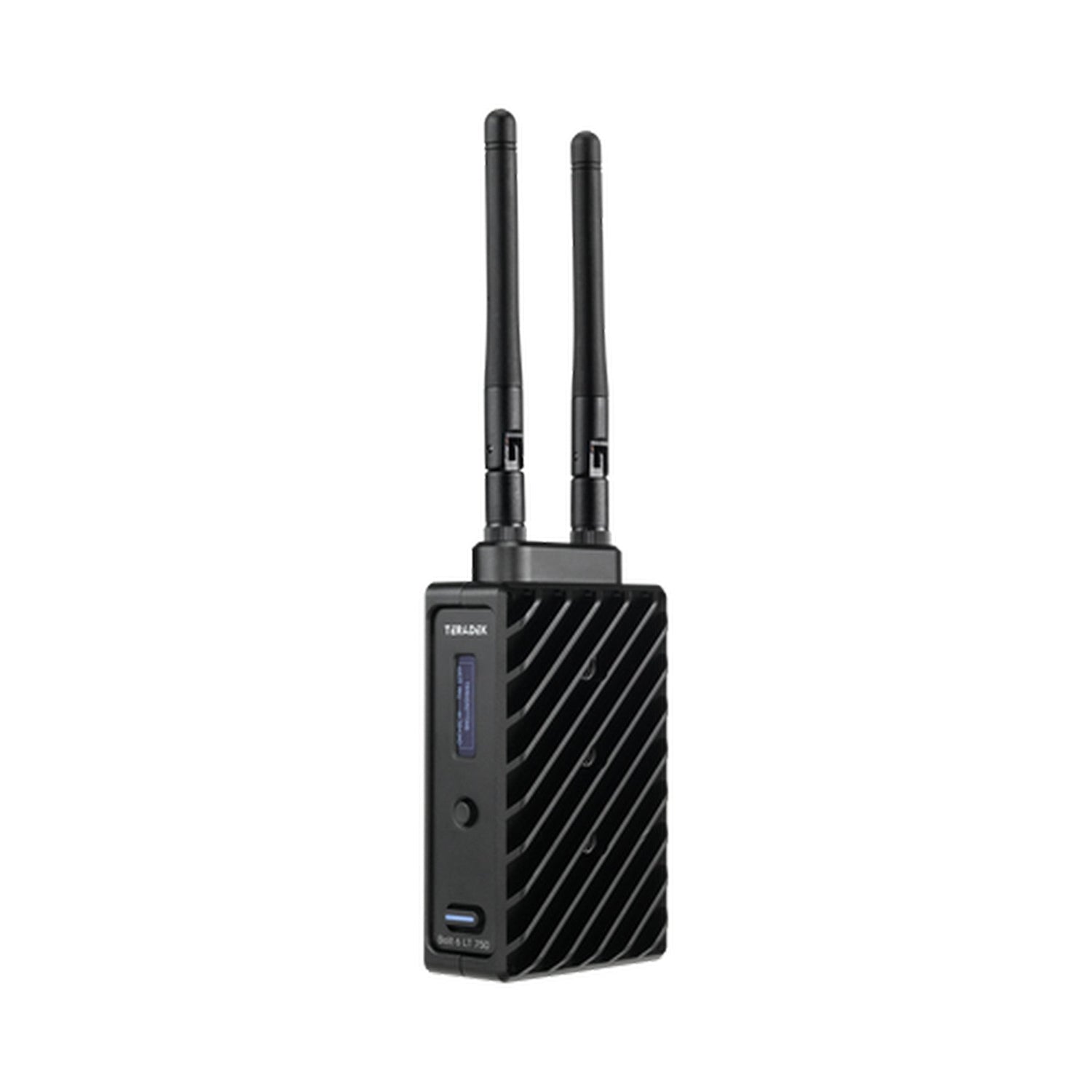

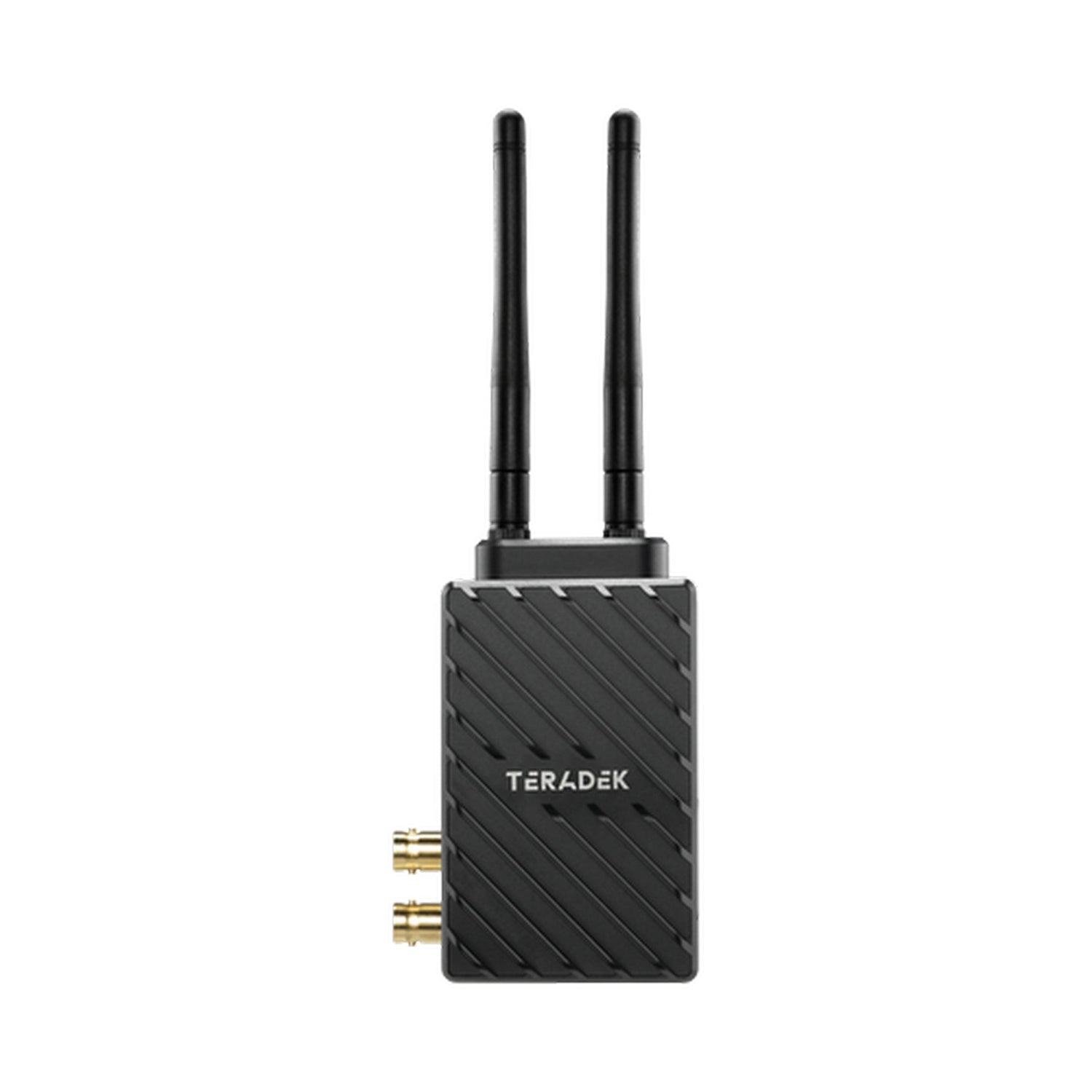

Teradek Bolt 6 LT 750 Int Ant TX Wireless Transmitter

The Teradek Bolt 6 LT TX is a high-performance wireless video transmitter designed for professional filmmakers and videographers. It allows for the transmission of high-quality video signals over long distances, making it ideal for on-set monitoring and live broadcasting.

This transmitter supports a variety of video inputs and outputs, ensuring compatibility with a wide range of cameras and devices. With its low latency and robust wireless capabilities, the Bolt 6 LT TX provides a reliable solution for wireless video transmission in demanding environments.

Key Features

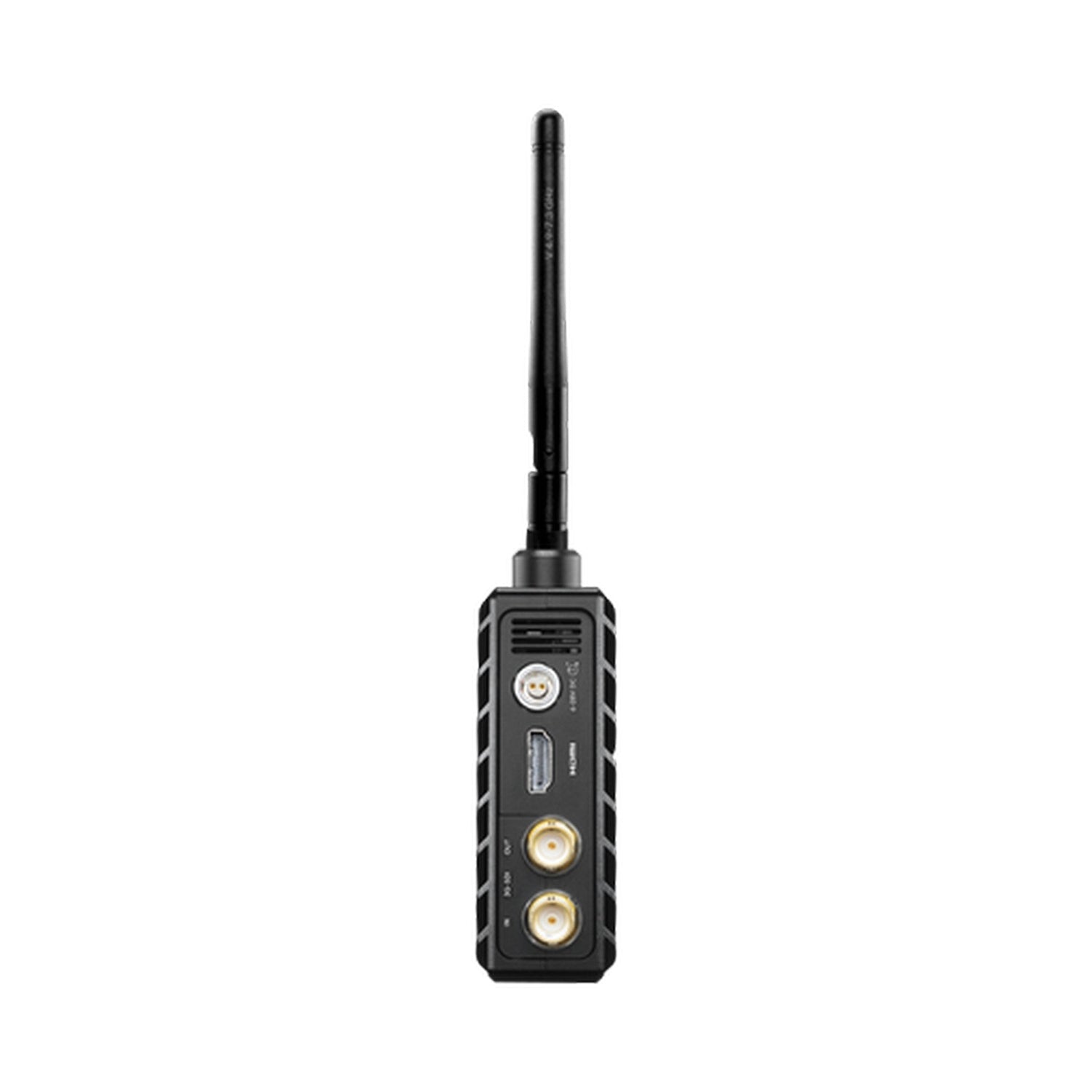

• Video Inputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1), 1 x HDMI 1.4b Type-A receptacle
• Video Outputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
• SDI Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
• Color Sampling: SDI: YCbCr 4:2:2, 10-bit / HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
• Delay Tx To Rx: <0.001 sec
• Input Cross Conversion: Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout)
• Supported Resolutions: 4Kp23.98/24/25/29.97/30 (HDMI only), 1080p23.98/24/25/29.97/30/50/59.94/60, 1080psf23.98/24/25/29.97/30, 1080i50/59.94/60, 720p50/59.94/60
• Video Compression: Visually Lossless
• Audio Input: Embedded SDI/HDMI Audio Input (2 Channel)
• Dimensions: 2.8"" x 4.7"" x 1.3"" (72mm x 119.8mm x 33.1mm)
• Weight: 7.5 oz (212 g)
• Construction: Milled Aluminum (Chassis) and regulation-compliant PCB

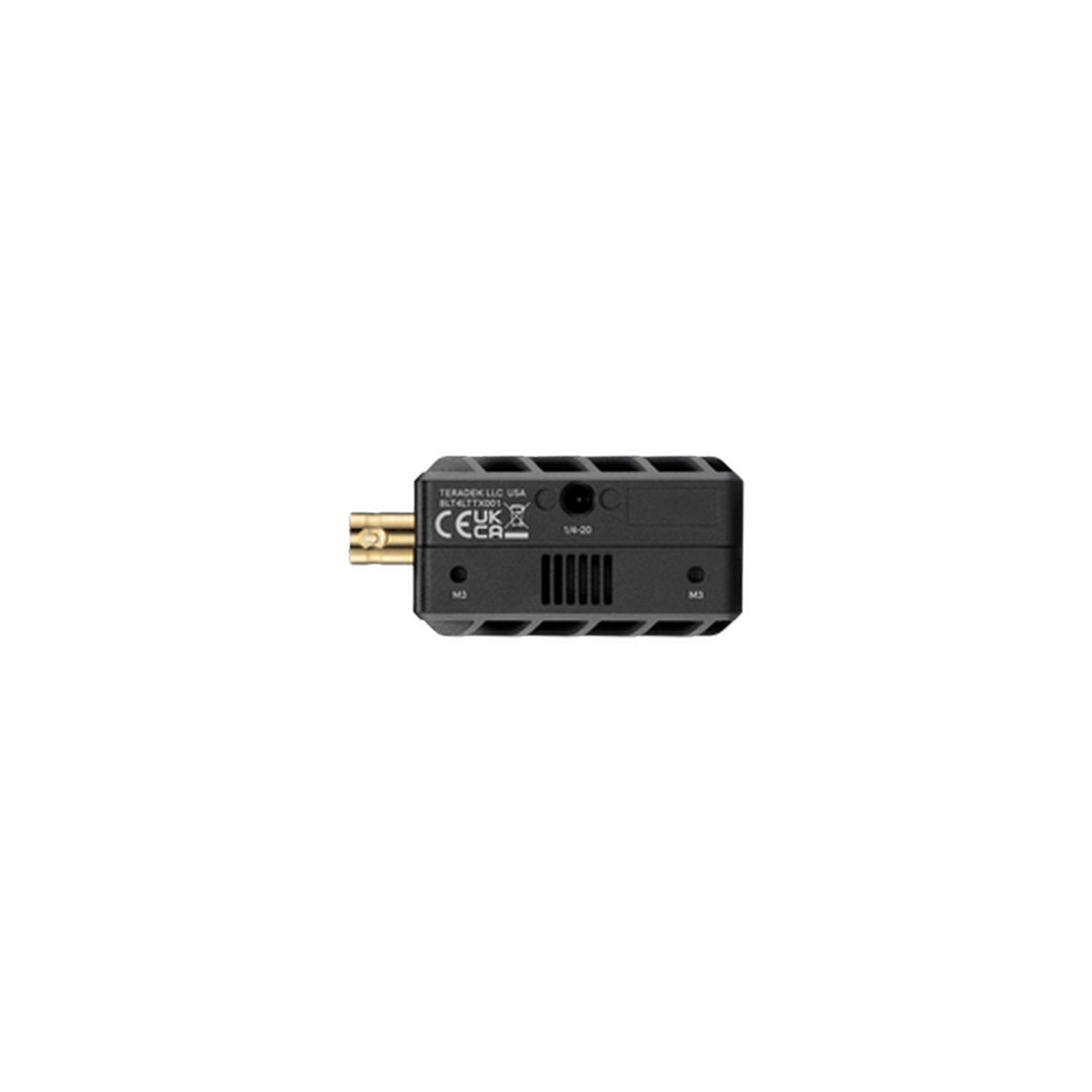

• Mountability: Multiple mounting options with 1/4""x20 and M3 holes

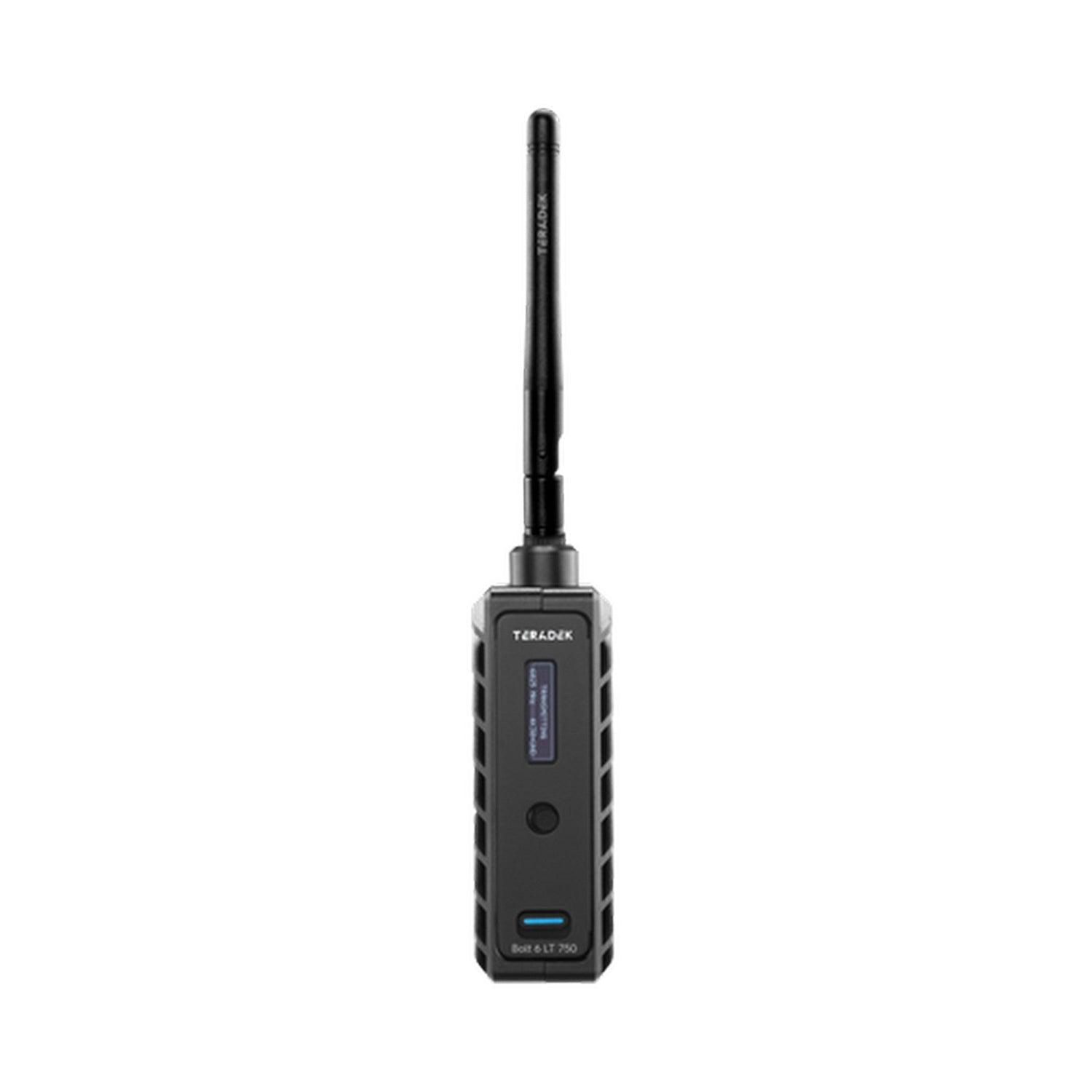

• Configuration Interfaces: OSD with Menu, Joystick Navigation
• Mobile App: Bolt App
• Desktop App: Bolt Manager application for OSX & Windows
• USB Interface Functionality: Upgrade via Micro-USB
• Bluetooth: 2.4 GHz
• Antennas: 4x Internal 2dBi Antennas
• Wireless: DFS Frequencies: 5.270 ~ 5.670 GHz; Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425 GHz
• RF Channel Selection: Auto, Manual
• Encryption: AES-256, RSA-1024 key exchange
• RF Power: 23 dBm EIRP
• Range: Up to 750 ft, line of sight
• Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
• Noise Rejection: Can coexist with WiFi and 5GHz cordless phones; Can operate up to 6 sets in the same location
• Interoperability Compatibility: Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)
• Power Input: 2-Pin Circular locking Connector 6-28 VDC
• Battery: None, optional Sony/Canon dual battery plate
• Nominal Power Consumption: 9 Watts
• Operating Temperature: 0-40℃

What's in the Box

• Teradek Bolt 6 LT TX Transmitter
• Power Supply
• Mounting Hardware
• User Manual
