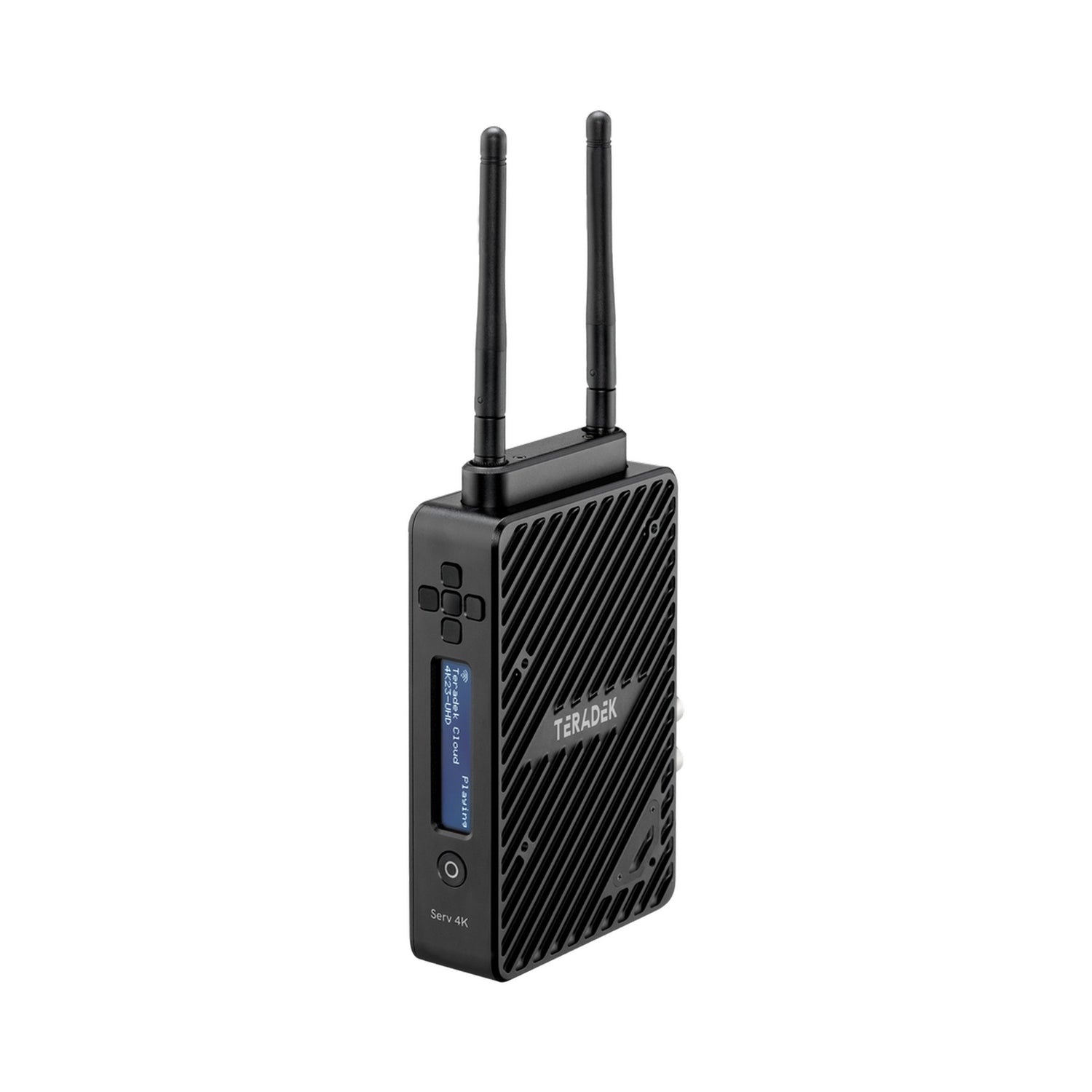

Teradek 4K Video Streaming Encoder

The Teradek Serv 4K is a high-performance video streaming encoder designed for professional broadcasting and live streaming applications. It allows users to stream high-quality video content in real-time over various networks, making it ideal for events, productions, and remote broadcasting.

This encoder supports a wide range of video resolutions and formats, ensuring compatibility with various devices and platforms. Its advanced features include multiple video inputs, bonding capabilities, and robust audio processing, providing users with a comprehensive solution for their streaming needs.

Key Features

• Video Inputs: 1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC), 1 x HDMI 2.0 Type-A receptacle
• Hdr Support: Yes
• Sdi Compliance: Simultaneous bonding over up to 7 networks: Ethernet, Wi-Fi, USB cellular modem, Up to 4 cellphones (iOS or Android)
• Video Outputs: 1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC)
• Supported Resolutions: 4K DCI p23.98/24/25/29.97/30/50/59.94/60, 4K UHD p23.98/24/25/29.97/30/50/59.94/60, 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 1080PsF 23/24/25/29/30, 720p 50/59.94/60, 576i, 480i
• Video Compression: ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264, AVC: Baseline, Main, High; SO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265, HEVC: Main
• Supported Video Bitrate: 250 Kbps to 85 Mbps
• Video Format Conversion Support: Built in video scaler and deinterlacer
• Number Of Encoder Streams: Up to one 4KDCI p60 4:2:2 10bit
• Color Correction: CDL/1024 1D LUT (supports 10-bit color), 33x33x33 3D LUT (supports 10-bit color)
• Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
• Supported Video Transport Protocols: Secure Reliable Transport (SRT), AirMix, Teradek bonding
• Remote Control: Teradek Core
• Audio Input: 3.5mm Stereo Line Level Analog or Microphone in, adjustable gain
• Audio Output: 3.5mm Stereo Headphone output
• Dimensions: 6.25”W x 3.6”D x 1.4”H [150 x 107 x 36mm]
• Weight: 1 lb [476g]
• Construction: Milled Aluminum
• Mountability: Can be mounted horizontally or vertically with 1/4"" 20 mounting holes
• Configuration Interfaces: Feature-rich Web UI for local device management, configuration, and control, Intuitive iOS/Android configuration app (Teradek Serv), OLED Status Display w/ Nav control buttons, Core for cloud-based device management
• Switches: On/Off switch
• Recording Storage: Full-size SD/SDXC (class 6 and above) formatted exFAT, USB formatted FAT32, NFS
• Mobile App: Teradek Serv for iOS and Android devices
• Cloud Services: Teradek Core, Frame.io, Sony Ci, PIX
• Usb Interface Functionality: 2x Powered USB-C host ports with 3G/4G modem support
• Ethernet: 10/100/1000 BASE-T Gigabit Ethernet (RJ45)
• Wireless: WiFi: 2.4/5GHz 802.11 a/b/g/n/ac/ax MiMo
• Power Input: 2-pin circular locking connector
• Nominal Power Consumption: 18W
• Auxiliary Power Input: 6-28V DC

What's in the Box

• Teradek Serv 4K Encoder
• Power Supply
• Mounting Hardware
• User Manual
