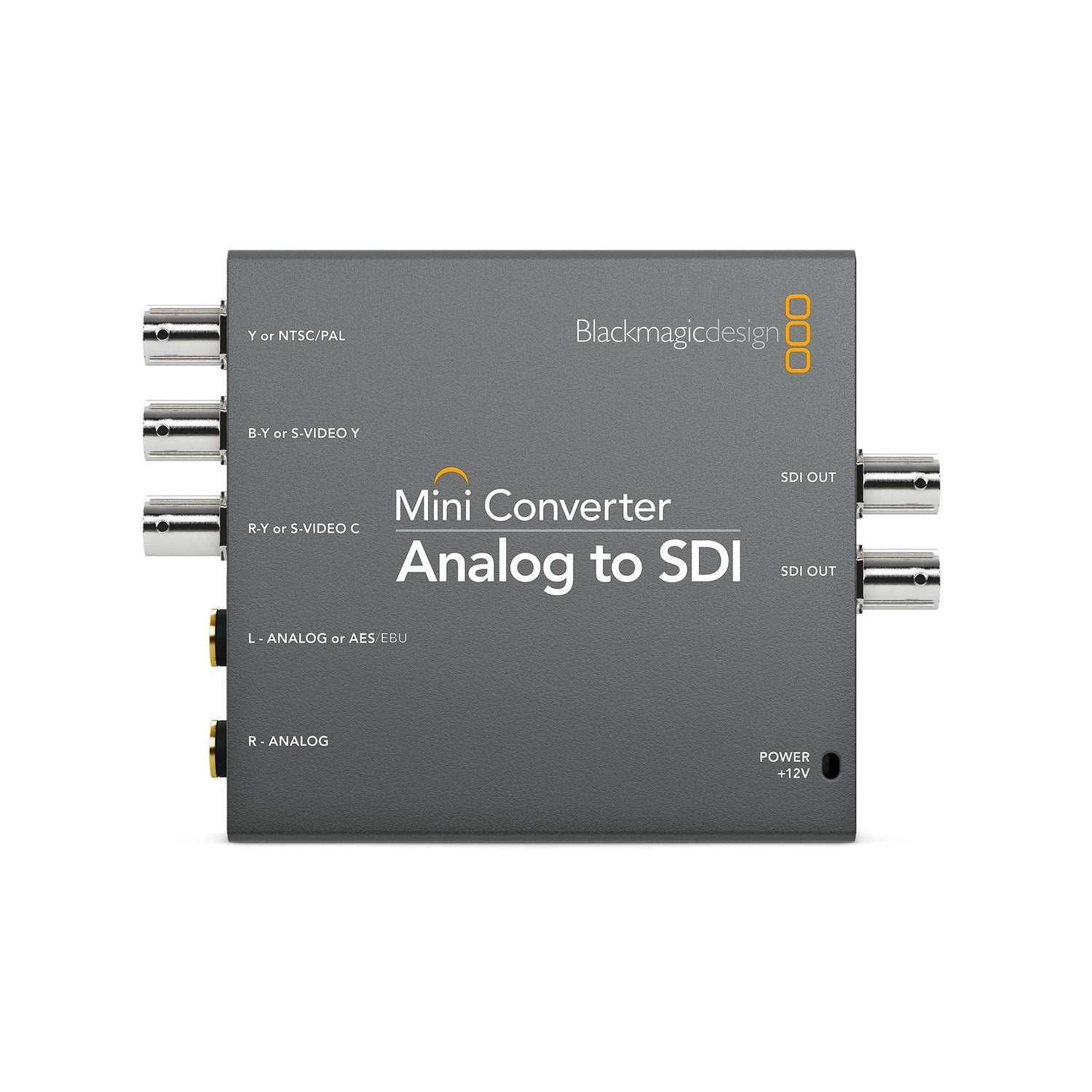

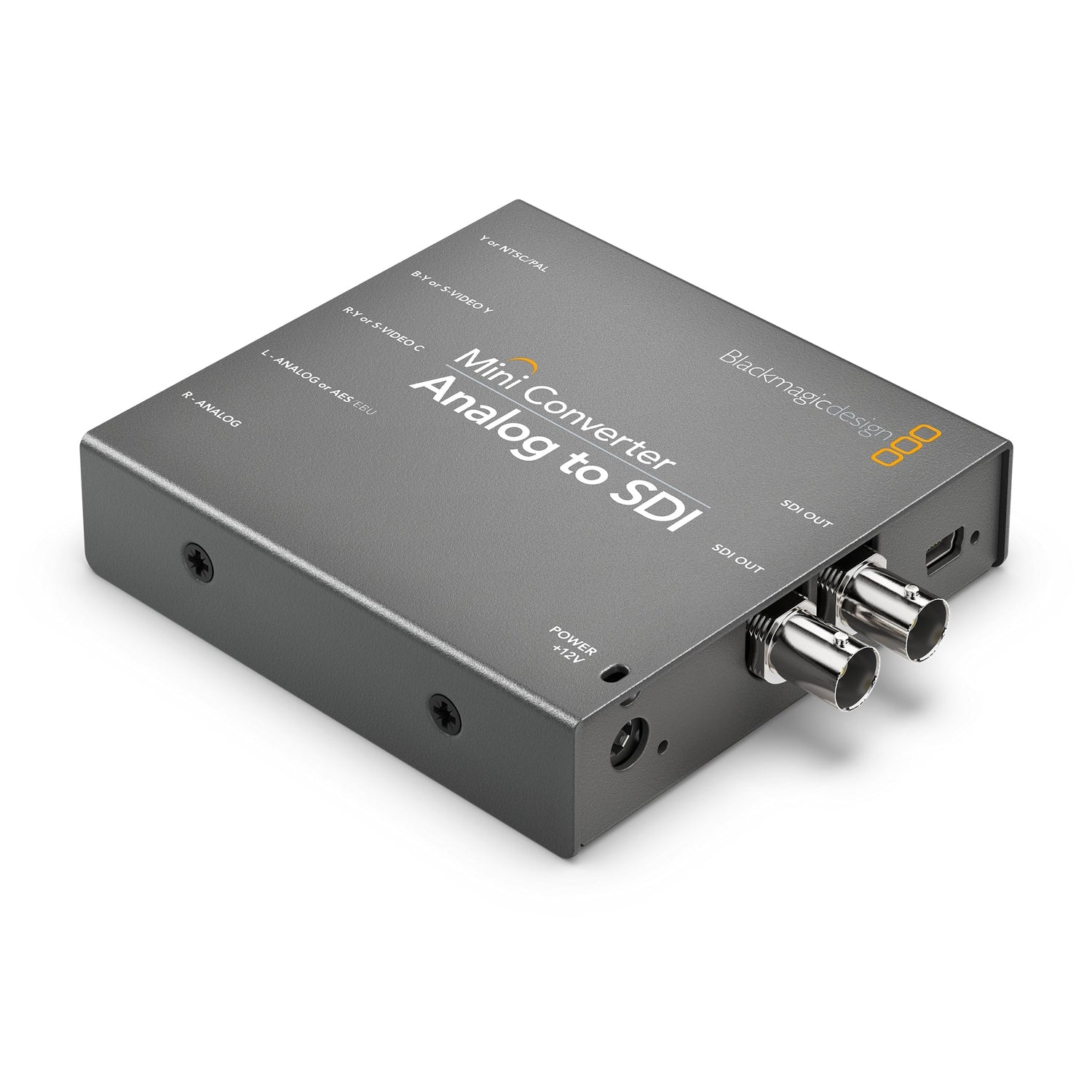

Blackmagic Design Mini Converter Analog to SDI 2

Blackmagic Design Mini Converter Analog to SDI 2

Perfect for converting from analog HD/SD component, NTSC, PAL or S-Video to SDI out with balanced AES/EBU and analog audio embedding. Now you can convert analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD-SDI video.

The new Blackmagic Mini Converter range are the worlds most advanced converters because they include the latest 6G-SDI technology, plus automatically detect the input video format and instantly change between virtually all SD, HD and Ultra HD video standards! Simply plug in and Mini Converters will convert between your equipment all automatically!
You get advanced features such as redundant SDI inputs, re-clocked loop outputs and full analog and AES/EBU audio inputs and outputs so you can convert between formats as well as embed or de-embed audio all on the one converter! Choose from a range of 13 models depending on the conversion you need!

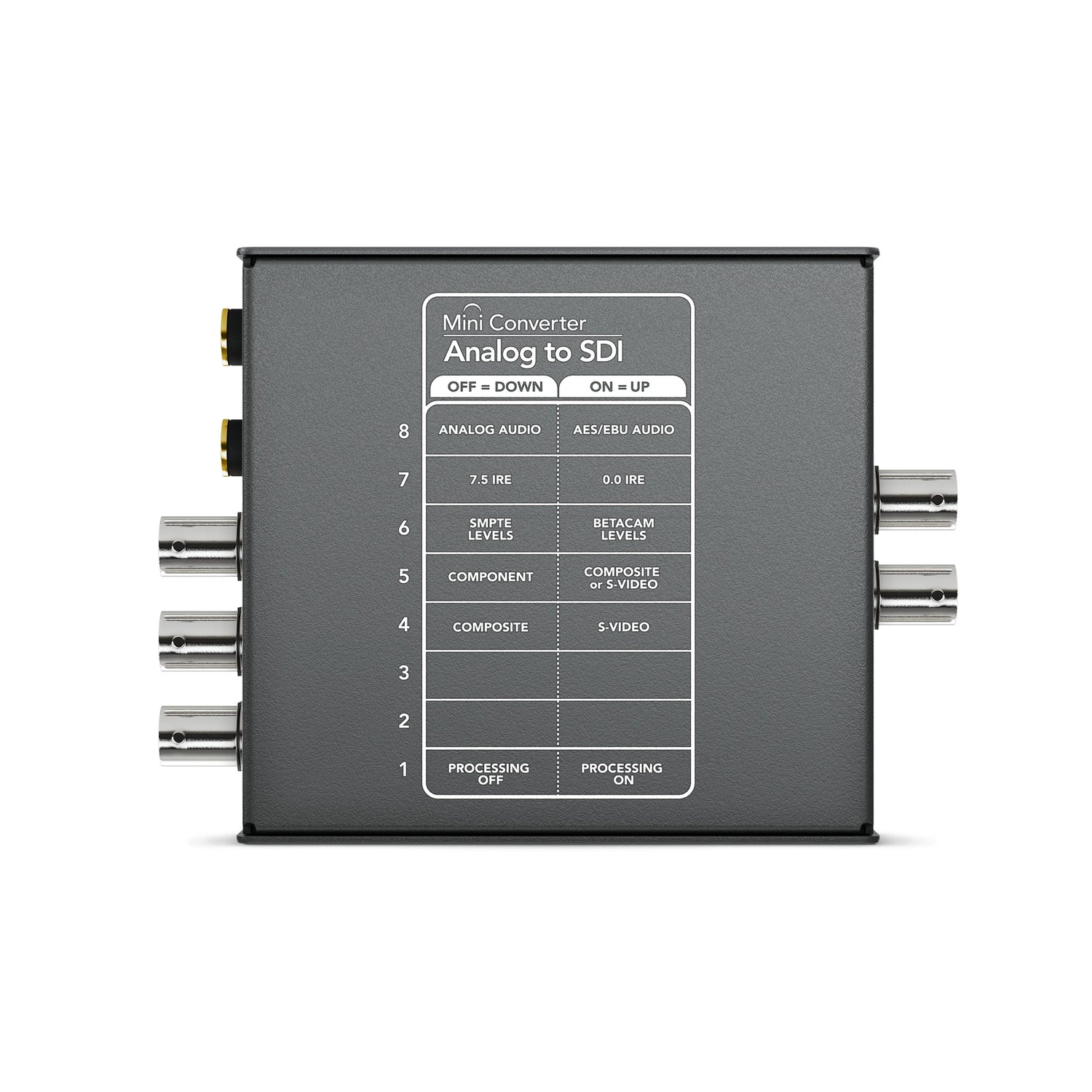

Broadcast, post production and professional AV environments are built using SDI equipment and cabling. Its essential when converting to and from SDI that you maintain the highest possible video and audio quality. Mini Converters are compact, affordable and easy-to-use. Settings can be changed quickly using built-in mini switches, and with a diagram showing pin settings printed on the back you never need to refer to a manual! Mini Converters use standard broadcast video and audio connections, so you get the convenience and cost savings of using your own cables!

Make the move to Ultra HD, the broadcast standard of the future, easy! Be prepared now by installing equipment that is fully compatible with all your SD and HD-SDI infrastructure, but will also switch over to Ultra HD via 6G-SDI when you need to run Ultra HD! This means youre ready for the future and can build your system with full Ultra HD compatibility! Ultra HD features an incredible 4 times the resolution of regular 1080 HD video for a massive 3840 x 2160 frame size! Ultra HD is amazing! The advanced 6G-SDI design also means the new Blackmagic Mini Converters models perform better when used in SD and HD formats than simple HD only converters!

Mini Converters support embedded SDI and HDMI audio and several models let you separately embed or de-embed analog or digital audio. Mini Converters support 24 bit analog and AES/EBU audio and use standard 1/4" audio jacks so you don't need custom cables!

Unlike other converters that can be confusing to operate and sometimes identify, Mini Converters combine powerful performance with a simple, compact design! Built-in connections are easy to access and all use standard cables that you're already likely to own!

Mini Converter is available in a 6G-SDI to optical fiber model. You get bi-directional 6G-SDI to optical fiber conversion, with each direction independent of each other. Optical fiber cables span distances up to 28 miles without any deterioration to the signal.

With the highest quality video processing, Mini Converters are ideal for all broadcast, post production and professional AV applications. Multiple internal power supplies ensure incredibly low noise levels when moving between analog and digital video formats. Specific models include up/down/cross conversion that lets you move easily between PAL and NTSC SD video standards and the high number of HD formats in up to 3840 x 2160 Ultra HD resolutions.

Changing Mini Converter's built-in mini switch settings is as easy as using a pen! This is great when you need to change settings quickly as there are no complicated menus to navigate! You can also control settings using the included Converter Utility software.
Connect a Mini Converter to any Mac OS X or Windows based laptop or desktop computer! All models can be updated via USB 2.0 by simply downloading software upgrades directly from the Blackmagic Design website.

Key Features

• Make the move to Ultra HD with the world's most advanced converters!
• Easy To Use Features
• Ultra HD and 6G-SDI Technology
• Standard Audio Connections
• Powerful Performance
• Optical Fiber Conversion
• Highest Quality Processing
• Easy Settings Control

Technical Specifications

SDI Video Output
Automatically matches the SD and HD video input.
Analog Video
Component SD/HD, NTSC, PAL and S-Video.
Analog Audio
2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
AES/EBU Digital Audio
2 channels of professional balanced digital with standard 1/4 inch jack connections.
Multi Rate Support
Auto detection of HD or standard definition inputs.
Updates and Configuration
Via USB 2.0 high speed. (480 Mb/s)
Reclocking
Yes

SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601.
SDI Video Rates
SDI video connections are switchable between standard definition and high definition.
SDI Video Sampling
4:2:2
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI.
SDI Format Support
625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
Analog Format Support
625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
Analog Color Space
YUV
Analog Color Precision
4:2:2

Software Control
Mac OS X and Windows software upgrade via USB.
Internal Software Upgrade
Via included updater application.

Mini Switches or USB software.

Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
6.50 Watts
Operational Voltage Range
12 - 30 V DC

Mini Converter SDI to HDMI 4K
Software CD
12V universal power supply with international socket adapters

Dimensions (W X H X D)
4.84" x 0.9" x 3.63"

Weight
8.36 oz
