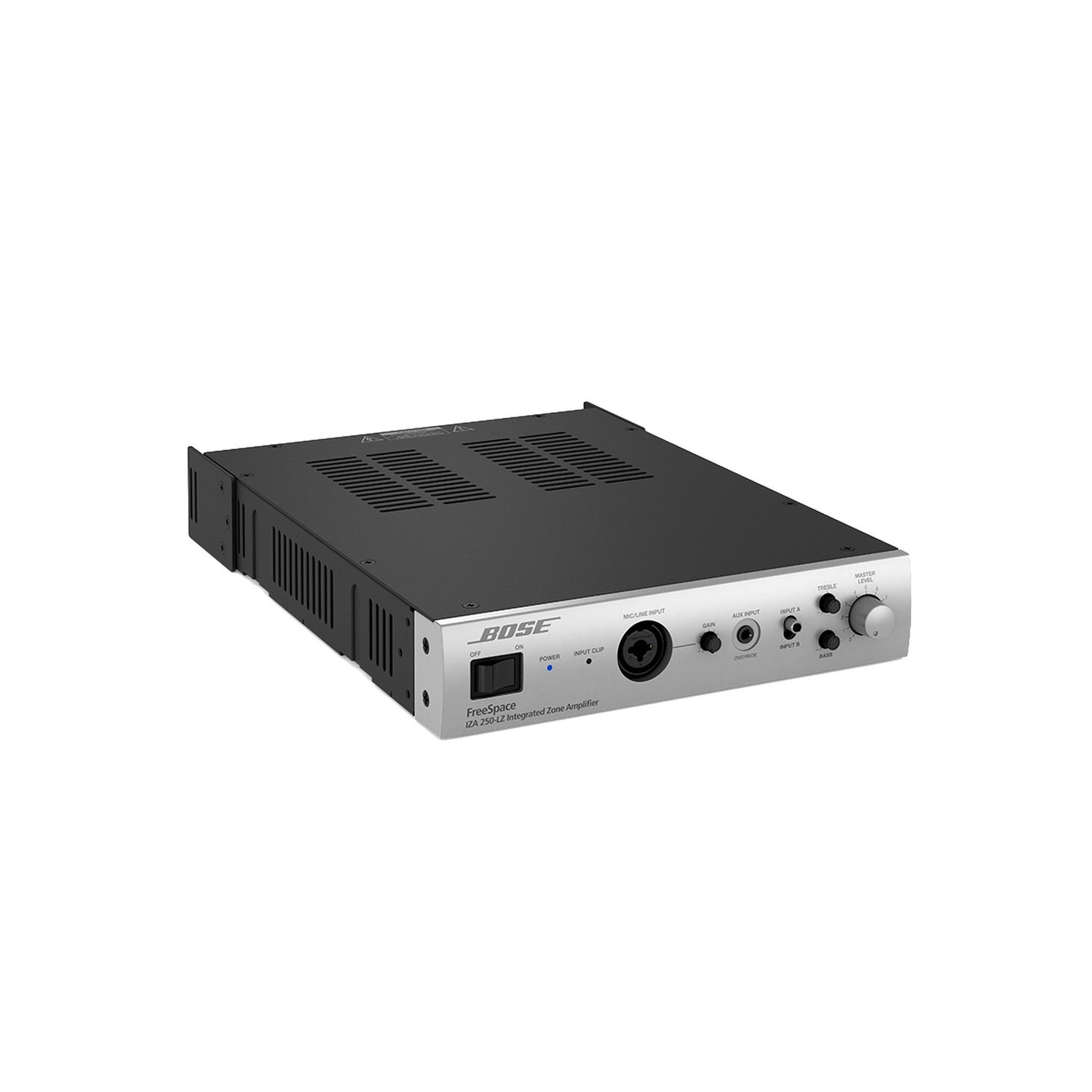

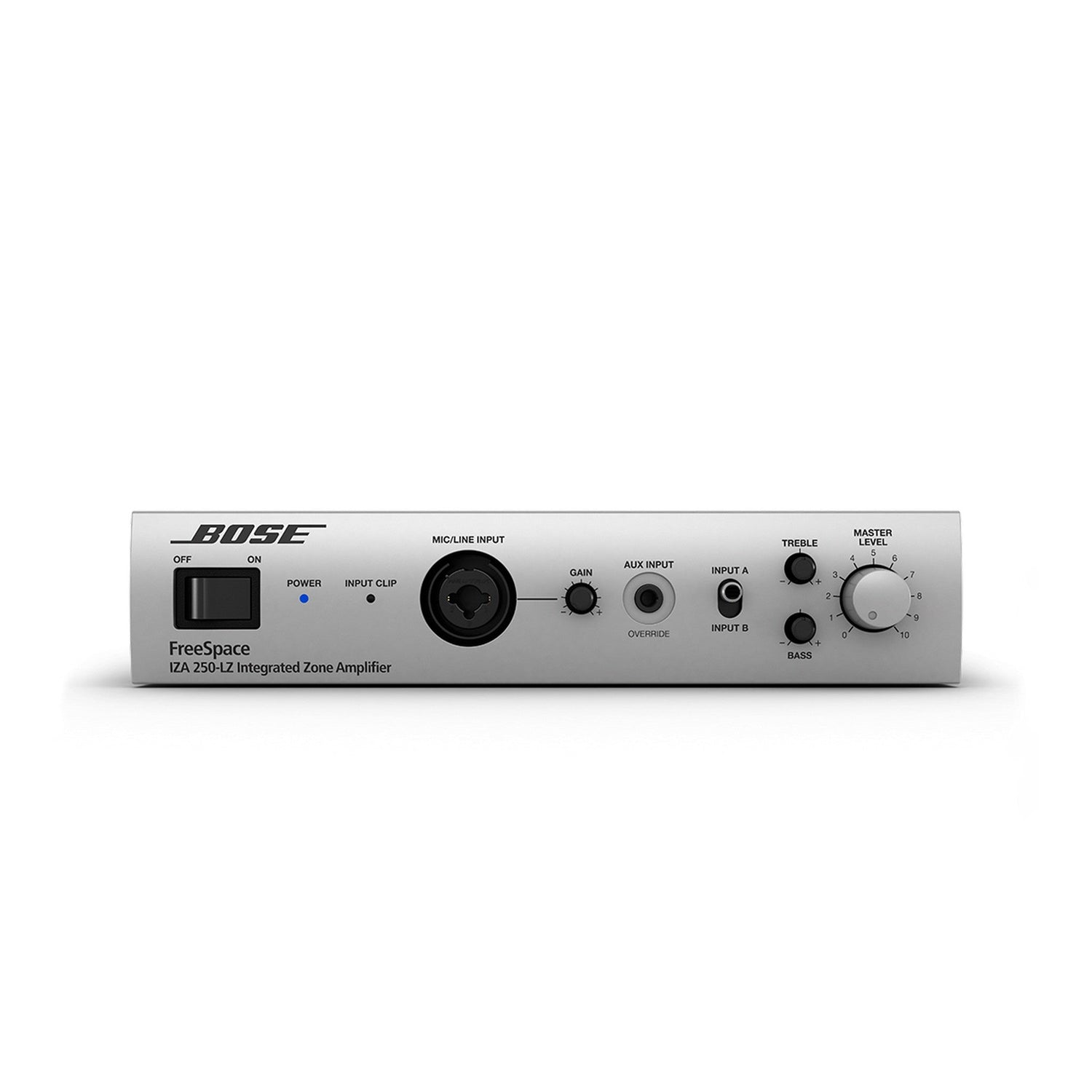

Bose FreeSpace IZA 250-Lz Integrated Zone Amplifier

The Bose FreeSpace IZA 190-HZ is a versatile integrated amplifier designed for commercial environments, offering efficient amplification and audio management. It provides high-quality sound performance, ideal for use in various spaces such as retail, hospitality, and educational settings. This unit is engineered to deliver consistent sound while simplifying system design with an intuitive setup and control interface.

Key Features:

• Rated Power: 90W at 70V/100V
• Frequency Response: 60 Hz – 20 kHz (+0 dB/-3 dB)
• Power Class: Class D
• Dynamic Range: 88 dB
• Number of Channels: 2
• Automatic Paging: Opti-Voice
• Cooling: Natural Convection
• Rack Mountable: Optional Rack Mount Kit

Technical Specifications:

Amplifier Power: 90W at 70V, 100V
Frequency Response: 60 Hz – 20 kHz (+0 dB/-3 dB)
Dynamic Range: 88 dB
THD+N: ≤ 1% at full rated power
Input Impedance: 20 kΩ (line) / 2 kΩ (mic/line)
Current Draw: 7.6 A at 120 VAC / 13.9 A at 230 VAC
Voltage: 100–240 VAC, 50/60 Hz
Dimensions (H×W×D): 1.8 in × 8.4 in × 12.2 in
Weight: 7.0 lb (3.2 kg)

Package Contents:

• Power Cord
• Four Feet with Pins
• 4-pin Euroblock Connector
• 3-pin Euroblock Connector
• FreeSpace IZA 190-HZ Amplifier
