VigilLink 4x2 Multi-Format Matrix Switch with HDMI/HDBaseT
VigilLink 4x2 Multi-Format Matrix Switch with HDMI/HDBaseT
Free Shipping
VLPT-42H100 HDMI 2.0b and USB-C HDBaseT Extender
The VLPT-42H100 is a high-performance HDMI 2.0b and USB-C extender that delivers pristine video and audio signals over long distances. Built to handle high-definition video resolutions up to 4K at 60Hz, this device is an ideal solution for professional AV setups, including conference rooms, home theaters, and control centers. Featuring HDBaseT technology, the VLPT-42H100 ensures smooth, zero-latency transmission of uncompressed video signals, making it perfect for demanding environments where high-quality video and audio are a must.
This extender supports a wide range of resolutions, from 640x480p to 4096x2160p at various frame rates, offering versatility for multiple display types. The device also supports advanced color depths, including 8, 10, and 12-bit color, and supports a range of color spaces such as RGB and YCbCr4:4:4. Additionally, the VLPT-42H100 is HDR-compatible, supporting HDR10, Dolby Vision, and HLG, allowing for richer color and contrast for a more immersive viewing experience.
Not only does it provide exceptional video performance, but the VLPT-42H100 also ensures high-quality audio support, handling both analog and digital audio formats. With support for popular audio technologies like Dolby Atmos, DTS-HD Master Audio, and LPCM, it guarantees an immersive audio experience. The device features multiple input and output options, including HDMI, USB-C, and HDBaseT, with convenient controls like LED indicators and IR pass-through for easy remote operation. Whether used in a home theater or commercial installation, this extender is a versatile, reliable solution for high-performance AV setups.
Key Features:
- Supports HDMI 2.0b and HDCP 2.3 for high-quality video transmission
- Zero audio and video latency for seamless playback
- Supports up to 4K video resolution at 60Hz
- Compatible with HDR10, Dolby Vision, and HLG for enhanced color and contrast
- Versatile audio support including Dolby Atmos, DTS-HD Master Audio, and LPCM
- Multiple video input and output options including HDMI, USB-C, and HDBaseT
- Convenient IR pass-through and LED indicator lights for easy control
Technical Specifications:
HDMI Compliance: HDMI 2.0b/ HDCP 2.3
Video Bandwidth: 18 Gbps
Video Compression Standard: HDBT 3.0 (Uncompressed)
Audio/ Video Latency: Zero
Input and Output Video Resolutions: 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz, 1920x1200p60Hz, 720x480i59.94Hz (480i59), 720x480p59.94Hz (480p59), 720x576i50Hz (576i50), 720x576p50Hz (576p50), 1280x720p50Hz (720p50), 1280x720p59.94Hz (720p59), 1280x720p60Hz (720p60), 1920x1080i50Hz (1080i50), 1920x1080i59.94Hz (1080i59), 1920x1080i60Hz (1080i60), 1920x1080p23.98Hz (1080p23), 1920x1080p24Hz (1080p24), 1920x1080p25Hz (1080p25), 1920x1080p29.97Hz (1080p29), 1920x1080p30Hz (1080p30), 1920x1080p50Hz (1080p50), 1920x1080p59.94Hz (1080p59), 1920x1080p60Hz (1080p60), 3840x2160p23.98Hz (2160p23), 3840x2160p24Hz (2160p24), 3840x2160p25Hz (2160p25), 3840x2160p29.97Hz (2160p29), 3840x2160p30Hz (2160p30), 3840x2160p50Hz (2160p50), 3840x2160p59.94Hz (2160p59), 3840x2160p60Hz (2160p60), 4096x2160p23.98Hz, 4096x2160p24Hz, 4096x2160p25Hz, 4096x2160p29.97Hz, 4096x2160p30Hz, 4096x2160p50Hz, 4096x2160p59.94Hz, 4096x2160p60Hz
Color Depth: 8/10/12bit
Color Space: RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0
HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Support: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Audio Out: Analog audio, Balanced/unbalanced 2CH, Max output level 2VRMS
Transmission: HDMI 3M, USB-C 2M, HDBT 100M 4K @Cat6A
LED Indicators Color: Input LED: Green, Input SEL: Black Button with Green backlit
IR Level/Frequency: 12Vp-p/ 20K-60KHz
Housing Material: Front panel: Aluminum; Rear case: Metal Enclosure
Color: Black
Dimensions: Host: 8.66" x 5.91" x 1.73", Remote: 5.51" x 4.13" x 0.85"
Weight: Host: 2.56 lbs, Remote: 0.94 lbs
Power Supply: Input: AC100 - 240V 50/60Hz, Output: DC 24V/6A (US/EU standard, CE/FCC/UL certified)
Power Consumption: 100W (Max)
Operating Temperature: 32°F ~ 104°F
Storage Temperature: -4°F ~ 140°F
Relative Humidity: 20%~90% RH (non-condensation)

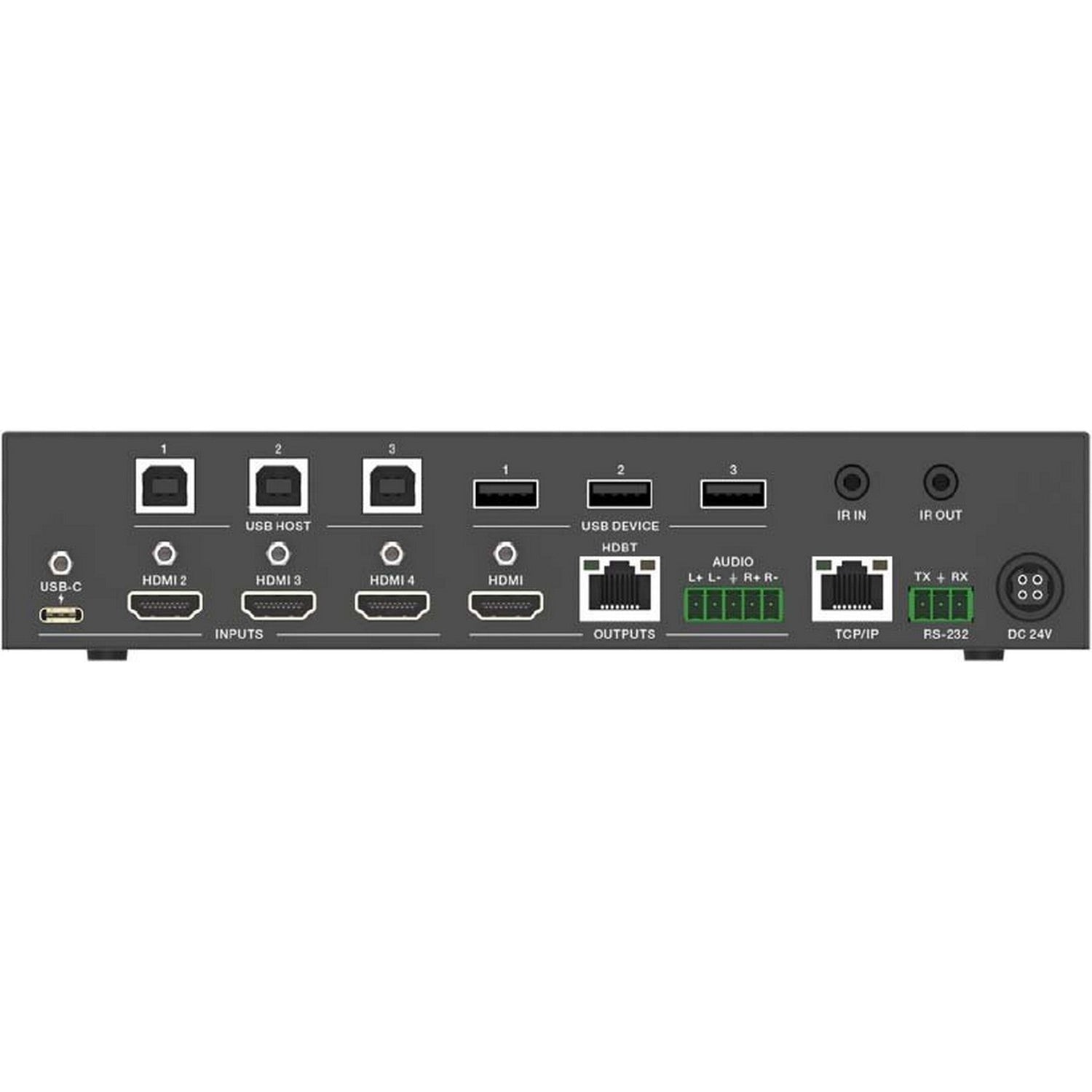

Interface/Connections: 3x USB Host, 3x USB Device, IR IN/OUT, USB-C IN, HDMI IN/OUT, HDBT OUT, Audio OUT, TCP/IP, RS-232, DC Locking Connector
Shipping Group: Host, Remote, Remote Controller, Power Supplier
