VigilLink HDBaseT 3.0 4K 60Hz 4:4:4 HDMI 2.0 Extender with USB Support

VLEX-HT3040U: HDBaseT 3.0 4K@60Hz 4:4:4 HDMI 2.0 Extender with USB Support

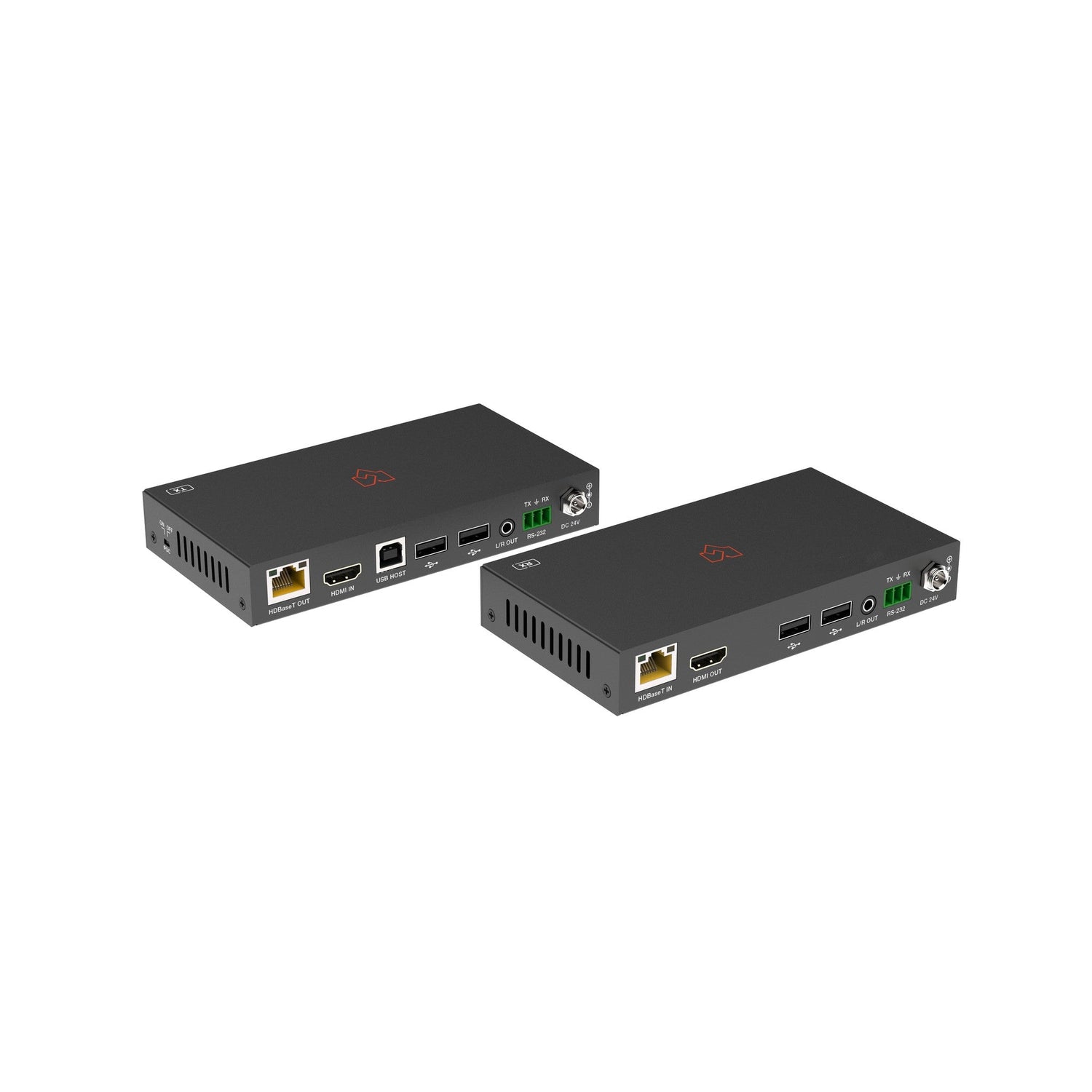

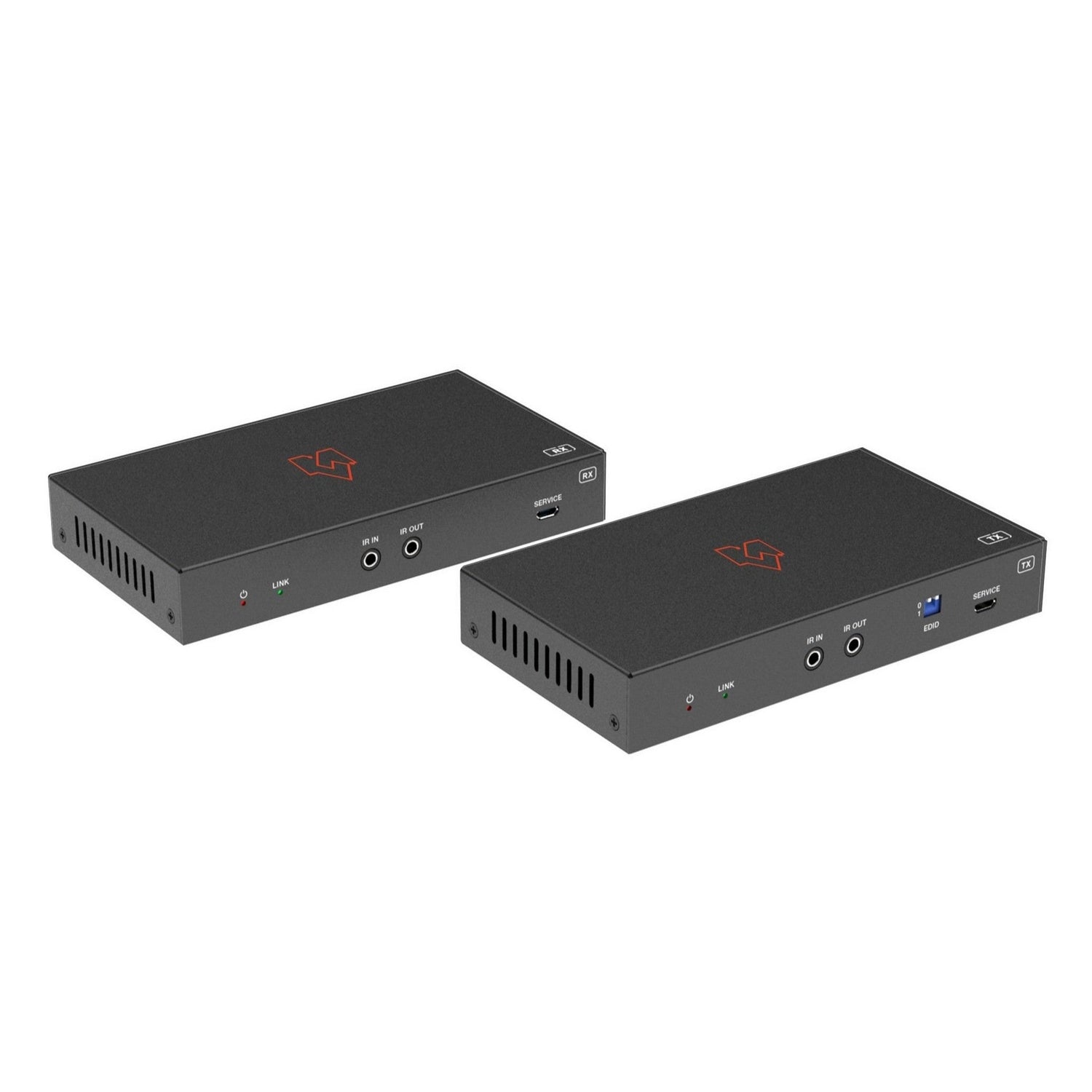

The VLEX-HT3040U is a cutting-edge HDBaseT 3.0 extender designed to transmit uncompressed HDMI signals alongside bi-directional IR, RS-232, and USB 2.0 signals over a single CAT6A/7 cable. This high-performance extender supports video resolutions up to 4K at 60Hz with 4:4:4 chroma subsampling, ensuring pristine image quality for professional AV installations and home theater systems.

With a robust video bandwidth of 18Gbps, the VLEX-HT3040U delivers seamless transmission of high-definition content without compression or latency. It supports a wide range of HDR formats, including HDR10, HDR10+, Dolby Vision, and HLG, providing vibrant and lifelike visuals. The extender is compatible with various color spaces such as RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0, and supports color depths of 8, 10, and 12-bit, catering to diverse display requirements.

Designed for flexibility, the VLEX-HT3040U offers multiple connectivity options. The transmitter features an HDMI input, while the receiver provides an HDMI output. Both units are equipped with 3.5mm stereo mini-jack ports for analog audio extraction, facilitating integration with external audio systems. The extender also supports bi-directional IR and RS-232 pass-through, enabling seamless control of source and display devices from either end of the setup.

Key Features

• Extends uncompressed HDMI signals up to 131 feet (40 meters) at 4K60 resolution over a single CAT6A/7 cable.
• Supports high dynamic range (HDR) formats: HDR10, HDR10+, Dolby Vision, and HLG.
• Compatible with various color spaces and depths, including RGB and YCbCr with 8, 10, or 12-bit color.
• Integrated USB 2.0 ports for connecting peripherals such as keyboards and mice.
• Bi-directional IR and RS-232 pass-through for comprehensive control capabilities.
• Compact and durable metal enclosure with a sleek black finish.

Technical Specifications

HDMI Compliance: HDCP 2.2
Video Bandwidth: 18Gbps
Video Resolution: Up to 4K@60Hz
HDR Support: HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth: 8/10/12-bit
Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
IR Level: 12Vp-p
Transmission Distance: 4K60: 131ft (40m); 4K30: 230ft (70m); 1080P: 230ft (70m) over CAT6/6A cable

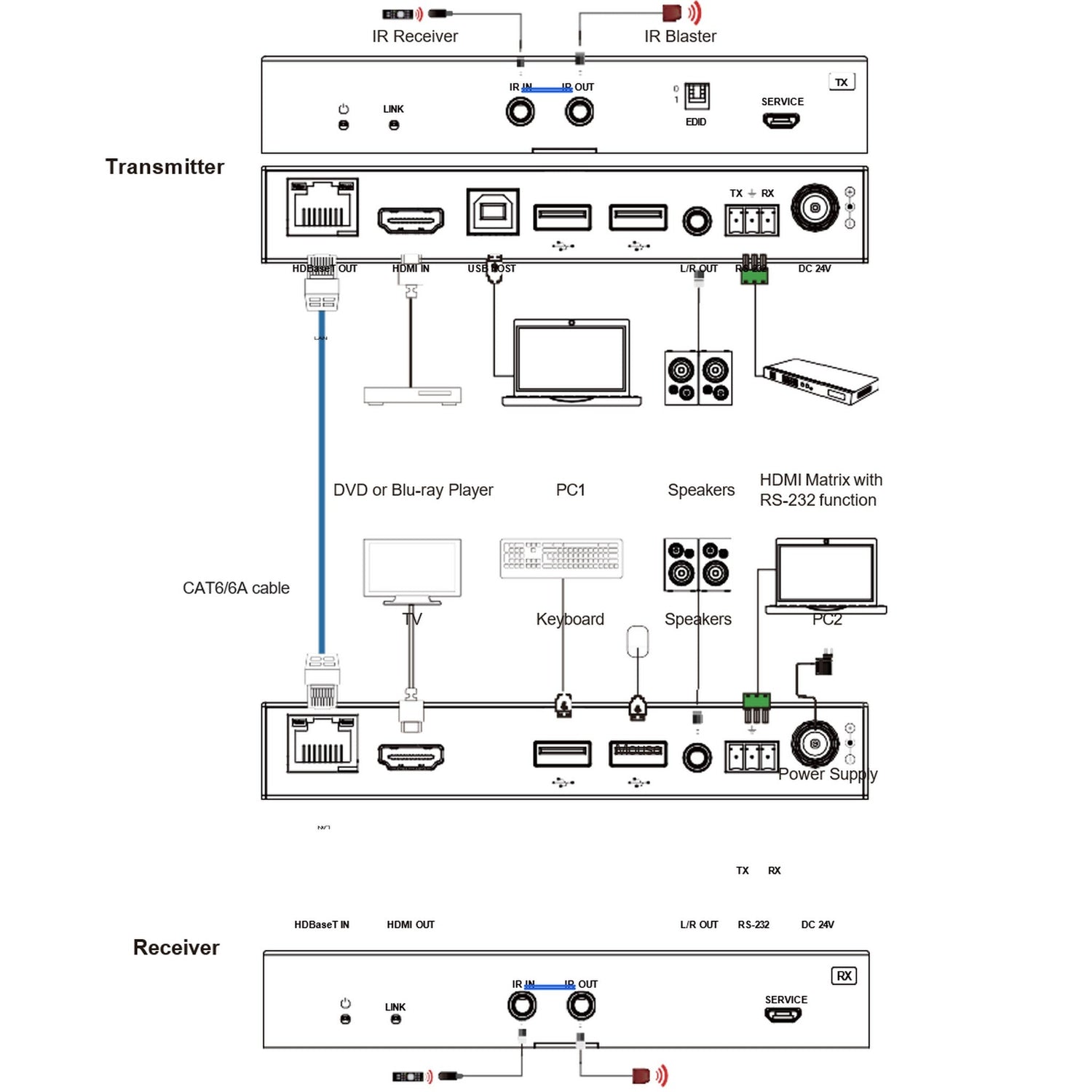

Transmitter Connections:
Inputs: 1 × HDMI IN [Type A, 19-pin female]
Outputs: 1 × HDBaseT OUT [RJ45 connector], 1 × L/R OUT [3.5mm Stereo Mini-jack]
Controls: 1 × IR IN [3.5mm Stereo Mini-jack], 1 × RS-232 [3pin-3.81mm Phoenix jack], 1 × SERVICE [Micro USB, 5-pin female], 1 × USB HOST [USB Type B], 2 × USB DEVICES [USB Type A]

Receiver Connections:
Inputs: 1 × HDBaseT IN [RJ45, 8-pin female]
Outputs: 1 × HDMI OUT [Type A, 19-pin female], 1 × L/R OUT [3.5mm Stereo Mini-jack]
Controls: 1 × IR IN [3.5mm Stereo Mini-jack], 1 × IR OUT [3.5mm Stereo Mini-jack], 1 × RS-232 [3pin-3.81mm Phoenix jack], 1 × SERVICE [Micro USB, 5-pin female], 2 × USB DEVICES [USB Type A]

Mechanical:
Housing: Metal Enclosure
Color: Black
Dimensions: Transmitter/Receiver: 5.67" [W] x 3.07" [D] x 0.91" [H]
Weight: Transmitter: 0.71 lbs (323g), Receiver: 0.70 lbs (319g)

Power Supply:
Input: AC100~240V 50/60Hz
Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption: 14.28W (POC)

Environmental:
Operating Temperature: 32 - 104°F (0 - 40°C)
Storage Temperature: -4 - 140°F (-20 - 60°C)
Relative Humidity: 20 - 90% RH (non-condensing)
