Commercial Audio System Guide: Speakers, Amplifiers, and Zones for Bus – AVLGEAR

A commercial audio system should do more than play music through a few speakers. In a restaurant, retail store, office, café, hotel, school, or small venue, the system needs to deliver consistent coverage, clear speech, comfortable listening levels, and reliable daily operation. The best result usually comes from planning the room first, then choosing speakers, amplification, and zone control around that layout.

This guide explains how to approach a commercial audio system from a professional system-design perspective, including speaker format, zone planning, amplifier matching, and common installation mistakes to avoid.

Start with the space and the use case

Before choosing a speaker, define what the system needs to accomplish. A retail store may need even background music across the sales floor. A restaurant may need separate volume control for the dining area, bar, patio, and waiting area. An office may need low-profile speakers for background music and clear paging in shared spaces.

Most commercial audio systems fall into one or more of these use cases:

Background music: Smooth, even coverage at a comfortable volume.
Foreground music: Higher-impact sound for bars, lounges, fitness spaces, or hospitality areas.
Paging and announcements: Clear voice reproduction for business, education, public, or facility communication.
Multi-zone audio: Independent control for different rooms or areas within the same building.

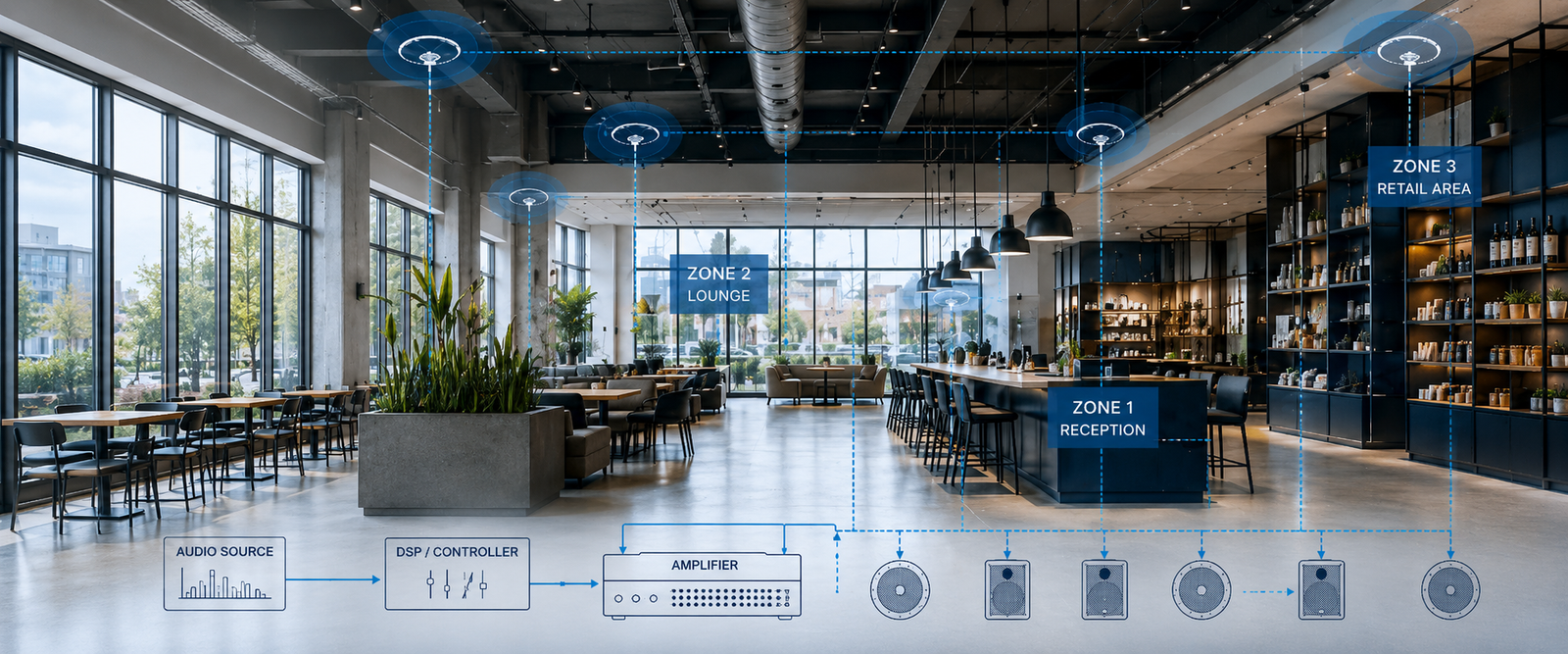

Plan zones before selecting final equipment

Zone planning is one of the most important parts of a professional commercial audio system. A zone is an area that needs its own volume control, source control, or operational behavior. Planning zones too late can lead to the wrong amplifier configuration, poor control layout, or an installation that is frustrating for staff to use.

Restaurant: dining room, bar, patio, waiting area, restrooms
Retail store: sales floor, fitting rooms, checkout area, entrance
Office: lobby, conference room, hallway, break room
Hospitality space: lobby, lounge, meeting area, outdoor zone
Small venue: main room, support area, lounge, exterior space

Each zone should be planned around how people actually use the space. A patio will not need the same volume level as an indoor dining room. A checkout area may need lower music levels than the main retail floor. A conference area may need a completely different source or control method than a lobby.

Choose the right speaker format

In commercial audio, the best speaker is not always the loudest one. Coverage pattern, mounting location, ceiling height, room shape, and acoustic conditions matter just as much as wattage. A good design should reduce hot spots near the speaker while keeping sound clear and consistent throughout the listening area.

Speaker Format	Best Use	Common Spaces
Ceiling speakers	Clean appearance and even distributed coverage	Retail stores, offices, restaurants, lobbies, waiting rooms
Surface-mount speakers	Flexible wall, column, or exposed-ceiling installation	Cafés, bars, classrooms, hospitality spaces, small venues
Pendant speakers	Open ceilings or high-ceiling areas	Restaurants, showrooms, atriums, retail spaces, public areas
Outdoor speakers	Exterior zones with weather and ambient noise considerations	Patios, courtyards, storefronts, outdoor walkways, venue exterior areas

Ceiling speakers for clean distributed coverage

Ceiling speakers are often the most discreet choice for background music, paging, and general business audio. They work especially well when the room has a finished ceiling or drop ceiling and the goal is to keep the speaker system visually low-profile.

In smaller business installations, a packaged system such as the Bose 888472-1210 AudioPack Pro C6W In-Ceiling Audio System can be useful when the project calls for a matched speaker-and-amplifier approach rather than sourcing every component separately.

When planning ceiling speakers, pay close attention to spacing. Too few speakers can make the system louder directly below each speaker and weak between coverage areas. More evenly spaced speakers at a lower volume usually create a better customer and staff experience.

Surface-mount speakers for flexible placement

Surface-mount speakers are a strong choice when ceiling speakers are not practical. They can be installed on walls, beams, columns, or other structural surfaces, making them useful for open ceilings, exposed architecture, higher ceilings, or areas where sound needs to be aimed more directly.

For compact background music and speech coverage, the Bose FreeSpace DS 16S Loudspeaker is a practical example of a surface-mount commercial speaker. For larger spaces or higher output needs, the broader commercial speaker category also includes options from brands such as JBL Professional, Biamp, AtlasIED, Sonance, SoundTube, and others.

Pendant and outdoor speakers for special layouts

Open-ceiling spaces often need a different approach. In restaurants, showrooms, atriums, and modern retail spaces, a recessed ceiling speaker may not be possible. In those cases, pendant speakers can bring the speaker closer to the listening area while preserving the open-ceiling design.

Outdoor areas require even more care. Patios, courtyards, storefronts, and exterior walkways usually have more ambient noise and fewer reflective boundaries than indoor rooms. For these spaces, use speakers designed for exterior placement and plan them as their own zone whenever possible.

For paging-focused outdoor applications, a system such as the Pure Resonance Audio Outdoor Horn Speaker System with 2 H6 All-Weather Loudspeakers, MA120BT 120W Bluetooth Mixer Amplifier, and PTT1 Gooseneck Paging Microphone is an example of a complete outdoor communication-oriented setup.

Amplifier matching and 70V/100V systems

Many commercial audio systems use 70V or 100V distributed speaker lines. This approach is common in restaurants, retail stores, offices, schools, and multi-room facilities because it allows multiple speakers to run from a single amplifier channel over longer cable distances.

The key is to calculate the speaker load correctly. Add the tap wattage of every speaker on the line, then choose an amplifier with enough output and practical headroom. For example, if eight speakers are tapped at 8 watts each, the total speaker load is 64 watts. The amplifier should be rated above that total instead of being operated at its limit.

Good amplifier matching helps reduce distortion, improves reliability, and gives the system enough room to handle real-world use. It also makes future service or expansion easier because the system is not already maxed out from the start.

Common commercial audio mistakes to avoid

Using too few speakers: This often creates loud hot spots near speakers and weak coverage in other areas.
Choosing only by wattage: Mounting type, coverage pattern, tap settings, sensitivity, and room acoustics also matter.
Ignoring zones: One volume setting rarely works well across an entire business.
Undersizing the amplifier: The amplifier should support the total speaker load with usable headroom.
Using indoor speakers outdoors: Exterior areas should use speakers designed for outdoor conditions.
Forgetting daily operation: Staff should be able to turn the system on, adjust volume, and manage sources without confusion.

Commercial audio planning checklist

Define the primary use: background music, foreground music, paging, or mixed use.
Map every area that needs sound coverage.
Decide which areas need independent volume or source control.
Choose the speaker format based on ceiling type, room layout, and mounting location.
Confirm whether the system should use 70V/100V distributed audio or low-impedance wiring.
Add up speaker tap settings and choose amplification with practical headroom.
Plan cable paths, mounting points, control locations, ventilation, and future service access.

Frequently Asked Questions

What type of speaker is best for a restaurant sound system?

For many restaurants, ceiling speakers work well in dining areas because they provide clean, even background music coverage. Surface-mount speakers may be better for bars, patios, exposed ceilings, or areas where the sound needs to be aimed more directly.

Are 70V speakers better for commercial audio?

70V systems are commonly used in commercial audio because they make it easier to connect multiple speakers over longer cable runs. They are especially useful for distributed background music, paging, and multi-room business audio systems.

How many speakers does a business need?

The number depends on room size, ceiling height, speaker coverage, ambient noise, and target listening level. In many commercial systems, using more speakers at lower volume creates smoother coverage than using fewer speakers at higher volume.

Should indoor and outdoor areas be on the same audio zone?

Usually, no. Outdoor areas often need different volume levels and speaker types, so they should normally be planned as a separate zone from indoor areas.

What should be planned first: speakers or amplifier?

Plan the speaker layout and zones first. After that, calculate the speaker load and choose an amplifier that can support the system with enough headroom.

Final recommendation

A strong commercial audio system starts with coverage, not volume. The goal is not to make one speaker louder; it is to make the entire space sound consistent, clear, and easy to manage. That is why room layout, speaker placement, amplifier matching, and zone planning should come before final product selection.

For most business spaces, start by identifying where people will be listening, where speech needs to remain clear, and which areas need independent control. Then choose the speaker format that fits the architecture: ceiling speakers for clean distributed coverage, surface-mount speakers for flexible placement, pendant speakers for open ceilings, and outdoor speakers for exterior zones.

Once the speaker layout and zones are clear, amplifier selection becomes much easier. A properly matched system will be more reliable, easier to operate, and more consistent for customers, employees, and guests. That approach creates a better long-term result than simply choosing equipment by brand, size, or wattage alone.
