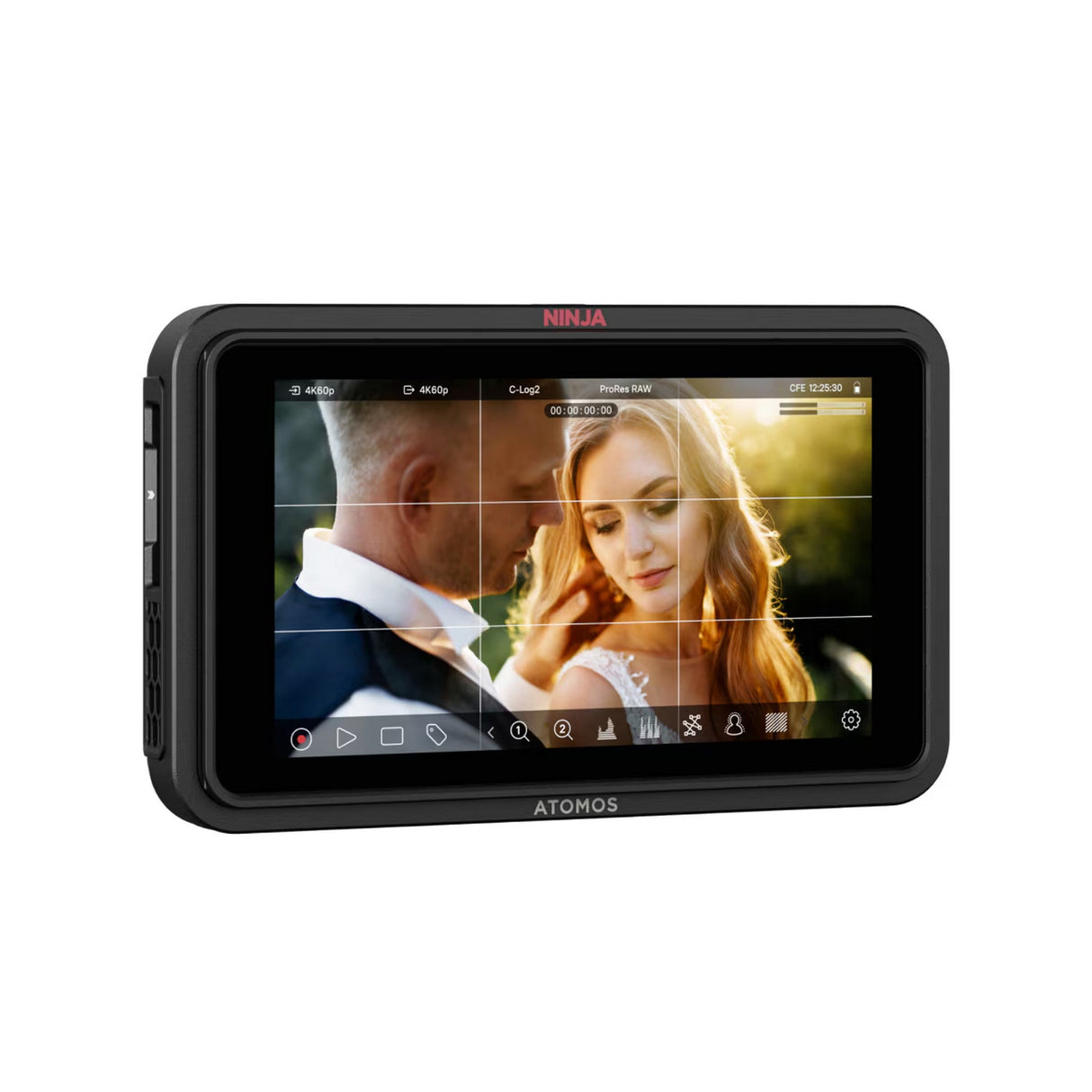

Atomos Ninja TX GO 5-Inch HDMI Camera Monitor Recorder with CFexpress and Wi-Fi HDR Touchscreen
The Ninja TX GO is a professional-grade 5-inch camera monitor and recorder that combines HDMI input and output, ProRes and ProRes RAW recording, and high-speed CFexpress Type B or USB-C storage compatibility. Designed for filmmakers and content creators, it delivers exceptional image accuracy, advanced connectivity, and direct camera-to-cloud workflows.
Built on the powerful AtomOS Linux platform, the Ninja TX GO features a super-bright 1500-nit HDR touchscreen display, Wi-Fi 6E, and NDI 6 streaming support. Its intuitive interface includes advanced monitoring tools, touch-to-focus capability, and camera control options for compatible DSLRs and mirrorless cameras. The device supports recording up to 6K RAW and multiple codecs including Apple ProRes, DNxHR, and H.265.
Ideal for professional production environments, the Ninja TX GO provides direct upload to cloud services, multiple power options, and robust construction in an aluminum and ABS enclosure with active cooling. It is the perfect tool for cinematographers demanding flexibility, reliability, and uncompromising image quality in the field or studio.
Key Features

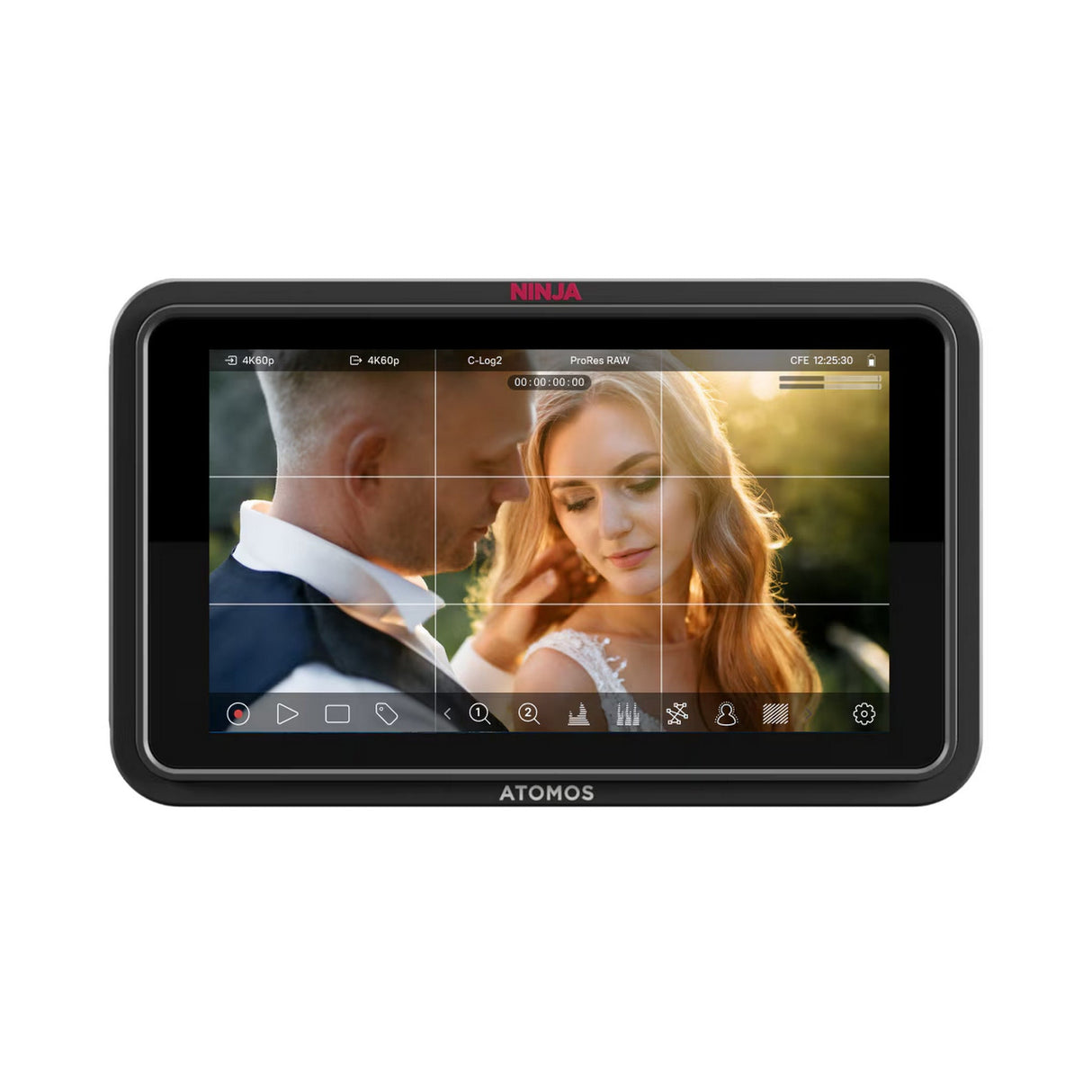

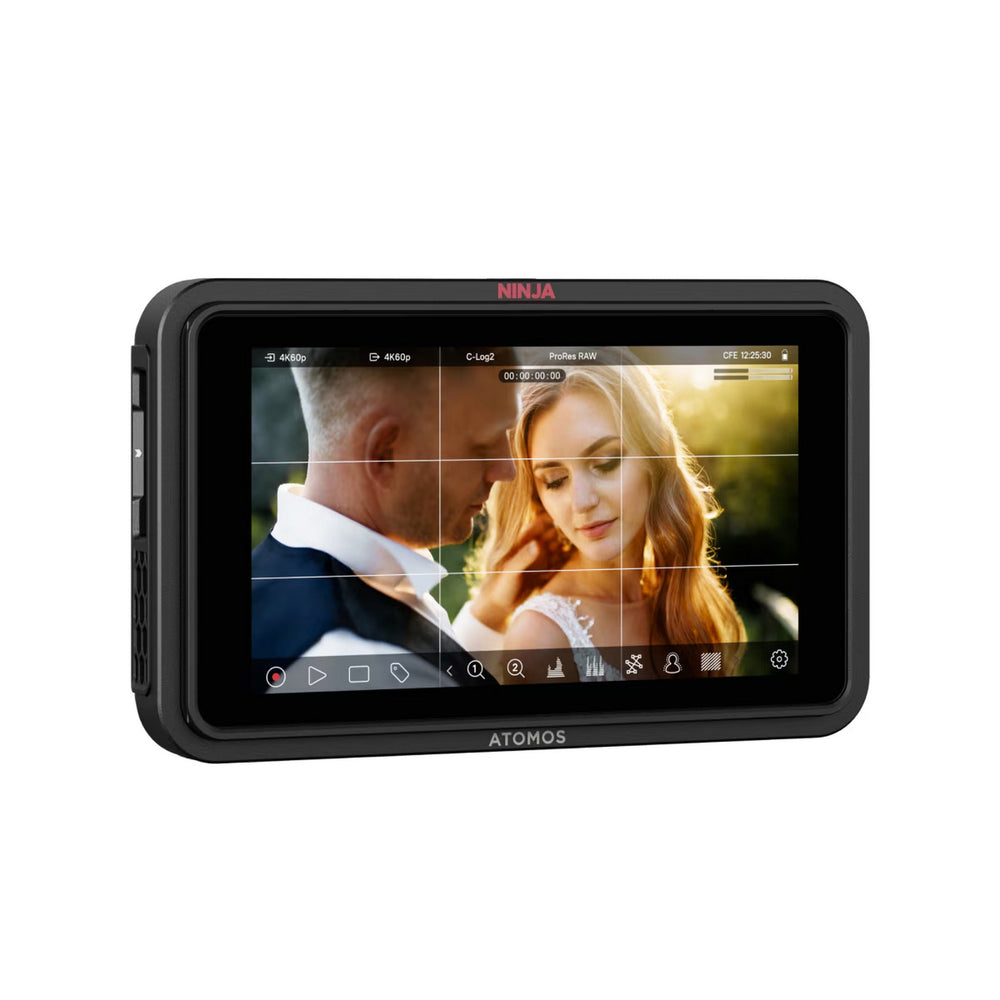

- 5-inch HDR touchscreen: 1920 x 1080 resolution, 1500-nit brightness for daylight visibility.
- ProRes and ProRes RAW recording: Capture up to 6K RAW via HDMI to CFexpress Type B or USB-C drives.

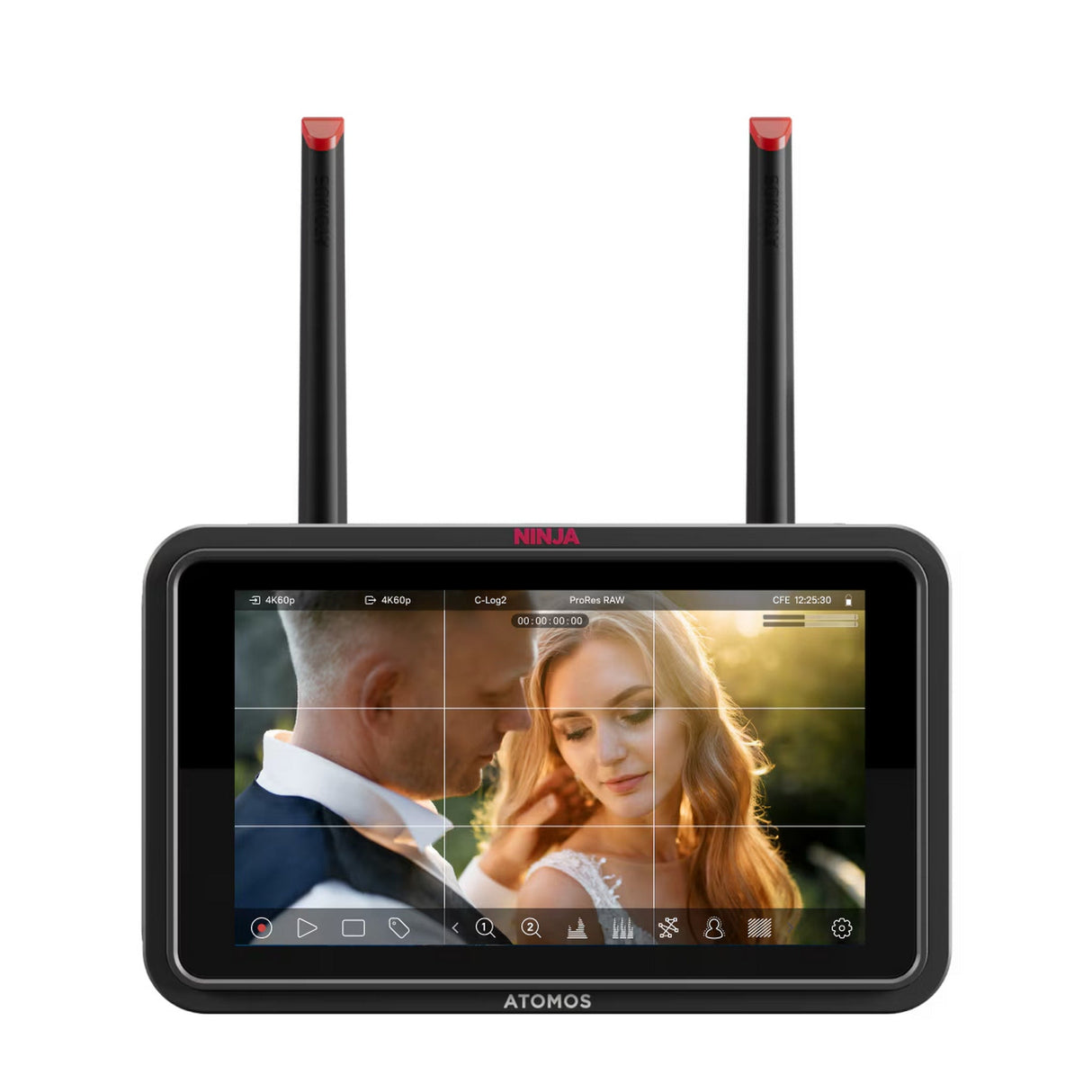

- NDI 6 streaming and Wi-Fi 6E: Supports wireless live-streaming and camera-to-cloud integration.
- Advanced monitoring tools: Waveform, vectorscope, false color, focus peaking, LUT preview, and framing guides.

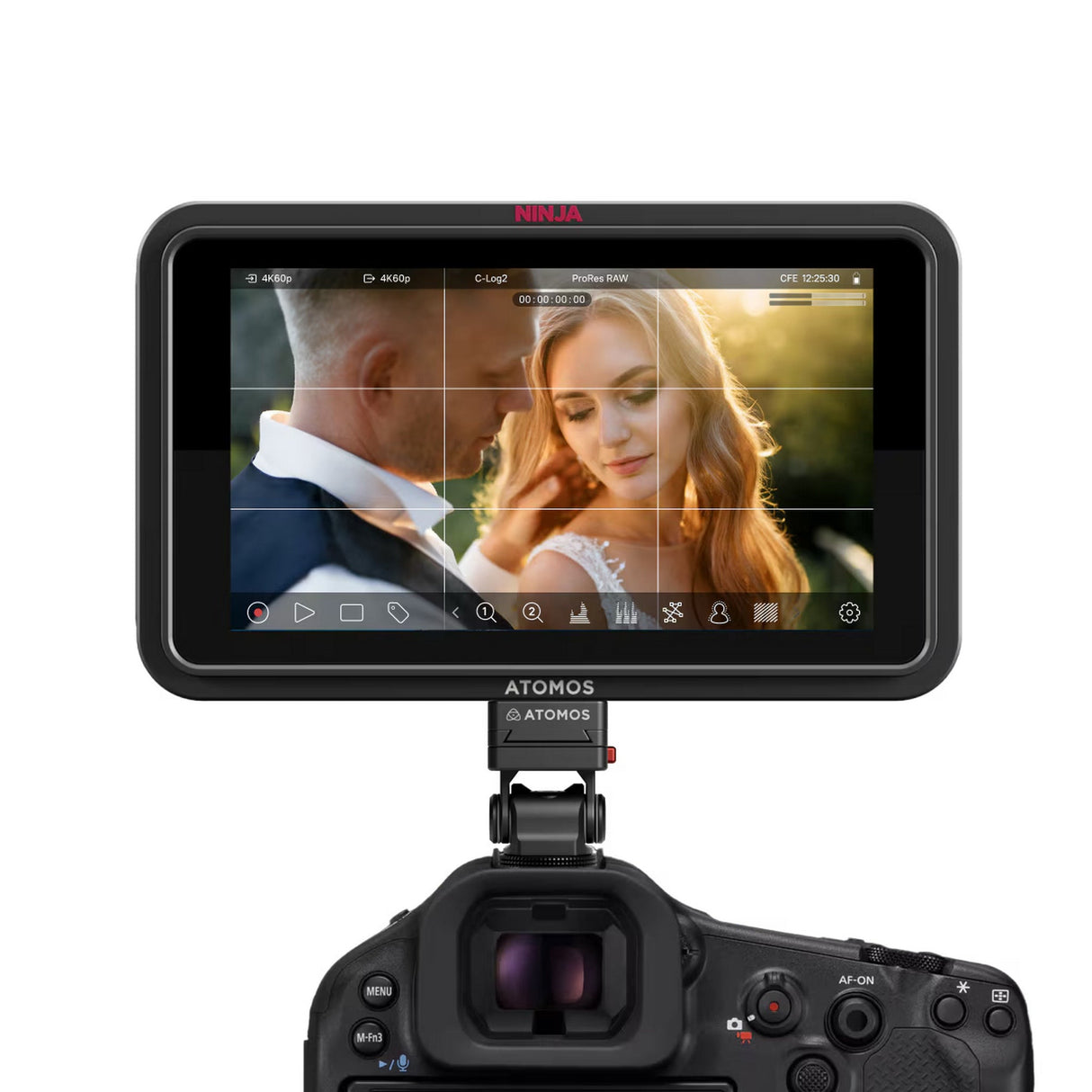

- Camera control and touch focus: Supports major camera brands via HDMI protocol.
- Built-in codecs: Apple ProRes, Avid DNxHR, DNxHD, and H.265/H.264 included.

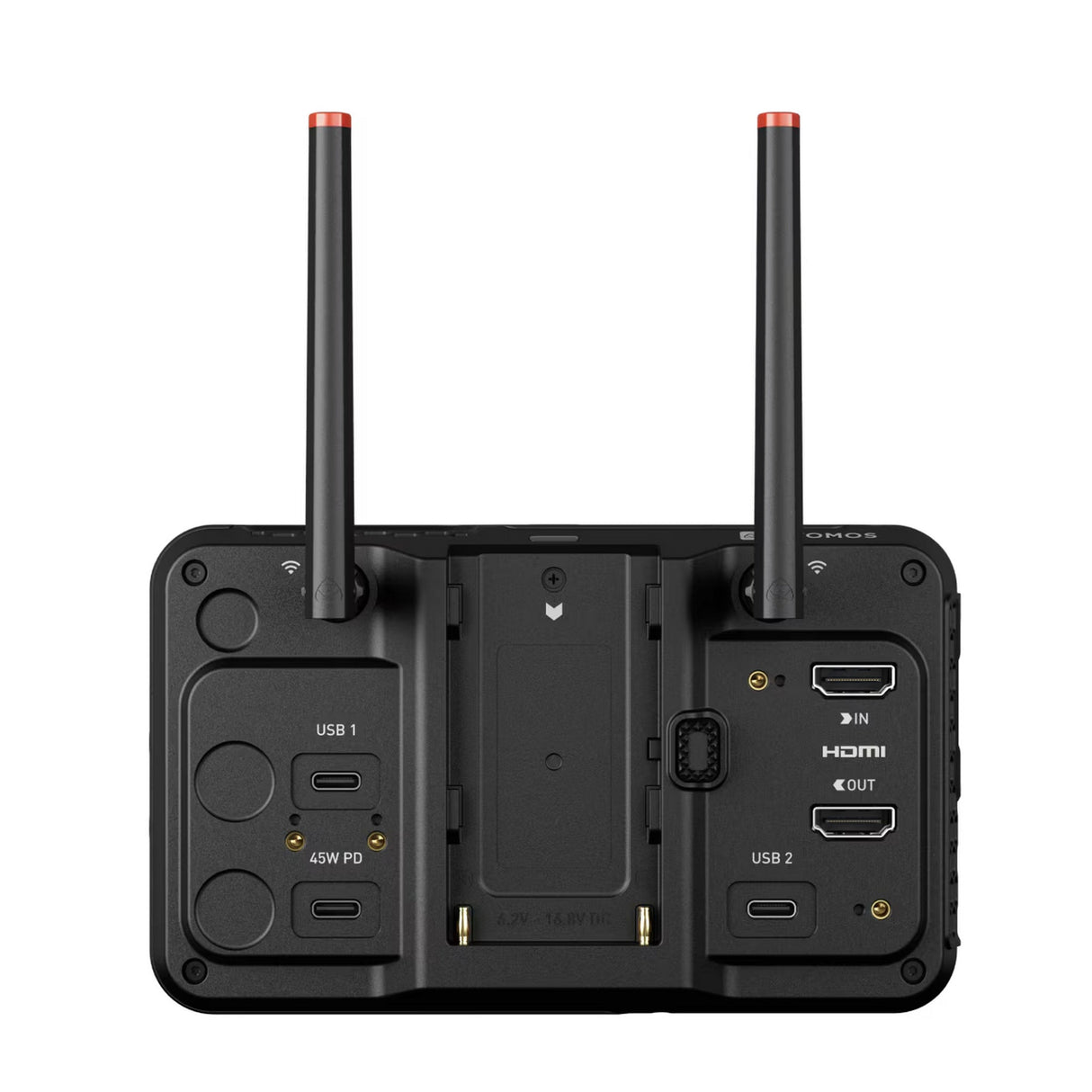

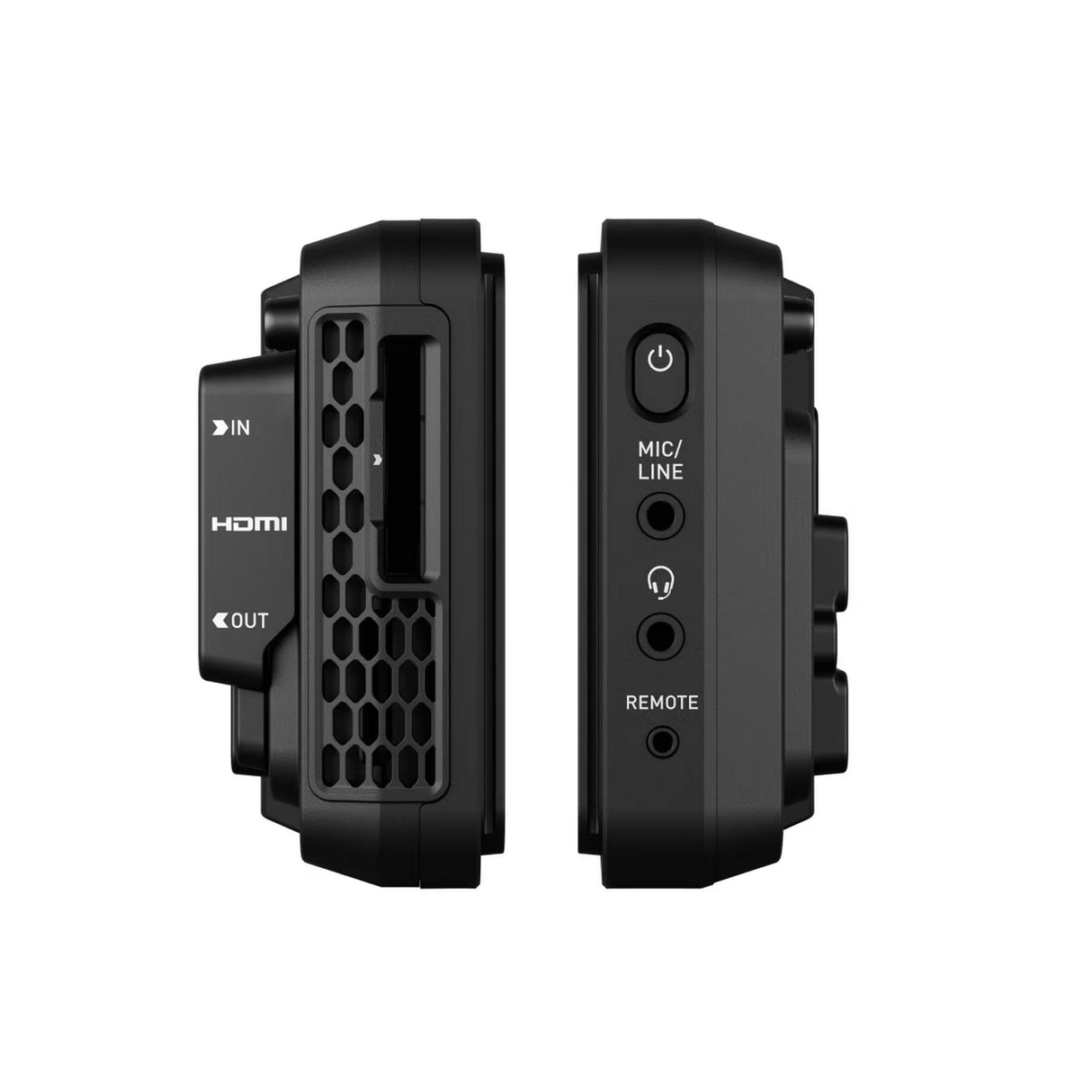

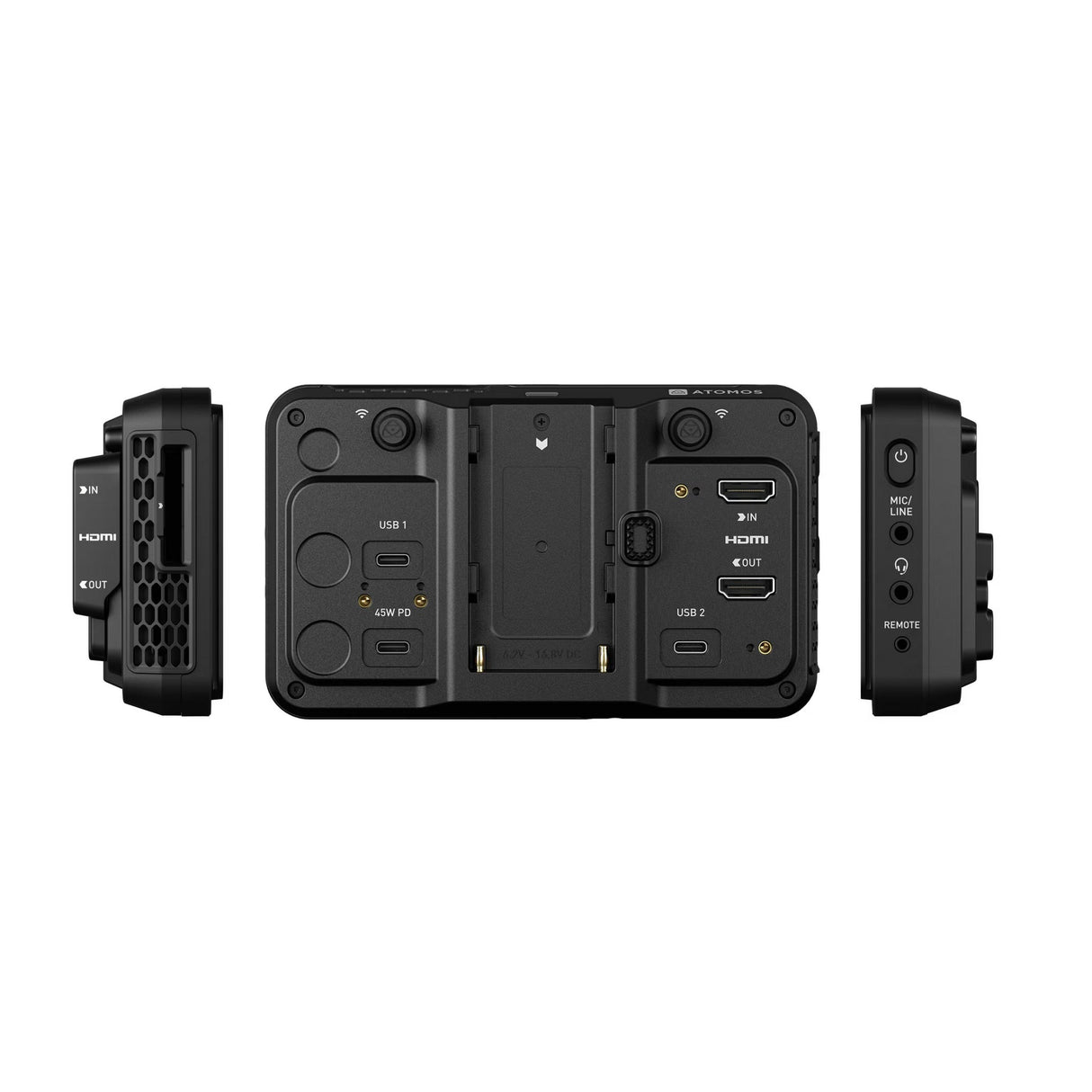

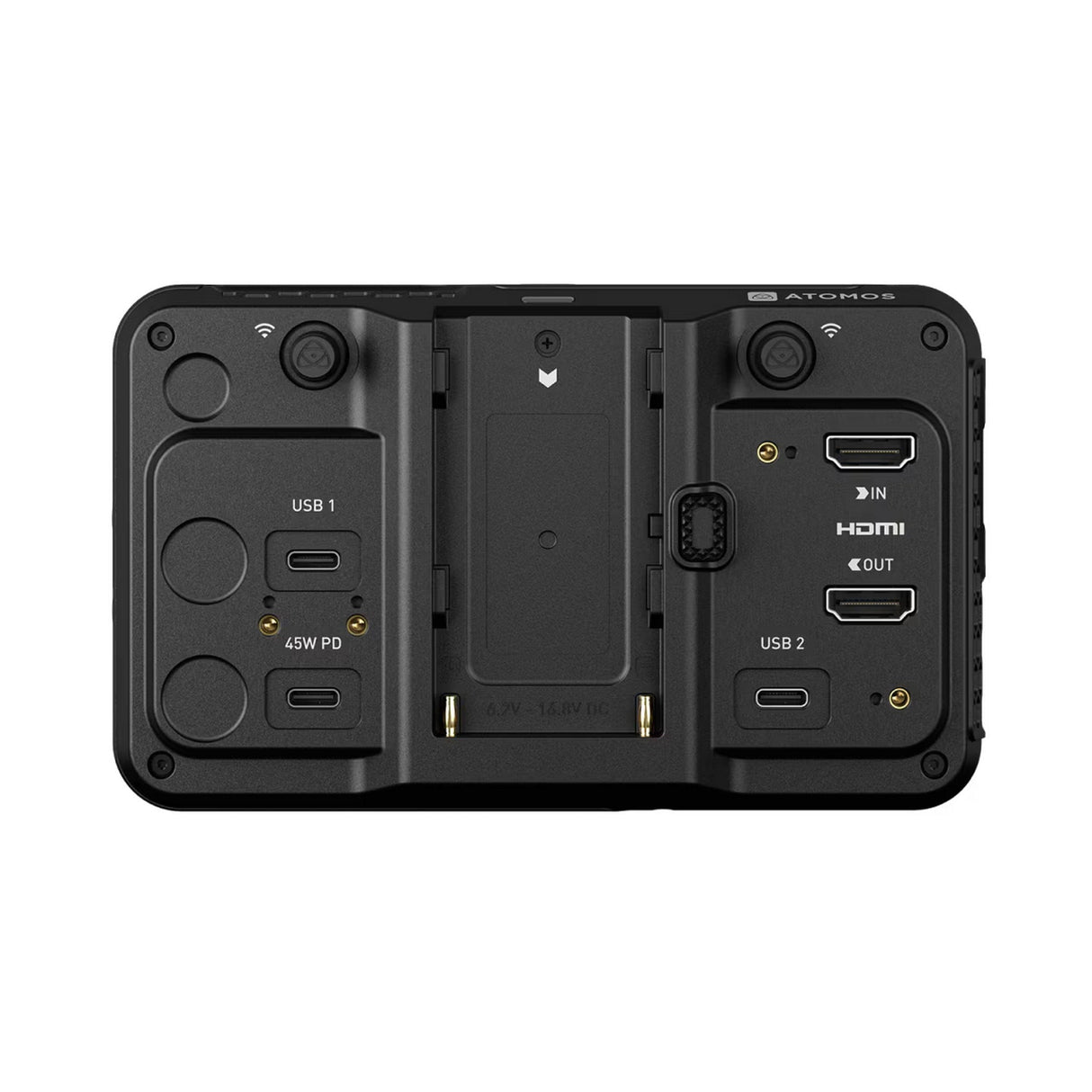

- Professional I/O: HDMI 2.0 in/out, 2 x USB-C ports, 3.5mm audio I/O, and CFexpress slot.
- Rugged build: Aluminum and ABS plastic housing with active cooling fan and heat sink.
- Multiple power options: USB-C PD, NP-F battery, or DC input for continuous operation.
Technical Specifications
- Display: 5.2-inch touchscreen, 1920 x 1080 resolution, 1500 nits brightness, Rec.709 color gamut
- Aspect Ratio: 16:9
- Supported Formats: Apple ProRes RAW, Apple ProRes, Avid DNxHR/DNxHD, H.265
- Recording Resolution: Up to 6Kp30 (RAW), 4K DCI/UHD up to 60p, 1080p up to 120p

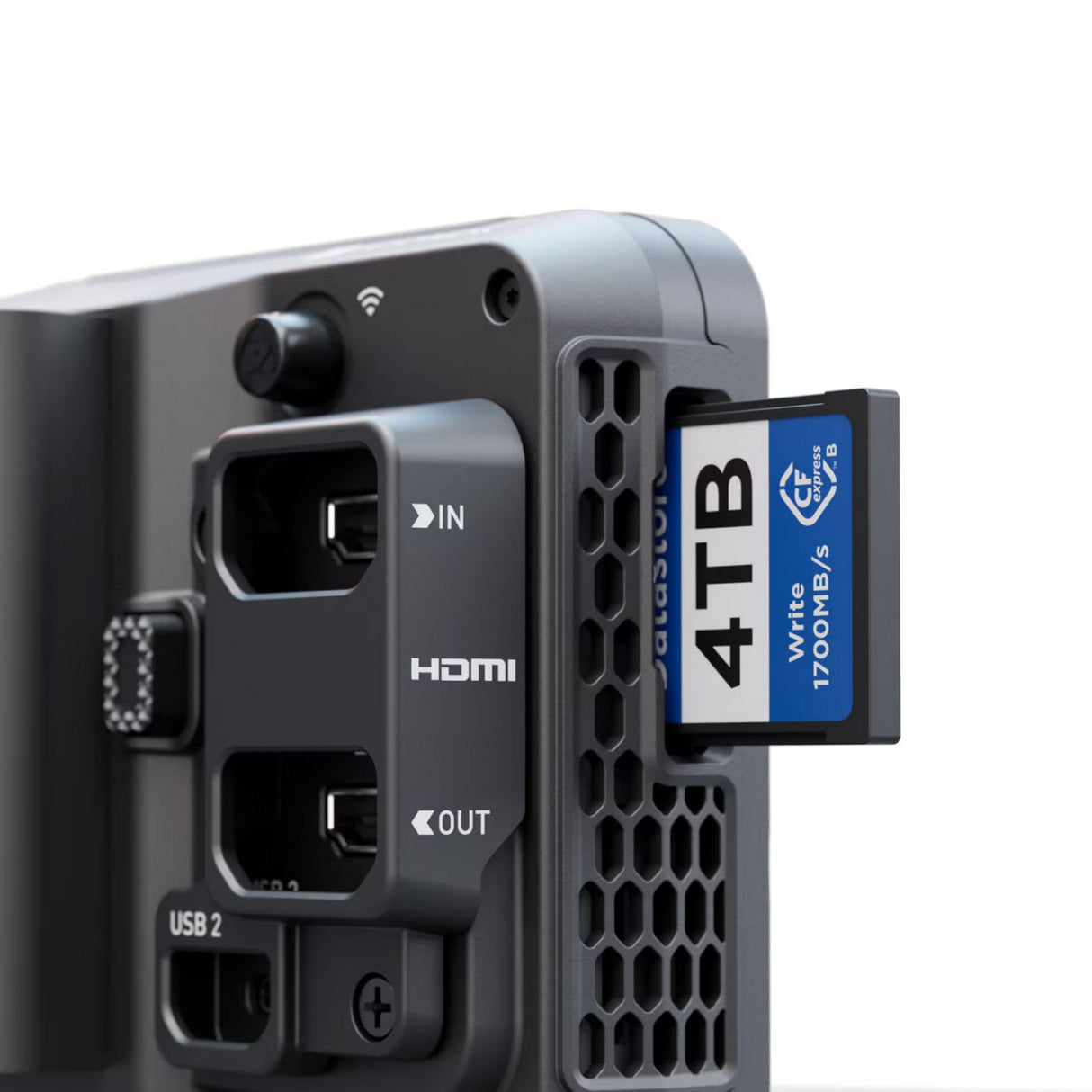

- Supported Media: CFexpress Type B, USB 3.0 external storage
- Inputs: HDMI 2.0, Wi-Fi 6E, USB-C (x2)
- Outputs: HDMI 2.0, Wi-Fi 6E, USB-C (x2)
- Audio I/O: HDMI 8-channel 24-bit, 3.5mm headphone and line input
- Mounting: 1/4-inch and 3/8-inch anti-rotation mounts (top and bottom)
- Operating Temperature: Up to 104Ā°F (40Ā°C)
- Construction: Aluminum and ABS plastic body with active cooling
- Power Input: 6.2V to 16.8V DC, USB-C PD 45W capable, NP-F battery compatible
- Operating Power: Up to 30W
- Network Connectivity: Wi-Fi 6E, USB-C network adapter support
- Color Pipelines: Supports Log and Gamut from Sony, Canon, ARRI, Panasonic, RED, Fuji, Nikon, and others
- Calibration: Supports Calibrite Display Pro and Display Plus via LANC connection
- Timecode: Embedded HDMI
- File System: ExFAT
- Physical Dimensions: 5.9 x 3.6 x 1.4 in (151 x 92 x 36 mm)
- Weight: 0.88 lb (0.40 kg)
