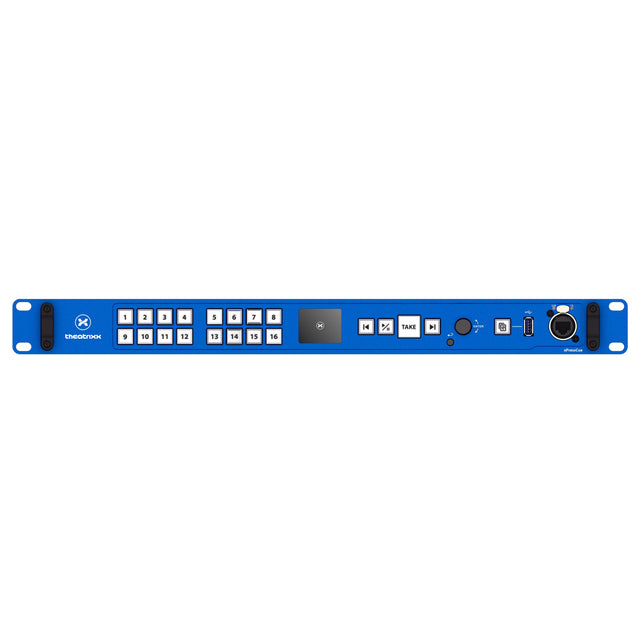

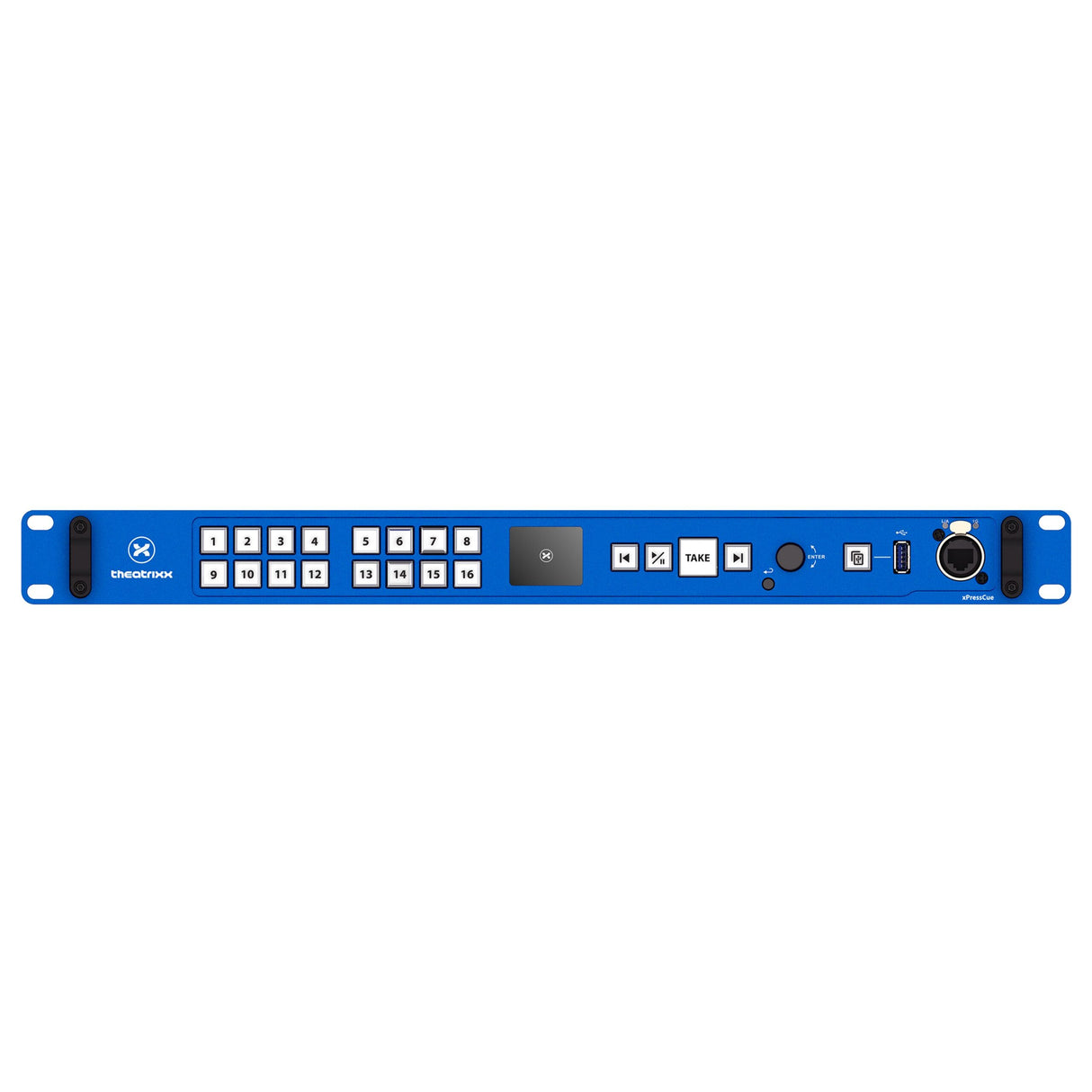

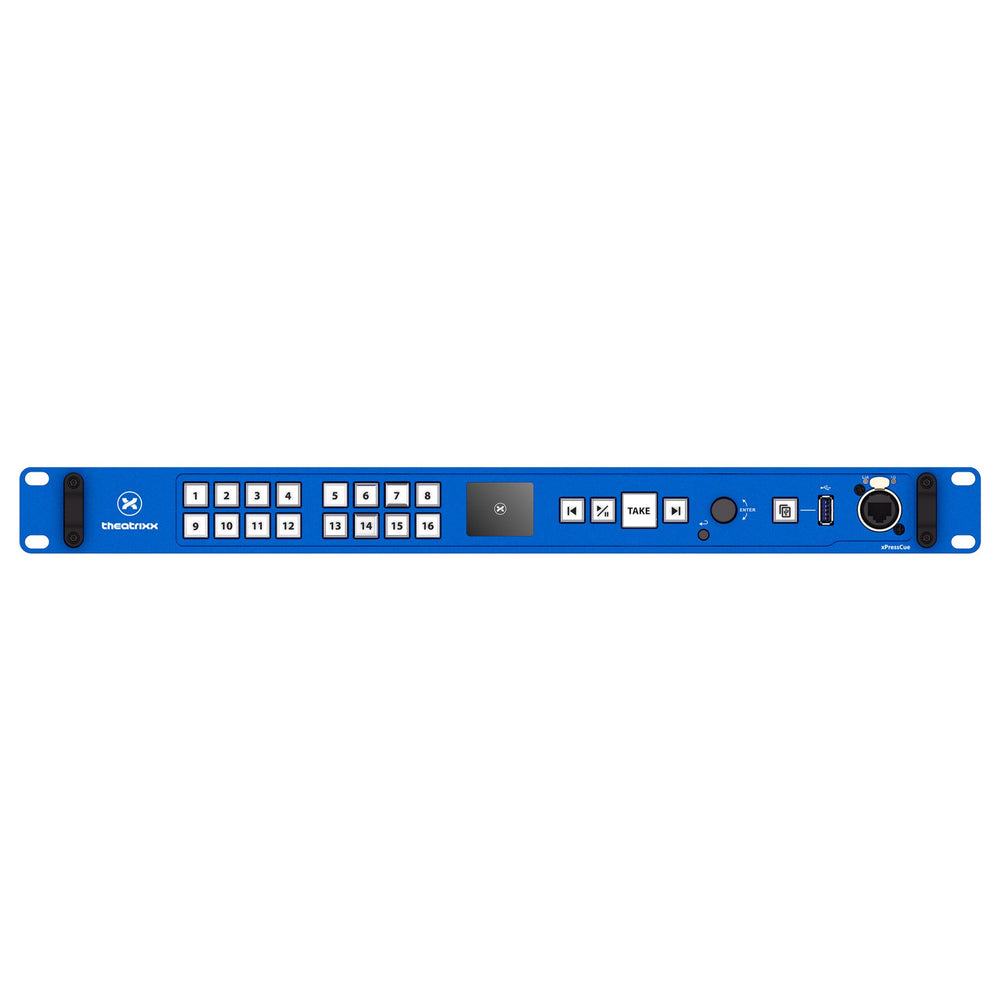

Theatrixx xPressCue 4K60P Hardware Media Player, 1TB SSD, 1RU

When it comes to media playback, most professional solutions available today are either laptop-based, or media-server based. This often comes with a slew of reliability issues and a steep learning curve. The Theatrixx xPressCue is a hardware device that addresses the playback needs of the video, lighting and audio professionals and has currently no equivalent on the market.

This new media player, designed and manufactured by Theatrixx, has a large onboard, flash-based, storage capacity. It can recognize and play most known video, audio and image files with a minimal loading delay. The device is equipped with the necessary hardware and software to make switching between two clips instant and seamless.

Failure is not an option in the pro-AV industry and so every precaution is taken on the hardware and software side to guarantee a continued smooth operation. The device is also housed in a durable rackmount 1U enclosure, equipped with professional, locking connectors.

The xPressCue can be controlled in several ways, including its on-board OLED display and encoder wheel, web-based interface, DMX and more. External devices such as Elgato Stream Decks can also be connected directly to the media player for increased possibilities.

Key Features

• Dedicated hardware for seamless 4K playback.
• Unique “Instant Copy” button solves last minute panic situations.
• Supports nearly all common video, picture and audio formats.
• All solid state, no moving parts.
• Professional, locking connectors.
• Rugged 1U rackmount enclosure.
• Built-in power supply.
• Battle-proven embedded Linux operating system.
• Configurable front panel with backlit keys.
• Native integration with Elgato StreamDeck controllers.
• Choose between 3 modes of operation to suit your workflow.
• Well-documented REST API for external control integration.
• DMX, ArtNet and sACN control.
• Files are always accessible, regardless of folder structure, thanks to the virtual file system.
• No computer required for setup or operation.
• User-friendly, web-based application for full featured control.
• Unique model, no need to choose between several options.
• From unboxing to playback in less than 10 minutes.
• Instant playback, no waiting for files to load.
• Next-generation SSD drive for quick loading.
• High-speed USB 3.0 port for fast file transfer.

Technical Specifications

Inputs/Outputs
Video Output
2 x 12G/6G/3G/HD SDI BNC
HDMI 2.0 type A with locking system DisplayPort 1.4
Audio Output
2 x Analog audio XLR (+4 dBu) with LED level meters
Multi-channel audio embedded on all video outputs
External Sync
Tri-level sync (BNC) with loop-thru (optional)
DMX Input
DMX-512 input and loop-thru on XLR5 with LED indicator
Ethernet
2 x Gigabit Ethernet ports on Neutrik Ether- CON locking connectors
USB
1 x USB 3.0 at front of device 1 x USB 2.0 at rear of device
Control
Local User Interface
20 user-programmable, RGB-backlit, broad- cast grade buttons
Full-color graphical OLED display with push- button encoder navigation
Web Interface
Cross-plaform, cross-browser web interface
External Controller Support
Native support for Elgato StreamDeck (all models)
DMX Control
Native DMX-512 input
DMX-over-IP inputs in sACN and ArtNet
Mutli-Device Sync
UDP-based synchronization across devices
Advanced Protocols
Self-documented HTTP REST API
Video Output
Output Processing
Built-in scaling engine, adjustable AOI (Area of Interest)
Full-range colorimetry adjustments (R, G, B and Saturation)
Full-range brightness adjustment
Output Resolutions
3840x2160P60, 3840x2160P50, 3840x2160P30, 3840x2160P29, 3840x2160P25, 3840x2160P24, 3840x2160P23, 1920x1080P60, 1920x1080P59, 1920x1080P50, 1920x1080P30, 1920x1080P29, 1920x1080P25, 1920x1080P24, 1920x1080P23, 1920x1080I60, 1920x1080I59, 1920x1080I50, 1280x720P60, 1280x720P59, 1280x720P50
Output Color Space
HDMI: YUV 4:2:0 (8 bpc), YUV 4:2:2 (8 bpc), YUV 4:4:4 (8, 10, 12 bpc), RGB 4:4:4 (8, 10, 12 bpc)
DisplayPort: YUV 4:2:0 (8 bpc), YUV 4:2:2 (8 bpc), YUV 4:4:4 (8 bpc), RGB 4:4:4 (8 bpc) 12G-SDI: YUV 4:2:2 (10 bpc)
Audio output
Audio Sample Rate
48KHz, 16 bit
Output Processing
Full-range audio volume adjustment
Media Storage
Storage Media
Professional M.2 solid-state drive (SSD)
Storage Capacity
1 TB
File Transfer
Via web interface or directly using the USB connectors
Media File Support
Media Types
Video, still image, audio
Decoding Engine
FFmpeg
Video Codecs
Apple MJPEG-B, Apple ProRes, DV, MPEG-1, MPEG-2, MPEG-4 part 2, H.264 / AVC / MPEG-4 AVC / MPEG-4 part 10, HEVC, QuickTime (v210 / v308 / v408 / v410), WMV, FLV1/Sorenson
Audio Codecs
AAC, AAC+, AC-3, Apple lossless audio, MP1, MP2, MP3, MPEG-4 ALS, PCM, WMA
Still Image Formats
JPEG, JPEG-2000, PNG, BMP, GIF, TIFF
Physical
Height
43.43 mm (1.7 in) -1 RU
Depth
178 mm (7 in)
Width
482.6 mm (19 in)
Weight
3.75 kg (8.25 lbs)
Environmental Specifications
Relative Humidity
0% to 90% non-condensing
Operating Temperature
0-40 Degrees C
Power requirements
Power Supply
Built-in power supply
PowerCON True1 in / loop-thru
Power Consumption
80W max
Voltage Range
100-240V, 50-60Hz
In the Box
Theatrixx MediaPlayer
AC Mains to PowerCON True1 cable (1.5m, specify plug type at ordering, extra power cable on request)
Additional key labels
