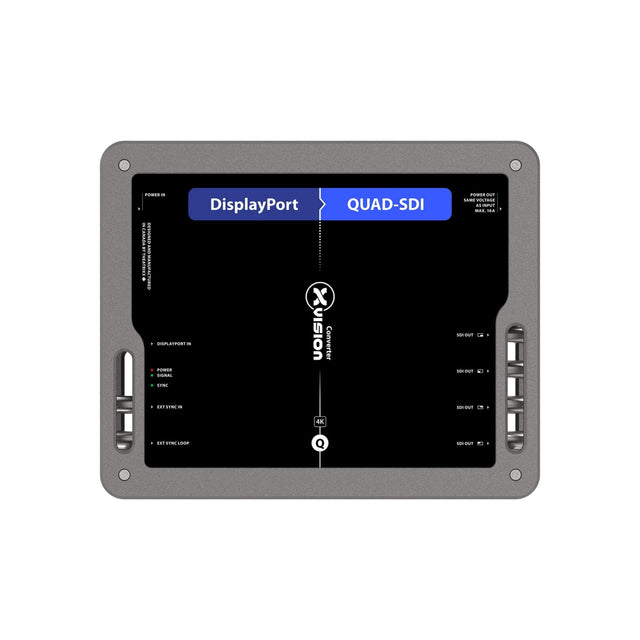

Theatrixx XVVDP2QSDI xVision DisplayPort to Quad 3G-SDI Converter

Professional equipment in mission-critical applications is all about reliability and confidence. So, we started with a clean sheet, and built what may soon become your most trustworthy piece of equipment.

Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role.

Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters.

Key Features

• Integrated power supply with locking PowerCON connector. Never rely on a cluster of wall-warts again.
• Built-in convenience 120 V outlet to power nearby projector, TV, laptop, small video projector… Power bar to power both the converter and device not required anymore.
• Magnetic stacking system and non-skid rubber pad. Saves at least 10 gaffer tape rolls a year.
• Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adapter.
• Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
• Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.
• Clear and ample status LED indicators for quick troubleshooting.
• Easy on-the-field identification with unique color and alphabetic coding system.
• Locking HDMI port prevents accidental disconnection.
• Reclocked and amplified SDI loop thru
• Proudly designed and assembled in Canada.

Technical Specifications

Connections
Video Input
4 x DisplayPort 1.2
Video Loop-thru
4 x Quad-link 3G-SDI BNC (16 BNC)
Video Output
Tri-level sync (BNC) with loop-thru
Supported Signals
DisplayPort 1.2/HDMI 2.0 input
4096x2160p @ 60/50 fps
4K60P 4:4:4
4096x2160p @ 30/25/24 fps, 3840x2160p @ 60/50 fps,
3840x2160p @ 30/25/24 fps, 1920x1080p @ 60/50 fps,
1920x1080p @ 30/25/24 fps, 1920x1080i @ 60/50 fps
Quad-Link 3G-SDI out
4096x2160p @ 60/50/30/25/24 fps
4 x 1080P 4:2:2
3840x2160p @ 60/50/30/25/24 fps
Embedded audio
Up to 8 channels, 24-bit, 48 kHz
Default EDID
3840x2160p @ 60 or 50 fps (selectable)
SMPTE Standards
ST2082-1S, ST2082-10, ST425M Level A and B, ST424M, ST292M, ST259M
Physical
Height
62 mm (2.44 in)
Depth
180 mm (7.08 in)
Width
221 mm (8.7 in)
Weight
2 kg (4.4 lbs)
Alt. form factor
Also available in rackmount module (RM)
Environmental
Operating temp.
0-40 Degrees C
Relative Humidity
0 % to 90 % RH non-condensing
Power Requirements
Power Supply
Built-in power supply
PowerCON True1 in / loop thru
Power Consumption
45 W max.
Operational Voltage Range
100-240 V 50-60 Hz
In the box
xVision DisplayPort to Quad-SDI (True1)
Power Cable
