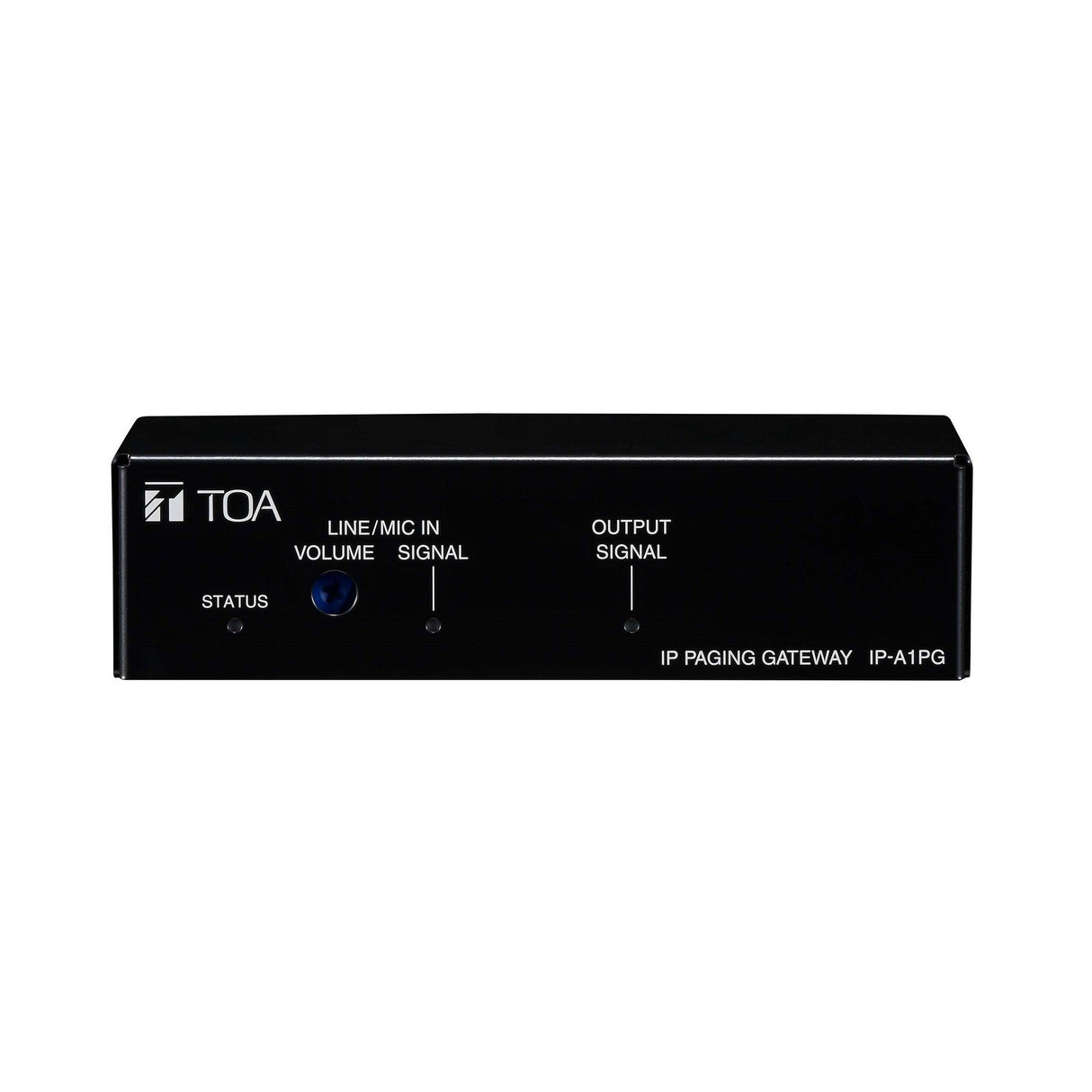

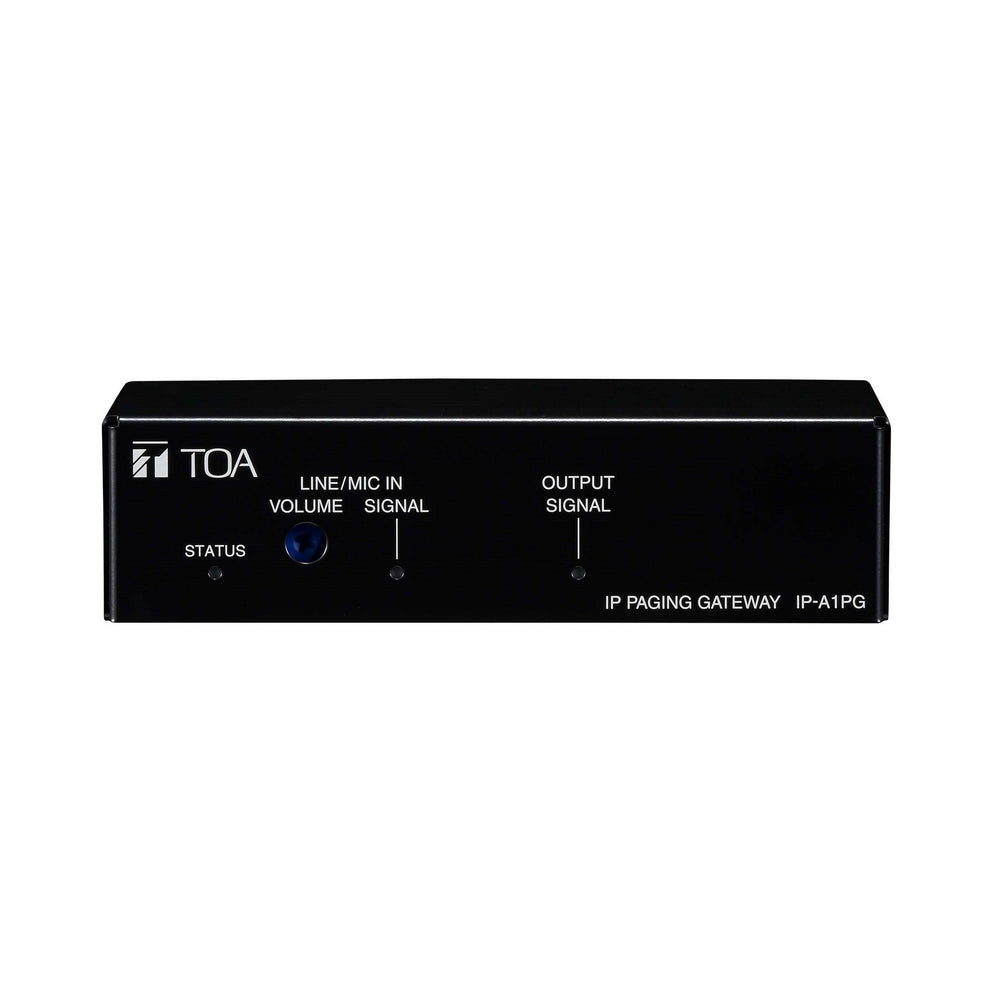

TOA Electronics IP-A1PG PoE-Powered IP Paging Gateway

The IP-A1PG is a PoE-powered Gateway Unit that integrates multiple IP Audio devices by converting the SIP voice or ONVIF Backchannel audio into multicast audio streaming. It can also transmit built-in sound source or input audio as multicast audio streaming. Moreover, the event broadcasting triggered by control input or remote API (HTTP) as well as the command set that sends multiple HTTP commands simultaneously are also available.

Key Features

• Convert SIP audio, ONVIF Audio Backchannel, internal audio files or local audio source into Multicast streaming
• System mute function to mute all broadcasts made by every single
• IP-A1 series devices within the same network
• 1 local audio input (LINE/MIC selectable, phantom power On/Off)
• 4 control inputs and 1 control output
• HTTP commands (receive/send)
• Audio file storage (20 files, total 80MB, WAV/MP3)
• PoE powered

Technical Specifications

Power Source
PoE (IEEE802.3af Class 3)
Power Consumption
2.5 W
Audio Transition Method
Multicast Audio Streaming
Audio Codec
PCMU (G.711u), PCMA (G.711a), G.722
Audio Delay Time
Min. 100 ms(*1)
Network I/F
100BASE-TX, Auto MDI/MDI-X, RJ45 connector
Network Protocol
TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, IGMPv3, NTP, SIP(RFC3261)
Audio Input
1 channel, electronically-balanced, 10 kΩ
LINE/MIC selectable (Rated input: LINE: 0 dB (*2), MIC: -60 dB (*2))
PAD function (-20 dB (*2)), Phantom power ON/OFF (12 V DC), volume adjustable
removable terminal block (6 pins)
Monitor Output
1 channel, electronically-balanced, 600 Ω or less
Rated output: 0 dB (*2), RCA pin jack
Control Input
4 channels, no-voltage make contact inputs, open voltage: 5 V DC, short-circuit current: 2 mA or less, removable terminal block (6 pins)
Mute Control Input 1 channel, 24 V DC cut signal, control current 5 mA or less, removable terminal block (2 pins)
Control Output
1 channel, open collector output, wIt'stand voltage: 30 V DC,
control current: 10 mA or less, removable terminal block (6 pins)
Indicator
STATUS (green/blue/orange/red), LINE/MIC IN (green/red), OUTPUT (green), LINK/ACT (green)
Broadcasting
Audio transmission
Transmit internal messages by multicast audio streaming
Transmit audio from audio input connected devices by multicast audio streaming
Audio conversion
Convert SIP voice to multicast audio stream and transmit
Convert ONVIF Audio Backchannel audio to multicast audio stream and transmit
Event
Execute event triggered by control input
Configurable actions: Internal message broadcast, audio input broadcast, command set transmission, broadcast disable, system mute
Internal Message
Max. 20 messages (Max. recording capacity: 80 MB)
Supported file format
WAV file: 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo
MP3 file: 32/44.1/48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo
Repeat playback: Playcount (1 - 10 times) or Duration (5 - 3600 sec)
Interval time: 0 - 60 sec, Delay time: 0 - 30 sec
Command Set
20 commands can be registered in each of 10 command sets
Clock Accuracy
±13 seconds per month
Time Adjustment
Manual time setting, Time adjustment by NTP server
Power Outage Protection Period
24 hours (RTC time retention, at 40 Degrees C (104 Degrees F)
Operating Temperature
0 Degrees C to +40 Degrees C (32 Degrees F to 104 Degrees F)
Operating Humidity
90 %RH or less (no condensation)
Finish
Front case: Surface-treated steel plate, black, paint
Rear chassis: Surface-treated steel plate
Dimensions
126 (W) x 33 (H) x 80 (D) mm (4.96” x 1.3” x 3.15”) (excluding projection)
Weight
390 g (0.86 lb)
Accessory
Removable terminal plug (6 pins, preinstalled on the unit) ...2,
Removable terminal plug (2 pins, preinstalled on the unit), Rubber feet ...4, Mounting screw (M3 x 6) ...4
