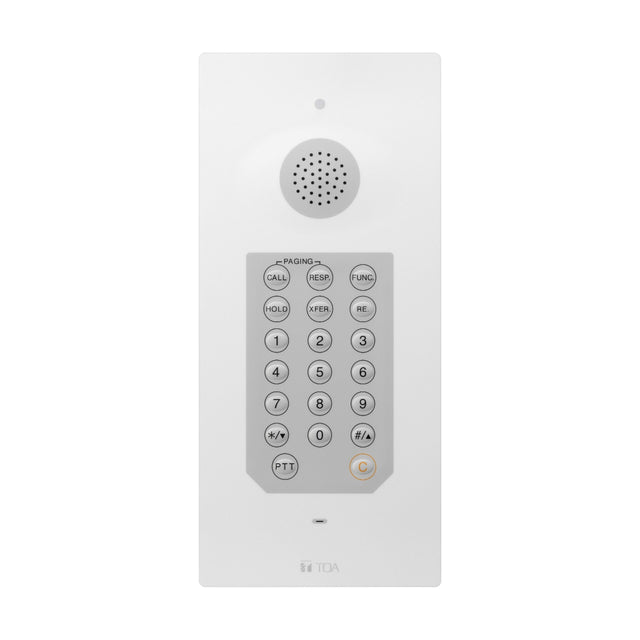

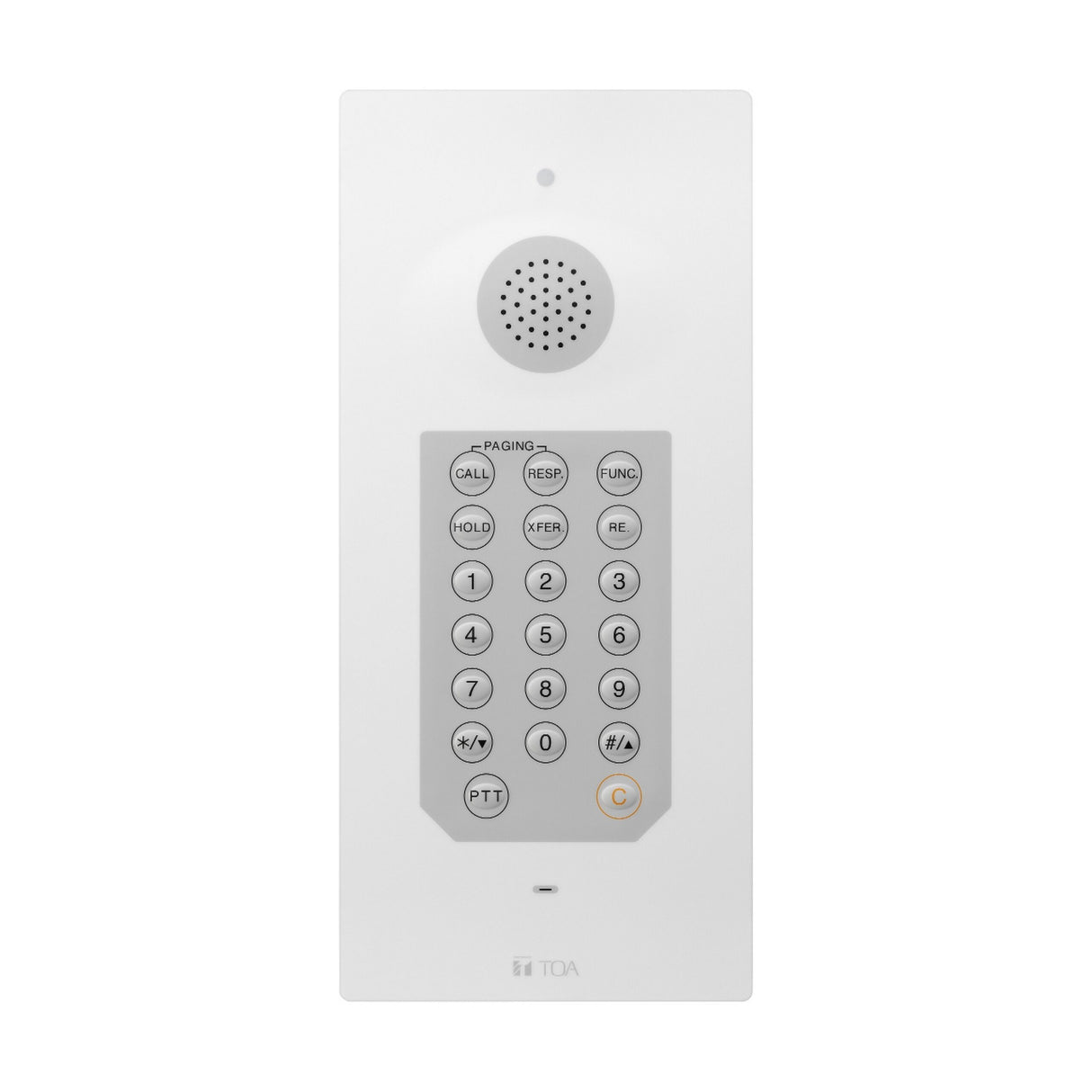

TOA Electronics N-8033MS Y Flush-Mount Master Station
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
TOA Electronics N-8033MS Y Flush-Mount Master Station
The N-8033MS is a flush- or surface-mount master station designed to operate in conjunction with TOA IP Intercom Exchange and features high quality hands-free conversation. Connecting a foot switch or other external switch to the external dial input terminal permits one-touch dialing operation by way of such switches.
Technical Specifications
Power Source
48 V DC (supplied from the IP intercom exchange)
Power Consumption
1.8 W (at rated), 2.4 W (max.)
Wiring Method
1 set of twisted pair cable
Transmission System
2 wire 160 kbps echo canceller transmission system
Signal Level
0 dB* or less
Speech Method
Hands-free conversation
Audio Frequency Range
300 Hz - 7 kHz
Transmission Range
Max. 1500 m (1640.42 yd) (Ļ0.65 mm (AWG22), Loop resistance 170 Ī©)
Hands-free
Speaker: 5.7 cm cone-type, 0.6 W, 8 Ī©
Microphone: Omni-directional electret condenser microphone
Indication
Status lamp
Line Connecting Terminal
Pin header (2 pins)
External Dial Input
No-voltage make contact input, open voltage: 5 V DC, short-circuit current: 1 mA, screwless connector (5 pins)
Installation Method
Flush-mount/Surface-mount
Operating Humidity
90 %RH or less (no condensation)
Dust/Water Protection
IP65 (Note that panel edges must be sealed at installation.)
Resistance to Environment
Passed our chemical-resistant test
Finish
Membrane switch (Front pasting) : Polyester film
Dimensions
115 (W) x 254 (H) x 51 (D) mm (4.53ā x 10ā x 2.01ā)
Weight
850 g (1.87 lb)
Accessory
Box mounting screw (M4 x 35) ā¦4, Acoustic absorbent ā¦1, Removable terminal plug (2 pins, preinstalled on the unit) ā¦1
Option
Back Box: YC-841
