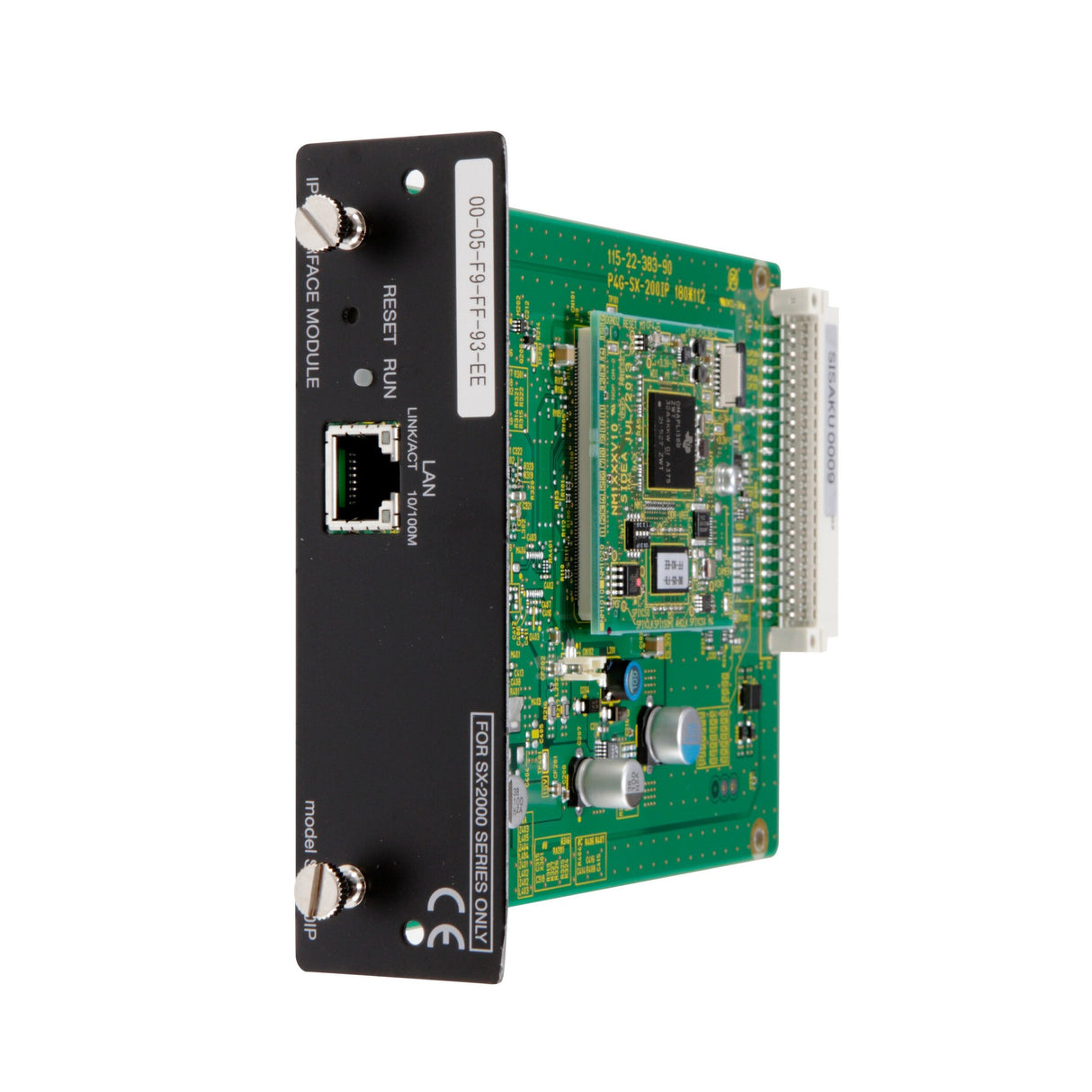

TOA Electronics SX-200IPIP Interface Module for SX-2000 and N-8000
Installed in the SX-2100AI Audio input unit of the SX-2000 series and connected to a network (LAN or WAN), the SX-200IP allows paging announcements to be made to the SX-2000 system from the N-8000 series' station(s) (N-8600MS and N-8610RM) employing the packet audio technology.
Technical Specifications
Network Section
Network I/F
10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol
TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Connector
LAN: RJ45 connector
Voice sampling frequency
16 kHz, 8 kHz (controllable on the software)
48 kHz sample rate is used for SX-2000 system only.
Quantifying bit number
16 bits
Voice encoding method
Sub-band ADPCM, Cryptosystem
Voice packet loss recovery
Silence insertion
Audio delay time
80 ms, 320 ms (controllable on the software)
Indicator
Operation indicator (RUN)
Operating Humidity
90 %RH or less (no condensation)
Finish
Panel: Pre-coated steel plate, black, 30 % gloss
Dimensions
35 (W) x 119.5 (H) x 178.4 (D) mm (1.38ā x 4.7ā x 7.02ā)
Weight
150 g (0.33 lb)
