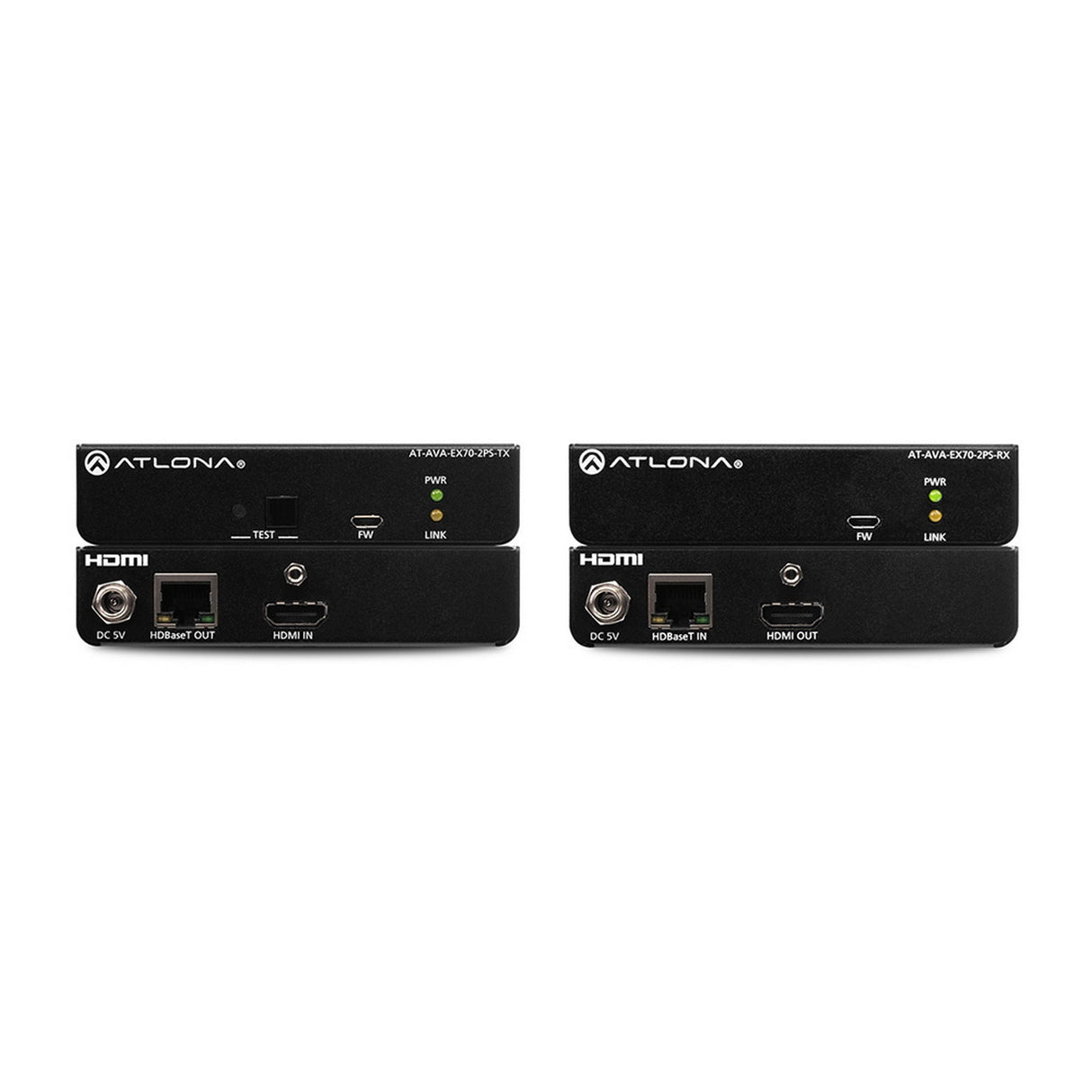

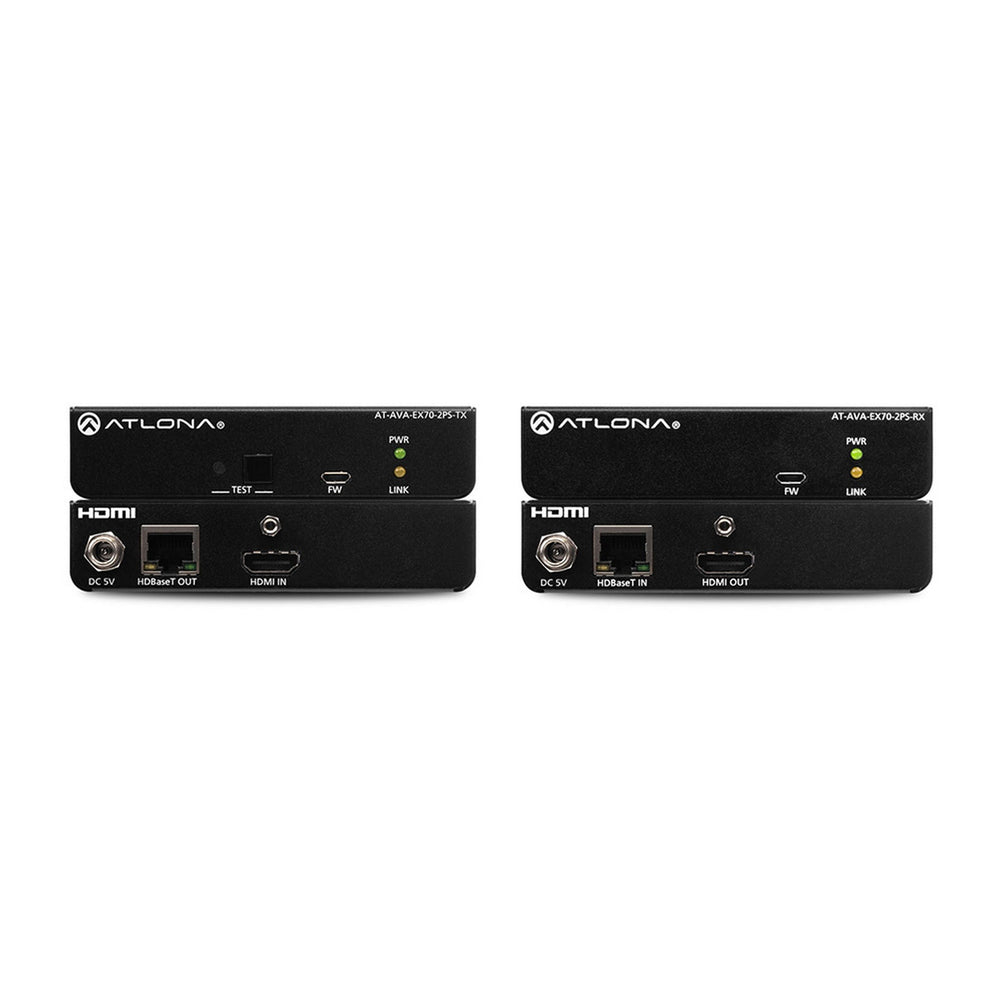

Atlona AT-AVA-EX70-2PS-KIT 4K/UHD HDMI Over HDBaseT Extender Kit

The Atlona AT-AVA-EX70-2PS-KIT is a high-performance HDMI over HDBaseT transmitter and receiver pair designed for 4K/UHD extension in commercial, educational and residential environments. It supports resolutions up to 4K/UHD @ 60 Hz (4:2:0) and data rates up to 10 Gbps, with full HDCP 1.4/2.2 compliance and advanced signal integrity features.

With support for HDMI, control (RS-232, IR, CEC), Ethernet and bidirectional remote power, this kit simplifies installation by enabling a single CAT6a/7 cable run. Features like HDBaseT link testing, HDMI clock stretching and EDID filtering ensure stable performance with both legacy and modern systems.

Ideal for conference rooms, classrooms, digital signage and AV installations, the AT-AVA-EX70-2PS-KIT delivers reliable long-distance extension of video, audio and control signals with mountable slim enclosures for discrete integration.

Key Features

  • Long-Distance HDMI Extension: Up to 130 ft (40 m) for 4K/UHD, 230 ft (70 m) for 1080p over CAT6a/7 cable.
  • 4K/UHD Support: 4K/UHD @ 60 Hz 4:2:0; 4K/UHD @ 30 Hz 4:4:4; 4K/UHD @ 30 Hz 4:2:2 10-bit.
  • Control & Ethernet Pass-Through: Includes RS-232, IR (30-60 kHz), IP, CEC and Ethernet over HDBaseT link.
  • Signal Integrity: HDBaseT link testing, HDMI clock stretching, EDID filtering to maintain compatibility.
  • Multi-Channel Audio Compliance: Supports PCM, LPCM 5.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD, DTS:X.
  • Flexible Installation: Slim 1-inch high quarter rack-width enclosures with surface-mount brackets.

Technical Specifications

  • Video Signal: HDMI w/ ARC, HDCP 1.4/2.2
  • Distances: 4K/UHD up to 130 ft (40 m), 1080p up to 230 ft (70 m) on CAT6a/7
  • Audio Formats: PCM 2.0, LPCM 5.1/7.1, Dolby Digital/Plus, Dolby TrueHD, Dolby Atmos, DTS & DTS:X
  • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
  • Color Depth: 8-bit, 10-bit, 12-bit
  • Control Signals: RS-232 (115200 baud), IR 30-60 kHz, IP, CEC
  • Power Consumption (kit): 7.71 W
  • Supply Input: AC 100-240 V 50/60 Hz, Output DC 5 V 3.0 A
  • Dimensions (each unit): 4.20ā€³ Ɨ 2.95ā€³ Ɨ 0.93ā€³ (106.8 Ɨ 75 Ɨ 23.7 mm)
  • Weight: TX 0.45 lb (0.20 kg), RX 0.50 lb (0.23 kg)
  • Operating Temp: 32 to 122 Ā°F (0 to 50 Ā°C)
  • Storage Temp: -4 to 140 Ā°F (-20 to 60 Ā°C)
  • Certifications: CE, FCC, cULus, RoHS, NDAA-889, TAA
