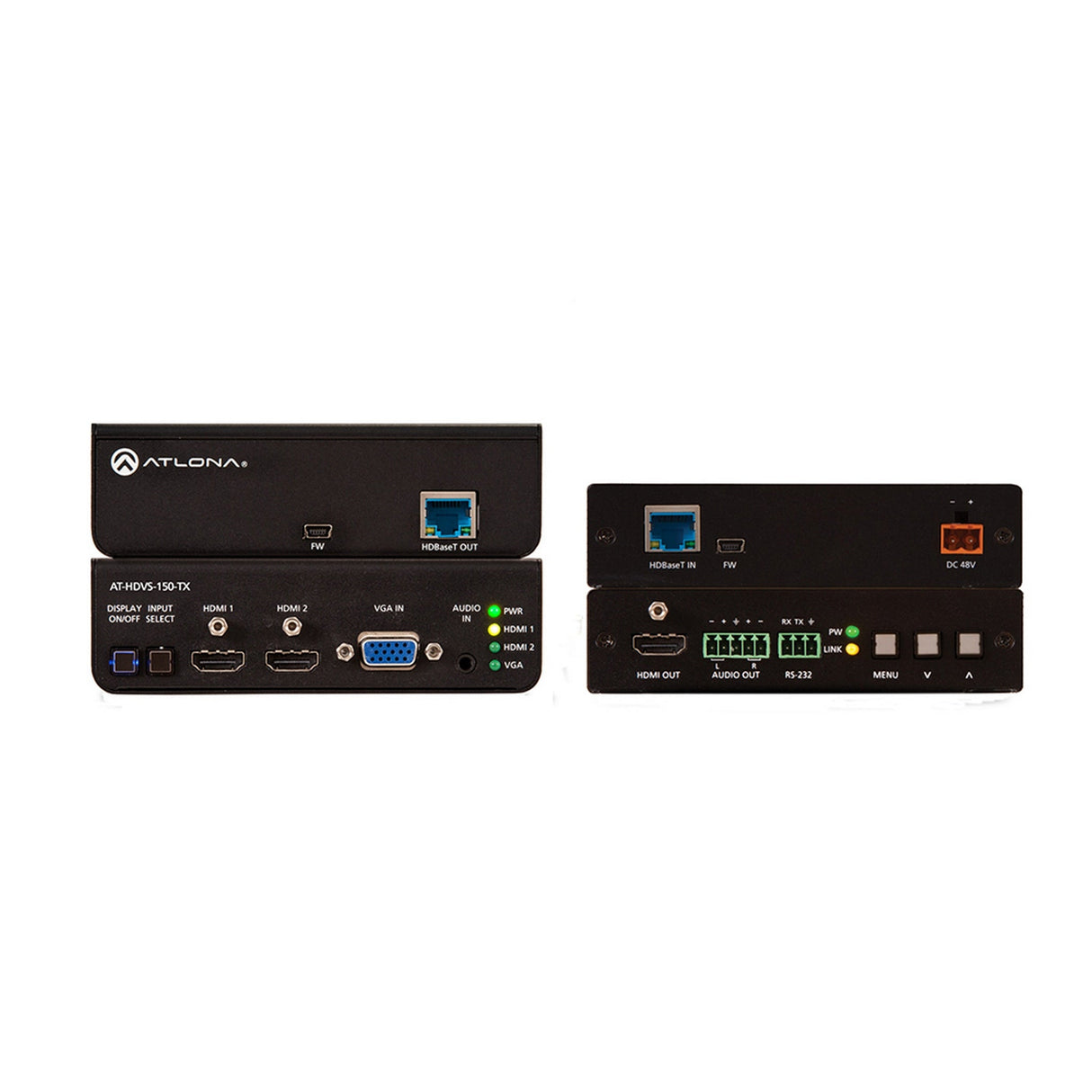

Atlona AT-HDVS-150-KIT HDBaseT TX/RX with Three-Input Switcher and HD Scaler
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Atlona AT-HDVS-150-KIT HDBaseT TX/RX with Three-Input Switcher and HD Scaler
The Atlona AT-HDVS-150-TX and AT-HDVS-150-TX-PSK are 3x1 HDMI and VGA switchers with HDBaseT outputs designed for professional AV systems. These transmitters combine automatic input selection, display control, and HDBaseT signal transmission, making them ideal for classrooms, huddle rooms, and conference spaces requiring simple yet reliable AV connectivity.
The AT-HDVS-150-TX includes two HDMI inputs and one VGA input with analog audio, sending video and audio signals up to 230 feet (70 meters) over a single Category cable when paired with the AT-HDVS-150-RX receiver. The PSK model adds a local 48 V DC power supply, allowing direct connection to HDBaseT-equipped displays or projectors. Both models support automatic source selection and display control via RS-232, eliminating the need for an external control system.
With Power over Ethernet (PoE) support, field-updatable firmware, and surface mounting brackets included, the AT-HDVS-150 series provides a cost-effective, streamlined AV switching and extension solution for small to mid-size installations.
Key Features
- 3x1 HDBaseT Switcher: Two HDMI inputs and one VGA input with audio; supports sources up to 1080p and WUXGA resolutions.
- HDBaseT Extension: Transmits AV up to 230 ft (70 m) at 1080p or 130 ft (40 m) at 4K using Cat6a/7 cable.
- PoE Powered: Receives power from the AT-HDVS-150-RX via HDBaseT (IEEE 802.3af PoE).
- Automatic Input Selection: Detects active sources using hot-plug detection and adjusts automatically.
- Automatic Display Control: Powers displays on/off through RS-232 commands when paired with HDVS-150-RX.
- Front Panel Controls: Input select and display on/off buttons with LED indicators for quick operation.
- Firmware Updates: Field-upgradable via USB port for long-term support and functionality.
- Flexible Mounting: Includes brackets for under-table, furniture, or wall installation.
Technical Specifications
- Inputs: 2 HDMI (Type A), 1 VGA (15-pin), 1 Audio In (3.5 mm stereo)
- Output: 1 HDBaseT (RJ45)
- Supported Resolutions: Up to 4096x2160@60Hz (4:2:0, 8-bit), 3840x2160@60Hz, 1080p, and VESA resolutions up to 1920x1200
- Color Depth: 8-bit, 10-bit, 12-bit
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
- Color Space: RGB, YUV
- Audio Support: PCM 2.0, up to 24-bit depth, sample rates from 32 kHz to 192 kHz
- Copy Protection: HDCP 1.4
- HDBaseT Distance: 230 ft (70 m) at 1080p with Cat6a/7 cable; 130 ft (40 m) at 4K/UHD
- Control: RS-232, front-panel buttons (Display On/Off, Input Select)
- Indicators: Power, HDMI 1, HDMI 2, VGA (LEDs)
- Power Supply: 48 V DC, 3.125 A (PSK model only); PoE for standard TX model
- Power Consumption: 18.7 W (paired operation); 22 W idle (PSK)
- Safety and Compliance: CE, FCC, cULus, RoHS
- Operating Temperature: 32 F to 122 F (0 C to +50 C)
- Storage Temperature: -4 F to 140 F (-20 C to +60 C)
- Humidity: 20% to 90% non-condensing
- Dimensions (W x L x H): 5.00 x 4.02 x 1.50 in (12.70 x 10.20 x 3.81 cm)
- Weight: 0.64 lb (0.29 kg)
