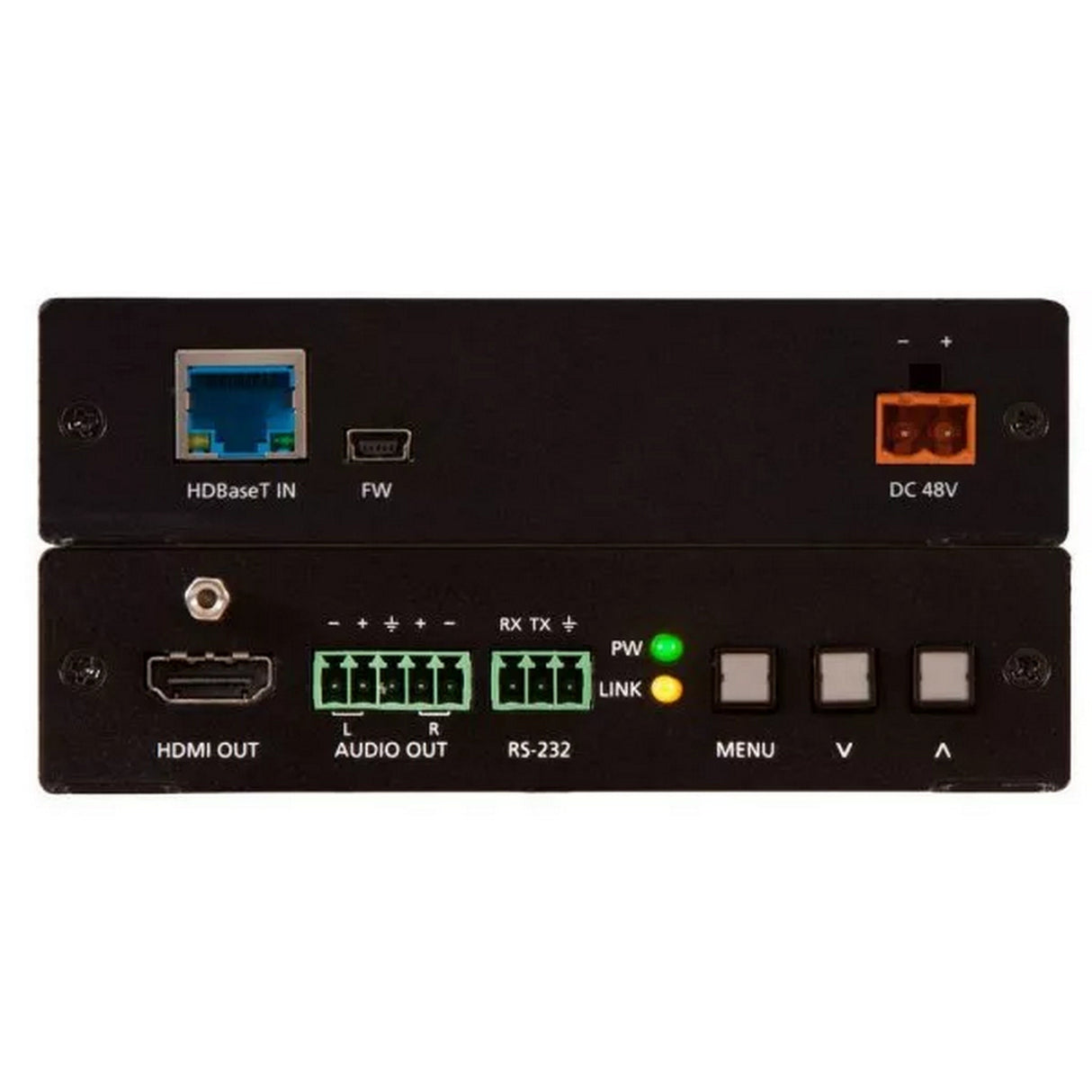

Atlona AT-HDVS-150-RX HDBaseT Scaler Receiver with HDMI and Analog Audio Outputs

The Atlona AT-HDVS-150-RX is a professional HDBaseT receiver and scaler designed for HDMI and VGA transmission over category cable. It receives video signals up to 1080p/60Hz and 1920x1200, including embedded multi-channel audio and control signals up to 230 feet (70 meters). The receiver features Power over Ethernet (PoE), balanced analog audio de-embedding, RS-232 control, and advanced image scaling for reliable integration with modern AV systems.

Paired with the AT-HDVS-150-TX transmitter, the AT-HDVS-150-RX provides a complete, automated AV solution with auto display on/off, input switching, and remote control capabilities. Its internal scaler automatically adjusts incoming video to match the display’s native resolution, ensuring optimal image quality and seamless signal compatibility. This unit is ideal for corporate meeting spaces, classrooms, and huddle rooms where simplicity and reliability are essential.

With built-in RS-232 control, PoE support, and field-updatable firmware, the AT-HDVS-150-RX delivers robust performance and long-term value in professional AV installations.

Key Features

• HDBaseT Receiver with Integrated Scaler: Receives HDMI and VGA/Audio signals up to 230 ft (70 m) at 1080p via Cat6a/7 cable.
• Advanced Scaling: Scales output video up to 1080p/60Hz or 1920x1200 and matches display’s native resolution automatically.
• PoE Powered: Provides IEEE 802.3af Power over Ethernet for compatible transmitters like the AT-HDVS-150-TX, eliminating local power needs.
• Analog Audio De-embedding: Outputs two-channel balanced analog audio from HDMI input for connection to external amplifiers.
• RS-232 Control: Enables display power management, scaling control, and system integration with third-party control systems.
• Auto Display Control: Facilitates on/off control of connected displays, simplifying automation without a separate control processor.
• Reliable HDMI Transmission: Extends HDMI up to 230 ft (70 m) with Cat6a/7 or 197 ft (60 m) with Cat5e/6 cabling.
• Field-Upgradeable Firmware: USB port allows easy updates for future enhancements and compatibility.

Technical Specifications

• Video Input Resolutions: 1080p@23–60Hz, 1080i@50–60Hz, 720p@25–60Hz, 576p/i, 480p/i, and VESA up to 1920x1200
• Video Output Resolutions: 1080p@24–60Hz, 1080i@50–60Hz, 720p@30–60Hz, 1920x1200, 1680x1050, 1600x1200, 1400x1050, 1366x768, 1280x1024, 1280x800, 1024x768
• Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
• Color Depth: 10-bit, 12-bit, 16-bit
• Video Bandwidth: 6.75 Gbps
• HDCP Compliance: Yes
• Audio Formats: PCM 2Ch, LPCM 5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
• Audio Sample Rates: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
• Audio Output: 2-channel balanced analog (captive screw terminals)
• Distance (HDBaseT): 230 ft (70 m) over Cat6a/7; 197 ft (60 m) over Cat5e/6; 30 ft (10 m) HDMI cable
• Control: RS-232, front panel menu buttons, firmware USB port
• Power Supply: Input AC 100–240 V, 50/60 Hz; Output DC 48 V / 0.83 A
• Power Consumption: 15 W (varies per paired transmitter)
• Operating Temperature: 32 F to 104 F (0 C to 40 C)
• Storage Temperature: -4 F to 140 F (-20 C to 60 C)
• Humidity: 20% to 90% non-condensing
• Dimensions (W x L x H): 4.92 x 4.80 x 1.18 in (12.50 x 12.20 x 3.00 cm)
• Weight: 0.67 lb (0.31 kg)
• Certifications: Unit: CE, FCC; Power Supply: CE, FCC, Level VI, RoHS, cULus, RCM, CCC
