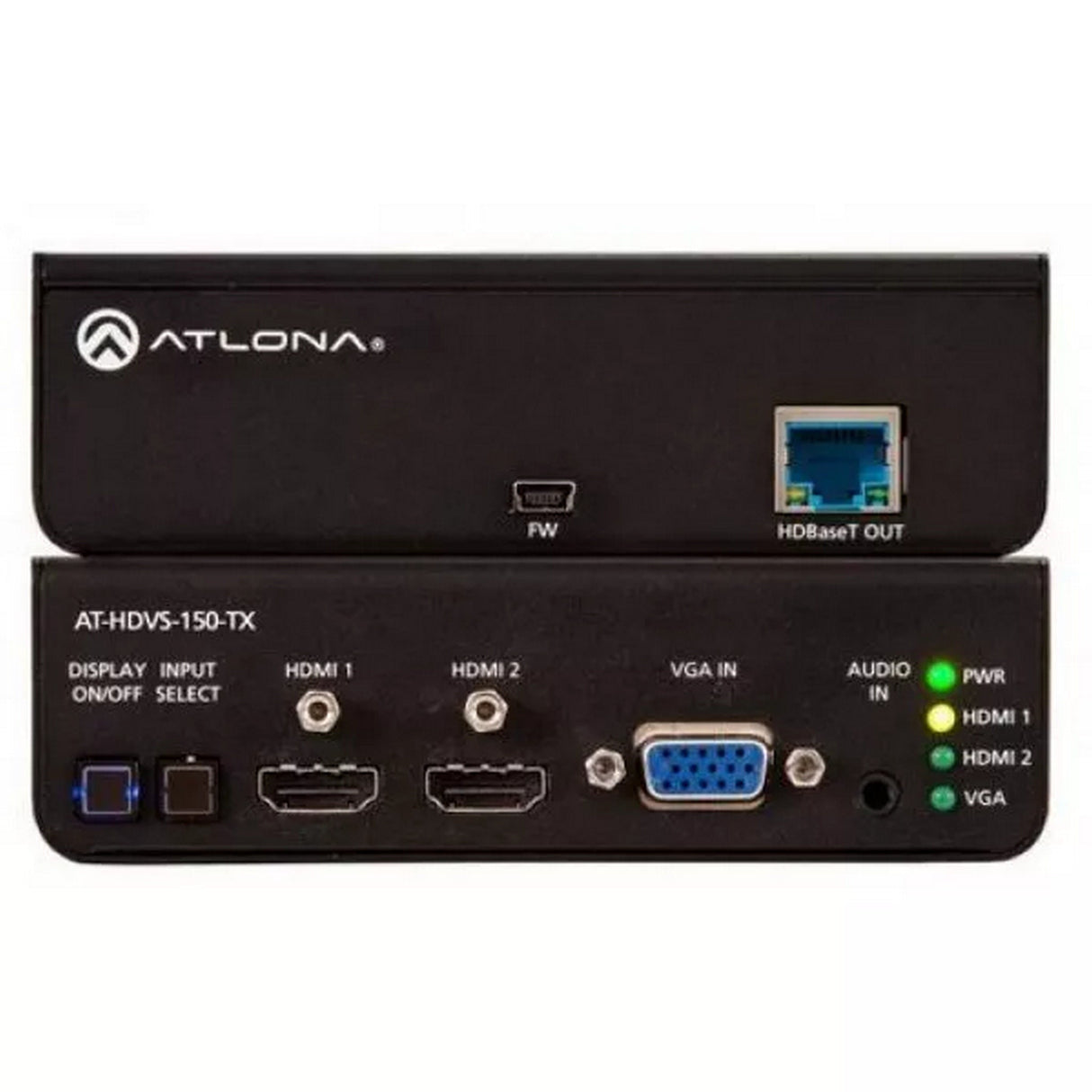

Atlona AT-HDVS-150-TX Three-Input HDMI VGA Switcher with HDBaseT Output

The Atlona AT-HDVS-150-TX is a professional-grade AV switcher that combines two HDMI inputs and one VGA input with audio into a single HDBaseT output stream. Designed for meeting rooms, classrooms, and conference spaces, it provides automatic input selection and long-distance transmission for simple, reliable presentation systems.

This device supports HDMI 1.4 and HDCP 1.4 compliance, delivering signal extension up to 230 feet (70 meters) for 1080p and 130 feet (40 meters) for 4K UHD content over standard CAT6a or CAT7 cabling. The AT-HDVS-150-TX also offers automatic display control via RS-232 and power over Ethernet (PoE) capability when paired with a compatible Atlona receiver.

Built for dependable operation in commercial environments, the AT-HDVS-150-TX streamlines source switching and minimizes user interaction, making it an ideal choice for professional AV installations that demand consistent performance and simple control.

Key Features

• Three Input Sources: Two HDMI inputs and one VGA input with 3.5 mm audio support.
• HDBaseT Output: Transmits video, audio, and control signals up to 230 ft (70 m) via a single cable.
• 4K UHD Compatibility: Supports resolutions up to 4096x2160 at 60 Hz (4:2:0).
• Automatic Switching: Detects active input and switches automatically for seamless operation.
• PoE Powered: Receives power directly from a compatible receiver, eliminating the need for an external power adapter.

Technical Specifications

• Inputs: 2 x HDMI, 1 x VGA with 3.5 mm audio
• Output: 1 x HDBaseT (RJ-45)
• Maximum Resolution: Up to 4096x2160 at 60 Hz
• HDCP: 1.4 compliant
• Bandwidth: 10.2 Gbps
• Extension Distance: Up to 230 ft (70 m) at 1080p, 130 ft (40 m) at 4K UHD
• Power Consumption: 18.7 W (via PoE)
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Dimensions (WxLxH): 5.00 x 4.02 x 1.50 in (12.70 x 10.21 x 3.81 cm)
• Weight: 5.16 lb (2.34 kg)
