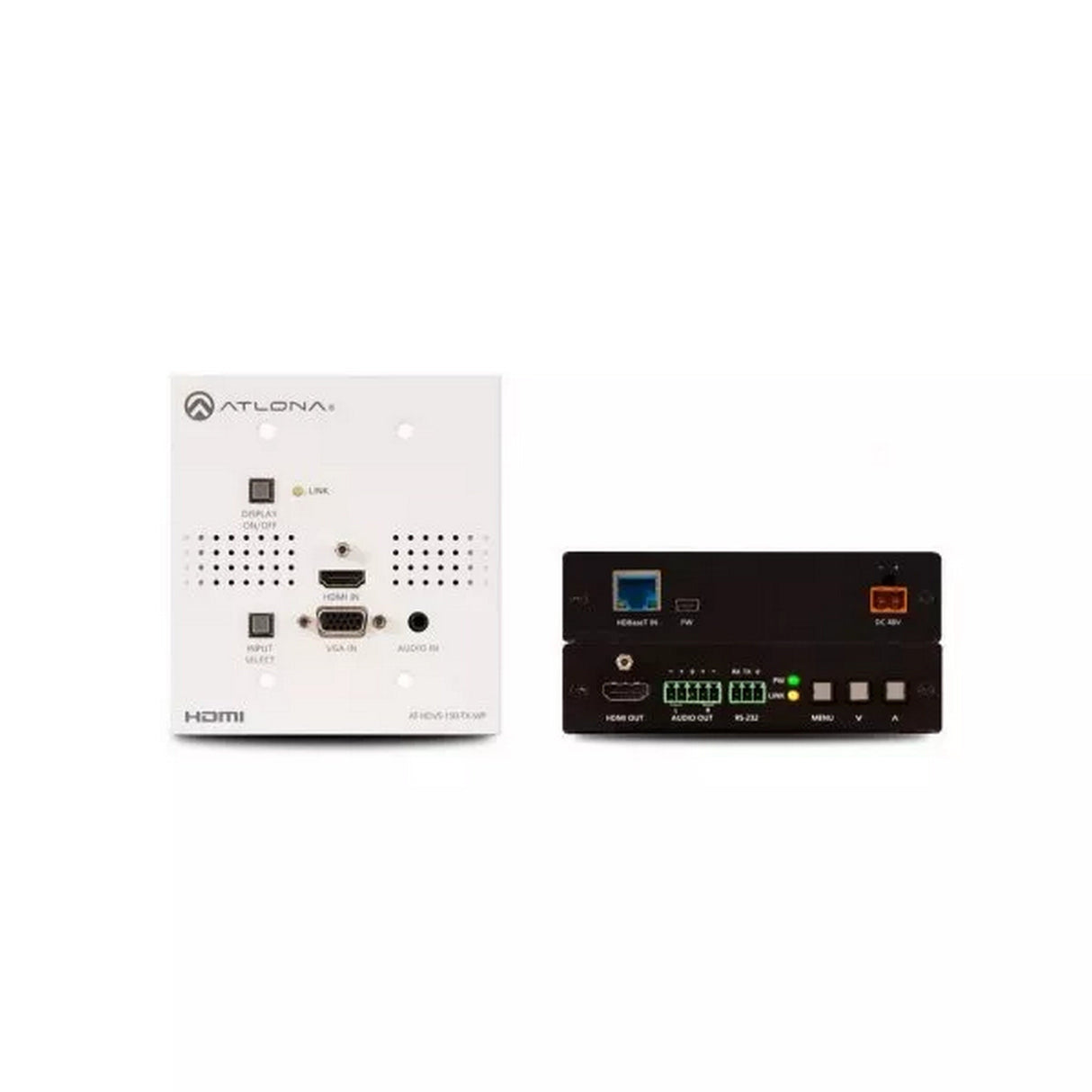

Atlona AT-HDVS-150-WP KIT Wall Plate HDBaseT TX/RX HDMI VGA Kit

The Atlona AT-HDVS-150-WP KIT is a complete AV integration solution combining a wall-plate HDBaseT transmitter with AV switching and a compatible receiver/scaler. This kit supports HDMI and VGA sources, simplifies cabling with single-cable HDBaseT output, and is designed for classrooms, huddle rooms and meeting spaces.

The kit includes a 2×1 wall-plate switcher with one HDMI input and one VGA input (with audio) which transmits signals up to 230 ft (70 m) over category cable, and a receiver/scaler that extends audio-video and control from the transmitter. Together they provide automatic input selection, display control, and reliable long-distance signal distribution.

Ideal for installations requiring minimal user interaction and clean integration, the AT-HDVS-150-WP KIT delivers switching, extension, and control in a compact form, making it suitable for educational and corporate AV deployments.

Key Features

• Wall Plate Switcher & Extender Kit: Includes both transmitter and receiver/scaler in one package.
• Two Input Sources: One HDMI input and one VGA input with 3.5 mm audio for analog/digital support.
• HDBaseT Extension: Transmit AV signals up to 230 ft (70 m) at 1080p via category cable, reducing installation complexity.
• Automatic Input Selection: Detects which source is active and selects automatically.
• Display Control: Supports automatic display power on/off based on source status via RS-232; reduces need for separate control systems.

Technical Specifications

• Inputs (Transmitter): 1 × HDMI, 1 × VGA with 3.5 mm audio
• HDBaseT Output (Transmitter): 1 × RJ-45
• Video Resolutions: 1080p at 23.98/24/25/29.97/30/50/59.94/60 Hz; 1080i at 50/59.94/60 Hz; 720p at 50/59.94/60 Hz; 576p; 576i; 480p; 480i — plus various VESA resolutions including up to 1920×1200
• Color Space: YUV, RGB
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
• Color Depth: 8-bit, 10-bit, 12-bit
• Audio Formats: Analog PCM 2Ch (de-embedded); HDMI/HDBaseT: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos
• Sample Rates: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
• Bit Depth: Up to 24-bit
• Transmission Distance: CAT5e/6 up to 197 ft (60 m) at 1080p; CAT6a/7 up to 230 ft (70 m) at 1080p
• Signal Bandwidth: 6.75 Gbps
• HDCP: 1.4 compliant
• CEC: Supported
• Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Humidity: 20% to 90% non-condensing
• Power Consumption (Transmitter): 18.7 W (when paired)
• Certifications: CE, FCC
