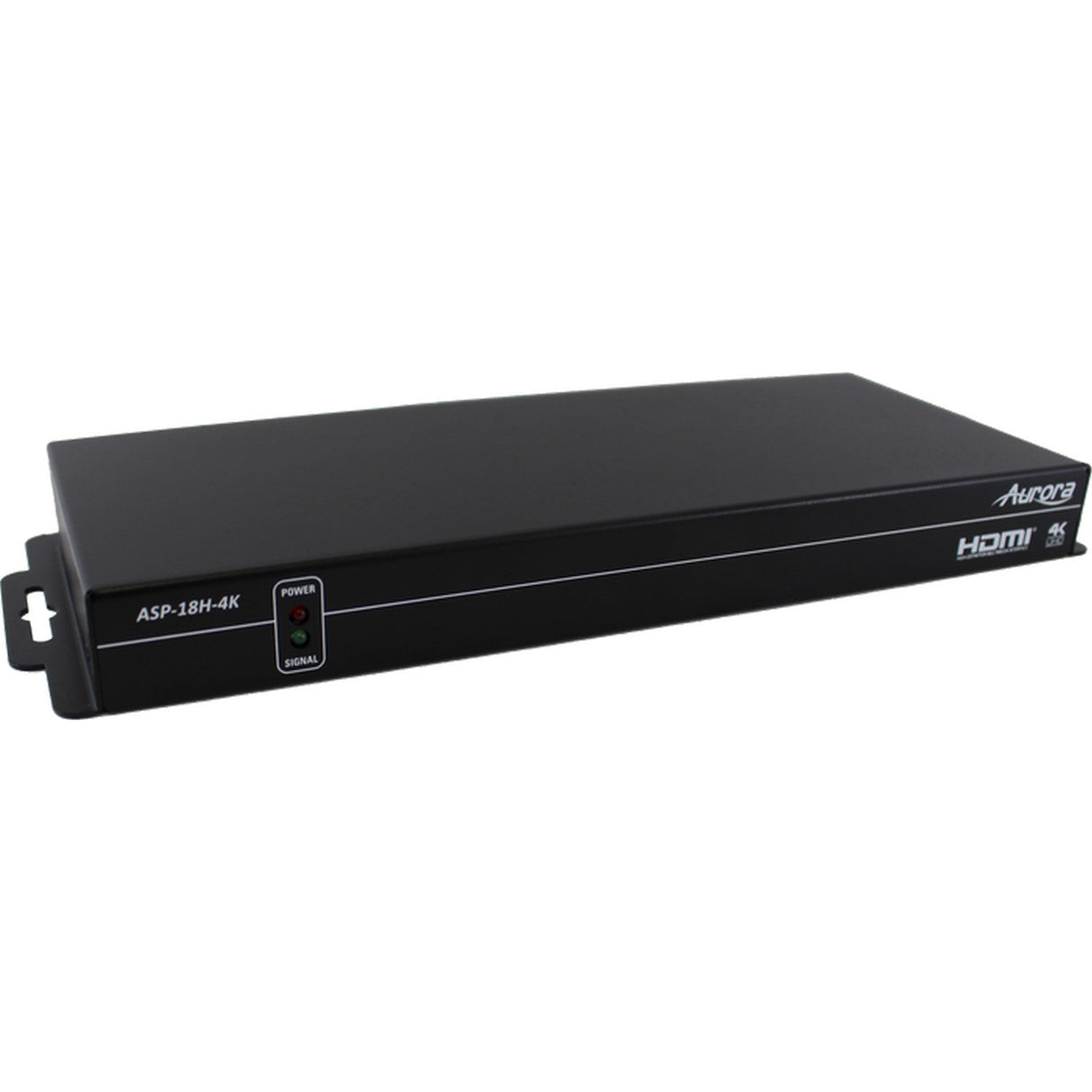

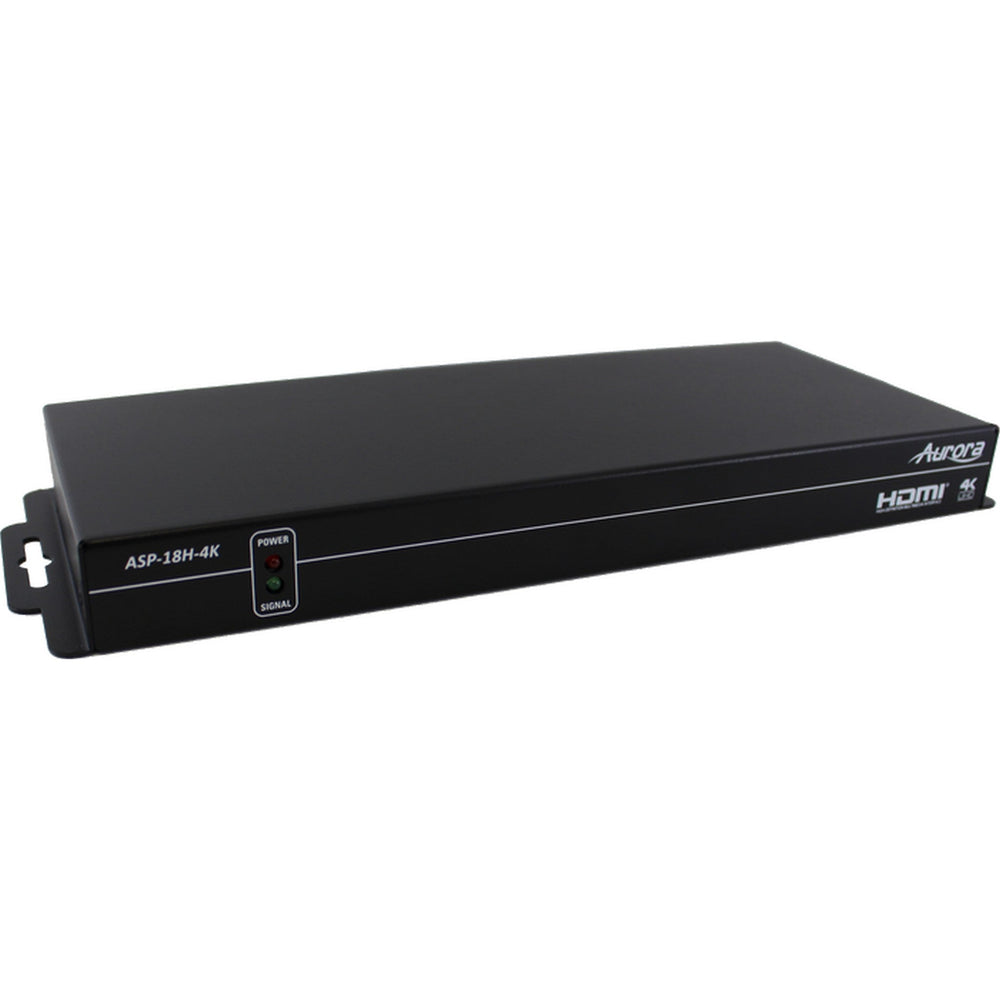

Aurora ASP-18H-4K 1x8 HDMI Broadcast 4K Splitter
The ASP-18H-4K HDMI 4K2K Splitter with EDID Management provides one of the most advanced HDMI splitter solutions by which the Ultra High Definition video and high quality audio can be transmitted to multiple locations without losing quality. The ASP-18H-4K supports all 3D formats and true 4K2K video.
The ASP-18H-4K firmware upgrade capability via the USB port ensures compatibility now and in the future. With 48 bit deep color video and high definition audio support the ASP-18H-4K is suitable for high quality HDMI broadcasting, conference room, digital signage and education applications.
Key Features
- HDMI and DVI 1.0 compliant
- HDCP 1.3 compliant
- 340MHz (up to 16 bit Y-U-V 444 supported @ 1080P)
- Video bandwidth: 10.2Gbps

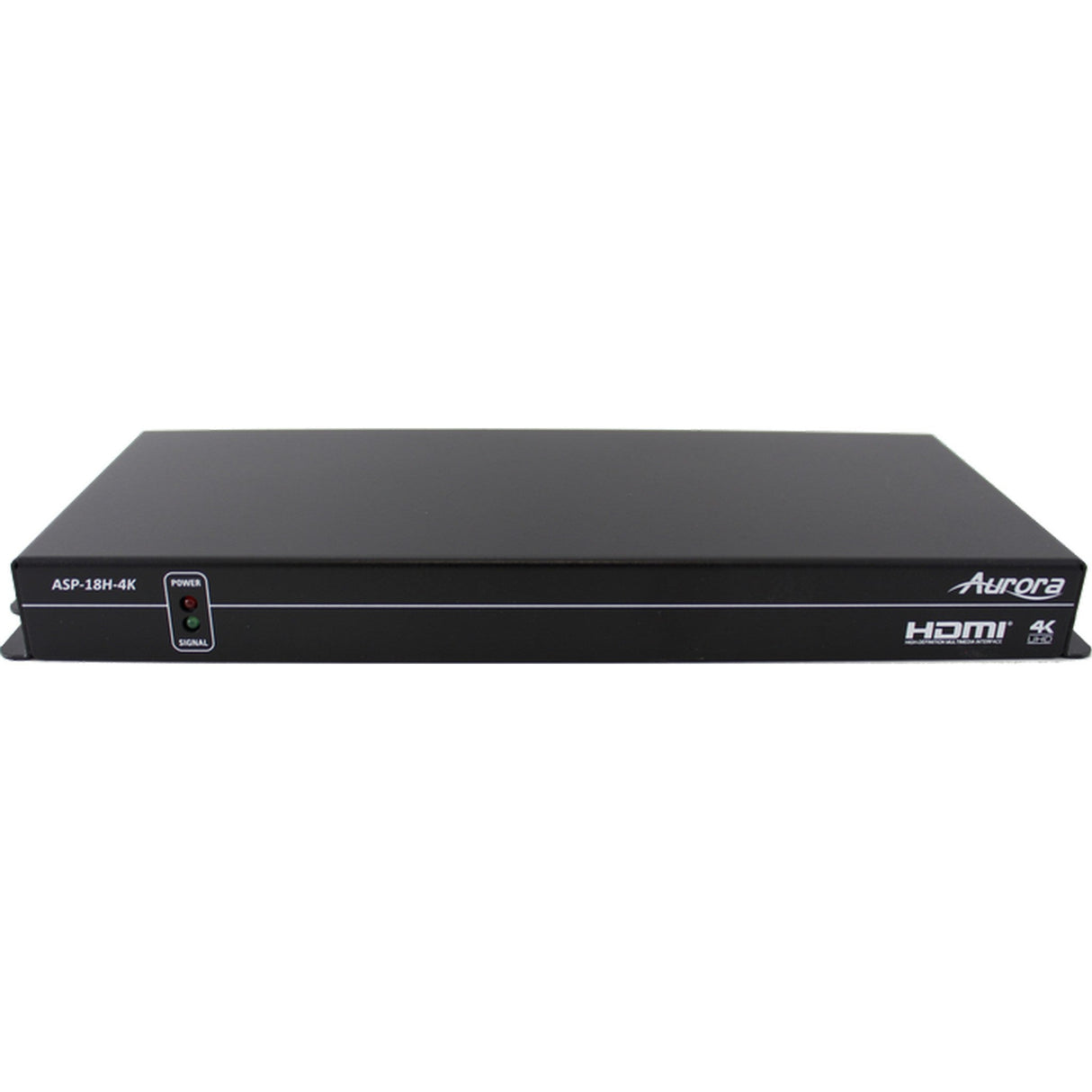

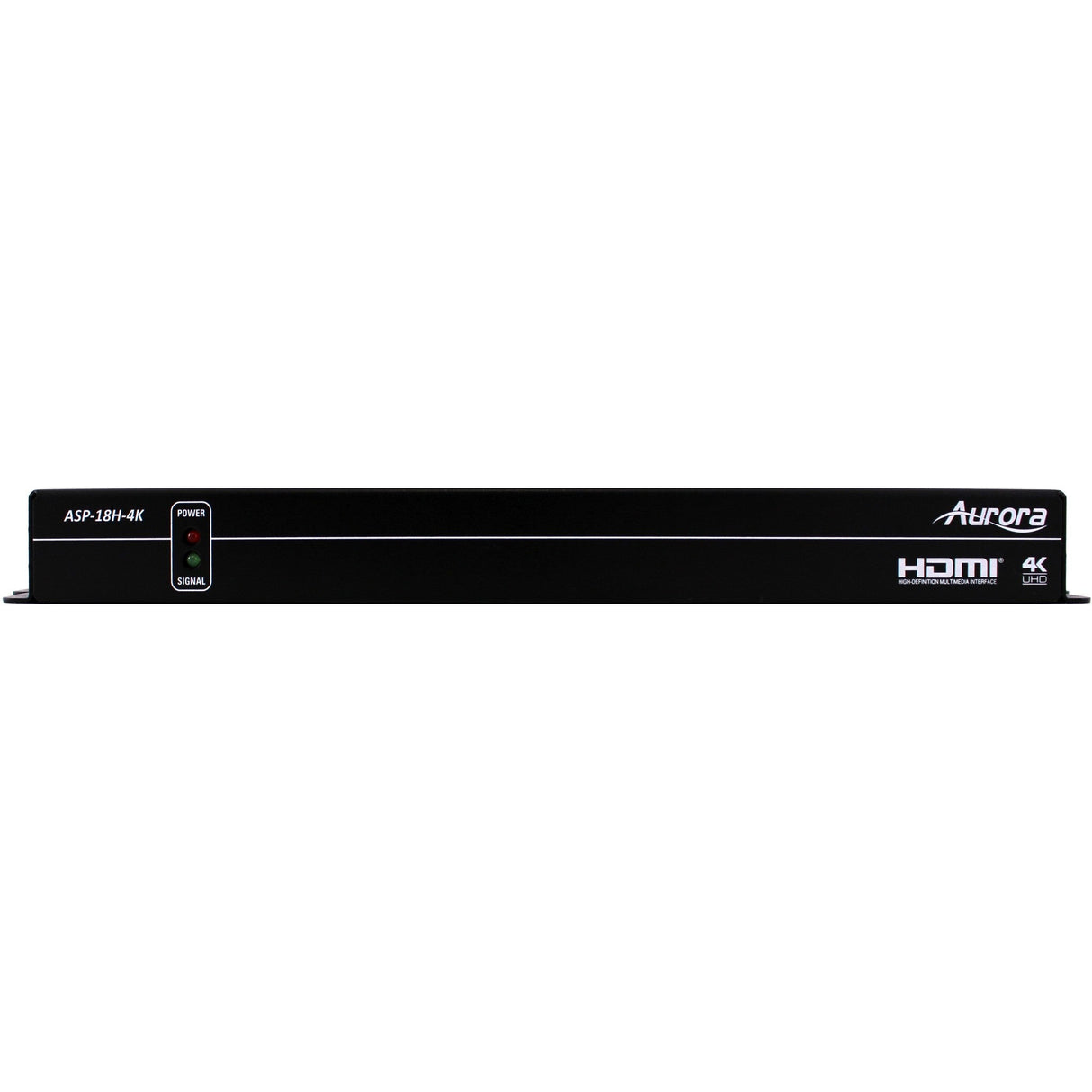

- Front panel LED indicator shows the user the system
- Supports conversion of HDMI signaling to DVI
- Built-in Gain compensation and synchronization signal proofread technology
- Resolution up to 4K2K
- Automatic EDID learning and default EDID table selection
- Supports x.v.YCC, x.v.Color & Deep Color
- Supports CEC bypassing communication channel
- Supports Dolby Digital, DTS-HD and Dolby TrueHD audio formats
- Wall-mount housing design for easy installation
Technical Specifications
Video Output
Bandwidth: Single-link 340MHz <10.2Gbps>
Resolution: Up to 4K2K

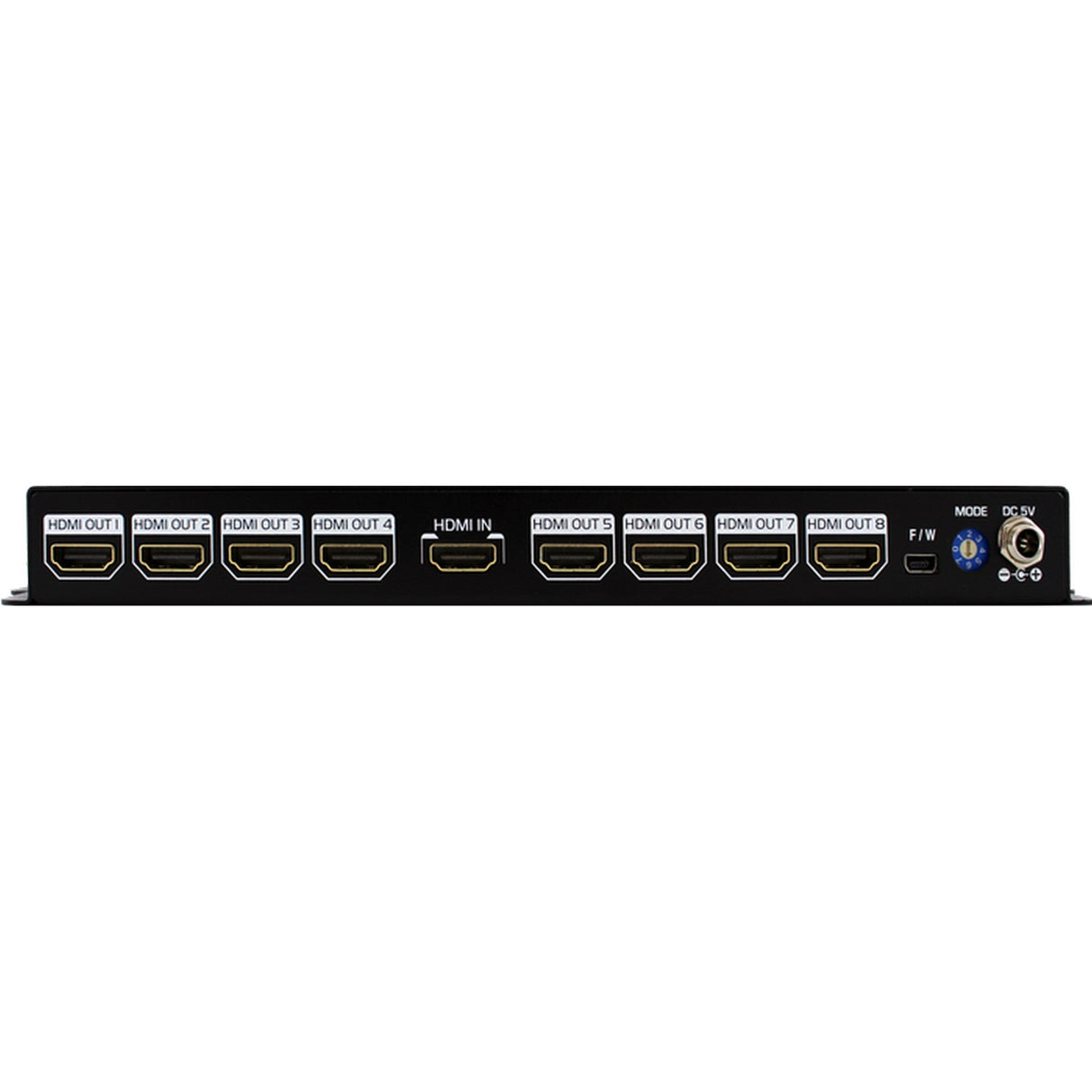

Connectors: HDMI Type A <19-pin female>
HDCP Compliant: Yes
HDMI Output Distance: 720p 12bit up to 20m, 1080i 12bit up to 20m, 1080p 12bit up to 15m, 4K up to 7.5m (Note: Cable quality may impact distance)
Power
Power Supply: 5V DC
Power Consumption: 20 Watts
Physical
Dimensions: 328 x 102 x 26mm <12.9" x 4" x 1">
Weight: 800g <31 oz>
