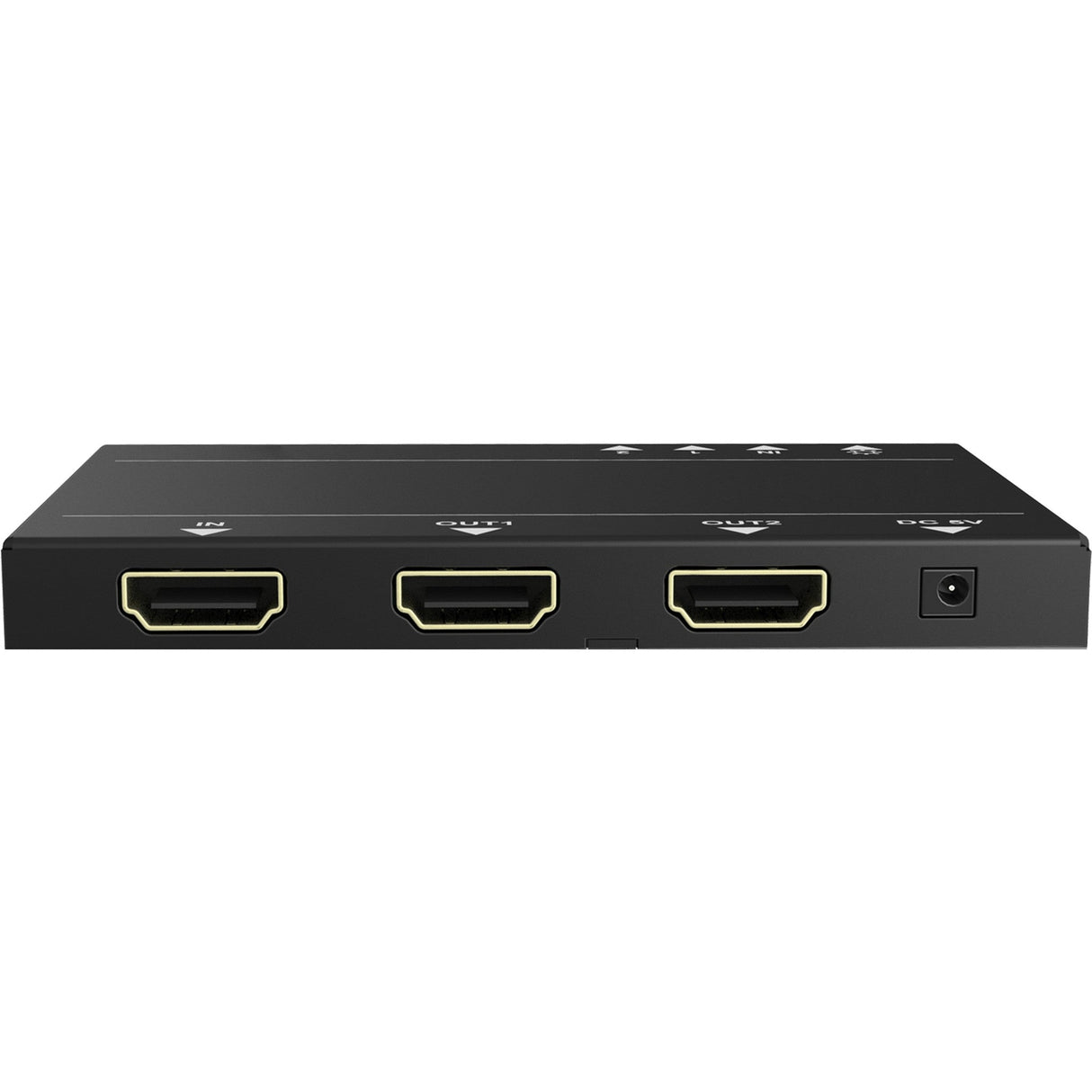

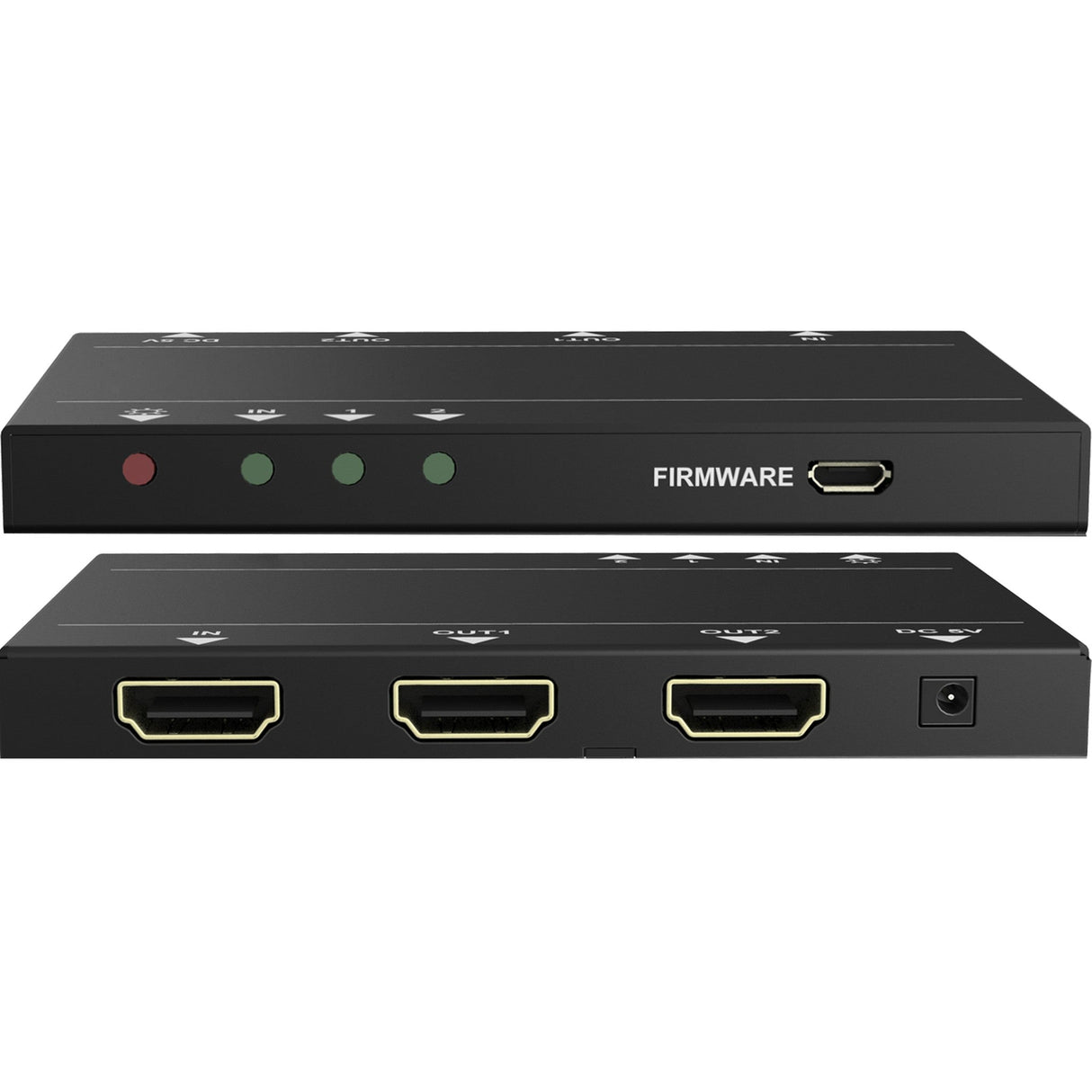

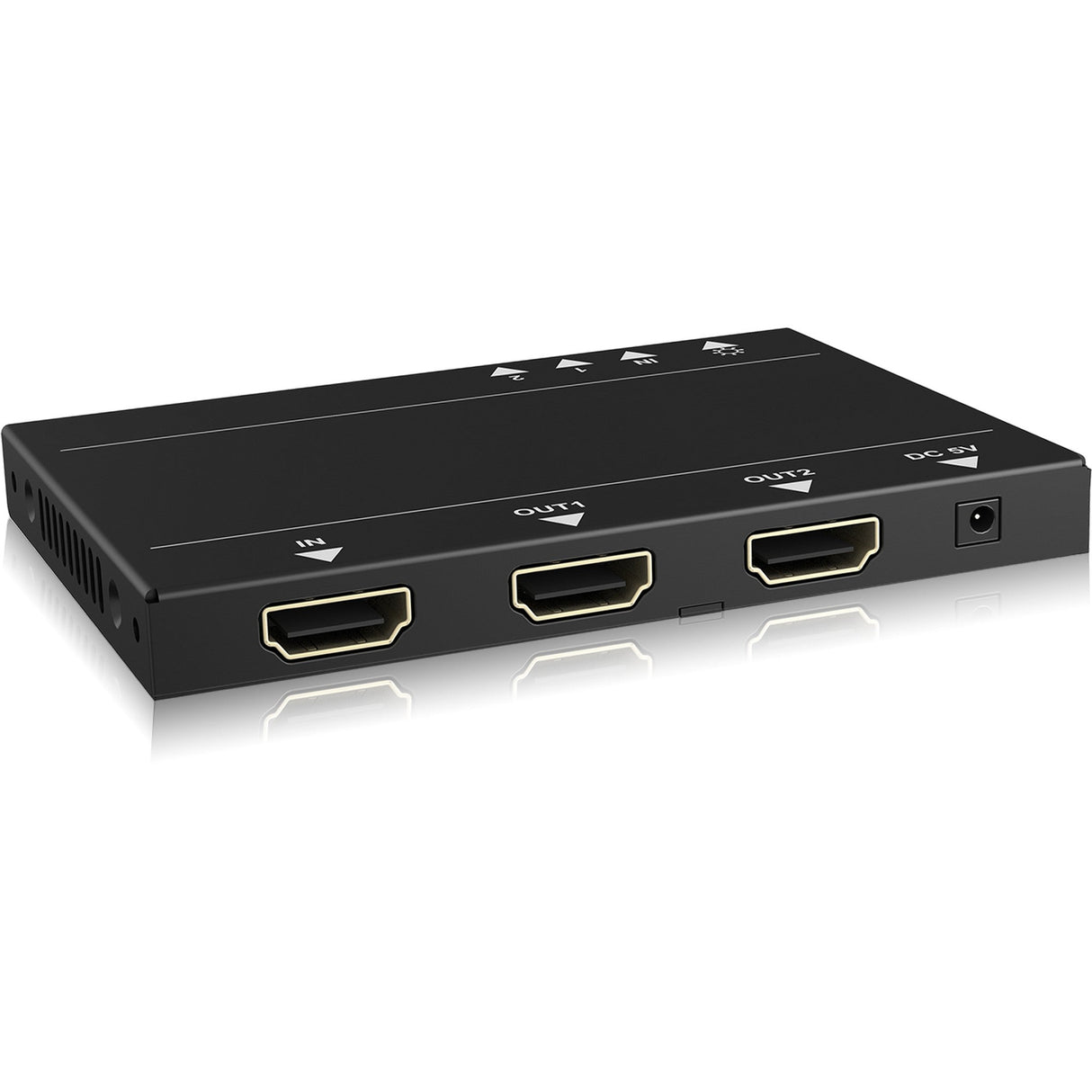

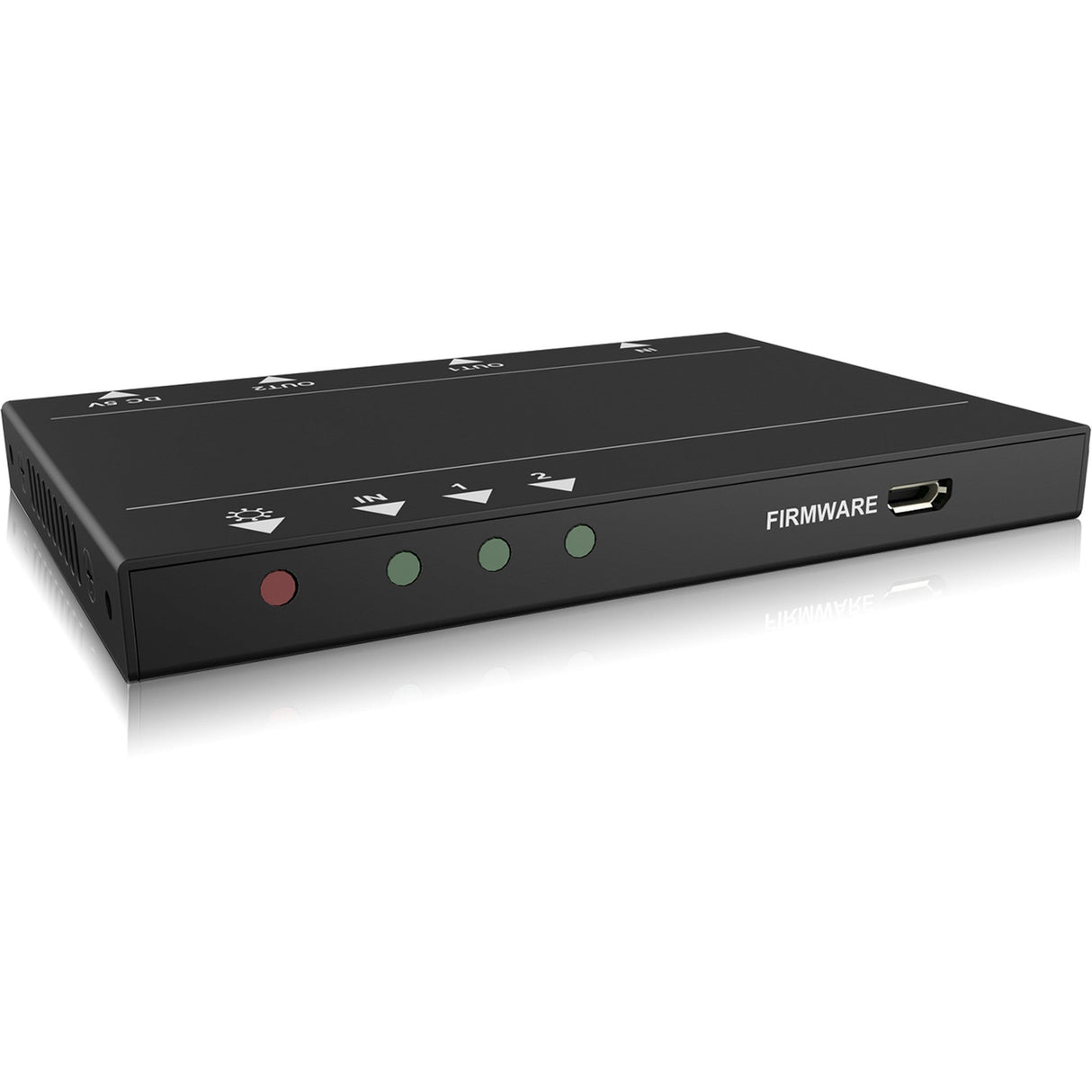

Aurora DXE-12H-4K | 1x2 HDMI Broadcast 4K Splitter
Aurora DXE-12H-4K 1x2 HDMI Broadcast 4K Splitter
The DXE-12H-4K 1¡¿2 HDMI 4K Splitter with Auto EDID Management provides one of the most advanced HDMI splitter solutions by which the Ultra High Definition video and high quality audio can be transmitted to multiple locations without losing quality. The DXE-12H-4K supports all 3D formats and true 4K2K video.
The DXE-12H-4K splitter has firmware upgrade capability via the USB port ensures compatibility now and in the future. With 48bit deep color video and high definition audio support, the DXE-12H-4K is suitable for high quality HDMI broadcasting, conference room, digital signage and education applications.
Key Features
- Supports HDMI Deep Color & 3D / DVI 1.0 compliant
- HDCP 1.4 compliant
- Wide frequency range: 25MHz~340MHz
- Video bandwidth: 10.2Gbps
- Resolution up to 4K2K @ 30Hz
- Auto EDID Management
- Supports xvYCC, x.v.Color & Deep Color
- Mini-USB port for firmware updating
- Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
- HDMI & Power Connectors on same side for easy installation
- Ultra-low profile to fit behind displays
Technical Specifications
Video Output
Bandwidth: Single-link 340MHz <10.2Gbps>
Resolution: Up to 4K2K
Connectors: HDMI Type A <19-pin female>
HDCP Compliant: Yes
HDMI Output Distance: 720p 12bit up to 20m, 1080i 12bit up to 20m, 1080p 12bit up to 15m, 4K up to 7.5m (Note: Cable quality may impact distance)
Power
Power Supply: 5v 1A
Power Consumption: 3.6 Watts Max
Physical
Dimensions: 100 x 70 x 11mm (3.94"x2.76"x0.433")
Weight: 0.08kg (2.82oz)
