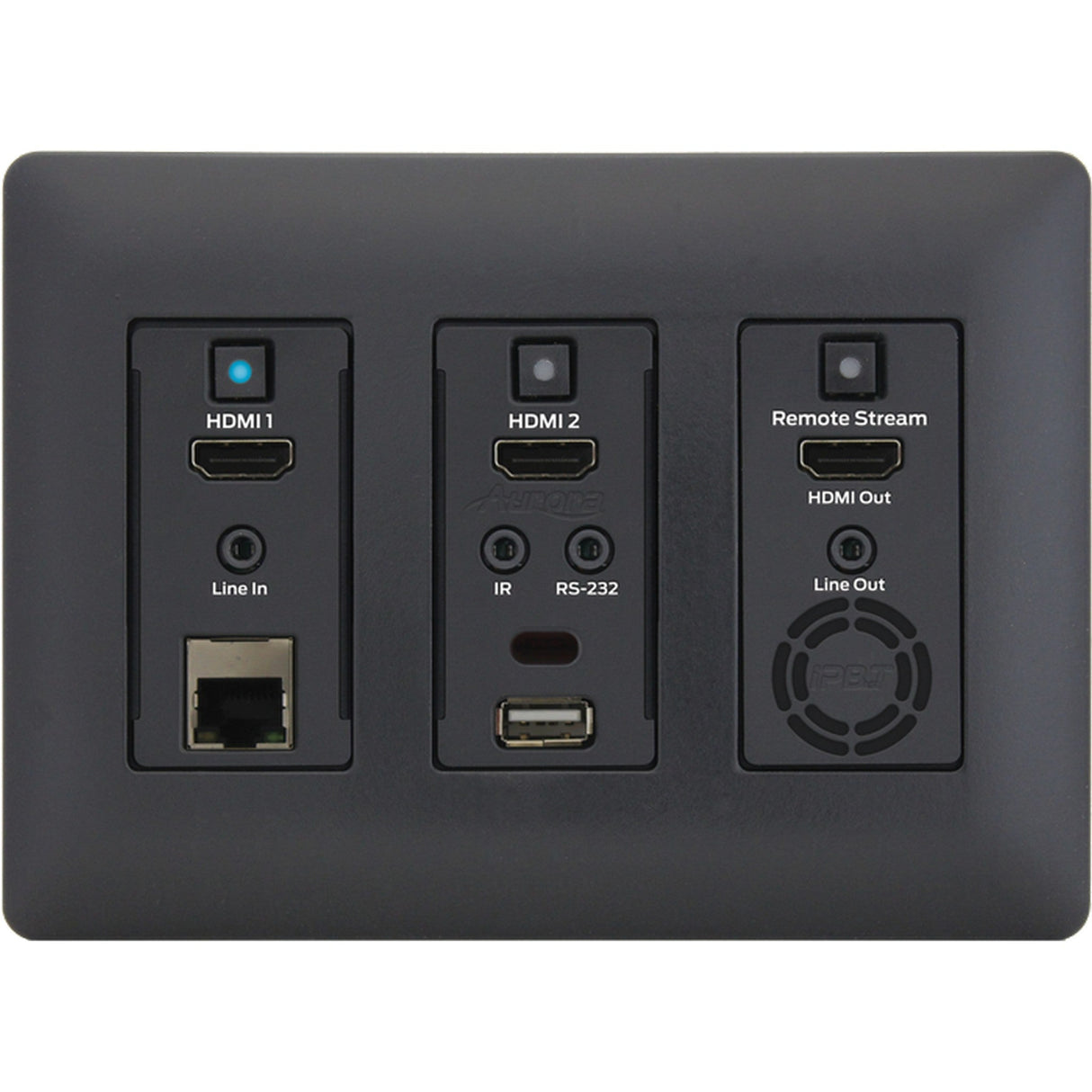

Aurora IPX-TCW3-C-B 4K over IPBaseT Wall Plate, 10G Copper Black

Utilizing Aurora’s IPBaseT technology, which combines various IP/AV standards to work together as one, the IPX-TCW3 Series provides one of the most advanced IP Streaming solutions on the market. It is the industry’s first 4K2K IP wall plate with zero compression and latency based on BlueRiver NT platform. Using a transmitter (encoder) and receiver (decoder), respectively, used to be the standard until now. The IPX-TCW3 Series can be set up as either one to make installation, inventory, and troubleshooting easier.

Another industry first is the option slot to add other IP capabilities, like ExtremeUSB (USB 2.0 over IP) or Dante audio, for a more complete, distributed system. Audio, video, data, and control can be sent securely to one or many IPX-TCW3 transceiver units using off-the-shelf 10G Fiber or CAT Ethernet switches.

When the IPX-TCW3 is set up to be a transmitter, the 2 HDMI inputs become a source switch and the HDMI output becomes a potential loop out. When set up as a receiver, a user can select the local HDMI inputs or an IP source. Seamless switching of the sources further enhances the presentation. Regardless of how the IPX-TCW3 is set up, the audio can be de-embedded at any location, break away, and/or be sent to or received from a Dante enabled device. The USB 2.0 option is also flexible, working as a KVM and/or a high-speed data transfer (480Mbps) for memory sticks.

IPX-TCW3-F-B (White)**
IPX-TCW3-F-B (Black)**
**10G Fiber
IPX-TCW3-C-B (White)***
IPX-TCW3-C-B (Black)***
***10G Copper

Key Features

• Configure as Transmitter (Encoder) or Receiver (Decoder)
• 4K2K Over 10G Fiber (-F) or 10G CAT (-C)
• Zero Compression & Zero Latency
• Secure Content Encryption
• 128x128 Capable with HDCP, Larger for Non-Encrypted Sources
• Videowall Capability with Zero Latency
• Seamless & Break-away Switching
• SFP+ for Multi/Single Mode Fiber (-F Model)
• 1G LAN PoE
• 2 HDMI Inputs, 1 HDMI Output
• Line In/Out Stereo
• RS-232 Serial Port & IR (Bidirectional)
• User Configurable OSD
• Integrated Web Server for Custom Control Pages
• ExtremeUSB - USB 2.0 480Mbps Option (Host or Device Configurable)
• Dante IP Audio Option
• Programmable Front Buttons
• Auto Sense Switching
• Standard 3 Gang Outlet Box
• Low Depth for Floor & Table Boxes

Technical Specifications

Compression
Zero
Latency
Zero
HDMI Inputs
2
HDMI Outputs
1
Audio Analog
Stereo Line In/Out (3.5mm TRS)
10G Fiber Ethernet
SFP+ (Single Mode or Multi-Mode)
10G Copper Ethernet
RJ-45 330ft with CAT 6A
LAN
RJ-45 10/100/1000M PoE (PSE)
Video Bandwidth
340MHz
Video Support
Up to 4K2K 4:2:0 @60Hz
Audio Support
Up to 32 channels & Break-away Capable
RS-232
Up to 115k Baud (3.5mm TRS)
IR
Bi-Directional (3.5mm TRS)
USB Connector
USB 2.0 Type A (Host or Device Software Selectable)
Expansion Port
SO-DIMM for ExtermeUSB or Dante Options
Interface
IR or Keypad via OSD, Webserver
Digital Video
(2) HDMI In, (1) HDMI Out, (1) Stereo Line In (3.5mm TRS), (1) Stereo Line Out (3.5mm TRS)
Data
(1) Ethernet port for network, (1) USB ports for charging & ExtremeUSB
Control
IR
20KHz-60KHz
Serial
Up to 115K Baud
Physical & Power
Dimensions: 3 Gang 5.54” x 2.83”(4.331” with tabs) x 1.404” Note: Wall box portion depth 1.0” without option card and 2.25" with option card.
Weight: 2.5lbs
Power: 48V DC (2 pin Euro)
