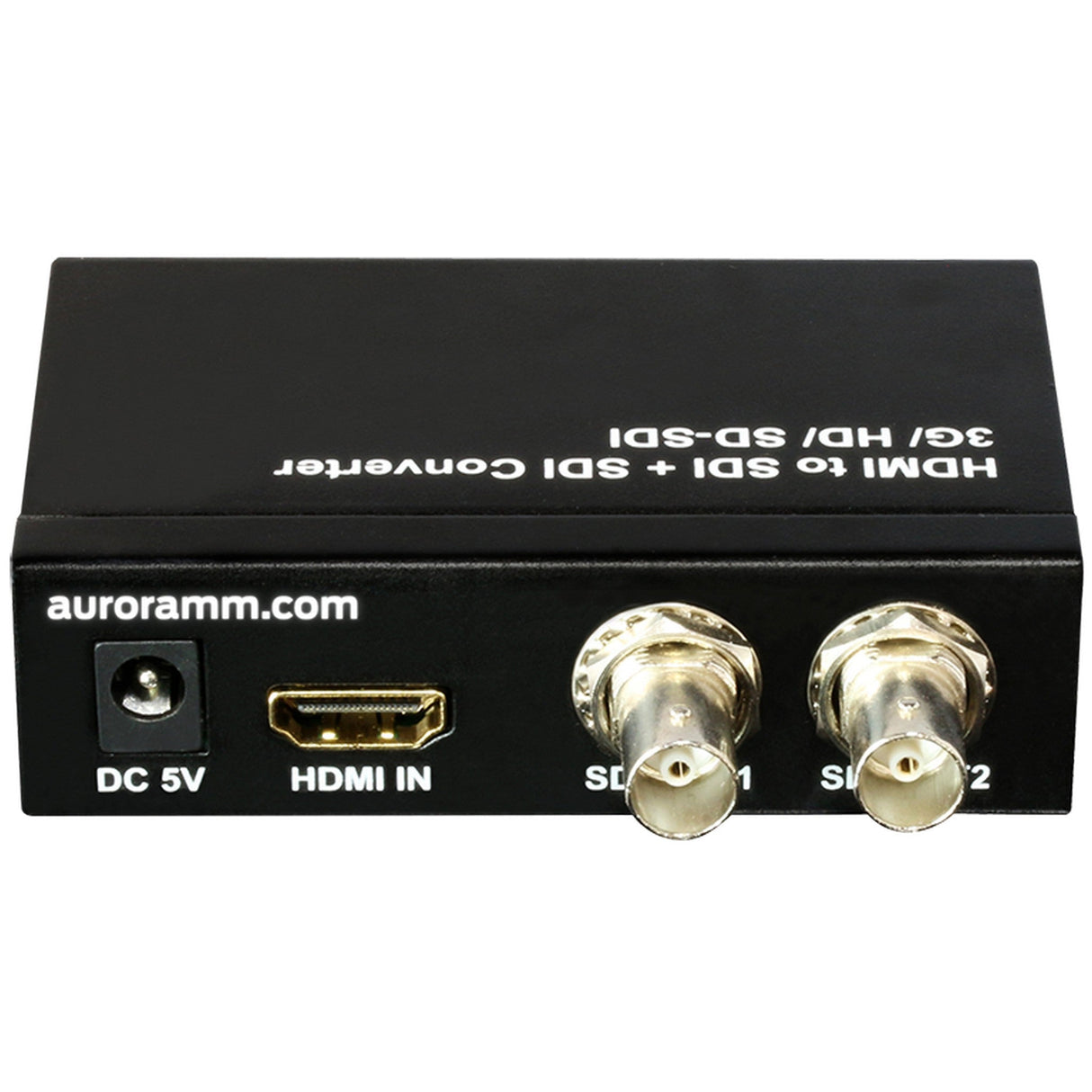

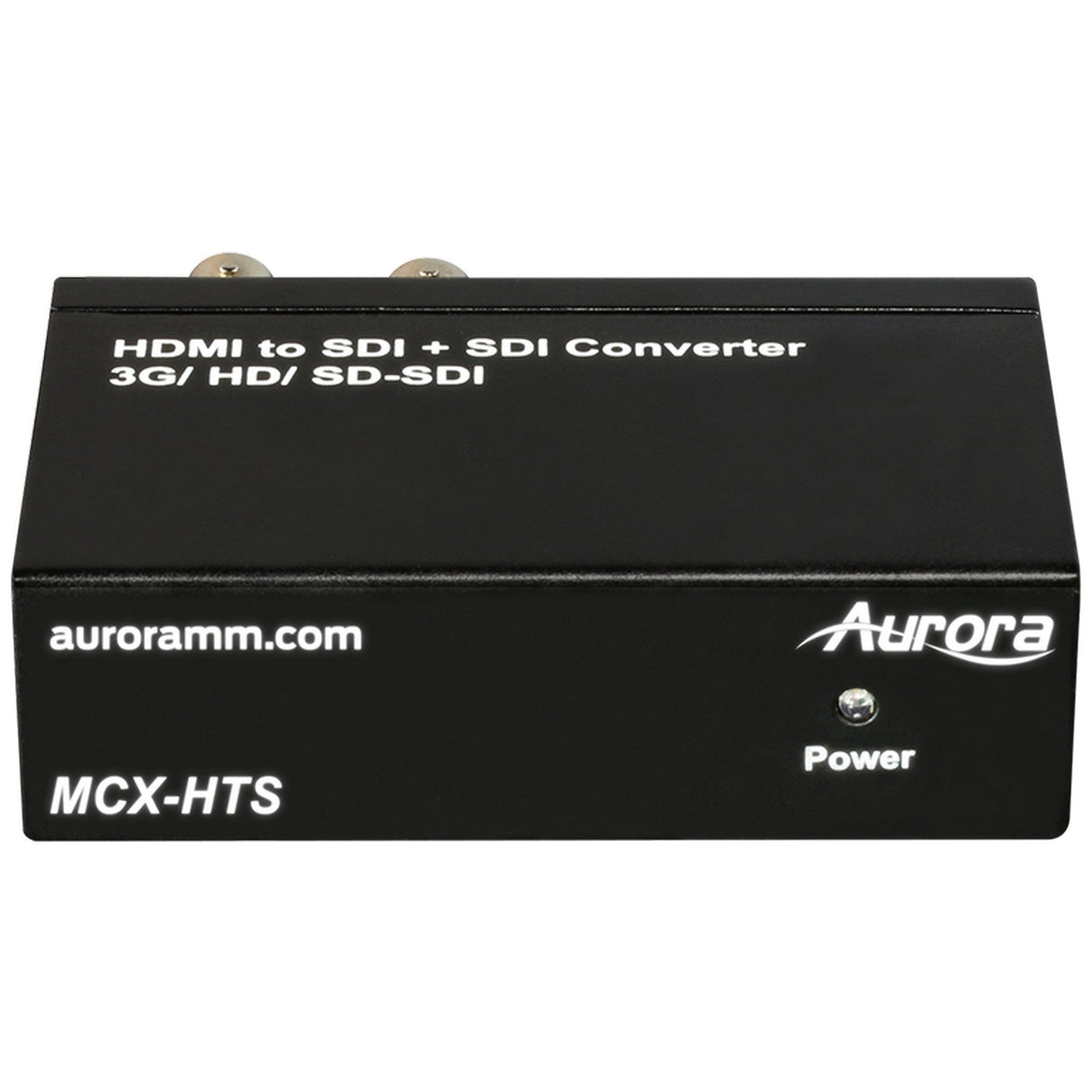

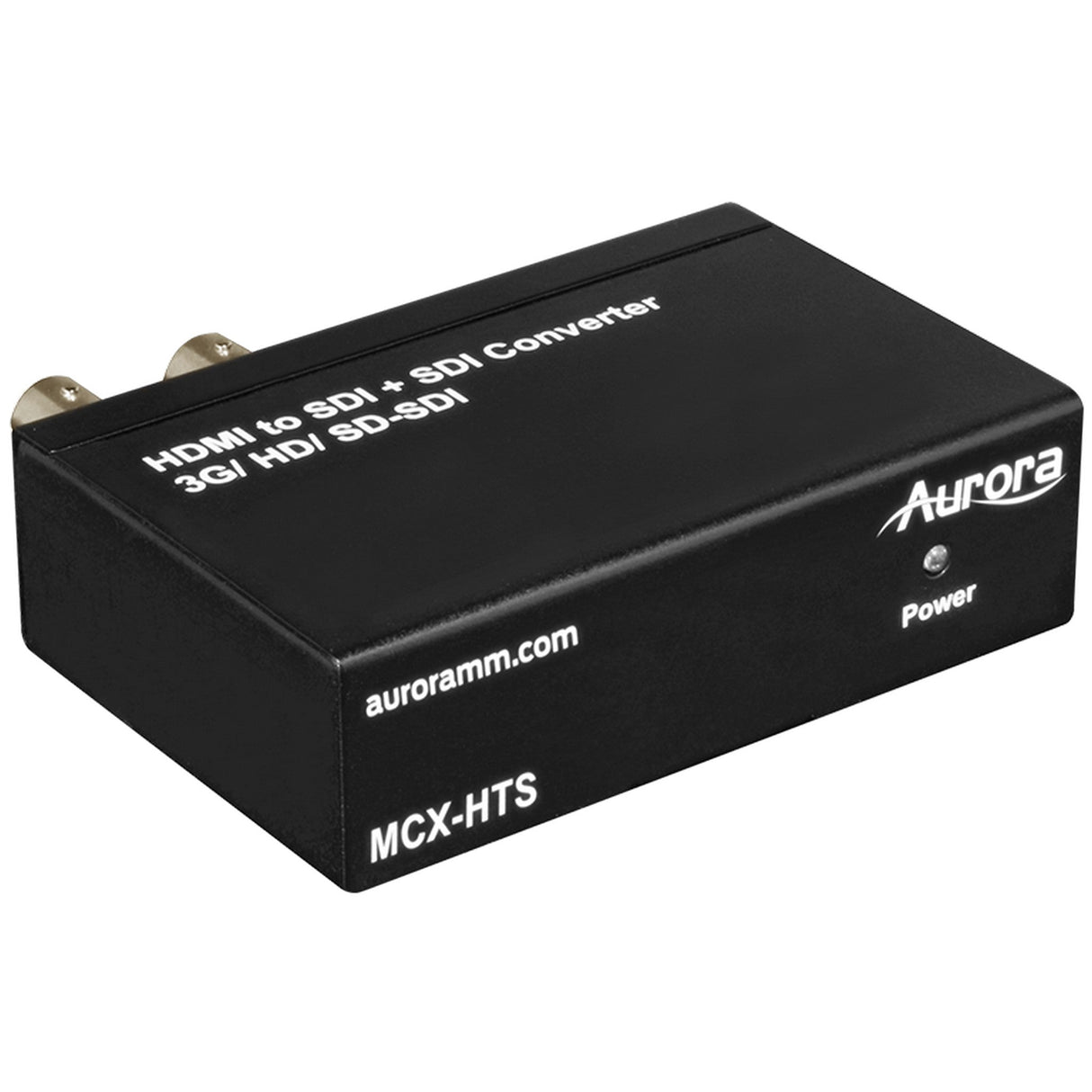

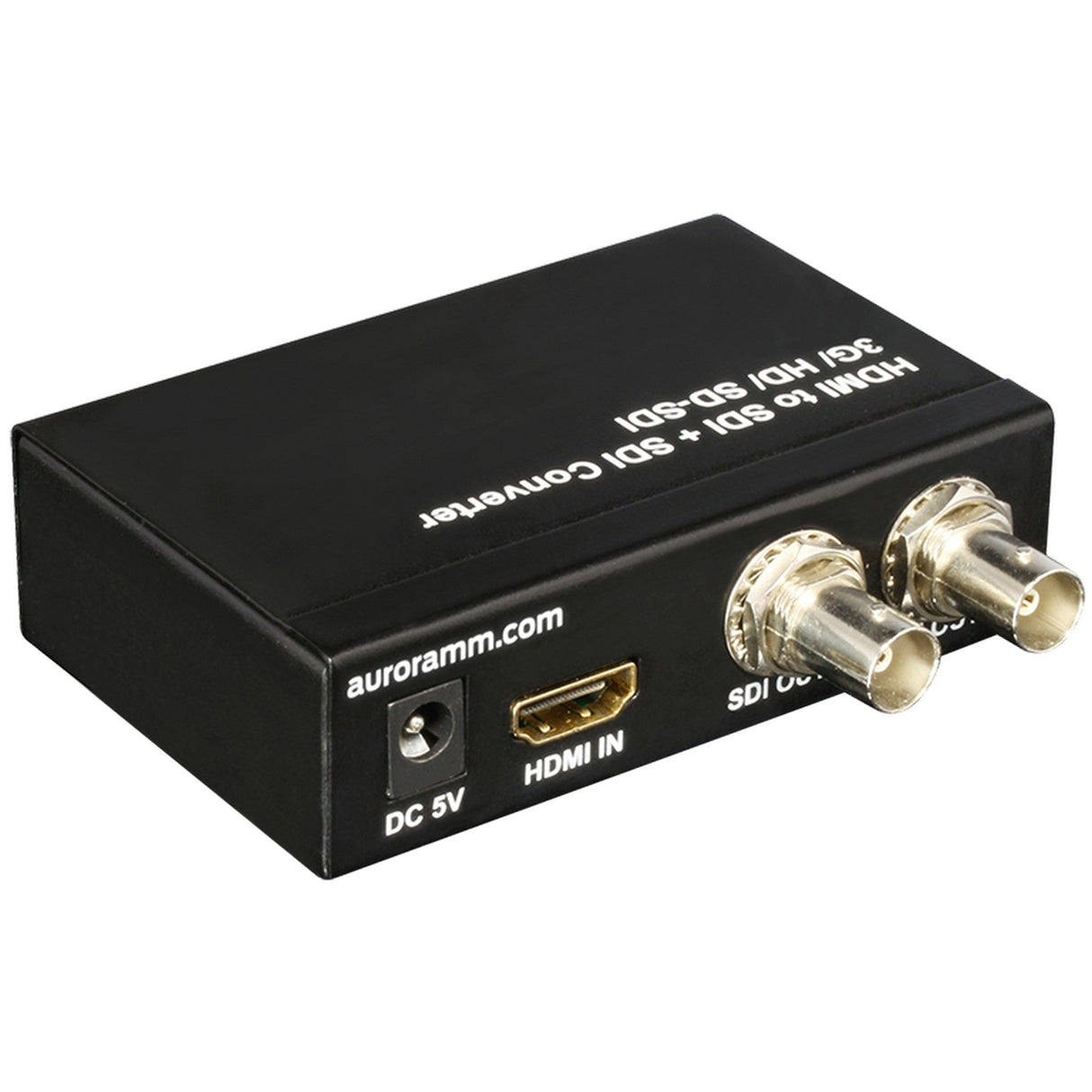

Aurora MCX-HTS HDMI to SDI Audio Video Converter
The HDMI to dual SDI converter enables you to turn your HDMI audio/video signal into two 3G/HD/SDSDI video outputs. The SDI video outputs can then be individually extended up to 328ft (100m) over standard coaxial cable for large scale 3G-SDI video distribution, 656ft(200m) over standard coaxial cable for large scale HD-SDI video distribution, 984 ft(300m) over standard coaxial cable for large scale SD-SDI video distribution.
With dual SDI outputs, you can connect your HDMI video source to a local SDI display and output an additional SDI signal into your broadcasting equipment, providing a scalable solution for any SDI broadcasting application that requires an HDMI input.
Key Features
- 3G SDI to HDMI Conversion
- Dual SDI Outputs
- Resolution up to 1080p
- Auto detect resolution of SD-SDI, HD-SDI and 3G-SDI
- Support 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth
Technical Specifications
Technical
Signal Input: HDMI
SDI Data Rate: 270Mb/s, 1.485Gb/s, 2.97Gb/s
Output Video: SD-SDI, HD-SDI, 3G-SDI
DTV/HDTV (24/25.50/60Hz): 480i/576i/480p/576p/720p/1080i/1080p
SDI Distance: SD 100m, HD 200m, 3G 300m
Input HDMI Distance: 10m (30ft)
Mechanical
Housing: Metal
Dimensions
Weight: 166g <5.856 oz>
Power supply: 5V 2A DC
Power consumption: 5 Watts
Operation temperature: 0~50C <32~122F>
Storage temperature: -10~80C <14~170F>
Relative humidity: 5~90% RH
