Aurora MCX-STH | SDI to HDMI Audio Video Converter
Description
Description

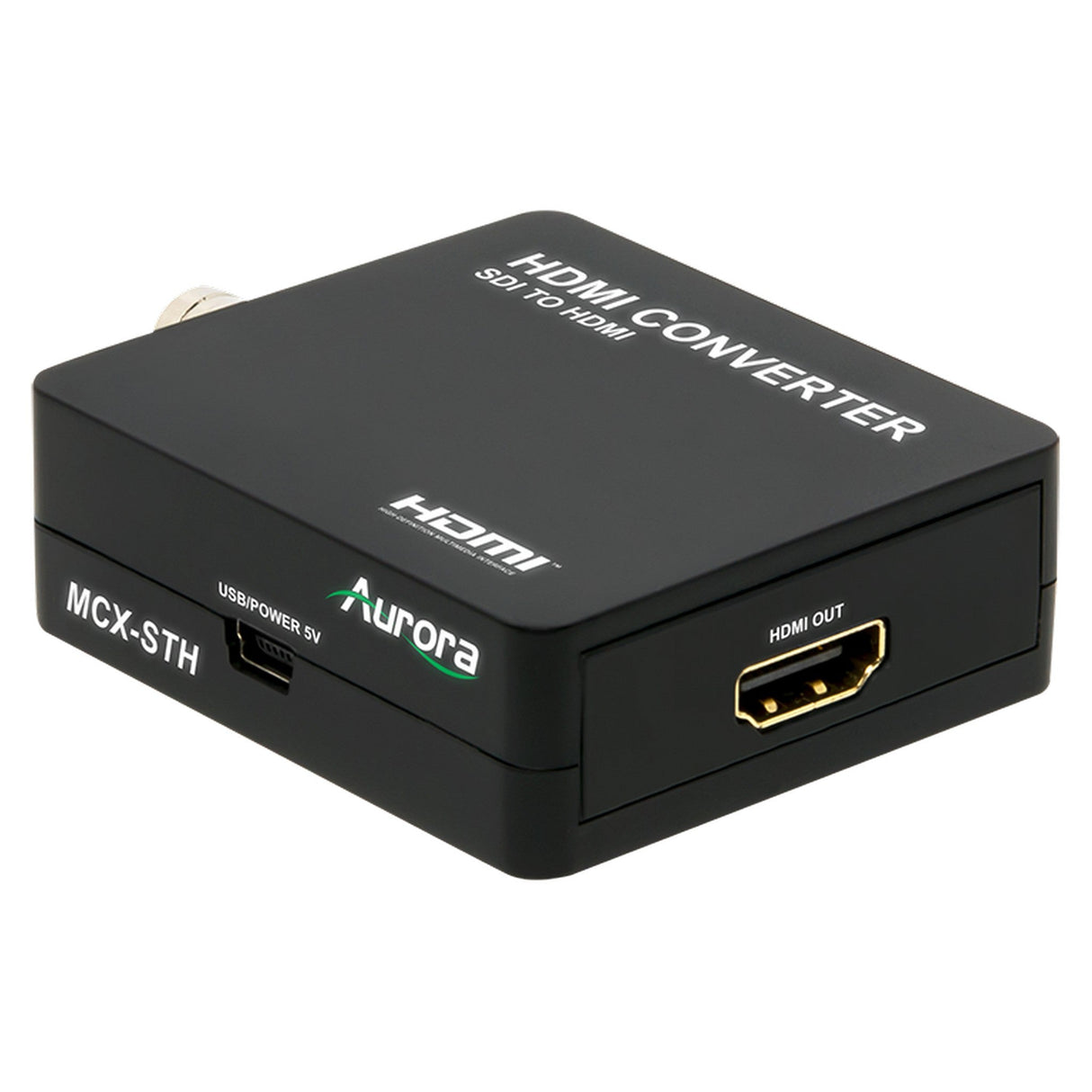

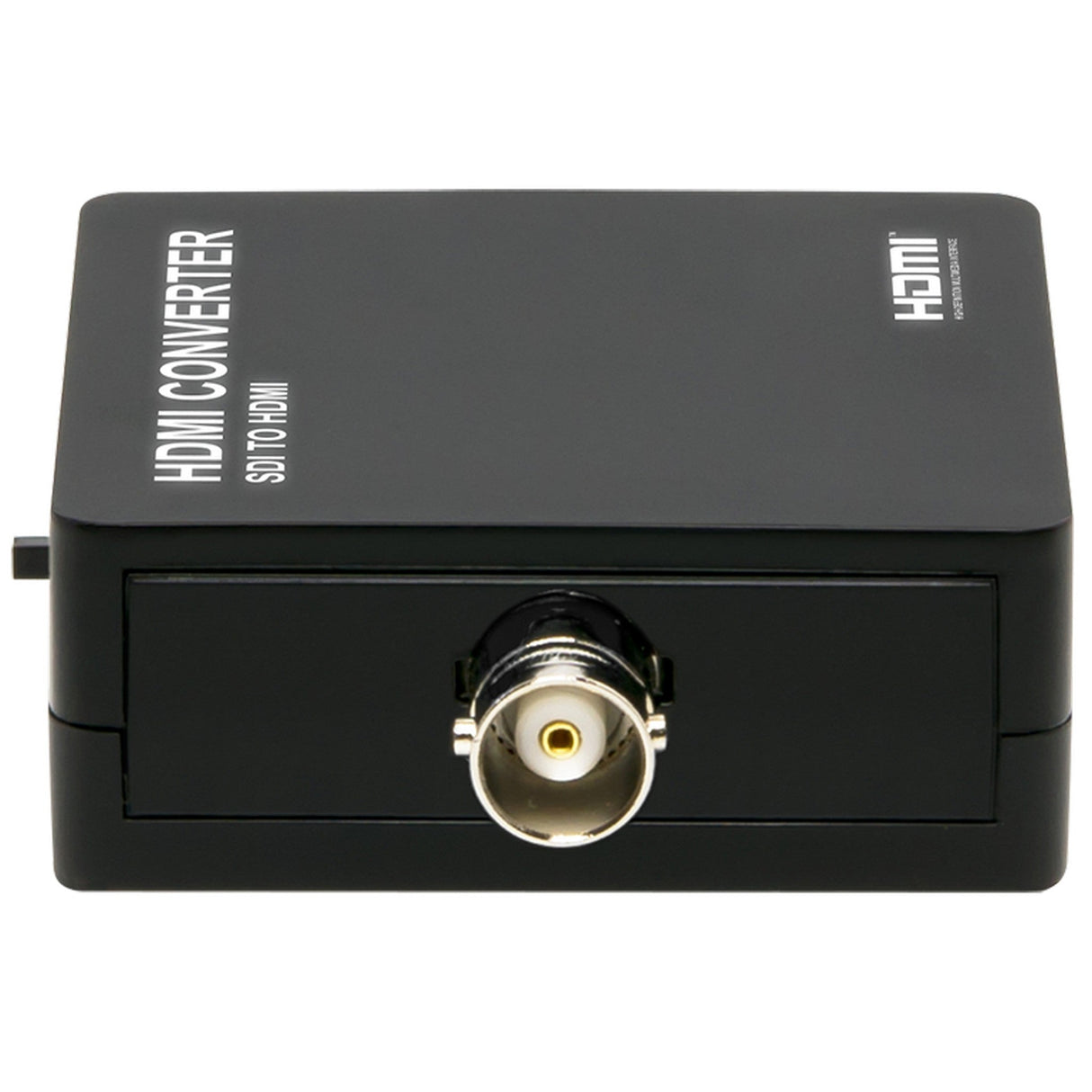

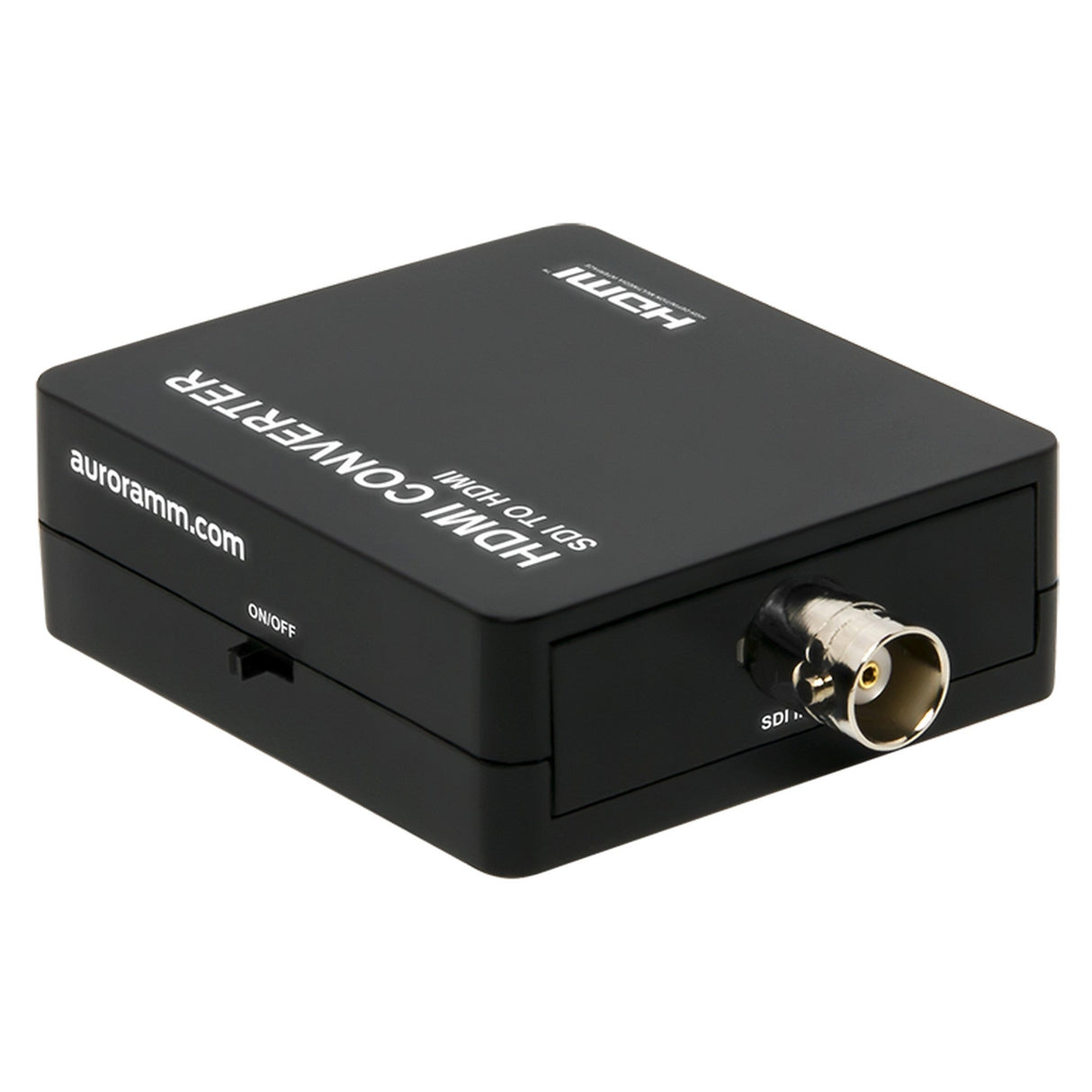

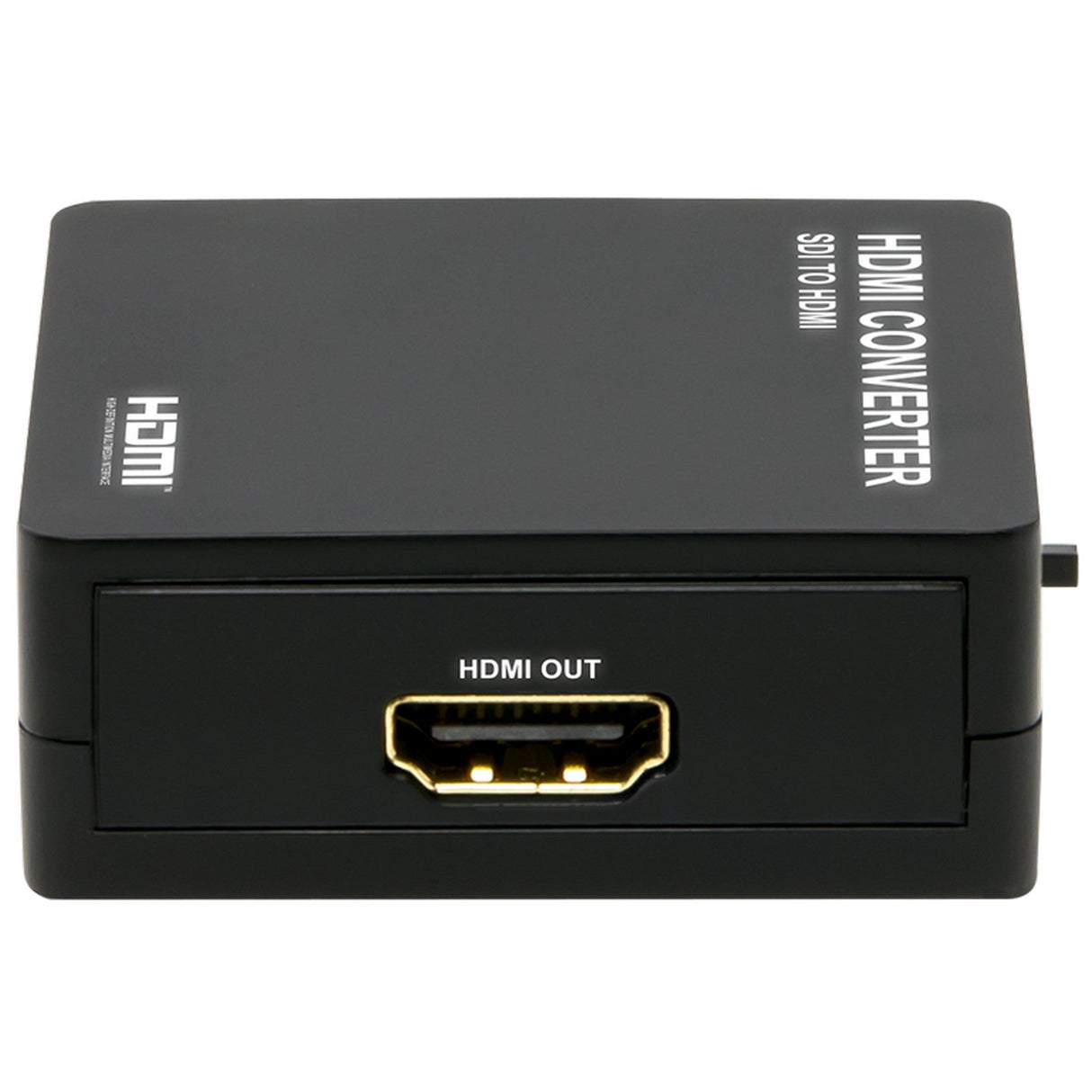

Aurora MCX-STH SDI to HDMI Audio Video Converter
The MCX-STH is a 3G SDI to HDMI converter capable of converting resolutions up to 1080p. Power can be supplied from the included wall supply or a USB port allowing cleaner cabling and installation.
Key Features
- 3G SDI to HDMI Conversion
- Resolution up to 1080p
- Support 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth
Technical Specifications
Technical
Signal Input: SD-SDI, HD-SDI, 3G-SDI
SDI Data Rate: 270Mb/s, 1.485Gb/s, 2.97Gb/s
Output Video: HDMI signal
DTV/HDTV (24/25.50/60Hz): 480i/576i/480p/576p/720p/1080i/1080p
Input SDI Distance: 25m (75ft)
Input HDMI Distance: 10m (30ft)
Mechanical
Housing: Plastic
Dimensions
Weight: 42g <1.48 oz>
Power supply: 5V 2A DC
Power consumption: 5 Watts
Operation temperature: 0~70C <32~158F>
Storage temperature: -10~80C <14~170F>
Relative humidity: 5~90% RH
