Aurora RXS-1 ReAX IPBaseT Manager Control Server
Description
Description

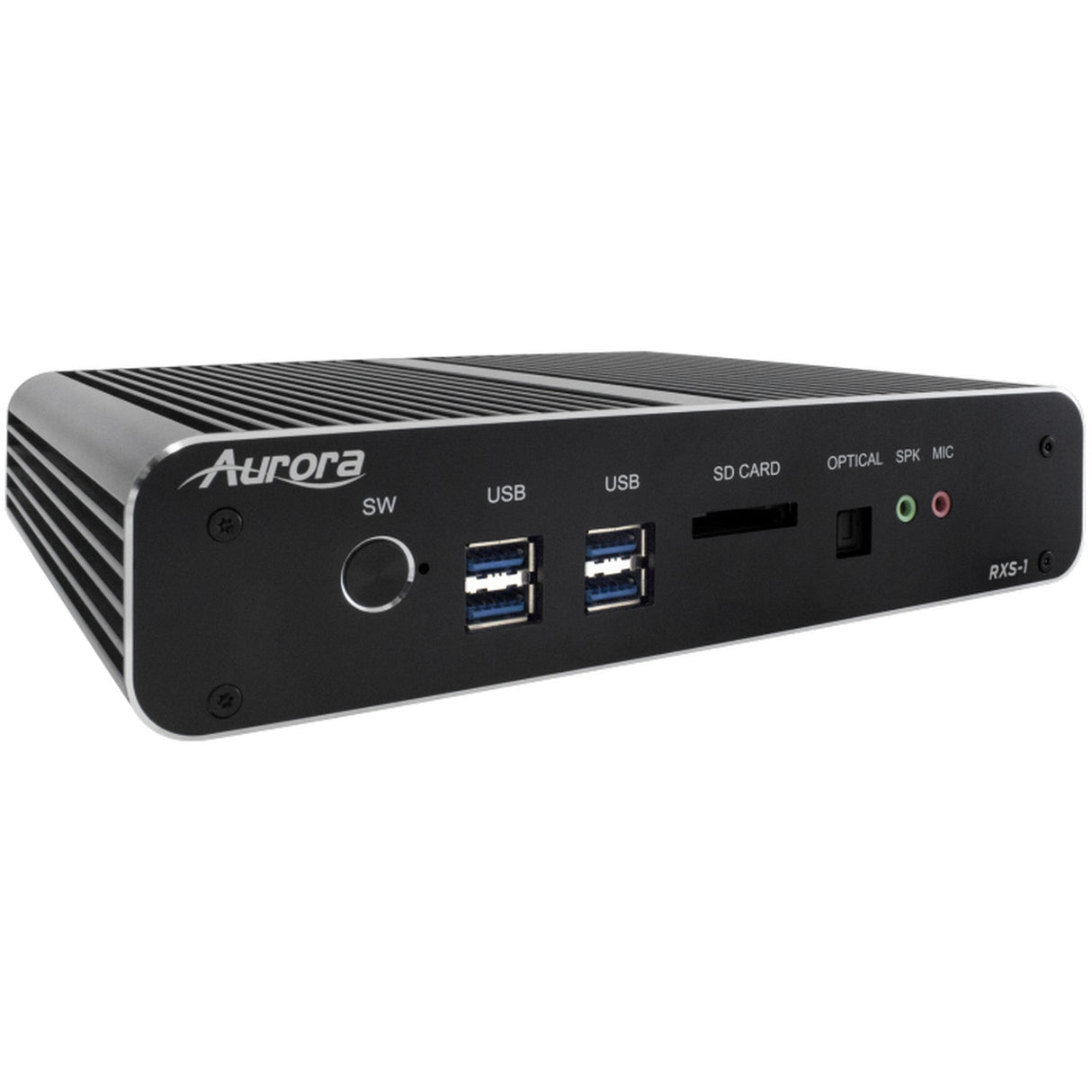

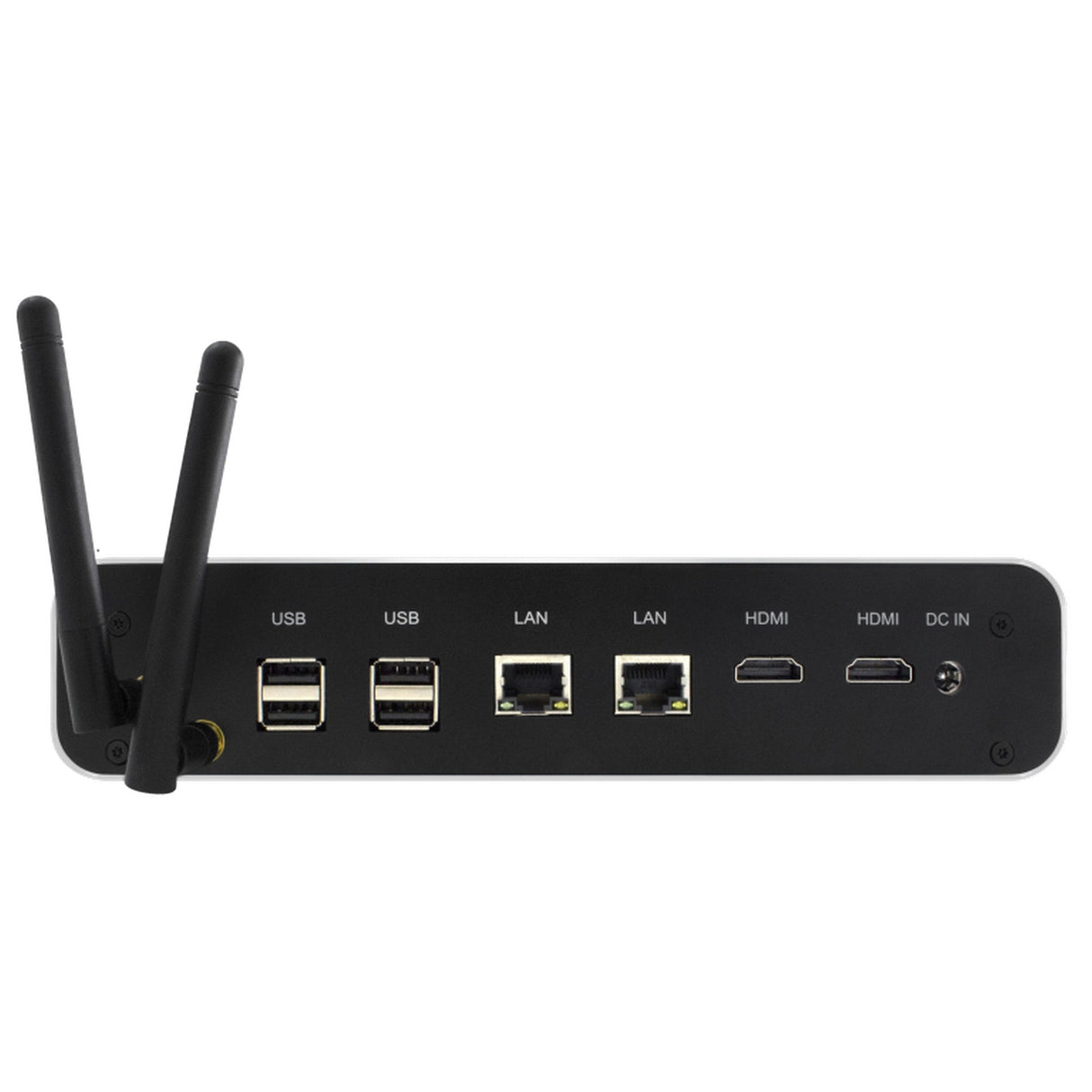

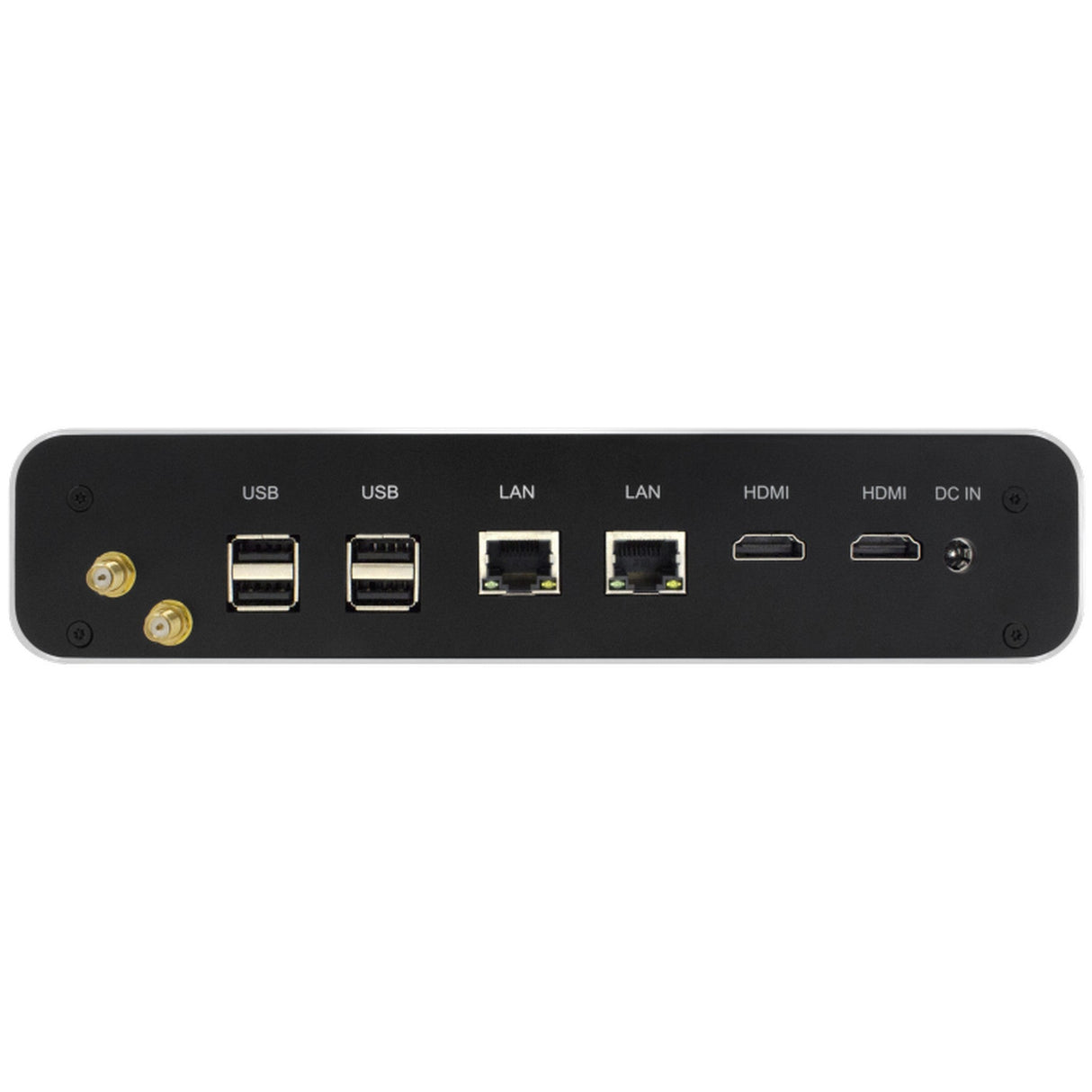

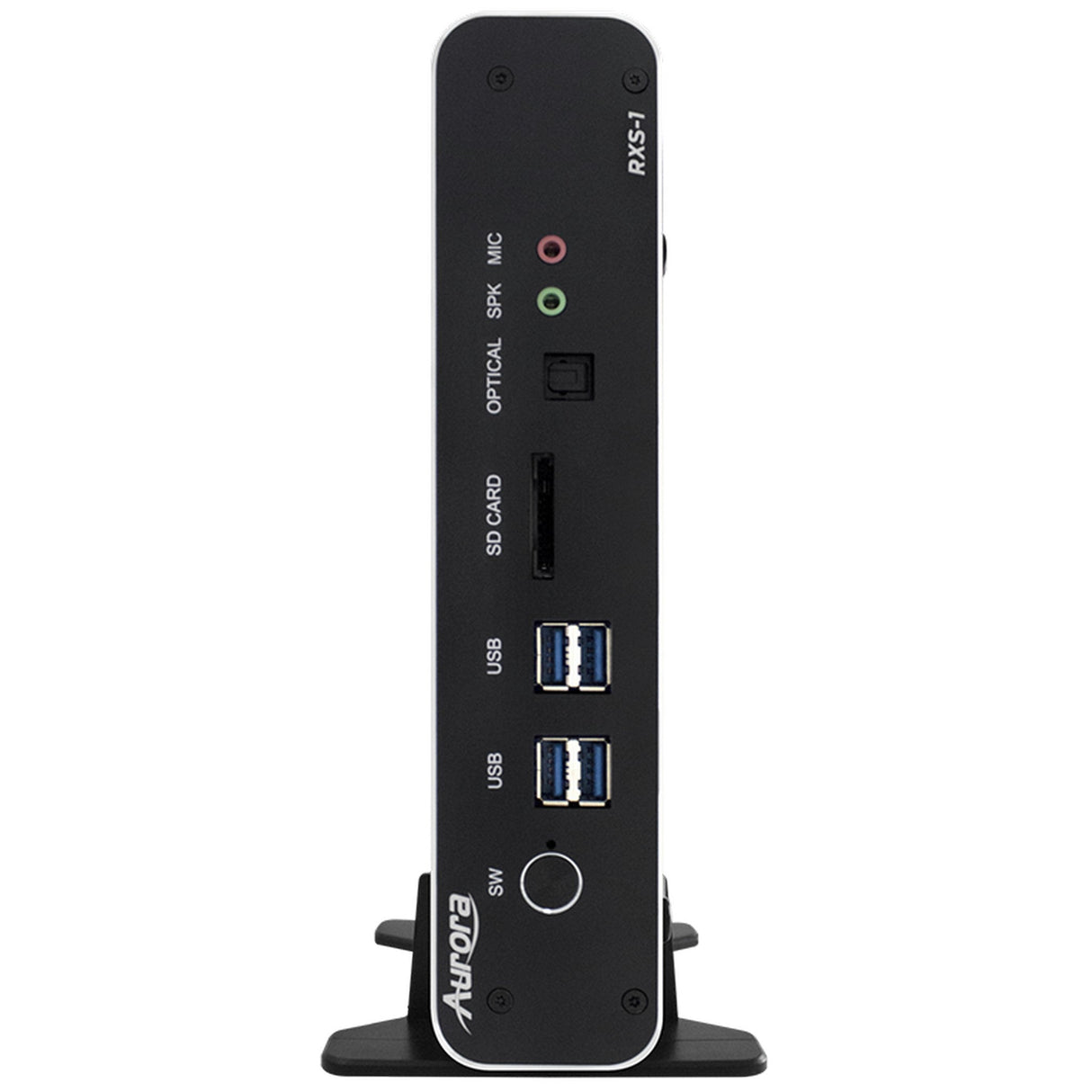

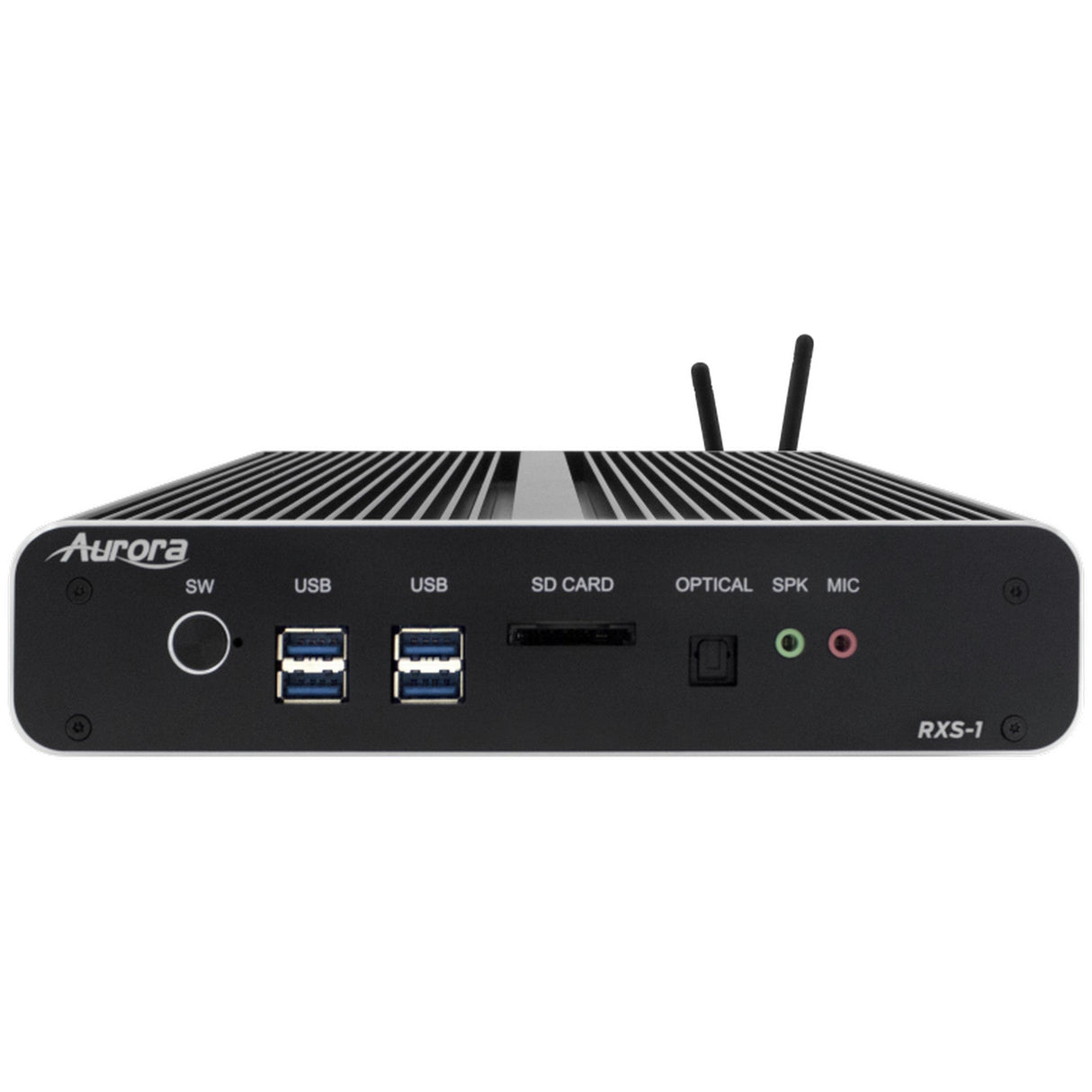

Aurora RXS-1 ReAX IPBaseT Manager Control Server
Introducing the all-new RXS-1, the solution to your AV over IP control needs. Loaded out of the box with Aurora's own IPBaseT Manager control server. The RXS-1 comes packed with an Intel Core i5 processor, 8GB RAM, an 128GB SSD, and a 3-year warranty. The RXS-1 is designed to interface with Aurora's AV over IP line of transceiver products. Seamless integration with the VLX and IPX product lines allows for easy setup and faster installations.
Key Features
- IPBaseT Manager Control Server
- 2 HDMI Outputs
- Two 1Gbps LAN ports
- Four USB 2.0
- Four USB 3.0
- Fiber Optic Audio Output
- Mic Input
- Speaker/Line Out
- Integrated Wi-Fi
- SD Card
- Windows 10 OS
- Intel i5 Processor
- 128GB SSD
- Fanless Design
Technical Specifications
Processor
Intel Core i5-5200U 2.2GHz Dual Core
Memory
8GB RAM
Storage
128 GB SSD + SD Card Slot
Graphics
Intel HD graphics 5500 graphis card (32-bit color depth)
HDMI
Two HDMI 4K30 4:4:4
Audio
Mic, Speaker/Line, Optical
Wi-Fi
300M Internal
USB 2.0
4 Type A
USB 3.0
4 Type A
LAN
Two 1G RJ-45
Mechanical
Housing
Metal Enclosure
Dimensions
22.4 x 17.7 x 4.9cm (8.81” x 6.96” x 1.92”)
Weight
1.66kg (3.66 lbs.)
Mounting
Desktop horizontal or vertical
Power Supply
12V 5A DC
Power Consumption
60 Watts Max
Operation Temperature
0 - 40 Celsius <32 ~ 104 Farenheit>
Storage Temperature
-20 - 60 Celsius <-4 ~ 140 Farenheit>
Relative Humidity
20 ~ 90% RH
