Aurora TAV-BX1 TAVIS Standalone Infrared Temperature Sensing Kit, B...
Aurora TAV-BX1 TAVIS Standalone Infrared Temperature Sensing Kit, Black

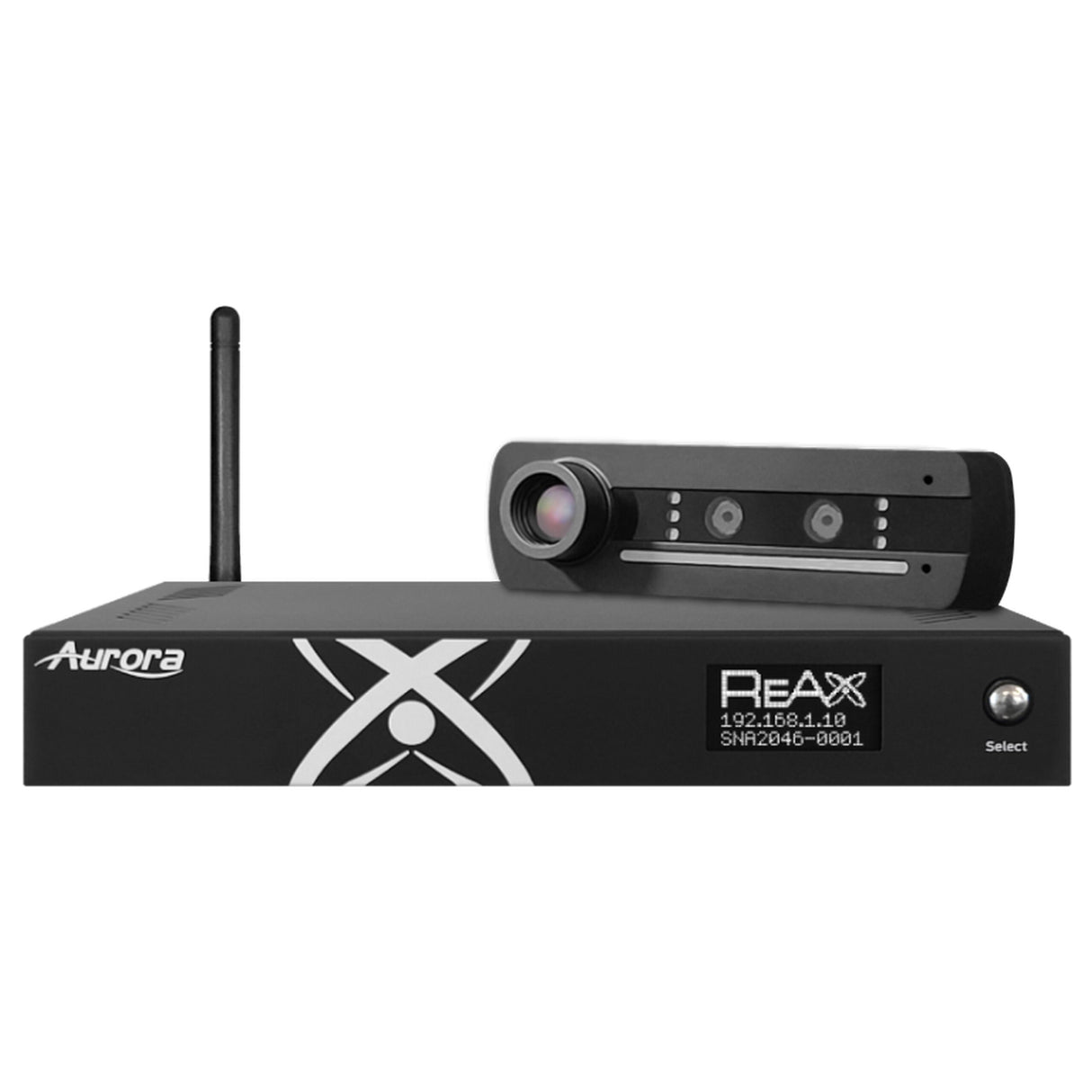

The TAVIS (Thermal AudioVisual Integrated Solution) TAV-BX1 is an all-in-one infrared temperature sensing solution comprised of the RXM-1 ReAX Media Server and the TAV-A80 Thermal Camera Unit. It is the ultimate way to turn any display into a full featured temperature sensor and much more. It is a perfect solution for creating custom kiosks or advanced digital signage with analytics. To ensure that people entering a location are not presenting a high temperature, the TAV-BX1 will provide alerts when a person is running a high temperature within 1 second from up to 5 feet (1.5 meters) away. The system uses advanced algorithm for detecting and calculating heat signatures even the tear ducts (Canthus) at close distances, achieving more accurate readings with IR technology. The highly accurate 80-64 sensor measures with a tolerance of +/- 0.3 degrees Celsius (+/- 0.5 degrees Fahrenheit).
Key Features
- Photo & thermal result email alerts
- 2 person forehead scanning
- Digital signage capabilities
- QR code scanning
- Mask detection and enforcement
- Gesture detection for hands-free questionnaire responses
- Configurable min/max temperature thresholds, mask enforcement, questionnaire, alerts, digital signage, and more
- ReAX control engine for automation & integration with third-party devices and access systems
- Streaming camera feed for security and remote viewing
Technical Specifications
Hardware & OS
CPU
RK3399 Cortex Six core Processor 1.8GHz/1.4GHz
RAM
4GB DDR3
ROM
32GB eMMC Flash
OS
Android 9 or Linux Debian 9 (Coming Q1)
Video/Audio
Video Output
HDMI 2.0 output
Audio Output
Line out
Communication
Bluetooth
EDR 4.0
WiFi
802.11 b/g/n 2.4GHz and 5GHz
Ethernet
10/100/1000 LAN
General Information
I/O

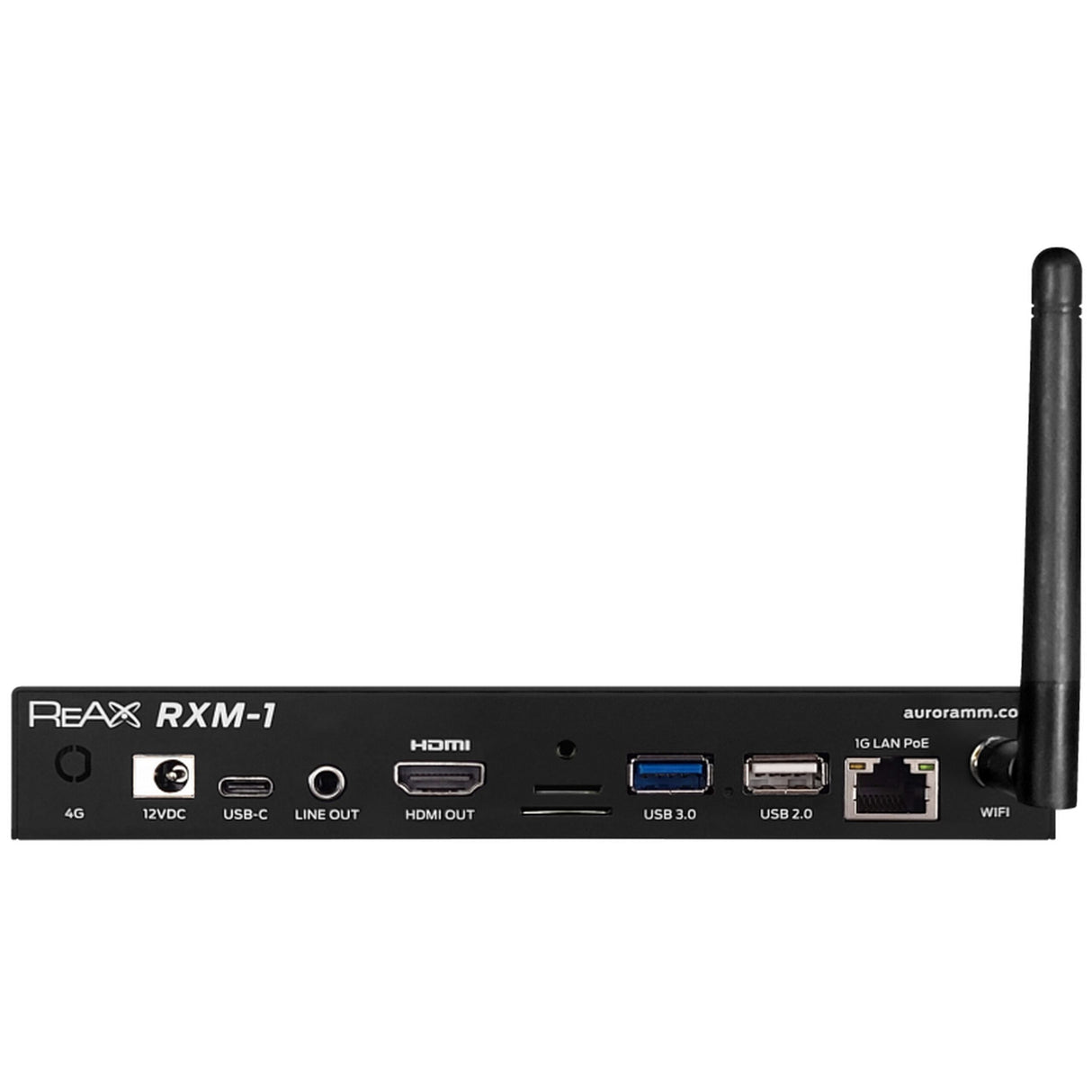

12v DC Input, USB Type C, 3.5mm Audio Line L/R Out, HDMI 2.0 Output, SD Card Slot, SIM Card Slot (4G Option), USB 3.0, USB 2.0, 1G LAN PoE
AV Capability
Front Facing Binocular Camera 2 MP fixed focus
Included in Box
RXM-1, TAV-A80, Power Adapter, Power Cable, WIFI Antenna, Mounting Ears
Power Consumption
11W
Power Input
12V 2A or PoE
Operating Environment Temperature
Operating: 32F to 100'F (0C to 40C); Storage: -4 F to 122F (-20'C to 50C)
Operating Environment Humidity
Operating: 20%-80%; Storage- 10%-95%
Certification
CE, FCC, ROHS
Language
Multi language
VESA
VESA 75
Warranty
3 Years
Infrared Temperature Sensor
Size
125mm x 36.44mm x 27.20mm (39.67mm deep including lens)
Temperature check distance
0.3m-1.5m
Physical
RXM-1 Slze (WxHxD)
177mm x 104.2mm x 27.3mm (6.97” x 4.1” x 1.07”)
