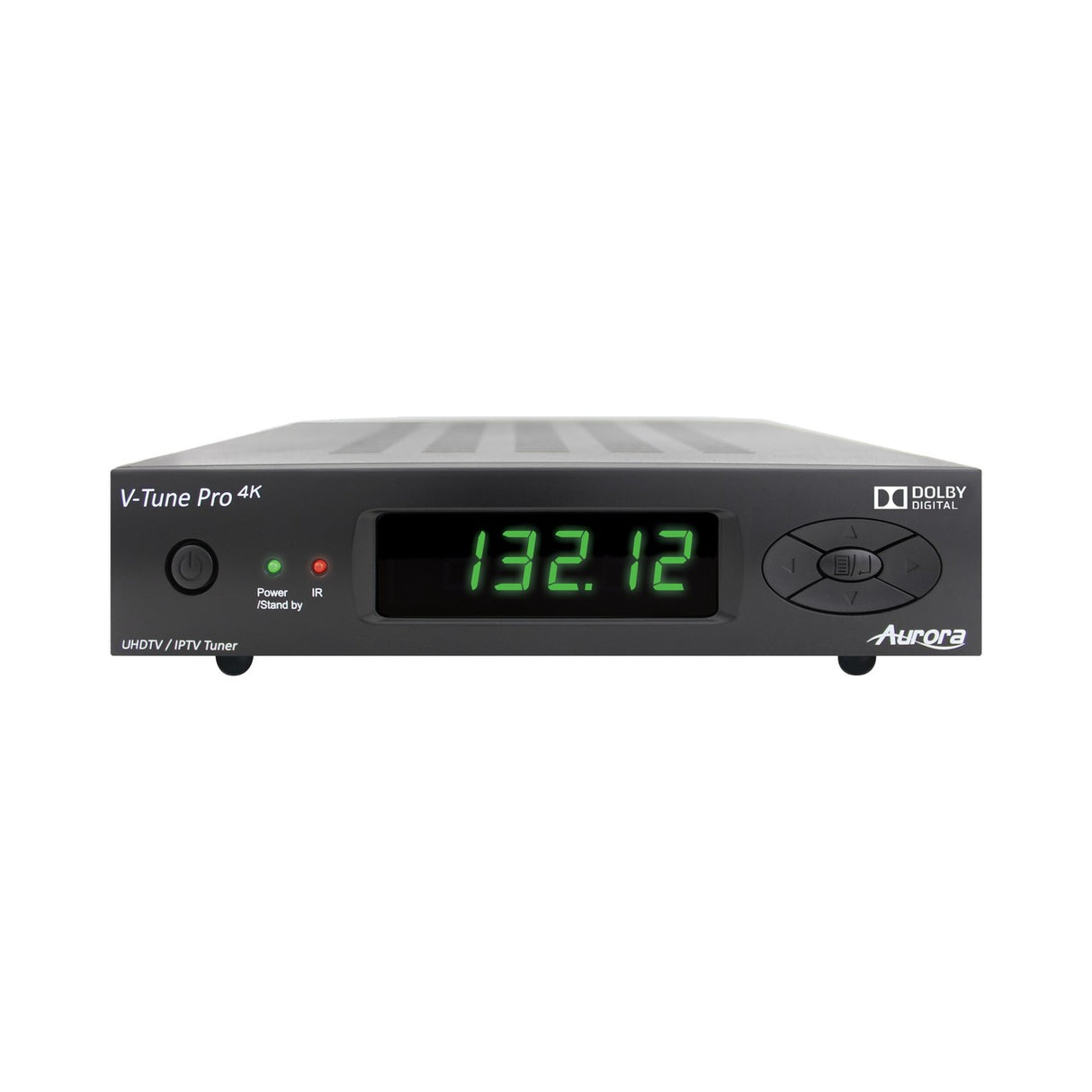

Aurora V-Tune Pro 4K ATSC/QAM/NTSC/IPTV Tuner
The V-Tune Pro 4K delivers a total 4K2K High Definition ATSC/QAM/NTSC tuning solution for any integrated system which requires IPTV, ATSC, QAM, and NTSC. The tuner is capable of decoding MPEG2, MPEG4, VC-1, H.264, and H.265 with resolutions up to 4K @ 60Hz via RF and LAN. The V-Tune 4K is integrator-friendly with IR, RS-232 and IP-based control. The video outputs are HDMI 2.0 for the latest connectivity and composite/YPbPr video for legacy. Audio is provided with unbalanced stereo RCA connections, S/PDIF, and optical. The VTune Pro 4K defines versatility as it can be fit into nearly any integrated system topology.
Key Features
- IPTV (UDP/RTP/RTSP Multicast and Unicast)
- Digital Ultra High Definition Tuning ATSC/QAM/NTSC
- NTSC & Analog Tuning
- H.265, H.264, MPEG 4, MPEG2, and VC-1 up to 4K2K
- HDMI 2.0, Composite, and YPbPr Outputs
- Resolutions: 480i, 480p, 720p, 1080i, 1080p, 4K (UHD), 4K2K (4096x2160 @ 60Hz)
- Stereo L/R, S/PDIF, and Optical Audio Outputs
- Dolby Digital Surround Sound
- OSD Menus, Closed Captioning, V-Chip, & EPG
- 1RU Single/Dual Rack Mount Ears and IR Remote Included
- RS-232 / LAN / IR Remote Control
- Firmware Upgradeable and Cloning via USB port or LAN
- Built in Web Page Remote Control
Technical Specifications
Video
RF Input Demodulation
ATSC / QAM / NTSC (PAL / DVB not supported)
IP Stream Formats
H.265 / HEVC Main Profile, H.264 / AVC Main and High Profile, MPEG-2, MPEG-4, VC-1
IP Stream Protocol
RTSP, RTP (Real-time Transport Protocol),UDP
Output Resolution
480i, 480p, 576i, 576p, 720p, 1080i, 1080p24/30/50/60, 3840x2160p24/25/30/50/60 (UHD) and 4096x2160p24/25/30/50/60
Color Space
8, 10, or 12-bit at 4:2:2 and 4:2:0, 8-bit 4:4:4
Decoding Specifications
H.265 / HEVC Main Profile, MPEG-2 "MP@HL" and "MP@ML" decoder,H.264/AVC main and high profile to level 4.1,VC-1 advanced profile @ level 3,VC-1 simple and main profile,MPEG-4 Part 2 Simple profile @ Level 4,MPEG-4 Part 2 Advanced Simple profile @ Level 5 (SD only),Advanced Audio Coding (AAC)
Aspect Ratio
19:10/16:9 / 4:3

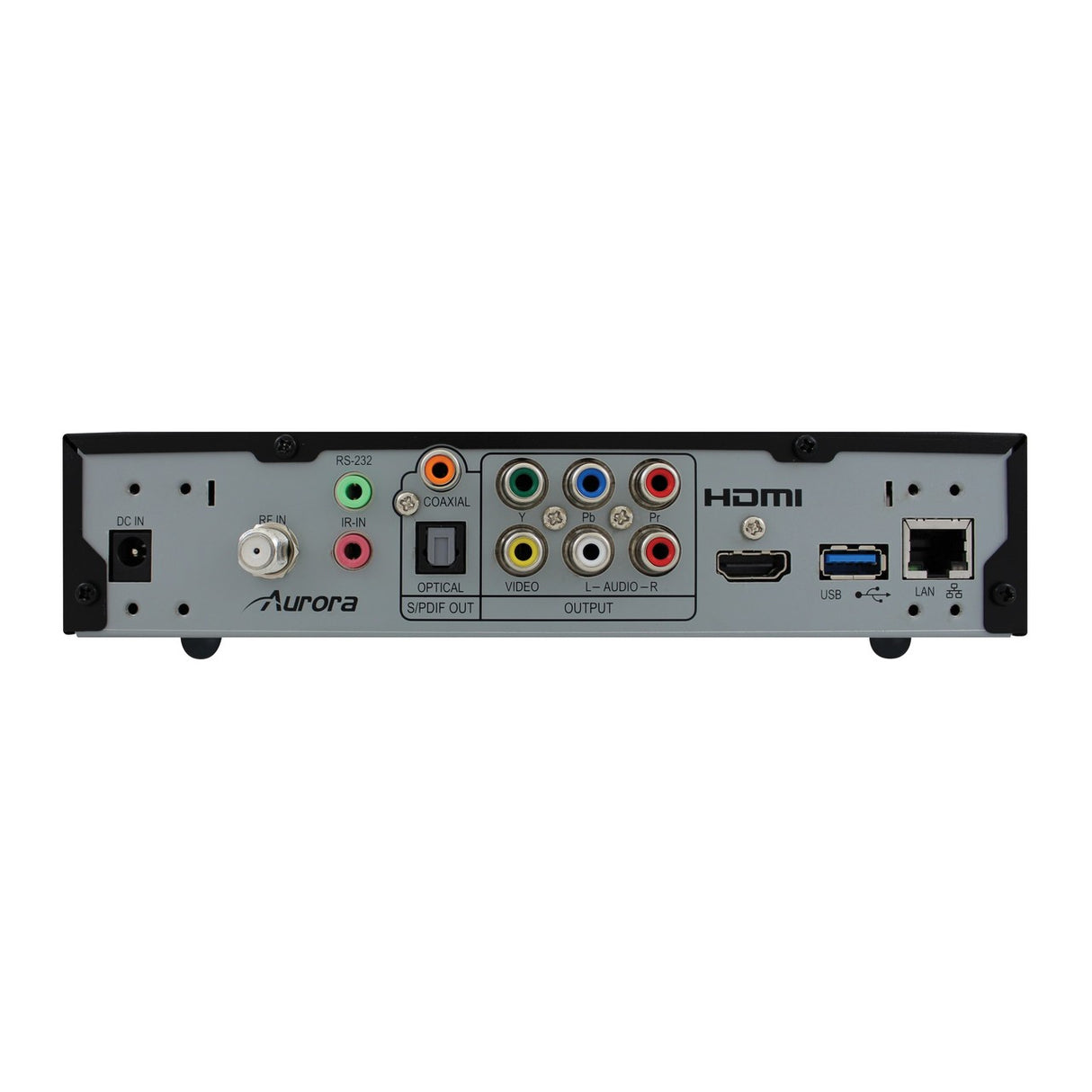

Video Outputs
HDMI 2.0 (HDCP Compliant), Composite Video, Component Video
Display Compatibility
Compatible with UHDTV, HDTV, EDTV and SDTV displays
Other Features
Closed captioning, V-Chip support, automatic or manual channel scan, USB port for firmware upgrade & Cloning
Audio
Connectors
Stereo RCA, S/PDIF Coaxial and Optical
Control
Control Methods
RS-232, LAN Control 10/100/1000 Mbps
Connectors
TRS (RS-232), RJ-45 Jack (LAN)
Power
Operating Voltage
12V DC 2A
Standby
0.05A (6Watts)
SD/HD/UHD/IPTV Tuning
0.18A (21.6Watts)
Physical
Dimensions (WxDxH)
8.5" x 7" x 1.75" <216 x 178 x 44.5mm>
Weight
2.2lbs <1.0kg>
