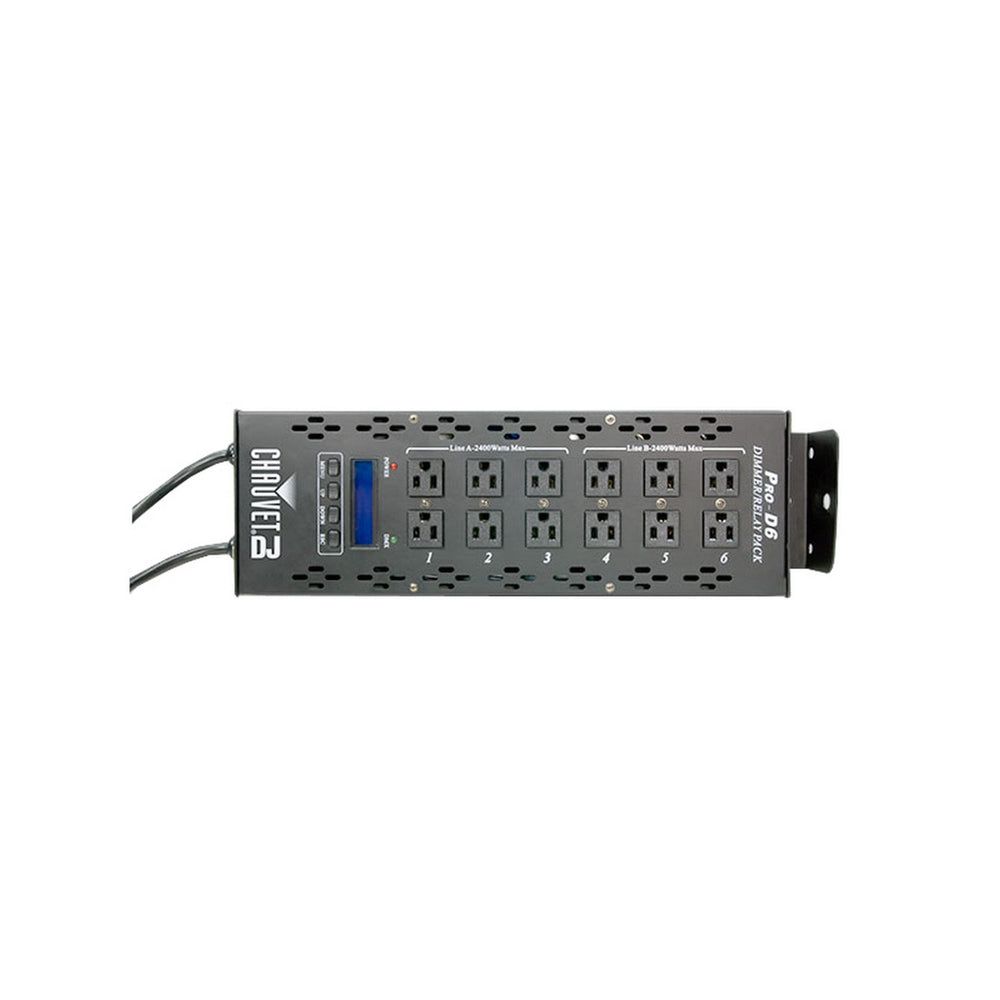

Chauvet DJ Pro-D6 6-Channel DMX-512 Dimmer/Switch

The Pro D6 is a 6-channel DMX-512 dimmer/switch pack designed to work on multiple voltages (115V and 230V) simultaneously, and comes fitted with 20 amp connectors for this purpose. It offers variable electronic dimming and each channel can be set as either dimmer or relay.

Key Features

• 6-channel DMX dimmer/relay pack
• Increase control by setting each channel to any DMX address
• Increase flexibility by setting each channel as either a dimmer or relay
• Features a variable electronic dimmer (0 to 100%)
• Optional square, switch or linear dimming curves for each channel
• Dual 20 A power lines (requires 2 separate circuits on the same phase)
• Increase options with an individual switch, circuit breaker and plug per line
• Accommodates different input voltages simultaneously
• Includes 2 Edison plugs per channel

Technical Specifications

DMX Channels
6
DMX Connectors
3-pin
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Weight
9.3 lb (4.2 kg)
Size
19.3 x 5.5 x 3.9 in (491 x 140 x 98.5 mm)
Approvals
CE
Output
10 A (per channel), 20 A (per power line), 40 A (max)
Breaker Size
20 A 250 V
WHAT'S INCLUDED
6-channel DMX dimmer/relay pack
Set each channel to any DMX address
Features a variable electronic dimmer (0 to 100%)
Includes 2 Edison plugs per channel
