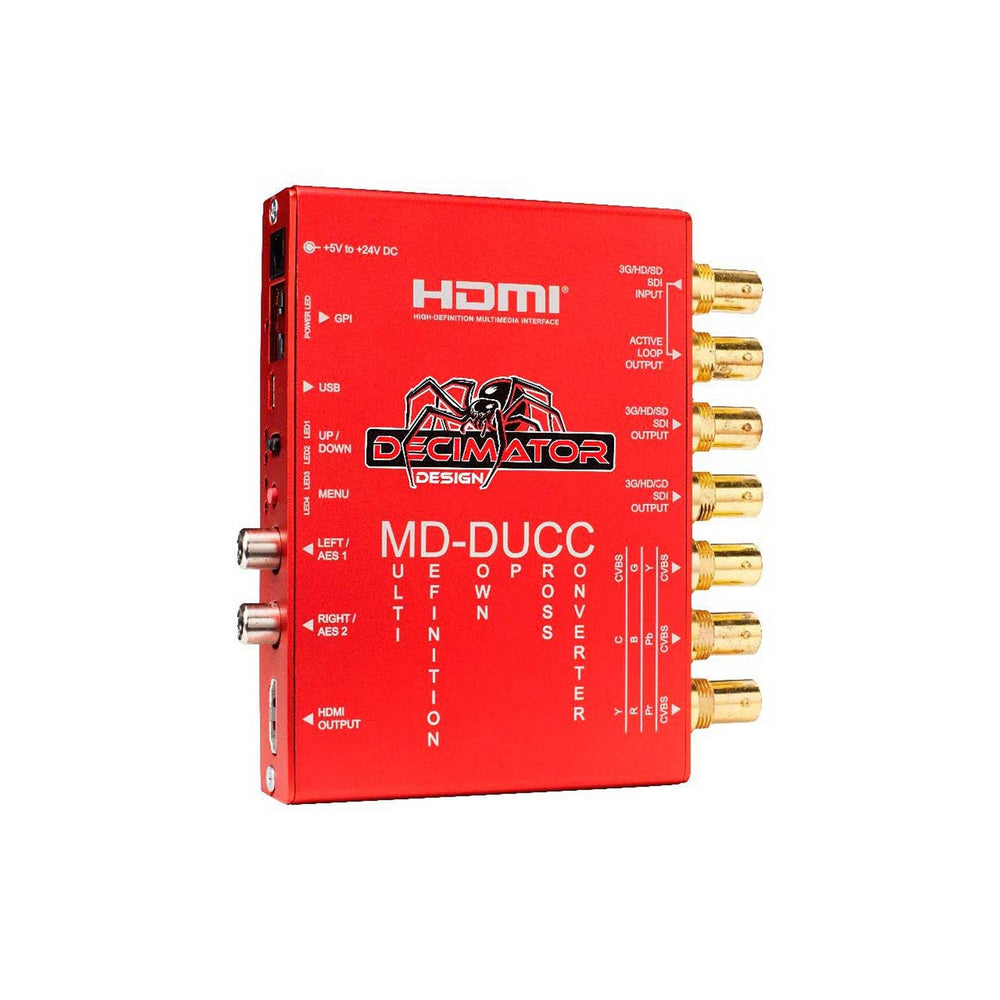

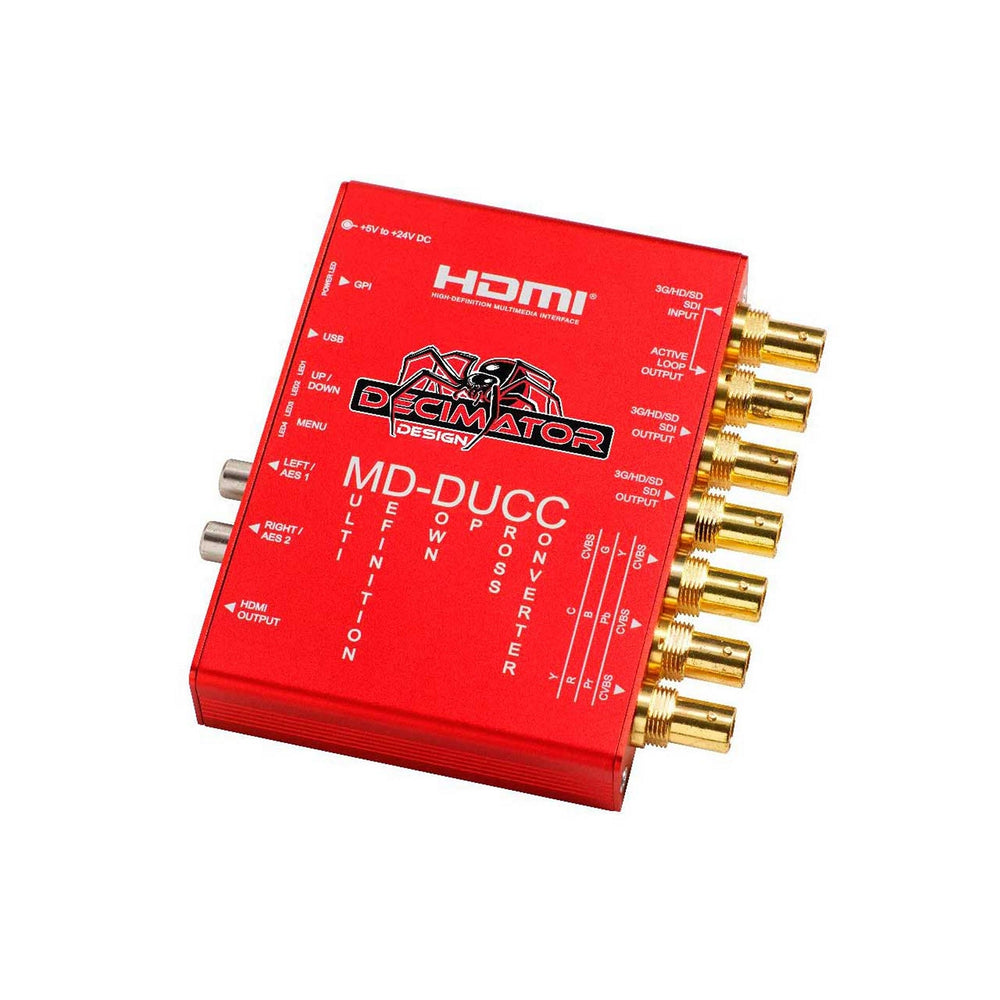

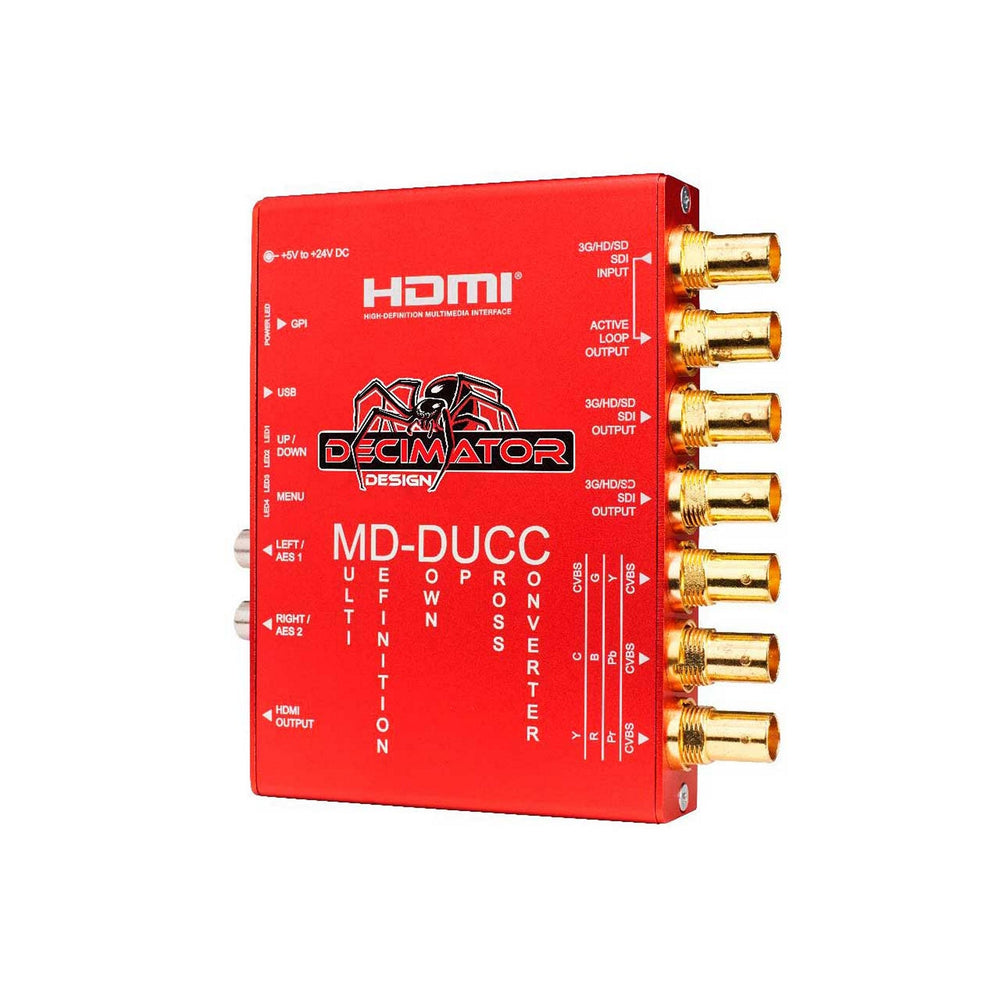

Decimator Design MD-DUCC SDI to HDMI and Analog Converter

Decimator Design MD-DUCC SDI to HDMI and Analog Converter

Multi-Definition Down Up Cross Converter (3G/HD/SD)-SDI to (3G/HD/SD)-SDI, HDMI and Analogue Video with 2 x AES/EBU or 2 x Analogue Audio Outputs

Key Features

• Support both 3G level A and B on the input and output. Allowing conversion between A and B.
• Horizontal and/or Vertical image flipping via the built in scaler.
• Auto detects 3G, HD or SD (26 Formats in total)
• Full 10-bit data path and multipoint interpolation
• Professional motion-adaptive de-interlacing

Technical Specifications

Complete 16:9, 14:9 and 4:3 Aspect ratio conversion support, with individual selection for HD to HD, HD to SD, SD to HD and SD to SD conversions
Full 16-Channel Audio metering with
- Any of the 4 audio groups individually selectable
- Vertical or Horizontal Bars
- AES, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
- Bar & Float, Bar only or Float only
- Transparency adjustment
- Separate Bar and Float Ballistics control
- Adjustable Reference level
- Red, Yellow and Green Range adjustment
- Bar thickness adjustment
- Margin adjustment
Adjustable Graticules Generator with
- Separate enables for Safe Action, Safe Title and Centre Cross
- Adjustable position for either Safe Action or Safe Title
- Adjustable colours for Safe Action, Safe Title and Centre Cross
Text Overlays with
- (NEW) Custom Position, Size and Justification
- Adjustable Foreground and Background colours
- Adjustable 16 character text
- Current input format status
The audio source for all 4 stereo pairs in the HDMI output can be selected from the 8 stereo pairs available in the SDI input
When scaling is enabled, the audio source for all 8 stereo pairs in the SDI output can be selected from the 8 stereo pairs available in the SDI input
HDMI output
Selectable analogue video output from
- 3 x CVBS out
- YPbPr out
- RGB out
- CVBS & YC out
2 x (3G/HD/SD)-SDI 10-bit outputs with audio from input automatically delayed and passed
GPI on RJ-45 for Tallies
3G/HD/SD-SDI Active Loop-Through Output
De-Embedded audio can be output on 2 x RCA connectors as either AES or Analogue with adjustable analogue audio level
LEDs for status and buttons for basic configuration
USB port for control and firmware updates
Locking DC Power Socket
The following is also included with the unit
- Power Supply, HDMI Cable, USB Cable and Mounting Bracket
