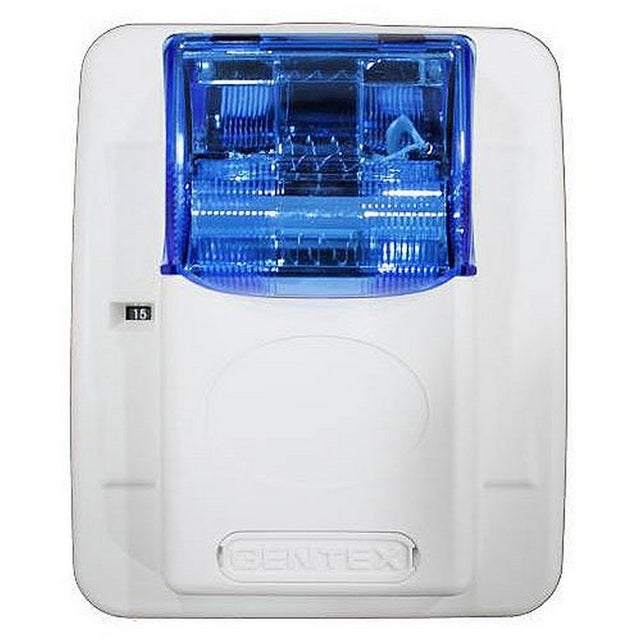

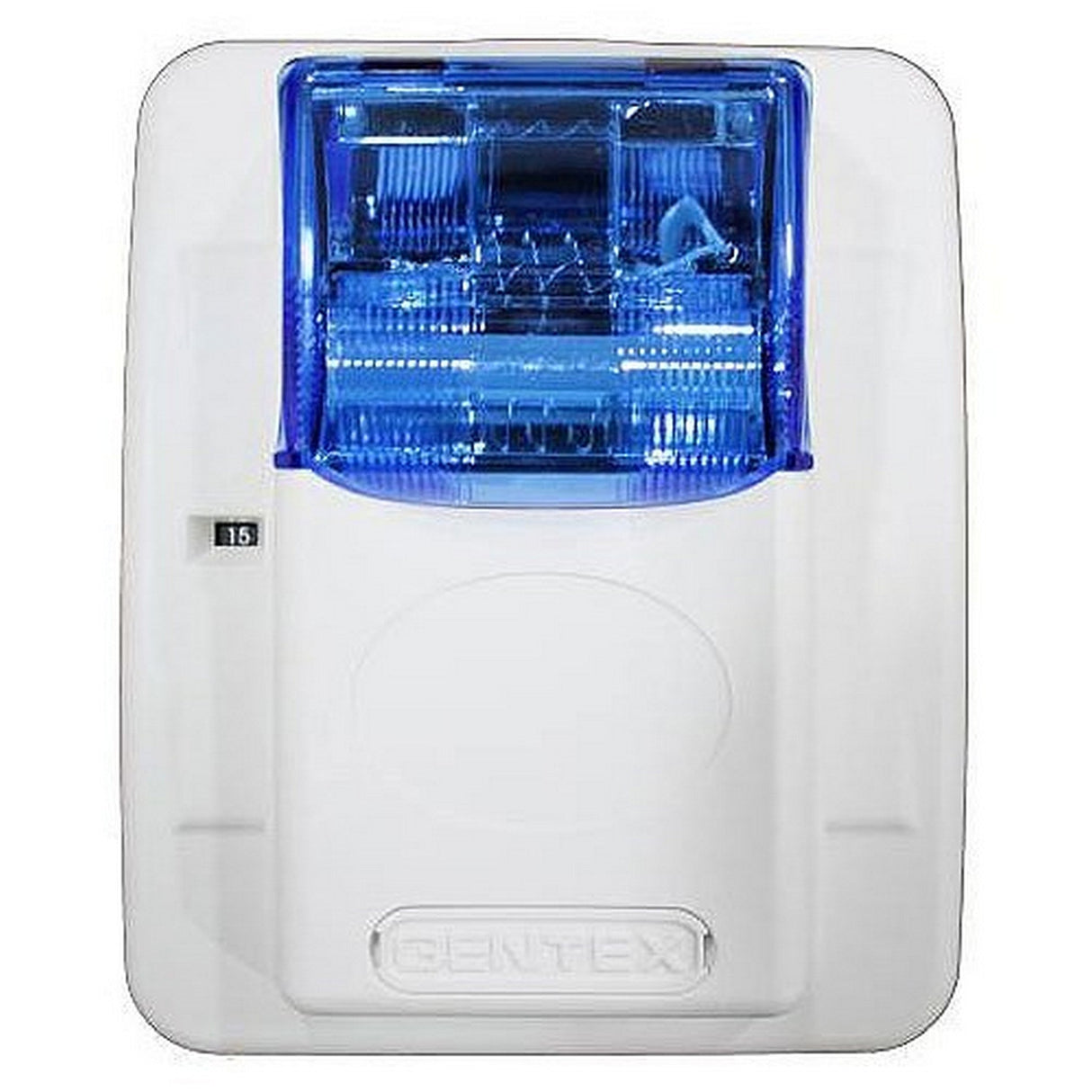

Gentex Colored Lens Series Horn/Strobe, Blue Lens, White
Gentex Colored Lens Series Horn/Strobe, Blue Lens, White
Gentex Colored Lens Series Horn/Strobe, Blue Lens, White
The Gentex GEC Series offers a versatile range of fire alarm notification appliances designed to provide reliable and clear audible and visual alerts in emergency situations. This series includes three types of units: the low profile GES strobe, the GEC combination horn/strobe, and the GEH horn. Whether you need visual signaling, audible alarms, or a combination of both, these devices are ideal for a variety of applications, including commercial, industrial, and residential settings.
The GEC Series offers fixed candela models of 15/75 candela and 177 candela options, providing flexibility for different environments. All units are listed to ANSI/UL 464 and ANSI/UL 1971, and comply with the NFPA 72, IBC, IFC, and IRC Standards, ensuring that they meet the highest safety and regulatory requirements. The GEH Series provides an audible alarm solution in the form of a powerful horn, perfect for installations where visual signals are not needed.
These notification appliances offer a range of advanced features such as SuperSlideĀ® Bracket for easy supervision testing, CheckmateĀ® for instant voltage verification, and compatibility with the Gentex AVSM control module for synchronized operation of both strobe and/or horn. The units can be easily pre-wired and installed with a mounting bracket, simplifying the installation process and reducing operational costs.
Standard Features
- Lower installation and operating costs for efficient setup
- Nominal voltage of 24VDC for standard power operation
- SuperSlideĀ® bracket for easy supervision testing and installation
- CheckmateĀ® for instant voltage verification to ensure proper functionality
- Synchronized strobe and/or horn operation with Gentex AVSM control module
- Pre-wire the system, install the mounting bracket, then simply install the signals
- Input terminals support 12 to 18 AWG wire gauge for easy connection
- Switch selection for high or low dBA audio output
- Switchable tones: Chime, Whoop, Mechanical, or 2400Hz tone
- Audible signal options: Continuous or Temporal 3 (note: not available on Whoop tone)
- Tamperproof re-entrant grill to prevent unauthorized access
- Surface mountable with the Gentex Surface Box (GSB) for easy installation
- Ability to silence audible signal while visual appliance continues flashing
- Rugged die-cast metal mounting bracket for durability
